Blackmagic Products - Final Version

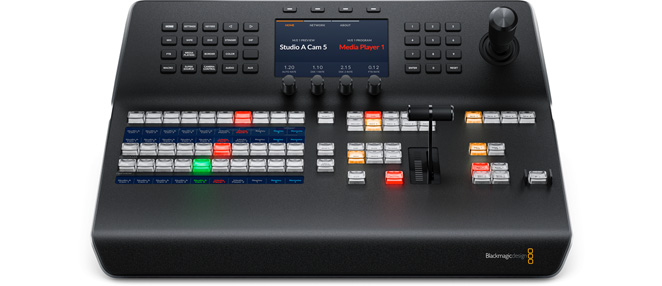

ATEM 1 M/E Advanced Panel 10

HK$26,850

Add to Compare

ATEM 1 M/E Advanced Panel 10

Price: HK$26,850
Description: The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.
Ethernet: 2 x 10/100/1000 BaseT with loop output for additional control panels or computers
Software_Updates: 1 x USB-C for firmware updates
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Usage: 45W
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: Up to 95%
Connections: Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers Software Updates 1 x USB-C for firmware updates
Product_Specifics: Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 3 rows 24 character LCD On-Air indicator 4 Power Status Indicators None DSK Transition Selectors Auto, Cut, Tie/Preview. Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 20 buttons Dedicated Macro Buttons 10 Multi Control Buttons None Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software: Software Applications ATEM Software Control Panel.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Input Voltage 1 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 45W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
What's_Included: ATEM 1 M/E Advanced Panel 10
Warranty: 1 Year Limited Manufacturer’s Warranty.
Direct_Cross Points: 10
Shifted_Cross_Points: 20
Crosspoint_Button Type: Tri-Color LED
Crosspoint Label: 3 rows 24 character LCD
On-Air Indicator: 4
Power_Status Indicators: None
Dsk_Transition Selectors: Auto, Cut, Tie/Preview.
Preview Transition: 1
Transition_Rate Displays: Via main menu
Lcd_Menu Displays: 3
Menu_Control: 20 buttons
Dedicated_Macro Buttons: 10
Multi_Control Buttons: None
Destination Bus: 1
Source_Select Bus: 1
Fader Bar: 1
3_Axis Joystick: 1
Numeric Keypad: 1
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 1 x Internal 100 - 240V AC.
Redundant_Power: Yes

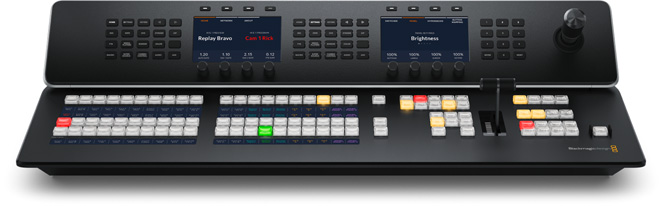

ATEM 1 M/E Advanced Panel 20

HK$31,700

Add to Compare

ATEM 1 M/E Advanced Panel 20

Price: HK$31,700
Description: The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Software_Updates: 1 x USB-C for firmware updates.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Usage: 75W
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 95% non-condensing
Connections: Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 20 Shifted Cross Points 40 Crosspoint Button Type Tri-Color LED Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 2 Menu Control 2 x 20 buttons Dedicated Macro Buttons 1 x 20 Transport Control Buttons 8 Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software: Software Applications ATEM Software Control Panel.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 75W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 95% non-condensing
What's_Included: ATEM 1 M/E Advanced Panel 20 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 20
Shifted_Cross_Points: 40
Crosspoint_Button_Type: Tri-Color LED
Preview_Transition: 1
Transition_Rate_Displays: Via main menu
Lcd_Menu_Displays: 2
Menu_Control: 2 x 20 buttons
Dedicated_Macro_Buttons: 1 x 20
Transport_Control_Buttons: 8
Destination_Bus: 1
Source_Select_Bus: 1
Fader_Bar: 1
3_Axis_Joystick: 1
Numeric_Keypad: 1
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 2 x Internal 100 - 240V AC.
Redundant_Power: Yes

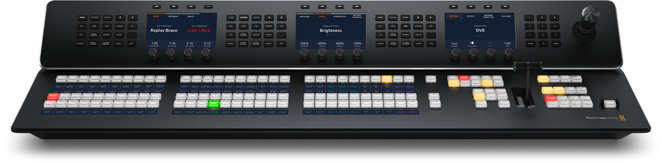

ATEM 1 M/E Advanced Panel 30

HK$45,800

Add to Compare

ATEM 1 M/E Advanced Panel 30

Price: HK$45,800
Description: The ATEM 1 M/E Advanced Panel 30 features a single M/E row, 30 input button design that is ideal for switching big productions from desk surfaces that are not deep enough for a bigger panel. It has 3 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and it also includes an independent select bus! Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Software_Updates: 1 x USB-C for firmware updates.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Usage: 80W
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 95% non-condensing
Connections: Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 30 Shifted Cross Points 60 Crosspoint Button Type Tri-Color LED Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 3 x 20 buttons Dedicated Macro Buttons 1 x 30 Transport Control Buttons 8 Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software: Software Applications ATEM Software Control Panel.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 80W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 95% non-condensing
What's_Included: ATEM 1 M/E Advanced Panel 30 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 30
Shifted_Cross_Points: 60
Crosspoint_Button_Type: Tri-Color LED
Preview_Transition: 1
Transition_Rate_Displays: Via main menu
Lcd_Menu_Displays: 3
Menu_Control: 3 x 20 buttons
Dedicated_Macro_Buttons: 1 x 30
Transport_Control_Buttons: 8
Destination_Bus: 1
Source_Select_Bus: 1
Fader_Bar: 1
3_Axis_Joystick: 1
Numeric_Keypad: 1
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 2 x Internal 100 - 240V AC.
Redundant_Power: Yes

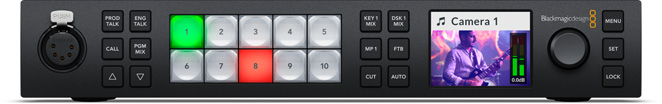

ATEM 1 M/E Constellation 4K

HK$23,300

Add to Compare

ATEM 1 M/E Constellation 4K

Price: HK$23,300
Description: ATEM 1 M/E Constellation 4K is a powerful 1 M/E Ultra HD live production switcher. It features 10 standards converted 12G-SDI inputs, 6 12G-SDI aux outputs, DVE, 4 ATEM Advanced Keyers, a 16 way multiview, media players and USB webcam output. You even get built in talkback and a professional 28 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs: 10
Total_Video_Outputs: 6
Sdi_Rates: 1.5G, 3G, 6G, 12G
Total_Audio_Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 1 x 5 pin XLR Talkback.
Timecode_Connections: None
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 10 inputs.
Frame_Rate_And_Format_Converters: On all 10 inputs.
Sdi_Audio_Inputs: 8 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 16 Ch embedded audio on all SDI outputs.
Sdi_Program_Outputs: Any of the 6 SDI outputs.
Sdi_Preview_Outputs: Any of the 6 SDI outputs.
Webcam_Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface: 1 x USB-C supports USB 2.0
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers: 4
Downstream_Keyers: 1
Advanced_Chroma_Keyers: 4
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 5
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 7
Pattern_Generators: 5
Color_Generators: 2
Dves: 1
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 16
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Multi_View_Monitoring: Multi View Monitoring 1 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters. Multi View Video Standard HD or Ultra HD
Multi_View_Video_Standard: HD or Ultra HD
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Clip_Capacity: 2 x up to 2160p60.
Media_Player_Clip_Length_In_720 Hd: 1600 frames.
Media_Player_Clip_Length_In_1080 Hd: 800 frames.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Front_Panel: Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 10 lines.
Audio_Mixer: 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: 1 x selectable HD down converted output
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC.
Power_Usage: 90 W
Physical_Installation: Physical Installation 2/3 rack unit width, 1 rack unit height. Optional Accessories Blackmagic Universal Rack Shelf
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non‑condensing
Connections: Total Video Inputs 10 Total Video Outputs 6 SDI Rates 1.5G, 3G, 6G, 12G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 10 inputs. Frame Rate and Format Converters On all 10 inputs. SDI Aux Outputs Any of the 6 SDI outputs. SDI Preview Outputs Any of the 6 SDI outputs. SDI Program Outputs Any of the 6 SDI outputs. Down Converted SDI Program Output 1 Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 12G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics: Upstream Keyers 4 Downstream Keyers 1 Advanced Chroma Keyers 4 DVEs 1 Linear/Luma Keyers 5 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 7 Pattern Generators 5 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Audio: USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Clip Capacity 2 x up to 2160p60. Media Player Clip Length in 720 HD 1600 frames. Media Player Clip Length in 1080 HD 800 frames. Media Player Clip Length in 2160 UHD 200 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Front panel Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 10 lines. Audio Mixer 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC. Power Usage 90 W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
What's_Included: ATEM 1 M/E Constellation 4K Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Down_Converted_Sdi_Program_Output: 1
Sdi_Aux_Outputs: Any of the 6 SDI outputs.
Total_Multi_Views: 1 x 12G-SDI
Ethernet: Supports 10/100/1000 BASE-T.
Media_Player_Clip_Length_In_2160_Uhd: 200 frames.
Optional_Accessories: Blackmagic Universal Rack Shelf

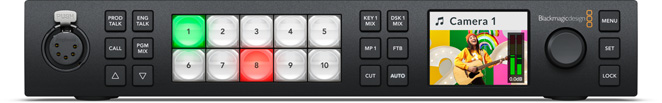

ATEM 1 M/E Constellation HD

HK$8,700

Add to Compare

ATEM 1 M/E Constellation HD

Price: HK$8,700
Description: ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!
Total_Video_Inputs: 10
Total_Video_Outputs: 6
Sdi_Rates: 1.5G, 3G
Total_Audio_Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 1 x 5 pin XLR Talkback.
Timecode_Connections: None
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 10 inputs.
Frame_Rate_And_Format_Converters: On all 10 inputs.
Sdi_Audio_Inputs: 8 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 16 Ch embedded audio on all SDI outputs.
Sdi_Program_Outputs: Any of the 6 SDI outputs.
Sdi_Preview_Outputs: Any of the 6 SDI outputs.
Webcam_Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface: 1 x USB-C supports USB 2.0
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Upstream_Keyers: 4
Downstream_Keyers: 1
Advanced_Chroma_Keyers: 4
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 5
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 7
Pattern_Generators: 5
Color_Generators: 2
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 16
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Multi_View_Monitoring: Multi View Monitoring 1 x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Clip_Capacity: 2 x up to 1080p60.
Media_Player_Clip_Length_In_720 Hd: 400 frames.
Media_Player_Clip_Length_In_1080 Hd: 200 frames.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Front_Panel: Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 10 lines.
Audio_Mixer: 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC.
Power_Usage: 36W
Physical_Installation: Physical Installation 2/3 rack unit width, 1 rack unit height. Optional Accessories Blackmagic Universal Rack Shelf
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 10 Total Video Outputs 6 SDI Rates 1.5G, 3G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 10 inputs. Frame Rate and Format Converters On all 10 inputs. SDI Aux Outputs Any of the 6 SDI outputs. SDI Preview Outputs Any of the 6 SDI outputs. SDI Program Outputs Any of the 6 SDI outputs. Down Converted SDI Program Output None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics: Upstream Keyers 4 Downstream Keyers 1 Advanced Chroma Keyers 4 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 5 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 7 Pattern Generators 5 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 16 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 400 frames. Media Player Clip Length in 1080 HD 200 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Front panel Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 10 lines. Audio Mixer 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC. Power Usage 36W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM 1 M/E Constellation HD Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Sdi_Aux_Outputs: Any of the 6 SDI outputs.
Total_Multi_Views: 1 x 3G-SDI
Ethernet: Supports 10/100/1000 BASE-T.
Optional_Accessories: Blackmagic Universal Rack Shelf
Down_Converted_Sdi_Program Output: None
Display_Minimum_Resolution: 1366 x 768
Media_Pool_Video_File Format: TGA Sequence.
Media_Pool_Audio_File Format: WAV, MP3 and AIFF.

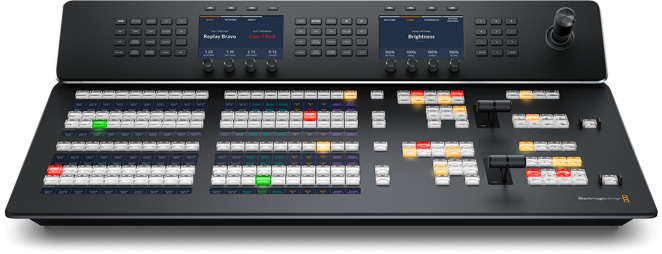

ATEM 2 M/E Advanced Panel 20

HK$52,500

Add to Compare

ATEM 2 M/E Advanced Panel 20

Price: HK$52,500
Description: The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates: 1 x USB-C for firmware updates.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Usage: 100W
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: Up to 95%
Connections: Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics: Number of Mix Effects Rows 2 Direct Cross Points 20 Shifted Cross Points 40 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 8 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 2 Menu Control 2 x 20 buttons Dedicated Macro Buttons 2 x 20 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software: Software Applications ATEM Software Control Panel.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 100W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
What's_Included: ATEM 2 M/E Advanced Panel 20
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows: 2
Direct_Cross_Points: 20
Shifted_Cross_Points: 40
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
On-Air_Indicator: 8
Power_Status_Indicators: None
Dsk_Transition_Selectors: 4 x Auto, Cut, Tie/Preview
Preview_Transition: 2
Transition_Rate_Displays: Via main menu
Lcd_Menu_Displays: 2
Menu_Control: 2 x 20 buttons
Dedicated_Macro_Buttons: 2 x 20
Transport_Control_Buttons: 8
Destination_Bus: 2
Source_Select_Bus: 2
Fader_Bar: 2
3_Axis_Joystick: 1
Numeric_Keypad: 1
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 2 x Internal 100 - 240V AC.
Redundant_Power: Yes

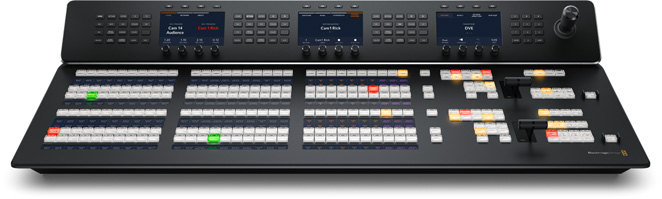

ATEM 2 M/E Advanced Panel 30

HK$63,050

Add to Compare

ATEM 2 M/E Advanced Panel 30

Price: HK$63,050
Description: The 2 M/E model features 2 M/E rows with 30 input buttons and 3 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates: 1 x USB-C for firmware updates.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Usage: 120W
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: Up to 95%
Connections: Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics: Number of Mix Effects Rows 2 Direct Cross Points 30 Shifted Cross Points 60 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 12 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 3 x 20 buttons Dedicated Macro Buttons 2 x 30 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software: Software Applications ATEM Software Control Panel.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 120W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
What's_Included: ATEM 2 M/E Advanced Panel 30 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows: 2
Direct_Cross_Points: 30
Shifted_Cross_Points: 60
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
On-Air_Indicator: 12
Power_Status_Indicators: None
Dsk_Transition_Selectors: 4 x Auto, Cut, Tie/Preview
Preview_Transition: 2
Transition_Rate_Displays: Via main menu
Lcd_Menu_Displays: 3
Menu_Control: 3 x 20 buttons
Dedicated_Macro_Buttons: 2 x 30
Transport_Control_Buttons: 8
Destination_Bus: 2
Source_Select_Bus: 2
Fader_Bar: 2
3_Axis_Joystick: 1
Numeric_Keypad: 1
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 2 x Internal 100 - 240V AC.
Redundant_Power: Yes

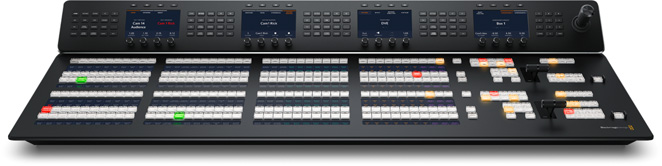

ATEM 2 M/E Advanced Panel 40

HK$80,250

Add to Compare

ATEM 2 M/E Advanced Panel 40

Price: HK$80,250
Description: The 2 M/E model features 2 M/E rows with 40 input buttons and 4 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates: 1 x USB-C for firmware updates.
N/A: 1 Year Limited Manufacturer’s Warranty.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: Up to 95%
Connections: Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics: Number of Mix Effects Rows 2 Direct Cross Points 40 Shifted Cross Points 80 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 12 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 4 Menu Control 4 x 20 buttons Dedicated Macro Buttons 2 x 40 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software: Software Applications ATEM Software Control Panel.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 160W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
What's_Included: ATEM 2 M/E Advanced Panel 40 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows: 2
Direct_Cross_Points: 40
Shifted_Cross_Points: 80
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
On-Air_Indicator: 12
Power_Status_Indicators: None
Dsk_Transition_Selectors: 4 x Auto, Cut, Tie/Preview
Preview_Transition: 2
Transition_Rate_Displays: Via main menu
Lcd_Menu_Displays: 4
Menu_Control: 4 x 20 buttons
Dedicated_Macro_Buttons: 2 x 40
Transport_Control_Buttons: 8
Destination_Bus: 2
Source_Select_Bus: 2
Fader_Bar: 2
3_Axis_Joystick: 1
Numeric_Keypad: 1
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 2 x Internal 100 - 240V AC.
Redundant_Power: Yes

ATEM 2 M/E Constellation 4K

HK$41,200

Add to Compare

ATEM 2 M/E Constellation 4K

Price: HK$41,200
Description: ATEM 2 M/E Constellation 4K is a powerful 2 M/E Ultra HD live production switcher. It features 20 standards converted 12G-SDI inputs, 12 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, media players, USB webcam output and a SuperSource for a total of 6 DVEs. You even get built in talkback and a professional 48 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs: 20
Total_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G, 6G, 12G
Total_Audio_Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 1 x 5 pin XLR Talkback.
Timecode_Connections: None
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 20 inputs.
Frame_Rate_And_Format_Converters: On all 20 inputs.
Sdi_Audio_Inputs: 8 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 16 Ch embedded audio on all SDI outputs.
Sdi_Preview_Outputs: Any of the 12 SDI outputs.
Webcam_Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface: 1 x USB-C supports USB 2.0
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers: 8
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 8
Supersource: 1
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 11
Transition_Keyer_(Stinger/Dve): 2 Stinger, 2 DVE.
Total_Number_Of_Layers: 15
Pattern_Generators: 11
Color_Generators: 2
Dves: 2
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 32
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Multi_View_Monitoring: Multi View Monitoring 2 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters. Multi View Video Standard HD or Ultra HD
Multi_View_Video_Standard: HD or Ultra HD
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 40
Media_Pool_Clip_Capacity: 2 x up to 2160p60.
Media_Player_Clip_Length_In_720 Hd: 3200 frames.
Media_Player_Clip_Length_In_1080 Hd: 1600 frames.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Front_Panel: Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 10 lines.
Audio_Mixer: 48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: 1 x selectable HD down converted output
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC.
Power_Usage: 140 W
Physical_Installation: Physical Installation 1 Rack Unit Size.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non‑condensing
Connections: Total Video Inputs 20 Total Video Outputs 12 SDI Rates 1.5G, 3G, 6G, 12G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 20 inputs. Frame Rate and Format Converters On all 20 inputs. SDI Aux Outputs Any of the 12 SDI outputs. SDI Preview Outputs Any of the 12 SDI outputs. SDI Preview Outputs Any of the 12 SDI outputs. Down Converted SDI Program Output 1 Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 2 x 12G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics: Upstream Keyers 8 Downstream Keyers 2 Advanced Chroma Keyers 8 SuperSource 1 DVEs 2 Linear/Luma Keyers 11 Transition Keyer (Stinger/DVE) 2 Stinger, 2 DVE. Total Number of Layers 15 Pattern Generators 11 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 32 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Audio: USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 40 Media Pool Clip Capacity 2 x up to 2160p60. Media Player Clip Length in 720 HD 3200 frames. Media Player Clip Length in 1080 HD 1600 frames. Media Player Clip Length in 2160 UHD 400 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Front panel Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 10 lines. Audio Mixer 48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC. Power Usage 140 W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
What's_Included: ATEM 2 M/E Constellation 4K Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Down_Converted_Sdi_Program_Output: 1
Sdi_Aux_Outputs: Any of the 12 SDI outputs.
Total_Multi_Views: 2 x 12G-SDI
Ethernet: Supports 10/100/1000 BASE-T.
Media_Player_Clip_Length_In_2160_Uhd: 400 frames.

ATEM 2 M/E Constellation HD

HK$14,800

Add to Compare

ATEM 2 M/E Constellation HD

Price: HK$14,800
Description: ATEM 2 M/E Constellation HD is a high definition live production switcher packed with advanced features! The 2 M/E design includes 20 standards converted 3G‑SDI inputs and 12 independent 3G‑SDI aux outputs! It also includes a USB webcam output, SuperSource processor, DVEs, chroma keyers, media players, multiviews and more! You even get built in talkback and a professional built in Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs: 20
Total_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G
Total_Audio_Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 1 x 5 pin XLR Talkback.
Timecode_Connections: None
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 20 inputs.
Frame_Rate_And_Format_Converters: On all 20 inputs.
Sdi_Audio_Inputs: 8 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 16 Ch embedded audio on all SDI outputs.
Sdi_Program_Outputs: Any of the 12 SDI outputs.
Sdi_Preview_Outputs: Any of the 12 SDI outputs.
Webcam_Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface: 1 x USB-C supports USB 2.0
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Upstream_Keyers: 8
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 8
Supersource: 1
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 11
Transition_Keyer_(Stinger/Dve): 2 Stinger, 2 DVE.
Total_Number_Of_Layers: 15
Pattern_Generators: 11
Color_Generators: 2
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 32
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Multi_View_Monitoring: Multi View Monitoring 2 x multi views each configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, M/Es, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 40
Media_Pool_Clip_Capacity: 2 x up to 1080p60.
Media_Player_Clip_Length_In_720 Hd: 800 frames.
Media_Player_Clip_Length_In_1080 Hd: 400 frames.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Front_Panel: Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 10 lines.
Audio_Mixer: 48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC.
Power_Usage: 52W
Physical_Installation: Physical Installation 1 Rack Unit Size.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 20 Total Video Outputs 12 SDI Rates 1.5G, 3G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 20 inputs. Frame Rate and Format Converters On all 20 inputs. SDI Aux Outputs Any of the 12 SDI outputs. SDI Preview Outputs Any of the 12 SDI outputs. SDI Program Outputs Any of the 12 SDI outputs. Down Converted SDI Program Output None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 2 x 3G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics: Upstream Keyers 8 Downstream Keyers 2 Advanced Chroma Keyers 8 SuperSource 1 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 11 Transition Keyer (Stinger/DVE) 2 Stinger, 2 DVE. Total Number of Layers 15 Pattern Generators 11 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 32 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 40 Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 800 frames. Media Player Clip Length in 1080 HD 400 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Front panel Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 10 lines. Audio Mixer 48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC. Power Usage 52W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM 2 M/E Constellation HD Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Sdi_Aux_Outputs: Any of the 12 SDI outputs.
Total_Multi_Views: 2 x 3G-SDI
Ethernet: Supports 10/100/1000 BASE-T.
Down_Converted_Sdi_Program Output: None
Display_Minimum_Resolution: 1366 x 768
Media_Pool_Video_File Format: TGA Sequence.
Media_Pool_Audio_File Format: WAV, MP3 and AIFF.

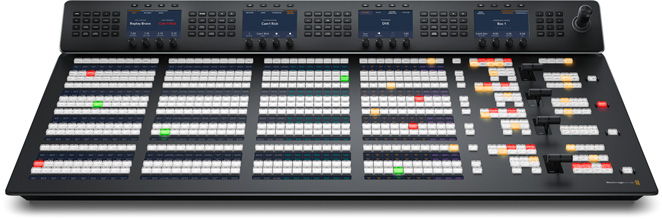

ATEM 4 M/E Advanced Panel 40

HK$158,700

Add to Compare

ATEM 4 M/E Advanced Panel 40

Price: HK$158,700
Description: This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!
Software_Updates: 1 x USB-C for firmware updates.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Usage: 250W
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: Up to 95%
Connections: Ethernet 4 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics: Number of Mix Effects Rows 4 Direct Cross Points 40 Shifted Cross Points 80 Crosspoint Button Type Tri-Color LED Crosspoint Label 10 rows 24 character LCD On-Air indicator 20 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 4 Transition Rate Displays Via main menu LCD Menu Displays 4 Menu Control 4 x 20 buttons Dedicated Macro Buttons 4 x 40 Transport Control Buttons 24 Destination Bus 4 Source Select Bus 4 Fader Bar 4 3 Axis Joystick 1 Numeric Keypad 1
Software: Software Applications ATEM Software Control Panel.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 250W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
What's_Included: ATEM 4 M/E Advanced Panel 40
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ethernet: 4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows: 4
Direct_Cross_Points: 40
Shifted_Cross_Points: 80
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 10 rows 24 character LCD
On-Air_Indicator: 20
Power_Status_Indicators: None
Dsk_Transition_Selectors: 4 x Auto, Cut, Tie/Preview
Preview_Transition: 4
Transition_Rate_Displays: Via main menu
Lcd_Menu_Displays: 4
Menu_Control: 4 x 20 buttons
Dedicated_Macro_Buttons: 4 x 40
Transport_Control_Buttons: 24
Destination_Bus: 4
Source_Select_Bus: 4
Fader_Bar: 4
3_Axis_Joystick: 1
Numeric_Keypad: 1
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 2 x Internal 100 - 240V AC.
Redundant_Power: Yes

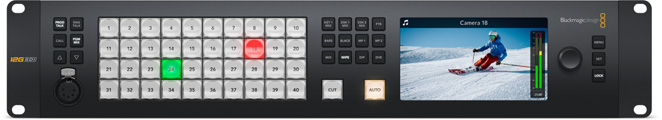

ATEM 4 M/E Constellation 4K

HK$78,300

Add to Compare

ATEM 4 M/E Constellation 4K

Price: HK$78,300
Description: ATEM 4 M/E Constellation 4K is a massive 4 M/E Ultra HD live production switcher. It features 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multiviews, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs: 40
Total_Video_Outputs: 28
Total_Aux_Outputs: 24
Sdi_Rates: 1.5G, 3G, 6G, 12G.
Total_Audio_Inputs: 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out, 1 x 5 pin XLR Talkback.
Timecode_Connections: None
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 40 inputs.
Frame_Rate_And_Format_Converters: On all 40 inputs.
Sdi_Video_Inputs: 40 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Inputs: 8 Ch embedded audio on all SDI inputs.
Extra_Audio_Inputs: 1 x 5 pin XLR Talkback.
Sdi_Video_Outputs: 28 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Outputs: 16 Ch embedded into SDI output on all outputs.
Extra_Audio_Outputs: 1 x 5 pin XLR Talkback.
Sdi_Program_Outputs: Any of the 24 SDI outputs.
Sdi_Preview_Outputs: Any of the 24 SDI outputs.
Sdi_Multi_View_Outputs: 4
Hdmi_Multi_View_Outputs: None
Webcam_Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
Remote: RJ12 supports RS-422.
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface: 1 x USB-C port.
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers: 16
Downstream_Keyers: 4
Advanced_Chroma_Keyers: 16
Supersource: 2
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 21
Transition_Keyer_(Stinger/Dve): 4 Stinger, 4 DVE.
Total_Number_Of_Layers: 28
Pattern_Generators: 21
Color_Generators: 2
Dves: 4
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 64
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Multi_View_Monitoring: Multi View Monitoring 4 x 16 Multi View pattern options for up to 64 total views. Multi View Video Standard Select HD or Ultra HD.
Multi_View_Video_Standard: Select HD or Ultra HD.
Media_Players: 4
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 64
Media_Pool_Clip_Capacity: 4
Media_Player_Clip_Length_In_720 Hd: 3200 frames.
Media_Player_Clip_Length_In_1080 Hd: 1600 frames.
Media_Player_Clip_Length_In_Ultra Hd: 400 frames.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Interface: Minimum monitor resolution of 1366 x 768.
Front_Panel: Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 10 lines.
Audio_Mixer: 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: 1 x selectable HD down converted output
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 2 x Internal 100 - 240 AC 50/60Hz.
Power_Usage: 255 W
Physical_Installation: Physical Installation 2 rack units height.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 40 Total Video Outputs 28 Total Aux Outputs 24 SDI Rates 1.5G, 3G, 6G, 12G. Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in, 1 x 5 pin XLR Talkback. Total Audio Outputs 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out, 1 x 5 pin XLR Talkback. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 40 inputs. Frame Rate and Format Converters On all 40 inputs. SDI Video Inputs 40 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. Extra Audio Inputs 1 x 5 pin XLR Talkback. SDI Video Outputs 28 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Outputs 16 Ch embedded into SDI output on all outputs. Extra Audio Outputs 1 x 5 pin XLR Talkback. SDI Program Outputs Any of the 24 SDI outputs. Down Converted SDI Program Output 1 SDI Preview Outputs Any of the 24 SDI outputs. SDI Multi View Outputs 4 HDMI Multi View Outputs None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Remote RJ12 supports RS-422. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Computer Interface 1 x USB-C port.
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics: Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 21 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 DVEs 4 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Audio: USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Media_Player: Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 64 Media Pool Clip Capacity 4 Media Player Clip Length in 720 HD 3200 frames. Media Player Clip Length in 1080 HD 1600 frames. Media Player Clip Length in Ultra HD 400 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 10 lines. Audio Mixer 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 2 x Internal 100 - 240 AC 50/60Hz. Power Usage 255 W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM 4 M/E Constellation 4K Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Down_Converted_Sdi_Program_Output: 1

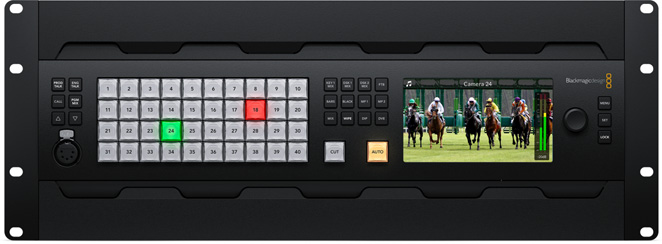

ATEM 4 M/E Constellation 4K Plus

HK$108,600

Add to Compare

ATEM 4 M/E Constellation 4K Plus

Price: HK$108,600
Description: ATEM 4 M/E Constellation 4K Plus is a massive 4 M/E Ultra HD live production switcher. It features 80 standards converted 12G-SDI inputs, 48 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi-views, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs: 80
Total_Video_Outputs: 52
Total_Aux_Outputs: 48
Sdi_Rates: 1.5G, 3G, 6G, 12G.
Total_Audio_Inputs: 2 x balanced 1/4 inch jack, 2 x 64 channel BNC MADI in, 1 x 5-pin XLR Talkback.
Total_Audio_Outputs: 2 x balanced 1/4 inch jack, 4 x 64 channel BNC MADI out, 1 x 5-pin XLR Talkback.
Timecode_Connections: 1 x 3-pin XLR Timecode In, 1 x 3-pin XLR Timecode Out.
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 80 inputs.
Frame_Rate_And_Format_Converters: On all 80 inputs.
Sdi_Video_Inputs: 80 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Inputs: 8 Ch embedded audio on all SDI inputs.
Extra_Audio_Inputs: 1 x 5 pin XLR Talkback.
Sdi_Video_Outputs: 52 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Outputs: 16 Ch embedded into SDI output on all outputs.
Extra_Audio_Outputs: 1 x 5 pin XLR Talkback.
Sdi_Program_Outputs: Any of the 48 SDI outputs.
Down_Converted_Sdi_Program_Outputs: 8
Sdi_Preview_Outputs: Any of the 48 SDI outputs
Sdi_Multi_View_Outputs: 4 x dedicated outputs, Up to an extra 48 routable outputs.
Hdmi_Multi_View_Outputs: None
Webcam_Output: 1 x USB-C supporting 720p or 1080p at program frame rate.
Remote: RJ12 supports RS-422.
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). On any of the 48 SDI Outputs.
Computer_Interface: 1 x USB-C port.
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers: 16
Downstream_Keyers: 4
Advanced_Chroma_Keyers: 16
Supersource: 2
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 20
Transition_Keyer_(Stinger/Dve): 4 Stinger, 4 DVE.
Total_Number_Of_Layers: 28
Pattern_Generators: 21
Color_Generators: 2
Dves: 4
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 64
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Multi_View_Monitoring: Multi View Monitoring 4 x 16 Multiview pattern options for up to 64 total views. Multi View Video Standard Select HD or Ultra HD.
Multi_View_Video_Standard: Select HD or Ultra HD.
Media_Players: 4
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 64
Media_Pool_Clip_Capacity: 4
Media_Player_Clip_Length_In_720 Hd: 3200 frames
Media_Player_Clip_Length_In_1080 Hd: 1600 frames
Media_Player_Clip_Length_In_Ultra Hd: 400 frames
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Interface: Minimum monitor resolution of 1366 x 768.
Front_Panel: Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 10 lines.
Audio_Mixer: 298 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: 1 x selectable HD down converted output.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11. Windows 11 for ARM
Power_Supply: 2 x Internal 100 - 240 AC 50/60Hz.
Power_Usage: 400 W max.
Physical_Installation: Physical Installation 4 rack units height.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 80 Total Video Outputs 52 Total Aux Outputs 48 SDI Rates 1.5G, 3G, 6G, 12G. Total Audio Inputs 2 x balanced 1/4 inch jack, 2 x 64 channel BNC MADI in, 1 x 5-pin XLR Talkback. Total Audio Outputs 2 x balanced 1/4 inch jack, 4 x 64 channel BNC MADI out, 1 x 5-pin XLR Talkback. Timecode Connections 1 x 3-pin XLR Timecode In, 1 x 3-pin XLR Timecode Out. Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 80 inputs. Frame Rate and Format Converters On all 80 inputs. SDI Video Inputs 80 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. Extra Audio Inputs 1 x 5 pin XLR Talkback. SDI Video Outputs 52 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Outputs 16 Ch embedded into SDI output on all outputs. Extra Audio Outputs 1 x 5 pin XLR Talkback. SDI Program Outputs Any of the 48 SDI outputs. Down Converted SDI Program Outputs 8 SDI Preview Outputs Any of the 48 SDI outputs SDI Multi View Outputs 4 x dedicated outputs, Up to an extra 48 routable outputs. HDMI Multi View Outputs None Webcam Output 1 x USB-C supporting 720p or 1080p at program frame rate. Remote RJ12 supports RS-422. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). On any of the 48 SDI Outputs. Computer Interface 1 x USB-C port.
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics: Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 20 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 DVEs 4 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Audio: USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Media_Player: Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 64 Media Pool Clip Capacity 4 Media Player Clip Length in 720 HD 3200 frames Media Player Clip Length in 1080 HD 1600 frames Media Player Clip Length in Ultra HD 400 frames Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 10 lines. Audio Mixer 298 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements: Power Supply 2 x Internal 100 - 240 AC 50/60Hz. Power Usage 400 W max.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM 4 M/E Constellation 4K Plus Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

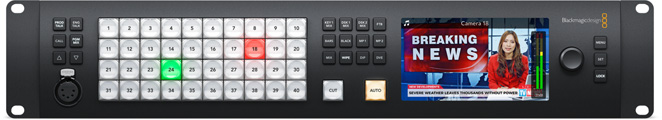

ATEM 4 M/E Constellation HD

HK$33,150

Add to Compare

ATEM 4 M/E Constellation HD

Price: HK$33,150
Description: The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12 x DVEs in total.
Total_Video_Inputs: 40
Total_Video_Outputs: 24
Sdi_Rates: 1.5G, 3G
Total_Audio_Inputs: 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in. 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out. 1 x 5 pin XLR Talkback.
Timecode_Connections: None
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 40 inputs.
Frame_Rate_And_Format_Converters: On all 40 inputs.
Sdi_Audio_Inputs: 8 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 16 Ch embedded audio on all SDI outputs.
Sdi_Program_Outputs: Any of the 24 SDI outputs.
Sdi_Preview_Outputs: Any of the 24 SDI outputs.
Webcam_Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface: 1 x USB-C supports USB 2.0
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Upstream_Keyers: 16
Downstream_Keyers: 4
Advanced_Chroma_Keyers: 16
Supersource: 2
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 21
Transition_Keyer_(Stinger/Dve): 4 Stinger, 4 DVE.
Total_Number_Of_Layers: 28
Pattern_Generators: 21
Color_Generators: 2
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 64
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Multi_View_Monitoring: Multi View Monitoring 4 x multi views each configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, M/Es, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD
Media_Players: 4
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 60
Media_Pool_Clip_Capacity: 4 x up to 1080p60.
Media_Player_Clip_Length_In_720 Hd: 1200 frames.
Media_Player_Clip_Length_In_1080 Hd: 600 frames.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Front_Panel: Built in 5 inch HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 10 lines.
Audio_Mixer: 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 2 x Internal 100 - 240 AC.
Power_Usage: 147W estimated.
Physical_Installation: Physical Installation 2 Rack Unit Size.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 40 Total Video Outputs 24 SDI Rates 1.5G, 3G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in. 1 x 5 pin XLR Talkback. Total Audio Outputs 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out. 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 40 inputs. Frame Rate and Format Converters On all 40 inputs. SDI Aux Outputs Any of the 24 SDI outputs. SDI Preview Outputs Any of the 24 SDI outputs. SDI Program Outputs Any of the 24 SDI outputs. Down Converted SDI Program Output None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 4 x 3G-SDI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics: Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 21 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player: Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 60 Media Pool Clip Capacity 4 x up to 1080p60. Media Player Clip Length in 720 HD 1200 frames. Media Player Clip Length in 1080 HD 600 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Front panel Built in 5 inch HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 10 lines. Audio Mixer 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 2 x Internal 100 - 240 AC. Power Usage 147W estimated.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM 4 M/E Constellation HD Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Sdi_Aux_Outputs: Any of the 24 SDI outputs.
Total_Multi_Views: 4 x 3G-SDI
Ethernet: Supports 10/100/1000 BASE-T.
Down_Converted_Sdi_Program Output: None
Display_Minimum_Resolution: 1366 x 768
Media_Pool_Video_File Format: TGA Sequence.
Media_Pool_Audio_File Format: WAV, MP3 and AIFF.

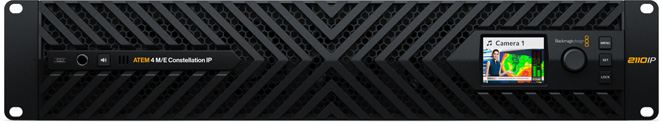

ATEM 4 M/E Constellation IP

HK$88,850

Add to Compare

ATEM 4 M/E Constellation IP

Price: HK$88,850
Description: ATEM 4 M/E Constellation IP is an advanced live production switcher with a powerful design that's fully SMPTE-2110 native and uses high speed 100G Ethernet connections! This makes it easy to add a converter for a mix of traditional 12G-SDI or modern SMPTE-2110 IP video connections. Plus, all IP video connections are fully redundant and SMPTE-2022-7 compliant. You get 32 inputs and 32 outputs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource processors for a total of 12 DVEs.
100g_2110_Ip_Networks: 8 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
Senders_And_Receivers_Per_100g_Pair: 8 x Ultra HD
10g_Control_Network: 2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets.
Reference_Network: 2 x RJ45 Ethernet for 2110 PTP clock.
1g_Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates.
Analog_Audio_Outputs: 1 x 6.35 mm headphone jack.
Total_Video_Inputs: 32
Total_Video_Outputs: 32
Total_Aux_Outputs: 32
Total_Audio_Outputs: 1 x 6.35 mm headphone jack. 1 x Speaker
Frame_Rate_And_Format_Converters: On all 32 inputs
Extra_Audio_Outputs: 1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.) 1 x built-in speaker.
Program_Outputs: Any of the 32 outputs.
Preview_Outputs: Any of the 32 outputs.
Multiview_Outputs: 4 of any of the 32 outputs.
Webcam_Output: Rear USB-C supports 720p or 1080p at PGM frame.
Control_Panel_Connection: 2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Internal_Timecode_Generator: Yes
Computer_Interface: Front and rear USB-C supports external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates.
Power: 2 x IEC C14 power inputs.
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Smpte_Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Smpte_2110-20_(Uncompressed Video): IGMP v3
Smpte_2110-21_(Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Smpte_2110-40_(Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Upstream_Keyers: 16
Downstream_Keyers: 4
Advanced_Chroma_Keyers: 16
Supersource: 2
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 20
Transition_Keyer_(Stinger/Dve): 4 Stinger, 4 DVE.
Total_Number_Of_Layers: 28
Pattern_Generators: 21
Color_Generators: 2
Dves: 4
Control: Front panel Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Routable_Windows: 64
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Multi_View_Monitoring: Multi View Monitoring 4 x 16 Multi View pattern options for up to 64 total views. Multi View Video Standard Follows Switcher Standard.
Multi_View_Video_Standard: Follows Switcher Standard.
Media_Players: 4
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 64
Media_Pool_Clip_Capacity: 4
Media_Player_Clip_Length_In_720 Hd: 3200 frames
Media_Player_Clip_Length_In_1080 Hd: 1600 frames
Media_Player_Clip_Length_In_Ultra Hd: 400 frames
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Interface: Minimum monitor resolution of 1366 x 768.
Front_Panel: Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Processing_Delay: TBC
Audio_Mixer: 68 Channel mixer. Fully integrates with Fairlight Live.
Selectable_On/Off/Audio-Follow-Video.: Level and Peak metering.
Master_Gain_Control.: 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11. Windows 11 for ARM
Power_Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power_Inputs: 2 x IEC C14 sockets.
Power_Usage: 250 W max.
Physical_Installation: Physical Installation 2 rack units.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: 100G 2110 IP Networks 8 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. Senders and Receivers per 100G Pair 8 x Ultra HD 10G Control Network 2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets. Reference Network 2 x RJ45 Ethernet for 2110 PTP clock. 1G Management 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates. Analog Audio Outputs 1 x 6.35 mm headphone jack. Total Video Inputs 32 Total Video Outputs 32 Total Aux Outputs 32 Total Audio Outputs 1 x 6.35 mm headphone jack. 1 x Speaker Frame Rate and Format Converters On all 32 inputs Extra Audio Outputs 1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.) 1 x built-in speaker. Program Outputs Any of the 32 outputs. Preview Outputs Any of the 32 outputs. Multiview Outputs 4 of any of the 32 outputs. Webcam Output Rear USB-C supports 720p or 1080p at PGM frame. Control Panel Connection 2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets. Internal Timecode Generator Yes Computer Interface Front and rear USB-C supports external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates. Power 2 x IEC C14 power inputs.
Standards: HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SMPTE Compliance SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7 Video Sampling 4:2:2 Color Precision 10-bit.
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Product_Specifics: Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 20 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 DVEs 4 Control 2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player: Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 64 Media Pool Clip Capacity 4 Media Player Clip Length in 720 HD 3200 frames Media Player Clip Length in 1080 HD 1600 frames Media Player Clip Length in Ultra HD 400 frames Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Processing: Processing Delay TBC Audio Mixer 68 Channel mixer. Fully integrates with Fairlight Live. Learn More Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements: Power Supply 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. Power Inputs 2 x IEC C14 sockets. Power Usage 250 W max.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM 4 M/E Constellation IP Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM 4 M/E Constellation IP Plus

HK$163,500

Add to Compare

ATEM 4 M/E Constellation IP Plus

Price: HK$163,500
Description: ATEM 4 M/E Constellation IP Plus is a much larger and more powerful live production switcher with lots of video inputs and outputs! It features a design that's fully SMPTE-2110 native with high-speed 100G Ethernet connections. Like the smaller model, all IP video connections are fully redundant and SMPTE-2022-7 compliant. You get an impressive 64 inputs and 64 outputs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource processors for a total of 12 DVEs. Perfect for large live productions!
100g_2110_Ip_Networks: 16 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
Senders_And_Receivers_Per_100g_Pair: 8 x Ultra HD
10g_Control_Network: 2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets.
Reference_Network: 2 x RJ45 Ethernet for 2110 PTP clock.
1g_Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates.
Analog_Audio_Outputs: 1 x 6.35 mm headphone jack.
Total_Video_Inputs: 64
Total_Video_Outputs: 64
Total_Aux_Outputs: 64
Total_Audio_Outputs: 1 x 6.35 mm headphone jack. 1 x Speaker
Frame_Rate_And_Format_Converters: On all 64 inputs
Extra_Audio_Outputs: 1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.) 1 x built-in speaker.
Program_Outputs: Any of the 64 outputs.
Preview_Outputs: Any of the 64 outputs.
Multiview_Outputs: 4 of any of the 64 outputs.
Webcam_Output: Rear USB-C supports 720p or 1080p at PGM frame.
Control_Panel_Connection: 2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Internal_Timecode_Generator: Yes
Computer_Interface: Front and rear USB-C supports external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates.
Power: 2 x IEC C14 power inputs.
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Smpte_Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Smpte_2110-20_(Uncompressed Video): IGMP v3
Smpte_2110-21_(Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Smpte_2110-40_(Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Upstream_Keyers: 16
Downstream_Keyers: 4
Advanced_Chroma_Keyers: 16
Supersource: 2
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 20
Transition_Keyer_(Stinger/Dve): 4 Stinger, 4 DVE.
Total_Number_Of_Layers: 28
Pattern_Generators: 21
Color_Generators: 2
Dves: 4
Control: 2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.
Routable_Windows: 64
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Multi_View_Monitoring: Multi View Monitoring 4 x 16 Multiview pattern options for up to 64 total views. Multi View Video Standard Follows Switcher Standard.
Multi_View_Video_Standard: Follows Switcher Standard.
Media_Players: 4
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 64
Media_Pool_Clip_Capacity: 4
Media_Player_Clip_Length_In_720 Hd: 3200 frames
Media_Player_Clip_Length_In_1080 Hd: 1600 frames
Media_Player_Clip_Length_In_Ultra Hd: 400 frames
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Interface: Minimum monitor resolution of 1366 x 768.
Front_Panel: Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Processing_Delay: TBC
Audio_Mixer: 132 Channel mixer. Fully integrates with Fairlight Live.
Selectable_On/Off/Audio-Follow-Video.: Level and Peak metering.
Master_Gain_Control.: 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11. Windows 11 for ARM
Power_Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power_Inputs: 2 x IEC C14 sockets.
Power_Usage: 390 W max.
Physical_Installation: Physical Installation 3 rack units.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: 100G 2110 IP Networks 16 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. Senders and Receivers per 100G Pair 8 x Ultra HD 10G Control Network 2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets. Reference Network 2 x RJ45 Ethernet for 2110 PTP clock. 1G Management 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates. Analog Audio Outputs 1 x 6.35 mm headphone jack. Total Video Inputs 64 Total Video Outputs 64 Total Aux Outputs 64 Total Audio Outputs 1 x 6.35 mm headphone jack. 1 x Speaker Frame Rate and Format Converters On all 64 inputs Extra Audio Outputs 1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.) 1 x built-in speaker. Program Outputs Any of the 64 outputs. Preview Outputs Any of the 64 outputs. Multiview Outputs 4 of any of the 64 outputs. Webcam Output Rear USB-C supports 720p or 1080p at PGM frame. Control Panel Connection 2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets. Internal Timecode Generator Yes Computer Interface Front and rear USB-C supports external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates. Power 2 x IEC C14 power inputs.
Standards: HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SMPTE Compliance SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 Video Sampling 4:2:2 Color Precision 10-bit.
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Product_Specifics: Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 20 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 DVEs 4 Control 2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player: Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 64 Media Pool Clip Capacity 4 Media Player Clip Length in 720 HD 3200 frames Media Player Clip Length in 1080 HD 1600 frames Media Player Clip Length in Ultra HD 400 frames Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.
Processing: Processing Delay TBC Audio Mixer 132 Channel mixer. Fully integrates with Fairlight Live. Learn More Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements: Power Supply 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. Power Inputs 2 x IEC C14 sockets. Power Usage 390 W max.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM 4 M/E Constellation IP Plus Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Camera Control Panel

HK$24,900

Add to Compare

ATEM Camera Control Panel

Price: HK$24,900
Description: The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.
Iris_Control: Auto Iris On, Coarse control.
N/A: 1 Year Limited Manufacturer’s Warranty.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: Up to 95%
Connections: Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Warranty: 1 Year Limited Manufacturer’s Warranty.
Power_Requirements: Input Voltage 1 x Internal 100 - 240V AC. DC Power 12-30V 3A. Redundant Power Yes Power Usage 30W
What's_Included: ATEM Camera Control Panel
Software: Software Applications ATEM Software Control Panel.
Ethernet: 2 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Software_Updates: 1 x USB-C for firmware updates.
Lcd_Menu_Displays: 4
Camera_Number_Display: Green off air, red on air.
Setup: White and black balance setup.
3_Axis_Joystick: 4
Preview_Button: 4
Panel_Active: Protects settings.
Software_Applications: ATEM Software Control Panel.
Input_Voltage: 1 x Internal 100 - 240V AC.
Dc_Power: 12-30V 3A.
Redundant_Power: Yes
Power_Usage: 30W
Product_Specifics: LCD Menu Displays 4 Camera Number Display Green off air, red on air. Setup White and black balance setup. 3 Axis Joystick 4 Preview Button 4 Iris Control Auto Iris On, Coarse control. Panel Active Protects settings.

ATEM Constellation 8K

HK$95,500

Add to Compare

ATEM Constellation 8K

Price: HK$95,500
Description: Ultra HD live production switcher with so many features, you can combine them all to make an incredibly powerful 8K switcher! This massive 4 M/E switcher features 40 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multiviews, 2 SuperSource processors and even standards conversion on all inputs! When switched to work in 8K, all of these features combine to make a powerful native 8K switcher! You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs: 40 x up to Ultra HD / 10 x in 8K
Total_Video_Outputs: 28 x up to Ultra HD / 7 x in 8K
Total_Aux_Outputs: 24 x up to Ultra HD / 6 x in 8K
Sdi_Rates: 1.5G, 3G, 6G, 12G
Total_Audio_Inputs: 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in.
Total_Audio_Outputs: 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out.
Timecode_Connections: None
Reference_Input: Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 40 inputs.
Frame_Rate_And_Format_Converters: On all 40 inputs.
Sdi_Video_Inputs: 40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable.
Extra_Audio_Outputs: 1 x 5 pin XLR Talkback.
Sdi_Audio_Outputs: 16 Ch embedded into SDI output on all outputs.
Extra_Audio_Inputs: 1 x 5 pin XLR Talkback.
Sdi_Program_Outputs: Any of the 24 SDI outputs.
Down_Converted_Sdi_Program_Output: None
Sdi_Preview_Outputs: Any of the 24 SDI outputs.
Total_Multi_Views: 4 x up to Ultra HD / 1 x in 8K
Sdi_Multi_View_Outputs: 4
Hdmi_Multi_View_Outputs: None
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface: 1 x USB 2.0 port.
Sd_Video_Standards: None
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94, 2160p59.94, 2160p60
8k_Video_Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94, 4320p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec. 709, Rec. 2020
Sdi_Auto_Switching: Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode.
Upstream_Keyers: 16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key.
Downstream_Keyers: 4 x up to Ultra HD / 2 x in 8K.
Advanced_Chroma_Keyers: 16 x up to Ultra HD / 4 x in 8K.
Supersource: 2
Talkback_Support: Yes
Mix_Minus_Support: Yes
Linear/Luma_Keyers: 21 x up to Ultra HD / 7 x in 8K
Transition_Keyer_(Stinger/Dve): 4 Stinger, 4 DVE .
Total_Number_Of_Layers: 28 x up to Ultra HD / 7 x in 8K
Pattern_Generators: 21 x up to Ultra HD / 9 x in 8K
Color_Generators: 2
Dve_With_3d_Borders_&_Drop_Shadow: 4 x up to Ultra HD / 1 x in 8K
Control_Panel: Front fascia emergency switching, software or optional hardware panel.
Routable_Windows: 64 x up to Ultra HD / 16 x in 8K
Tally: Red for program and green for preview indication.
Windows_Source_Labels: Yes
Multi_View_Monitoring: Multi View Monitoring 4 x 16 Multi View pattern options for up to 64 total views. Multi View Video Standard Select HD, Ultra HD or 8K.
Multi_View_Video_Standard: Select HD, Ultra HD or 8K.
Media_Players: 4 x up to Ultra HD / 1 x in 8K
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 64 x up to Ultra HD / 24 x in 8K with fill and key.
Media_Pool_Clip_Capacity: 4 x up to Ultra HD / 2 x in 8K with fill and key.
Media_Player_Clip_Length_In_720 Hd: 3200 frames.
Media_Player_Clip_Length_In_1080 Hd: 1600 frames.
Media_Player_Clip_Length_In_Ultra Hd: 400 frames.
Media_Player_Clip_Length_In_8k: 100 frames.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Interface: Minimum monitor resolution of 1366 x 768.
Front_Panel: Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay: < 7 lines in up to Ultra HD / in 10 lines in 8K
Audio_Mixer: 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 2 x Internal 100 - 240 AC.
Power_Usage: 300W
Physical_Installation: Physical Installation 2 Rack Unit Size.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 40 x up to Ultra HD / 10 x in 8K Total Video Outputs 28 x up to Ultra HD / 7 x in 8K Total Aux Outputs 24 x up to Ultra HD / 6 x in 8K SDI Rates 1.5G, 3G, 6G, 12G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in. Total Audio Outputs 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 40 inputs. Frame Rate and Format Converters On all 40 inputs. SDI Video Inputs 40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable. Extra Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Outputs 16 Ch embedded into SDI output on all outputs. Extra Audio Inputs 1 x 5 pin XLR Talkback. SDI Program Outputs Any of the 24 SDI outputs. Down Converted SDI Program Output None SDI Preview Outputs Any of the 24 SDI outputs. Total Multi Views 4 x up to Ultra HD / 1 x in 8K SDI Multi View Outputs 4 HDMI Multi View Outputs None Remote RJ12 supports RS-422 Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Computer Interface 1 x USB 2.0 port.
Standards: SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94, 2160p59.94, 2160p60 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94, 4320p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec. 709, Rec. 2020 SDI Auto Switching Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode.
Product_Specifics: Upstream Keyers 16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key. Downstream Keyers 4 x up to Ultra HD / 2 x in 8K. Advanced Chroma Keyers 16 x up to Ultra HD / 4 x in 8K. SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 21 x up to Ultra HD / 7 x in 8K Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE . Total Number of Layers 28 x up to Ultra HD / 7 x in 8K Pattern Generators 21 x up to Ultra HD / 9 x in 8K Color Generators 2 DVE with 3D Borders & Drop Shadow 4 x up to Ultra HD / 1 x in 8K Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 x up to Ultra HD / 16 x in 8K Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player: Media Players 4 x up to Ultra HD / 1 x in 8K Channels Fill and key for each media player. Media Pool Still Image Capacity 64 x up to Ultra HD / 24 x in 8K with fill and key. Media Pool Clip Capacity 4 x up to Ultra HD / 2 x in 8K with fill and key. Media Player Clip Length in 720 HD 3200 frames. Media Player Clip Length in 1080 HD 1600 frames. Media Player Clip Length in Ultra HD 400 frames. Media Player Clip Length in 8K 100 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display: Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing: Processing Delay < 7 lines in up to Ultra HD / in 10 lines in 8K Audio Mixer 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 2 x Internal 100 - 240 AC. Power Usage 300W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Constellation 8K Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Micro Camera Panel

HK$4,950

Add to Compare

ATEM Micro Camera Panel

Price: HK$4,950
Description: ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Computer_Interface: USB Type‑C.
Software_Updates: 1 x USB‑C for firmware updates.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Supply: Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage: 4 W max.
Operating_Temperature: 5° to 40° C (41° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non‑condensing
Connections: Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE Software Updates 1 x USB‑C for firmware updates.
Product_Specifics: Camera Selection buttons 8 x NKK buttons. Assignable via setup utility. Camera Number Display Green off air, red on air. Setup White and black balance setup. Flare via modifier key. 3 Axis Joystick 1 Preview Button 1 Iris Control Auto Iris On, Coarse control. Iris Range CLS f32 to f1.2 Gain Range -12dB to +32dB ND Filters 0, 2, 4, 6. Shutter Range 1/24 to 1/2000 White Balance Range 2500K to 10,000K Recallable Scenes 5 per camera. Panel Active Protects settings.
Software: Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements: Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 4 W max. Battery Life Minimum 3 hours. (under normal use)
Environmental_Specifications: Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
What's_Included: ATEM Micro Camera Panel Welcome wallet with QR code for software download 1 x USB‑C cable
Warranty: 1 Year Limited Manufacturer’s Warranty.
Software_Applications: ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Bluetooth: Bluetooth 5.1 LE
Camera_Selection_Buttons: 8 x NKK buttons. Assignable via setup utility.
Camera_Number_Display: Green off air, red on air.
Setup: White and black balance setup. Flare via modifier key.
3_Axis_Joystick: 1
Preview_Button: 1
Iris_Control: Auto Iris On, Coarse control.
Iris_Range: CLS f32 to f1.2
Gain_Range: -12dB to +32dB
Nd_Filters: 0, 2, 4, 6.
Shutter_Range: 1/24 to 1/2000
White_Balance_Range: 2500K to 10,000K
Recallable_Scenes: 5 per camera.
Panel_Active: Protects settings.
Battery_Life: Minimum 3 hours. (under normal use)

ATEM Micro Panel

HK$5,600

Add to Compare

ATEM Micro Panel

Price: HK$5,600
Description: The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!
Computer_Interface: USB Type‑C.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Crosspoint_Button_Type: Tri-Color LED
Preview_Transition: 1
Transition_Type_Buttons: DIP, DVE, STINGER, MIX, WIPE.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Supply: Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage: 3 W max.
Operating_Temperature: 5° to 40° C (41° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non‑condensing
Connections: Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Preview Transition 1 Switching Type Buttons CUT and AUTO Transition Type Buttons DIP, DVE, STINGER, MIX, WIPE. M/E Select Buttons 4 Upstream Key Buttons 4 with ON/OFF Downstream Key Buttons 2 with ON/OFF Transition Slider 1
Software: Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 3 W max. Battery Life Minimum 6 hours. (under normal use)
Environmental_Specifications: Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
What's_Included: ATEM Micro Panel Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Shifted_Cross_Points: 20
Software_Applications: ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Bluetooth: Bluetooth 5.1 LE
Battery_Life: Minimum 6 hours. (under normal use)
Switching_Type_Buttons: CUT and AUTO
M/E_Select_Buttons: 4
Upstream_Key_Buttons: 4 with ON/OFF
Downstream_Key_Buttons: 2 with ON/OFF
Transition_Slider: 1

ATEM Microphone Converter

HK$3,400

Add to Compare

ATEM Microphone Converter

Price: HK$3,400
Description: Now it’s easy to expand the MADI input on the ATEM Television Studio switchers to add multiple microphones or external audio mixer sources. The ATEM Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no complex setup required and additional units can even be daisy chained for more sources. Each converter has 4 analog inputs that are mic/line selectable and have phantom power. The design features amazing audio quality with an extremely low noise floor, a wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each separate input that work together to extend dynamic range! There is also an HDMI monitoring output with scrolling audio waveforms.
Hdmi_Video_Outputs: 1 x monitor out.
Ethernet: Supports 10/100/1000 BASE‑T.
Computer_Interface: 1 x USB-C with locking screw
N/A: Windows 10 and 11.
Power_Supply: 1 x External 12V power supply with locking connector.
Operating_Temperature: 0° to 40°C (32° to 104°F)
Storage_Temperature: -20° to 60°C (‑4° to 140°F)
Relative_Humidity: 0% to 90% non‑condensing
Connections: Analog Audio Inputs 4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phantom power. MADI Inputs 1 x BNC supports 64 channel MADI digital audio MADI Outputs 1 x BNC supports 64 channel MADI digital audio HDMI Video Outputs 1 x monitor out. Computer Interface 1 x USB-C with locking screw Ethernet Supports 10/100/1000 BASE‑T.
Audio: ADCs Per Input 8 Digital Preamp 32-bit Dynamic Range 131dB(A) Noise Floor -129dBV Total Harmonic Distortion at full scale 0.002% Output Sample Depth 24-bit Output Sampling Rate 48KHz MADI Compliance AES10-2020
Software: Software Control Mac™ and Windows™ software upgrade via USB or Ethernet. Internal Software Upgrade Via downloadable utility application.
Operating_Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x External 12V power supply with locking connector. Power Consumption 12W max. Operational Voltage Range 12V to 17.5V DC
Environmental_Specifications: Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non‑condensing
What's_Included: ATEM Microphone Converter External 12V DC power supply with locking connector and international socket adapters for most countries. Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Power_Consumption: 12W max.
Operational_Voltage_Range: 12V to 17.5V DC
Settings_Control: Software Settings Control USB and Ethernet via free software utility. Hardware Switches Mini switches for selecting mic or line level and setting +48V phantom power on/off.
Analog_Audio_Inputs: 4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phantom power.
Madi_Inputs: 1 x BNC supports 64 channel MADI digital audio
Madi_Outputs: 1 x BNC supports 64 channel MADI digital audio
Hd_Video_Standards: 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
Hdmi_Monitoring: Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
Adcs_Per_Input: 8
Digital_Preamp: 32-bit
Dynamic_Range: 131dB(A)
Noise_Floor: -129dBV
Total_Harmonic_Distortion_At_Full Scale: 0.002%
Output_Sample_Depth: 24-bit
Output_Sampling_Rate: 48KHz
Madi_Compliance: AES10-2020
Software_Control: Mac™ and Windows™ software upgrade via USB or Ethernet.
Internal_Software_Upgrade: Via downloadable utility application.
Software_Settings_Control: USB and Ethernet via free software utility.
Hardware_Switches: Mini switches for selecting mic or line level and setting +48V phantom power on/off.
Hdmi_Output_Standards: HD Video Standards 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60 HDMI Monitoring Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.

ATEM Mini Extreme

HK$9,100

Add to Compare

ATEM Mini Extreme

Price: HK$9,100
Description: ATEM Mini Extreme is an advanced switcher for true professionals! You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players, and a multiview with up to 16 views!
Total_Video_Inputs: 8
Total_Outputs: 4
Total_Aux_Outputs: 2
Hdmi_Video_Inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Program_Outputs: 2
Total_Audio_Inputs: 2 x 3.5mm stereo mini jack.
Total_Audio_Outputs: 1 x 3.5mm stereo mini jack.
Timecode_Connection: None
Video_Input_Re-Sync: On all 8 HDMI inputs.
Frame_Rate_And_Format_Converters: On all 8 HDMI inputs.
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling: 4:2:2 YUV
Color_Precision: 10-bit
Color_Space: Rec 709
Hdmi_Input_Resolutions_From_Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace_Conversion: Hardware based real time.
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: Up to 4
Linear/Luma_Keyers: Up to 4
Color_Generators: 2
Control_Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Audio_Mixer: 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input: Unbalanced stereo
Analog_Input_Delay: Up to 8 frames
Mic_Plug_In_Power: Available on both 3.5mm mini jack connections.
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording: 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Media_Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring: Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard: HD
Media_Players: 2
Channels: Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity: 20 with fill and key.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel_Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x External 12V power supply.
Power_Usage: 36W
Operating_Temperature: 5° C to 40° C (41° - 104° F)
Storage_Temperature: -10° to 60° C (14° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 8 Total Outputs 4 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs 1 x 3.5mm stereo mini jack. Timecode Connection None HDMI Video Inputs 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 8 HDMI inputs. Frame Rate and Format Converters On all 8 HDMI inputs. HDMI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards: HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product_Specifics: Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers Up to 4 Linear/Luma Keyers Up to 4 Transition Keyer DVE only. Total Number of Layers 9 Pattern Generators 5 Color Generators 2 DVE With Borders and Drop Shadow 2 Interface Minimum monitor resolution of 1366 x 768.
Audio: Audio Mixer 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections. USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control: Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications: Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Mini Extreme External 12V DC power supply with international socket adapters
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ultra_Hd_Video_Standards: None
Transition_Keyer: DVE only.
Pattern_Generators: 5
Interface: Minimum monitor resolution of 1366 x 768.
Input_Impedance: 1.8k
Total_Number_Of_Layers: 9
Dve_With_Borders_And_Drop_Shadow: 2
Max_Input_Level: +6dBV

ATEM Mini Extreme ISO G2

HK$25,350

Add to Compare

ATEM Mini Extreme ISO G2

Price: HK$25,350
Description: ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.
Total_Video_Inputs: 9
Total_Outputs: 4
Total_Aux_Outputs: 4
Hdmi_Video_Inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Video_Outputs: 3
Hdmi_Program_Outputs: 3
Total_Audio_Inputs: 2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio.
Total_Audio_Outputs: 1 x 6.35mm headphone jack
Timecode_Connection: None
Reference_Input: None
Video_Input_Re-Sync: On all 8 HDMI inputs and remote sources
Frame_Rate_And_Format_Converters: On all 8 HDMI inputs and remote sources
Webcam_Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views: 1 Routable to any of the 3 x HDMI outputs, 2 x USB‑C webcam outputs or 1 x Thunderbolt output.
Control_Panel_Connection: Ethernet supports 10/100/1000/10G BaseT. Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Internal_Timecode_Generator: Yes
Tally_Output: On Blackmagic HDMI and remote cameras.
Ethernet: 1 x 1G Ethernet for simple streaming, control panels and internet connection, 1 x 10G Ethernet connection for recording.
Computer_Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling: 4:2:2 YUV
Color_Precision: 10-bit
Color_Space: Rec 709
Hdmi_Input_Resolutions_From_Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace_Conversion: Hardware based real time.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Crosspoint_Button_Type: NKK Buttons
Preview_Transition: 1
Source_Select_Bus: Set using Multi Function Controls and Fairlight Audio Status Output.
Dedicated_Macro_Buttons: 6
Transition_Type_Buttons: Set using Multi Function Controls and Fairlight Audio Status Output.
Transition_Rate: Set using Multi Function Controls and Fairlight Audio Status Output.
Key_Buttons: 8
Aux_Buttons: 6
Fader_Bar: 1
Record_Buttons: 2
Stream_Buttons: 2
Dsk_Transition_Selectors: 6
Fade_To_Black_Buttons: 1 NKK button
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: Up to 4
Supersource: 1
Dves: 2
Linear/Luma_Keyers: Up to 4
Transition_Keyer_(Stinger/Dve): DVE only
Color_Generators: 2
Control_Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Routable_Windows: 16
Tally: Red for program and green for preview indication.
Audio_Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Analog_Input: Balanced stereo XLR combo connectors
Analog_Input_Delay: Up to 8 frames
Mic_Plug_In_Power: +48V phantom power on XLR combo inputs
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Total_Streaming_Sources: Up to 8
Streaming_Source_Format: RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates.
Streaming_Source_Setup: Mapped to inputs in ATEM Software Control Settings.
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio: CFExpress slot for recording USB-C Recording
Video_Recording: 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio_Recording: 26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels.
Switching: Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring: Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard: HD
Media_Players: 2
Channels: Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity: 20 with fill and key.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format: TGA Sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Control_Panel_Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Camera_Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11. Windows 11 for ARM
Power_Supply: 1 x External 12V power supply.
Power_Usage: 120 W max.
Operating_Temperature: 5° C to 40° C (41° - 104° F)
Storage_Temperature: -10° to 60° C (14° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 9 Total Outputs 4 Total Aux Outputs 4 HDMI Video Inputs 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. HDMI Video Outputs 3 HDMI Program Outputs 3 Total Audio Inputs 2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio. Total Audio Outputs 1 x 6.35mm headphone jack Timecode Connection None Reference Input None Video Input Re-Sync On all 8 HDMI inputs and remote sources Frame Rate and Format Converters On all 8 HDMI inputs and remote sources Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 Routable to any of the 3 x HDMI outputs, 2 x USB‑C webcam outputs or 1 x Thunderbolt output. Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Tally Output On Blackmagic HDMI and remote cameras. Ethernet 1 x 1G Ethernet for simple streaming, control panels and internet connection, 1 x 10G Ethernet connection for recording. Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
Standards: HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Crosspoint Button Type NKK Buttons Preview Transition 1 Source Select Bus Set using Multi Function Controls and Fairlight Audio Status Output. Dedicated Macro Buttons 6 Transition Type Buttons Set using Multi Function Controls and Fairlight Audio Status Output. Transition Rate Set using Multi Function Controls and Fairlight Audio Status Output. Key Buttons 8 AUX Buttons 6 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 NKK button Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers Up to 4 SuperSource 1 DVEs 2 Linear/Luma Keyers Up to 4 Transition Keyer (Stinger/DVE) DVE only Color Generators 2 Control Panel Set using Multi Function Controls and Fairlight Audio Status Output. Routable Windows 16 Tally Red for program and green for preview indication.
Audio: Audio Mixer 26 input x 2 channel mixer. (8 HDMI+16MADI+XLR+Thunderbolt) Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Balanced stereo XLR combo connectors Analog Input Delay Up to 8 frames Mic Plug In Power +48V phantom power on XLR combo inputs USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming_Sources: Total Streaming Sources Up to 8 Streaming Source Format RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates. Streaming Source Setup Mapped to inputs in ATEM Software Control Settings. Blackmagic Cloud Stream Router Receive sources from Stream Router application in Blackmagic Cloud.
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio CFExpress slot for recording USB-C Recording Video Recording 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format 200 frames in 1080 HD. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Control: Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000/10G BaseT. Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Processing: Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements: Power Supply 1 x External 12V power supply. Power Usage 120 W max.
Environmental_Specifications: Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Mini Extreme ISO G2 External 12V DC power supply
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Mini Pro

HK$3,250

Add to Compare

ATEM Mini Pro

Price: HK$3,250
Description: ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
Total_Video_Inputs: 4
Total_Outputs: 2
Total_Aux_Outputs: 1
Hdmi_Video_Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Program_Outputs: 1
Total_Audio_Inputs: 2 x 3.5mm stereo mini jack.
Total_Audio_Outputs: None, embedded audio only.
Timecode_Connection: None
Video_Input_Re-Sync: On all 4 HDMI inputs.
Frame_Rate_And_Format_Converters: On all 4 HDMI inputs.
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling: 4:2:2 YUV
Color_Precision: 10-bit
Color_Space: Rec 709
Colorspace_Conversion: Hardware based real time.
Upstream_Keyers: 1
Downstream_Keyers: 1
Advanced_Chroma_Keyers: 1
Linear/Luma_Keyers: 2
Color_Generators: 2
Control_Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Audio_Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input: Unbalanced stereo
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Media_Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring: Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard: HD
Media_Players: 1
Channels: Fill and key for each Media Player.
Control_Panel_Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x External 12V power supply.
Power_Usage: 30W
Operating_Temperature: 5° C to 40° C (41° - 104° F)
Storage_Temperature: -10° to 60° C (14° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 4 Total Outputs 2 Total Aux Outputs 1 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None HDMI Video Inputs 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 HDMI inputs. Frame Rate and Format Converters On all 4 HDMI inputs. HDMI Program Outputs 1 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards: HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product_Specifics: Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE with Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio: Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization: Learn More
Media_Player: Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control: Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x External 12V power supply. Power Usage 30W
Environmental_Specifications: Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Mini Pro External 12V DC power supply with international socket adapters
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ultra_Hd_Video_Standards: None
Hdmi_Input_Resolutions_From Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Transition_Keyer: DVE only.
Total_Number_Of Layers: 5
Pattern_Generators: 1
Dve_With_Borders_And_Drop Shadow: 1
Interface: Minimum monitor resolution of 1366 x 768.
Analog_Input Delay: Up to 8 frames
Input_Impedance: 1.8k
Max_Input Level: +6dBV
Mic_Plug_In Power: Available on both 3.5mm mini jack connections.
Media_Pool_Still_Image Capacity: 20 with fill and key.
Media_Pool_Still_Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Direct_Recording: 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.

ATEM Mini Pro ISO

HK$4,300

Add to Compare

ATEM Mini Pro ISO

Price: HK$4,300
Description: Affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor. Plus with the ATEM Mini Pro ISO model you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.
Total_Video_Inputs: 4
Total_Outputs: 2
Total_Aux_Outputs: 1
Hdmi_Video_Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Program_Outputs: 1
Total_Audio_Inputs: 2 x 3.5mm stereo mini jack.
Total_Audio_Outputs: None, embedded audio only.
Timecode_Connection: None
Video_Input_Re-Sync: On all 4 HDMI inputs.
Frame_Rate_And_Format_Converters: On all 4 HDMI inputs.
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling: 4:2:2 YUV
Color_Precision: 10-bit
Color_Space: Rec 709
Colorspace_Conversion: Hardware based real time.
Upstream_Keyers: 1
Downstream_Keyers: 1
Advanced_Chroma_Keyers: 1
Linear/Luma_Keyers: 2
Color_Generators: 2
Control_Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Audio_Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input: Unbalanced stereo
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording: 4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio_Recording: 6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.
Switching: Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring: Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard: HD
Media_Players: 1
Channels: Fill and key for each Media Player.
Control_Panel_Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x External 12V power supply.
Power_Usage: 36W
Operating_Temperature: 5° C to 40° C (41° - 104° F)
Storage_Temperature: -10° to 60° C (14° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 4 Total Outputs 2 Total Aux Outputs 1 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None HDMI Video Inputs 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 HDMI inputs. Frame Rate and Format Converters On all 4 HDMI inputs. HDMI Program Outputs 1 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards: HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product_Specifics: Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE with Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio: Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections. USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization: Learn More
Media_Player: Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control: Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications: Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Mini Pro ISO External 12V DC power supply with international socket adapters
Warranty: 1 Year Limited Manufacturer’s Warranty.
Ultra_Hd_Video_Standards: None
Hdmi_Input_Resolutions_From Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Transition_Keyer: DVE only.
Total_Number_Of Layers: 5
Pattern_Generators: 1
Dve_With_Borders_And_Drop Shadow: 1
Interface: Minimum monitor resolution of 1366 x 768.
Analog_Input Delay: Up to 8 frames
Input_Impedance: 1.8k
Max_Input Level: +6dBV
Mic_Plug_In Power: Available on both 3.5mm mini jack connections.
Media_Pool_Still_Image Capacity: 20 with fill and key.
Media_Pool_Still_Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.

ATEM Monitoring Rack Panel 20

HK$8,150

Add to Compare

ATEM Monitoring Rack Panel 20

Price: HK$8,150
Description: The ATEM Monitoring Rack Panel 20 is a video converter built into a 1RU rack-mount ATEM switcher control panel! It features 20 buttons for controlling a local ATEM switcher, plus a front panel talkback connection. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter's built-in LCD screen. Simply mount it in a rack and use it when setting up or monitoring a job!
Total_Video_Inputs: 1
Total_Video_Outputs: 3
Computer_Interface: 1 x USB-C for setup utility and software updates.
Power: 2 x IEC C14 power inputs.
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Smpte_Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Smpte_2110-20_(Uncompressed Video): IGMP v3
Smpte_2110-21_(Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Smpte_2110-40_(Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Talkback_Support: Yes
Control: Front panel emergency switching, software or optional hardware panel.
Front_Panel: Built in HD LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Control_Panel_Included: ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Supply: 2 x IEC C14 sockets.
Power_Usage: TBC
Physical_Installation: Physical Installation 1 rack unit.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: 10G 2110 IP Networks 2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. 1G Control Network 1 x 1G RJ45 for connection to switcher and NMOS control. Total Video Inputs 1 Total Video Outputs 3 SDI Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Inputs 1 SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. HDMI Audio Outputs 8 Ch embedded audio on HDMI output. Talkback 1 x 5-pin XLR Talkback. Computer Interface 1 x USB-C for setup utility and software updates. Power 2 x IEC C14 power inputs.
Standards: HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SMPTE Compliance SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7 Video Sampling 4:2:2 Color Precision 10-bit. SDI Color Space Rec. 709, Rec. 2020
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Product_Specifics: Talkback Support Yes Control Front panel emergency switching, software or optional hardware panel.
Display: Front panel Built in HD LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Software: Control Panel Included ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements: Power Supply 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. Power Supply 2 x IEC C14 sockets. Power Usage TBC
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Monitoring Rack Panel 20 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
10g_2110_Ip_Networks: 2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
1g_Control_Network: 1 x 1G RJ45 for connection to switcher and NMOS control.
Sdi_Video_Outputs: 2
Sdi_Rates: 1.5G, 3G, 6G, 12G.
Smpte_St_2110_Ip_Audio_Inputs: 16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet.
Sdi_Audio_Outputs: 16 Ch embedded audio on all SDI outputs.
Hdmi_Audio_Outputs: 8 Ch embedded audio on HDMI output.
Talkback: 1 x 5-pin XLR Talkback.
Sdi_Color_Space: Rec. 709, Rec. 2020
Hdmi_2.0_Video_Inputs: 1

ATEM Monitoring Rack Panel 40

HK$13,100

Add to Compare

ATEM Monitoring Rack Panel 40

Price: HK$13,100
Description: The ATEM Monitoring Rack Panel 40 is a video converter built into a larger 2RU rack-mount ATEM switcher control panel! It features 40 buttons for controlling a local ATEM switcher, plus a front panel talkback connection for communication. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter's large 5-inch built-in LCD screen, giving you convenient local rack monitoring!
Total_Video_Inputs: 1
Total_Video_Outputs: 3
Computer_Interface: 1 x USB-C for setup utility and software updates.
Power: 2 x IEC C14 power inputs.
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Smpte_Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Smpte_2110-20_(Uncompressed Video): IGMP v3
Smpte_2110-21_(Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Smpte_2110-40_(Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Talkback_Support: Yes
Control: Front panel emergency switching, software or optional hardware panel.
Front_Panel: Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Control_Panel_Included: ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
N/A: 1 Year Limited Manufacturer’s Warranty.
Power_Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power_Usage: TBC
Physical_Installation: Physical Installation 2 rack units.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: 10G 2110 IP Networks 2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. 1G Control Network 1 x 1G RJ45 for connection to switcher and NMOS control. Total Video Inputs 1 Total Video Outputs 3 SDI Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Outputs 1 SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. HDMI Audio Outputs 8 Ch embedded audio on HDMI output. Talkback 1 x 5-pin XLR Talkback. Computer Interface 1 x USB-C for setup utility and software updates. Power 2 x IEC C14 power inputs.
Standards: HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SMPTE Compliance SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7 Video Sampling 4:2:2 Color Precision 10-bit. SDI Color Space Rec. 709, Rec. 2020
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Product_Specifics: Talkback Support Yes Control Front panel emergency switching, software or optional hardware panel.
Display: Front panel Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Software: Control Panel Included ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements: Power Supply 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. Power Input 2 x IEC C14 sockets. Power Usage TBC
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Monitoring Rack Panel 40 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
10g_2110_Ip_Networks: 2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
1g_Control_Network: 1 x 1G RJ45 for connection to switcher and NMOS control.
Sdi_Video_Outputs: 2
Sdi_Rates: 1.5G, 3G, 6G, 12G.
Hdmi_2.0_Video_Outputs: 1
Smpte_St_2110_Ip_Audio_Inputs: 16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet.
Sdi_Audio_Outputs: 16 Ch embedded audio on all SDI outputs.
Hdmi_Audio_Outputs: 8 Ch embedded audio on HDMI output.
Talkback: 1 x 5-pin XLR Talkback.
Sdi_Color_Space: Rec. 709, Rec. 2020
Power_Input: 2 x IEC C14 sockets.

ATEM SDI

HK$2,850

Add to Compare

ATEM SDI

Price: HK$2,850
Description: ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.
Total_Video_Inputs: 4
Total_Outputs: 3
Total_Aux_Outputs: 2
Total_Audio_Inputs: 2 x 3.5mm stereo mini jack.
Total_Audio_Outputs: None, embedded audio only.
Timecode_Connection: None
Sdi_Video_Inputs: 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio.
Video_Input_Re-Sync: On all 4 SDI inputs.
Frame_Rate_And_Format_Converters: On all 4 SDI inputs.
Sdi_Program_Outputs: 2
Ethernet: Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
Computer_Interface: 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: None
Video_Sampling: 4:2:2 YUV
Color_Precision: 10-bit
Color_Space: Rec 709
Colorspace_Conversion: Hardware based real time.
Upstream_Keyers: 1
Downstream_Keyers: 1
Advanced_Chroma_Keyers: 1
Linear/Luma_Keyers: 2
Transition_Keyer: DVE only.
Total_Number_Of_Layers: 5
Pattern_Generators: 1
Color_Generators: 2
Dve_With_Borders_And_Drop_Shadow: 1
Interface: Minimum monitor resolution of 1366 x 768.
Audio_Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input: Unbalanced stereo
Analog_Input_Delay: Up to 8 frames
Input_Impedance: 1.8k
Max_Input_Level: +6dBV
Mic_Plug_In_Power: Available on both 3.5mm mini jack connections.
Media_Players: 1
Channels: Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity: 20 with fill and key.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Control_Panel_Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Connection: Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x External 12V power supply.
Power_Usage: 18W
Operating_Temperature: 5° C to 40° C (41° - 104° F)
Storage_Temperature: -10° to 60° C (14° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 4 Total Outputs 3 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None SDI Video Inputs 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 SDI inputs. Frame Rate and Format Converters On all 4 SDI inputs. SDI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
Standards: HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 Colorspace Conversion Hardware based real time.
Product_Specifics: Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE With Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio: Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Media_Player: Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control: Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x External 12V power supply. Power Usage 18W
Environmental_Specifications: Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM SDI External 12V DC power supply with international socket adapters
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM SDI Extreme ISO

HK$12,450

Add to Compare

ATEM SDI Extreme ISO

Price: HK$12,450
Description: This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.
Total_Video_Inputs: 8
Total_Outputs: 6
Total_Aux_Outputs: 4
Total_Audio_Inputs: 2 x 3.5mm stereo mini jack.
Total_Audio_Outputs: 1 x 3.5mm stereo mini jack.
Timecode_Connection: None
Sdi_Video_Inputs: 8 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio.
Video_Input_Re-Sync: On all 8 SDI inputs.
Frame_Rate_And_Format_Converters: On all 8 SDI inputs.
Sdi_Program_Outputs: 4
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: None
Video_Sampling: 4:2:2 YUV
Color_Precision: 10-bit
Color_Space: Rec 709
Colorspace_Conversion: Hardware based real time.
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: Up to 4
Linear/Luma_Keyers: Up to 4
Transition_Keyer: DVE only.
Total_Number_Of_Layers: 9
Pattern_Generators: 5
Color_Generators: 2
Dve_With_Borders_And_Drop_Shadow: 2
Interface: Minimum monitor resolution of 1366 x 768.
Audio_Mixer: 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input: Unbalanced stereo
Analog_Input_Delay: Up to 8 frames
Input_Impedance: 1.8k
Max_Input_Level: +6dBV
Mic_Plug_In_Power: Available on both 3.5mm mini jack connections.
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Recording_Video_And_Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording: 8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio_Recording: 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs.
Switching: Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring: Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 SDI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard: HD
Media_Players: 2
Channels: Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity: 20 with fill and key.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Control_Panel_Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x External 12V power supply.
Power_Usage: 36W
Operating_Temperature: 5° C to 40° C (41° - 104° F)
Storage_Temperature: -10° to 60° C (14° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 8 Total Outputs 6 Total Aux Outputs 4 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs 1 x 3.5mm stereo mini jack. Timecode Connection None SDI Video Inputs 8 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 8 SDI inputs. Frame Rate and Format Converters On all 8 SDI inputs. SDI Program Outputs 4 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards: HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 Colorspace Conversion Hardware based real time.
Product_Specifics: Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers Up to 4 Linear/Luma Keyers Up to 4 Transition Keyer DVE only. Total Number of Layers 9 Pattern Generators 5 Color Generators 2 DVE With Borders and Drop Shadow 2 Interface Minimum monitor resolution of 1366 x 768.
Audio: Audio Mixer 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections. USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control: Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications: Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM SDI Extreme ISO External 12V DC power supply with international socket adapters
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM SDI Pro ISO

HK$6,550

Add to Compare

ATEM SDI Pro ISO

Price: HK$6,550
Description: This model includes the features of ATEM SDI plus it adds built in streaming and recording to 5 video streams in real time! That's a clean feed of all inputs for multi‑cam editing! A DaVinci Resolve project is saved so you can open your live production to edit, remix audio and add color correction!
Total_Video_Inputs: 4
Total_Outputs: 3
Total_Aux_Outputs: 2
Total_Audio_Inputs: 2 x 3.5mm stereo mini jack.
Total_Audio_Outputs: None, embedded audio only.
Timecode_Connection: None
Sdi_Video_Inputs: 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio.
Video_Input_Re-Sync: On all 4 SDI inputs.
Frame_Rate_And_Format_Converters: On all 4 SDI inputs.
Sdi_Program_Outputs: 2
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards: None
Video_Sampling: 4:2:2 YUV
Color_Precision: 10-bit
Color_Space: Rec 709
Colorspace_Conversion: Hardware based real time.
Upstream_Keyers: 1
Downstream_Keyers: 1
Advanced_Chroma_Keyers: 1
Linear/Luma_Keyers: 2
Transition_Keyer: DVE only.
Total_Number_Of_Layers: 5
Pattern_Generators: 1
Color_Generators: 2
Dve_With_Borders_And_Drop_Shadow: 1
Interface: Minimum monitor resolution of 1366 x 768.
Audio_Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input: Unbalanced stereo
Analog_Input_Delay: Up to 8 frames
Input_Impedance: 1.8k
Max_Input_Level: +6dBV
Mic_Plug_In_Power: Available on both 3.5mm mini jack connections.
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Recording_Video_And_Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording: 4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio_Recording: 6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs.
Switching: Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring: Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 SDI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard: HD
Media_Players: 1
Channels: Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity: 20 with fill and key.
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Control_Panel_Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x External 12V power supply.
Power_Usage: 36W
Operating_Temperature: 5° C to 40° C (41° - 104° F)
Storage_Temperature: -10° to 60° C (14° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: Total Video Inputs 4 Total Outputs 3 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None SDI Video Inputs 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 SDI inputs. Frame Rate and Format Converters On all 4 SDI inputs. SDI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards: HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 Colorspace Conversion Hardware based real time.
Product_Specifics: Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE With Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio: Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections. USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization: Learn More
Media_Player: Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control: Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications: Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM SDI Pro ISO External 12V DC power supply with international socket adapters
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Streaming Bridge

HK$2,250

Add to Compare

ATEM Streaming Bridge

Price: HK$2,250
Description: The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!
Reference_Input: Black burst and Tri‑Sync.
Ethernet: Ethernet supports 10/100/1000 BaseT.
N/A: Mini Switches or setup utility software when connected by USB.
Power_Supply: EMC, FCC, CE and KCC.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non‑condensing
Connections: SDI Reference Inputs 1 x 3G-SDI SDI Video Outputs 2 x 3G-SDI SDI Audio Outputs 2 Channels embedded in HD-SDI. HDMI Video Output HDMI type A out. HDMI Audio Outputs 2 Channels embedded in HDMI. SDI Rates 1.5G, 3G. Reference Input Black burst and Tri‑Sync. Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB Type-C for software configuration and software updates.
Standards: SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 10-bit SDI Color Space YUV
Streaming: Streaming Input ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models. Protocols RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Software: Internal software upgrade via updater application.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply +12V universal power supply included with international socket adapters for all countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
What's_Included: ATEM Streaming Bridge 12V universal power supply with international socket adapters
Warranty: 1 Year Limited Manufacturer’s Warranty.
Sdi_Reference_Inputs: 1 x 3G-SDI
Sdi_Video_Outputs: 2 x 3G-SDI
Sdi_Audio_Outputs: 2 Channels embedded in HD-SDI.
Hdmi_Video_Output: HDMI type A out.
Hdmi_Audio_Outputs: 2 Channels embedded in HDMI.
Sdi_Rates: 1.5G, 3G.
Updates_And_Configuration: 1 x USB Type-C for software configuration and software updates.
Sdi_Video_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Hdmi_Video_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Sdi_Video_Sampling: 4:2:2
Sdi_Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision: 10-bit
Sdi_Color_Space: YUV
Streaming_Input: ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models.
Protocols: RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Power_Consumption: 6W max.
Operational_Voltage_Range: 6 - 30V DC.
Settings_Control: Mini Switches or setup utility software when connected by USB.
Emc_Certifications: Power Supply EMC, FCC, CE and KCC.

ATEM Television Studio 4K8

HK$48,000

Add to Compare

ATEM Television Studio 4K8

Price: HK$48,000
Description: ATEM Television Studio 4K8 is a powerful Ultra HD live production switcher with a built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch, built in streaming, master recorder, multiview, USB webcam support, 2 DVEs, SuperSource, 4 ATEM Advanced Chroma Keyers, 2 media players, talkback and more!
Sdi_Video_Inputs: 8
Sdi_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G, 6G, 12G
Hdmi_Video_Outputs: 1
Total_Audio_Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs: 4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 16 assignable channels.
Timecode_Connections: 1 x BNC In, 1 x BNC Out.
Reference_Input: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 8 inputs.
Frame_Rate_And_Format_Converters: On all 8 inputs.
Sdi_Aux_Outputs: 10
Sdi_Program_Outputs: 1
Webcam_Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views: 1 x 12G-SDI 1 x HDMI 2.0
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet: 4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T.
Computer_Interface: 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Sd_Video_Standards: None
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Input_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec 709
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Shifted_Cross_Points: 20
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
Preview_Transition: 1
Source_Select_Bus: 1
Dedicated_Macro_Buttons: 10 plus shift 10
Transition_Type_Buttons: 5
Transition_Rate: Set via system LCD menu display
Key_Buttons: 8
Aux_Buttons: 12
Fader_Bar: 1
Record_Buttons: 2
Stream_Buttons: 2
Dsk_Transition_Selectors: 6
Fade_To_Black_Buttons: 1
System_Lcd_Displays: 1
Numeric_Keypad: 1
3_Axis_Joystick: 1
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 4
Supersource: 1
Dves: 2
Linear/Luma_Keyers: 7
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 8
Pattern_Generators: 7
Color_Generators: 2
Control_Panel: Integrated panel with full control of switching and settings.
Routable_Windows: 16
Windows_Source_Labels: Yes
Tally: Red for program and green for preview indication.
Talkback_Support: Yes
Mix_Minus_Support: Yes
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio: Direct recording to external media via USB‑C expansion ports or optional internal M.2 flash memory.
Video_Recording: HD programs recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video HD standard with AAC audio. Ultra HD programs recorded as a H.265 HEVC file at the streaming quality setting and at the ATEM video Ultra HD standard with AAC audio.
Media_Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring: Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD or Ultra HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD or Ultra HD
Display_Minimum_Resolution: 1366 x 768
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity: 2 x up to 2160p60.
Media_Player_Clip_Length_In_720 Hd: 1600 frames.
Media_Player_Clip_Length_In_1080 Hd: 800 frames.
Media_Player_Clip_Length_In_2160_Uhd: 200 frames.
Media_Pool_Video_File_Format: TGA sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Processing_Delay: < 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down_Conversion: 1 x multi view
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage: 120 W
Physical_Installation: Desktop or in-desk mount.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G, 6G, 12G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 assignable channels. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 10 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 12G-SDI 1 x HDMI 2.0 Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards: SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Input Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Recording: Direct Recording Video and Audio Direct recording to external media via USB‑C expansion ports or optional internal M.2 flash memory. Video Recording HD programs recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video HD standard with AAC audio. Ultra HD programs recorded as a H.265 HEVC file at the streaming quality setting and at the ATEM video Ultra HD standard with AAC audio. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 2160p60. Media Player Clip Length in 720 HD 1600 frames. Media Player Clip Length in 1080 HD 800 frames. Media Player Clip Length in 2160 UHD 200 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing: Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion 1 x multi view
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 120 W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Television Studio 4K8 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Television Studio 4K8 2TB

HK$57,300

Add to Compare

ATEM Television Studio 4K8 2TB

Price: HK$57,300
Description: ATEM Television Studio 4K8 2TB is a powerful Ultra HD live production switcher with a built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch, built in streaming, master recorder, multiview, USB webcam support, 2 DVEs, SuperSource, 4 ATEM Advanced Chroma Keyers, 2 media players, 2TB M.2 internal storage, talkback and more!
Sdi_Video_Inputs: 8
Sdi_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G, 6G, 12G
Hdmi_Video_Outputs: 1
Total_Audio_Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs: 4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 16 assignable channels.
Timecode_Connections: 1 x BNC In, 1 x BNC Out.
Reference_Input: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 8 inputs.
Frame_Rate_And_Format_Converters: On all 8 inputs.
Sdi_Aux_Outputs: 10
Sdi_Program_Outputs: 1
Webcam_Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views: 1 x 12G-SDI 1 x HDMI 2.0
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet: 4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T.
Computer_Interface: 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Sd_Video_Standards: None
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Input_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec 709
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Shifted_Cross_Points: 20
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
Preview_Transition: 1
Source_Select_Bus: 1
Dedicated_Macro_Buttons: 10 plus shift 10
Transition_Type_Buttons: 5
Transition_Rate: Set via system LCD menu display
Key_Buttons: 8
Aux_Buttons: 12
Fader_Bar: 1
Record_Buttons: 2
Stream_Buttons: 2
Dsk_Transition_Selectors: 6
Fade_To_Black_Buttons: 1
System_Lcd_Displays: 1
Numeric_Keypad: 1
3_Axis_Joystick: 1
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 4
Supersource: 1
Dves: 2
Linear/Luma_Keyers: 7
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 8
Pattern_Generators: 7
Color_Generators: 2
Control_Panel: Integrated panel with full control of switching and settings.
Routable_Windows: 16
Windows_Source_Labels: Yes
Tally: Red for program and green for preview indication.
Talkback_Support: Yes
Mix_Minus_Support: Yes
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Recording_Video_And_Audio: Direct recording to the included internal M.2 flash memory or to external media via USB‑C expansion ports.
Video_Recording: HD programs recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video HD standard with AAC audio. Ultra HD programs recorded as a H.265 HEVC file at the streaming quality setting and at the ATEM video Ultra HD standard with AAC audio.
Internal_Memory: 2TB M.2 NVMe installed.
Media_Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring: Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD or Ultra HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD or Ultra HD
Display_Minimum_Resolution: 1366 x 768
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity: 2 x up to 2160p60.
Media_Player_Clip_Length_In_720 Hd: 720 frames.
Media_Player_Clip_Length_In_1080 Hd: 360 frames.
Media_Player_Clip_Length_In_2160_Uhd: 90 frames.
Media_Pool_Video_File_Format: TGA sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Processing_Delay: < 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down_Conversion: 1 x multi view
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage: 120 W
Physical_Installation: Desktop or in-desk mount.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G, 6G, 12G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 assignable channels. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 10 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 12G-SDI 1 x HDMI 2.0 Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards: SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Input Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Audio: USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio Direct recording to the included internal M.2 flash memory or to external media via USB‑C expansion ports. Video Recording HD programs recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video HD standard with AAC audio. Ultra HD programs recorded as a H.265 HEVC file at the streaming quality setting and at the ATEM video Ultra HD standard with AAC audio. Internal Memory 2TB M.2 NVMe installed. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 2160p60. Media Player Clip Length in 720 HD 720 frames. Media Player Clip Length in 1080 HD 360 frames. Media Player Clip Length in 2160 UHD 90 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing: Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion 1 x multi view
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 120 W
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Television Studio 4K8 2TB Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Television Studio HD8

HK$22,100

Add to Compare

ATEM Television Studio HD8

Price: HK$22,100
Description: ATEM Television Studio HD8 is a compact live production switcher with built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 standards converted 3G-SDI inputs, built in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4 way Ethernet switch and optional internal cloud media storage.
Sdi_Video_Inputs: 8
Sdi_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G
Hdmi_Video_Outputs: 1
Total_Audio_Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs: 4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 2 Ch embedded audio on all SDI outputs.
Timecode_Connections: 1 x BNC In, 1 x BNC Out.
Reference_Input: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 8 inputs.
Frame_Rate_And_Format_Converters: On all 8 inputs.
Sdi_Aux_Outputs: 2
Sdi_Program_Outputs: 1
Webcam_Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views: 1 x 3G-SDI 1 x HDMI
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet: 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
Computer_Interface: 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Sd_Video_Standards: None
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec 709
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Shifted_Cross_Points: 20
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
Preview_Transition: 1
Source_Select_Bus: 1
Dedicated_Macro_Buttons: 10 plus shift 10
Transition_Type_Buttons: 5
Transition_Rate: Set via system LCD menu display
Key_Buttons: 8
Aux_Buttons: 12
Fader_Bar: 1
Record_Buttons: 2
Stream_Buttons: 2
Dsk_Transition_Selectors: 6
Fade_To_Black_Buttons: 1
System_Lcd_Displays: 1
Numeric_Keypad: 1
3_Axis_Joystick: 1
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 4
Supersource: 1
Dves: 2
Linear/Luma_Keyers: 7
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 8
Pattern_Generators: 7
Color_Generators: 2
Control_Panel: Integrated panel with full control of switching and settings.
Routable_Windows: 16
Windows_Source_Labels: Yes
Tally: Red for program and green for preview indication.
Talkback_Support: Yes
Mix_Minus_Support: Yes
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio: Direct recording to external media via USB‑C expansion ports or optional internal M.2 flash memory.
Video_Recording: Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.
Media_Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring: Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD
Display_Minimum_Resolution: 1366 x 768
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity: 2 x up to 1080p60.
Media_Player_Clip_Length_In_720 Hd: 400 frames.
Media_Player_Clip_Length_In_1080 Hd: 200 frames.
Media_Pool_Video_File_Format: TGA sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Processing_Delay: < 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage: 100 W max.
Physical_Installation: Desktop or in-desk mount.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 2 Ch embedded audio on all SDI outputs. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 2 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI 1 x HDMI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards: SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Recording: Direct Recording Video and Audio Direct recording to external media via USB‑C expansion ports or optional internal M.2 flash memory. Video Recording Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 400 frames. Media Player Clip Length in 1080 HD 200 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing: Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Television Studio HD8 Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Television Studio HD8 2TB

HK$32,750

Add to Compare

ATEM Television Studio HD8 2TB

Price: HK$32,750
Description: ATEM Television Studio HD8 2TB is a compact live production switcher with built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 standards converted 3G-SDI inputs, built in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, 2TB M.2 internal storage, talkback, 4 way Ethernet switch and optional internal cloud media storage.
Sdi_Video_Inputs: 8
Sdi_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G
Hdmi_Video_Outputs: 1
Total_Audio_Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs: 4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 2 Ch embedded audio on all SDI outputs.
Timecode_Connections: 1 x BNC In, 1 x BNC Out.
Reference_Input: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 8 inputs.
Frame_Rate_And_Format_Converters: On all 8 inputs.
Sdi_Aux_Outputs: 2
Sdi_Program_Outputs: 1
Webcam_Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views: 1 x 3G-SDI 1 x HDMI
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet: 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
Computer_Interface: 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Sd_Video_Standards: None
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec 709
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Shifted_Cross_Points: 20
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
Preview_Transition: 1
Source_Select_Bus: 1
Dedicated_Macro_Buttons: 10 plus shift 10
Transition_Type_Buttons: 5
Transition_Rate: Set via system LCD menu display
Key_Buttons: 8
Aux_Buttons: 12
Fader_Bar: 1
Record_Buttons: 2
Stream_Buttons: 2
Dsk_Transition_Selectors: 6
Fade_To_Black_Buttons: 1
System_Lcd_Displays: 1
Numeric_Keypad: 1
3_Axis_Joystick: 1
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 4
Supersource: 1
Dves: 2
Linear/Luma_Keyers: 7
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 8
Pattern_Generators: 7
Color_Generators: 2
Control_Panel: Integrated panel with full control of switching and settings.
Routable_Windows: 16
Windows_Source_Labels: Yes
Tally: Red for program and green for preview indication.
Talkback_Support: Yes
Mix_Minus_Support: Yes
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Recording_Video_And_Audio: Direct recording to the included internal M.2 flash memory or to external media via USB‑C expansion ports.
Video_Recording: Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.
Internal_Memory: 2TB M.2 NVMe installed.
Media_Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring: Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD
Display_Minimum_Resolution: 1366 x 768
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity: 2 x up to 1080p60.
Media_Player_Clip_Length_In_720 Hd: 400 frames.
Media_Player_Clip_Length_In_1080 Hd: 200 frames.
Media_Pool_Video_File_Format: TGA sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Processing_Delay: < 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage: 100 W max.
Physical_Installation: Desktop or in-desk mount.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 2 Ch embedded audio on all SDI outputs. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 2 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI 1 x HDMI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards: SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Audio: USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio Direct recording to the included internal M.2 flash memory or to external media via USB‑C expansion ports. Video Recording Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. Internal Memory 2TB M.2 NVMe installed. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 400 frames. Media Player Clip Length in 1080 HD 200 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing: Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Television Studio HD8 2TB Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

ATEM Television Studio HD8 ISO

HK$26,500

Add to Compare

ATEM Television Studio HD8 ISO

Price: HK$26,500
Description: ATEM Television Studio HD8 ISO includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!
Sdi_Video_Inputs: 8
Sdi_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G
Hdmi_Video_Outputs: 1
Total_Audio_Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs: 4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 2 Ch embedded audio on all SDI outputs.
Timecode_Connections: 1 x BNC In, 1 x BNC Out.
Reference_Input: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 8 inputs.
Frame_Rate_And_Format_Converters: On all 8 inputs.
Sdi_Aux_Outputs: 2
Sdi_Program_Outputs: 1
Webcam_Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views: 1 x 3G-SDI 1 x HDMI
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet: 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
Computer_Interface: 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Sd_Video_Standards: None
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec 709
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Shifted_Cross_Points: 20
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
Preview_Transition: 1
Source_Select_Bus: 1
Dedicated_Macro_Buttons: 10 plus shift 10
Transition_Type_Buttons: 5
Transition_Rate: Set via system LCD menu display
Key_Buttons: 8
Aux_Buttons: 12
Fader_Bar: 1
Record_Buttons: 2
Stream_Buttons: 2
Dsk_Transition_Selectors: 6
Fade_To_Black_Buttons: 1
System_Lcd_Displays: 1
Numeric_Keypad: 1
3_Axis_Joystick: 1
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 4
Supersource: 1
Dves: 2
Linear/Luma_Keyers: 7
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 8
Pattern_Generators: 7
Color_Generators: 2
Control_Panel: Integrated panel with full control of switching and settings.
Routable_Windows: 16
Windows_Source_Labels: Yes
Tally: Red for program and green for preview indication.
Talkback_Support: Yes
Mix_Minus_Support: Yes
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio: Direct recording to external media via USB‑C expansion ports or optional internal M.2 flash memory.
Video_Recording: Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
Media_Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring: Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD
Display_Minimum_Resolution: 1366 x 768
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity: 2 x up to 1080p60.
Media_Player_Clip_Length_In_720 Hd: 400 frames.
Media_Player_Clip_Length_In_1080 Hd: 200 frames.
Media_Pool_Video_File_Format: TGA sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Processing_Delay: < 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage: 100 W max.
Physical_Installation: Desktop or in-desk mount.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 2 Ch embedded audio on all SDI outputs. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 2 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI 1 x HDMI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards: SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Recording: Direct Recording Video and Audio Direct recording to external media via USB‑C expansion ports or optional internal M.2 flash memory. Video Recording Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. Audio Recording Audio inputs recorded as separate 24‑bit 48KHz .wav files. Includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media All media pool stills and clips saved to a separate media folder. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 400 frames. Media Player Clip Length in 1080 HD 200 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing: Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Television Studio HD8 ISO Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Total_Streaming_Sources: Up to 8
Streaming_Source_Format: RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates.
Streaming_Source_Setup: Mapped to inputs in ATEM Software Control Settings.
Audio_Recording: Audio inputs recorded as separate 24‑bit 48KHz .wav files. Includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio.
Switching: Program switching recorded as a DaVinci Resolve project .drp file.
Media: All media pool stills and clips saved to a separate media folder.
Streaming_Sources: Total Streaming Sources Up to 8 Streaming Source Format RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates. Streaming Source Setup Mapped to inputs in ATEM Software Control Settings.

ATEM Television Studio HD8 ISO 2TB

HK$40,950

Add to Compare

ATEM Television Studio HD8 ISO 2TB

Price: HK$40,950
Description: ATEM Television Studio HD8 ISO 2TB includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs as separate video files to the 2TB M.2 internal memory, or network or USB storage. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!
Sdi_Video_Inputs: 8
Sdi_Video_Outputs: 12
Sdi_Rates: 1.5G, 3G
Hdmi_Video_Outputs: 1
Total_Audio_Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs: 4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs: 2 Ch embedded audio on all SDI outputs.
Timecode_Connections: 1 x BNC In, 1 x BNC Out.
Reference_Input: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Re-Sync: On all 8 inputs.
Frame_Rate_And_Format_Converters: On all 8 inputs.
Sdi_Aux_Outputs: 2
Sdi_Program_Outputs: 1
Webcam_Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views: 1 x 3G-SDI 1 x HDMI
Remote: RJ12 supports RS-422
Control_Panel_Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally_Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet: 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
Computer_Interface: 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Sd_Video_Standards: None
Hd_Video_Input_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling: 4:2:2
Color_Precision: 10-bit.
Color_Space: Rec 709
Sdi_Auto_Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Number_Of_Mix_Effects_Rows: 1
Direct_Cross_Points: 10
Shifted_Cross_Points: 20
Crosspoint_Button_Type: Tri-Color LED
Crosspoint_Label: 6 rows 24 character LCD
Preview_Transition: 1
Source_Select_Bus: 1
Dedicated_Macro_Buttons: 10 plus shift 10
Transition_Type_Buttons: 5
Transition_Rate: Set via system LCD menu display
Key_Buttons: 8
Aux_Buttons: 12
Fader_Bar: 1
Record_Buttons: 2
Stream_Buttons: 2
Dsk_Transition_Selectors: 6
Fade_To_Black_Buttons: 1
System_Lcd_Displays: 1
Numeric_Keypad: 1
3_Axis_Joystick: 1
Upstream_Keyers: 4
Downstream_Keyers: 2
Advanced_Chroma_Keyers: 4
Supersource: 1
Dves: 2
Linear/Luma_Keyers: 7
Transition_Keyer_(Stinger/Dve): 1 Stinger, 1 DVE.
Total_Number_Of_Layers: 8
Pattern_Generators: 7
Color_Generators: 2
Control_Panel: Integrated panel with full control of switching and settings.
Routable_Windows: 16
Windows_Source_Labels: Yes
Tally: Red for program and green for preview indication.
Talkback_Support: Yes
Mix_Minus_Support: Yes
Usb_Audio_Output: Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Direct_Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Blackmagic_Cloud_Stream_Router: Supports streaming to Stream Router application in Blackmagic Cloud.
Direct_Recording_Video_And_Audio: Direct recording to the included internal M.2 flash memory or to external media via USB‑C expansion ports.
Video_Recording: Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
Internal_Memory: 2TB M.2 NVMe installed.
Media_Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring: Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard: HD
Display_Minimum_Resolution: 1366 x 768
Media_Players: 2
Channels: Fill and key for each media player.
Media_Pool_Still_Image_Capacity: 20
Media_Pool_Still_Image_Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity: 2 x up to 1080p60.
Media_Player_Clip_Length_In_720 Hd: 400 frames.
Media_Player_Clip_Length_In_1080 Hd: 200 frames.
Media_Pool_Video_File_Format: TGA sequence.
Media_Pool_Audio_File_Format: WAV, MP3 and AIFF.
Processing_Delay: < 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down_Conversion: None
Control_Panel_Included: ATEM Software Control panel included free for Mac and Windows.
Software_Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
N/A: Windows 10 and 11.
Power_Supply: 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage: 100 W max.
Physical_Installation: Desktop or in-desk mount.
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 2 Ch embedded audio on all SDI outputs. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 2 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI 1 x HDMI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards: SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics: Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Audio: USB Audio Output Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. Learn More
Streaming: Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Blackmagic Cloud Stream Router Supports streaming to Stream Router application in Blackmagic Cloud.
Recording: Direct Recording Video and Audio Direct recording to the included internal M.2 flash memory or to external media via USB‑C expansion ports. Video Recording Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. Internal Memory 2TB M.2 NVMe installed. Audio Recording Audio inputs recorded as separate 24‑bit 48KHz .wav files. Includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media All media pool stills and clips saved to a separate media folder. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization: Learn More
Media_Player: Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 400 frames. Media Player Clip Length in 1080 HD 200 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing: Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion None
Software: Control Panel Included ATEM Software Control panel included free for Mac and Windows. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility Configuration Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher.
Operating_Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements: Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: ATEM Television Studio HD8 ISO 2TB Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.
Total_Streaming_Sources: Up to 8
Streaming_Source_Format: RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates.
Streaming_Source_Setup: Mapped to inputs in ATEM Software Control Settings.
Audio_Recording: Audio inputs recorded as separate 24‑bit 48KHz .wav files. Includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio.
Switching: Program switching recorded as a DaVinci Resolve project .drp file.
Media: All media pool stills and clips saved to a separate media folder.
Streaming_Sources: Total Streaming Sources Up to 8 Streaming Source Format RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates. Streaming Source Setup Mapped to inputs in ATEM Software Control Settings. Blackmagic Cloud Stream Router Receive sources from Stream Router application in Blackmagic Cloud.

🧩 Blackmagic Products - Final Version

ATEM Production Switchers

ATEM 1 M/E Advanced Panel 10

ATEM 1 M/E Advanced Panel 10

ATEM 1 M/E Advanced Panel 20

ATEM 1 M/E Advanced Panel 20

ATEM 1 M/E Advanced Panel 30

ATEM 1 M/E Advanced Panel 30

ATEM 1 M/E Constellation 4K

ATEM 1 M/E Constellation 4K

ATEM 1 M/E Constellation HD

ATEM 1 M/E Constellation HD

ATEM 2 M/E Advanced Panel 20

ATEM 2 M/E Advanced Panel 20

ATEM 2 M/E Advanced Panel 30

ATEM 2 M/E Advanced Panel 30

ATEM 2 M/E Advanced Panel 40

ATEM 2 M/E Advanced Panel 40

ATEM 2 M/E Constellation 4K

ATEM 2 M/E Constellation 4K

ATEM 2 M/E Constellation HD

ATEM 2 M/E Constellation HD

ATEM 4 M/E Advanced Panel 40

ATEM 4 M/E Advanced Panel 40

ATEM 4 M/E Constellation 4K

ATEM 4 M/E Constellation 4K

ATEM 4 M/E Constellation 4K Plus

ATEM 4 M/E Constellation 4K Plus

ATEM 4 M/E Constellation HD

ATEM 4 M/E Constellation HD

ATEM 4 M/E Constellation IP

ATEM 4 M/E Constellation IP

ATEM 4 M/E Constellation IP Plus

ATEM 4 M/E Constellation IP Plus

ATEM Camera Control Panel

ATEM Camera Control Panel

ATEM Constellation 8K

ATEM Constellation 8K

ATEM Micro Camera Panel

ATEM Micro Camera Panel

ATEM Micro Panel

ATEM Micro Panel

ATEM Microphone Converter

ATEM Microphone Converter

ATEM Mini Extreme

ATEM Mini Extreme

ATEM Mini Extreme ISO G2

ATEM Mini Extreme ISO G2

ATEM Mini Pro

ATEM Mini Pro

ATEM Mini Pro ISO

ATEM Mini Pro ISO

ATEM Monitoring Rack Panel 20

ATEM Monitoring Rack Panel 20

ATEM Monitoring Rack Panel 40

ATEM Monitoring Rack Panel 40

ATEM SDI

ATEM SDI

ATEM SDI Extreme ISO

ATEM SDI Extreme ISO

ATEM SDI Pro ISO

ATEM SDI Pro ISO

ATEM Streaming Bridge

ATEM Streaming Bridge

ATEM Television Studio 4K8

ATEM Television Studio 4K8

ATEM Television Studio 4K8 2TB

ATEM Television Studio 4K8 2TB

ATEM Television Studio HD8

ATEM Television Studio HD8

ATEM Television Studio HD8 2TB

ATEM Television Studio HD8 2TB

ATEM Television Studio HD8 ISO

ATEM Television Studio HD8 ISO

ATEM Television Studio HD8 ISO 2TB

ATEM Television Studio HD8 ISO 2TB
