Blackmagic Products - Final Version

Blackmagic Audio Monitor 12G G3

HK$11,000

Add to Compare

Blackmagic Audio Monitor 12G G3

Price: HK$11,000
Description: Blackmagic Audio Monitor 12G G3 is a powerful rack mount audio monitoring solution in a compact 1 rack unit size. This new model features 10G Ethernet SMPTE-2110 IP input to allow monitoring of IP broadcast systems without an external converter. Blackmagic Audio Monitor 12G G3 also includes a large audio meter with accurate ballistics, 12G-SDI input for SD, HD and Ultra HD support, balanced analog XLR, HiFi and AES/EBU inputs and HDMI video output for monitoring SDI and IP video sources.
Sdi_Video_Inputs: 1
Sdi_Video_Outputs: 1 loop out.
Sdi_Rates: 270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_2.0_Video_Outputs: 1
Multi_Rate_Support: SDI and HDMI are switchable between standard definition, high definition and ultra high definition.
Sdi_Video_Loop: 1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
Analog_Audio_Inputs: 2 x XLR. 2 x RCA HiFi.
Analog_Audio_Outputs: 1 x 6.5mm headphone socket.
Digital_Audio_Inputs: 1 x XLR.
Built_In_Speaker: Stereo with 2‑way crossover and independent stereo subwoofers.
Aes/Ebu_Audio_Inputs: 2 channels balanced 110Ω AES/EBU via XLR.
Sdi_Audio_Inputs: 16 channels embedded in SD, HD and UltraHD 4K.
Sdi_Audio_Outputs: 16 channels embedded audio loop out.
Hdmi_Audio_Outputs: 8 Channels embedded in SD, HD and 4K.
Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Computer_Interface: USB‑C for configuration and firmware updates.
Metering: 2 x 27 RGB segment LED VU, PPM or Loudness meters.
Modes: Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2k_Video_Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF
Ultra Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4k_Video_Standards: 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2084, SMPTE 2108‑1.
Sdi_Auto_Switching: Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI and 12G‑SDI.
Audio_Sampling: 96 KHz and 24 bit.
Video_Sampling: 4:2:2 and 4:4:4
N/A: 1 rack unit.
Smpte_2110‑20_(Uncompressed_Video): IGMP v2
Smpte_2110‑21_(Traffic_Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110‑30_(Pcm): Audio Conformance level: Level C
Smpte_2110‑40_(Ancillary_Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol: IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
Nmos_Is‑04_Discovery_And_Registration: v1.3.2 Peer‑to-peer via mDNS/DNS‑SD
Nmos_Is‑05_Connection Management: v1.1.2
Nmos_Bcp‑002‑01: Natural Grouping
Nmos_Bcp‑004‑01: Receiver capabilities
Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Built-In_Control_Panel: 2.2 inch display for viewing video input, video standard and selected audio input.
Internal_Software_Upgrade: Via USB connection and Ethernet
Display_Element: 2.2 inch diagonal color LCD.
Display_Resolution: 320 x 240.
Input_Display: SDI video, format, audio type and audio channels.
Power_Supply: 1 x Internal 100 - 240V AC.
Power_Usage: 55 Watts
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Inputs 1 SDI Video Outputs 1 loop out. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Outputs 1 Multi Rate Support SDI and HDMI are switchable between standard definition, high definition and ultra high definition. SDI Video Loop 1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI. Analog Audio Inputs 2 x XLR. 2 x RCA HiFi. Analog Audio Outputs 1 x 6.5mm headphone socket. Digital Audio Inputs 1 x XLR. Built in Speaker Stereo with 2‑way crossover and independent stereo subwoofers. AES/EBU Audio Inputs 2 channels balanced 110Ω AES/EBU via XLR. SDI Audio Inputs 16 channels embedded in SD, HD and UltraHD 4K. SDI Audio Outputs 16 channels embedded audio loop out. HDMI Audio Outputs 8 Channels embedded in SD, HD and 4K. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. Computer Interface USB‑C for configuration and firmware updates. Metering 2 x 27 RGB segment LED VU, PPM or Loudness meters. Modes Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.
Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2084, SMPTE 2108‑1. SDI Auto Switching Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI and 12G‑SDI. Audio Sampling 96 KHz and 24 bit. Video Sampling 4:2:2 and 4:4:4
Audio_Meter_Ballistics: 54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale.
Ip_Video_Compliance: SMPTE 2110‑20 (Uncompressed Video) IGMP v2 SMPTE 2110‑21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110‑30 (PCM) Audio Conformance level: Level C SMPTE 2110‑40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 NMOS IS‑04 Discovery and Registration v1.3.2 Peer‑to-peer via mDNS/DNS‑SD NMOS IS‑05 Connection Management v1.1.2 NMOS BCP‑002‑01 Natural Grouping NMOS BCP‑004‑01 Receiver capabilities Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Control: Built-in Control Panel 2.2 inch display for viewing video input, video standard and selected audio input.
Software: Internal Software Upgrade Via USB connection and Ethernet
Operating_Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Display: Display Element 2.2 inch diagonal color LCD. Display Resolution 320 x 240. Input Display SDI video, format, audio type and audio channels.
Power_Requirements: Power Supply 1 x Internal 100 - 240V AC. Power Usage 55 Watts
Physical_Installation: 1 rack unit.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: Blackmagic Audio Monitor 12G G3 PPM and Loudness Scale Stickers Welcome wallet with QR code for software download
Warranty: 1 Year Limited Manufacturer’s Warranty.

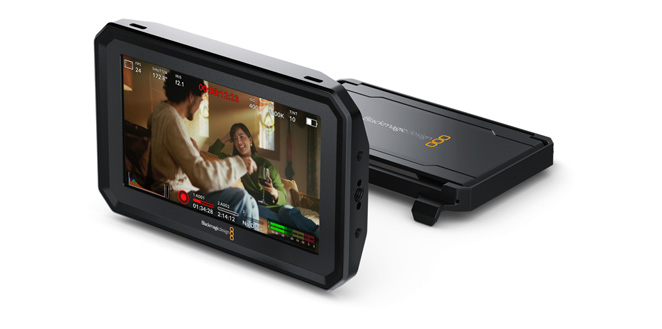

Blackmagic PYXIS Monitor

HK$2,500

Add to Compare

Blackmagic PYXIS Monitor

Price: HK$2,500
Description: Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.
Frame_Rates: Up to 60fps.
N/A: Powered over USB-C.
Operating_Temperature: 0°to 40°C (32° to 104°F)
Storage_Temperature: -20°to 60°C (-4° to 140°F)
Relative_Humidity: 0% to 90% non-condensing
Connections: USB-C with Locking Connector Video, power, data and software updates.
Operating_Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements: Powered over USB-C.
Environmental_Specifications: Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
What's_Included: Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty: Product Warranty 1 Year Limited Manufacturer’s Warranty.
Tally: Rear facing LED tally light.
Display_Resolution: Full 1920 x 1080.
Display_Type: LCD capacitive touchscreen.
Features: Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Usb-C_With_Locking_Connector: Video, power, data and software updates.
Display_Size: 5 inch.
Display_Brightness: 1500 nits.
On_Screen_Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Toggle: Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Product_Warranty: 1 Year Limited Manufacturer’s Warranty.
Control: On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Accelerometer: Automatically rotates image when monitor mounted upside down.
Function_Button_Presets: FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Mounting_Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.

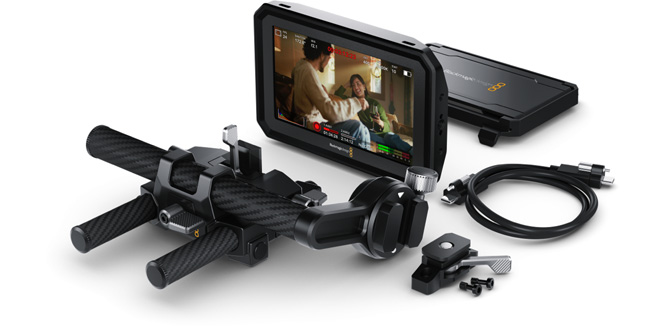

Blackmagic PYXIS Monitor EVF Kit

HK$5,400

Add to Compare

Blackmagic PYXIS Monitor EVF Kit

Price: HK$5,400
Description: Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as an electronic viewfinder.
Frame_Rates: Up to 60fps.
N/A: Powered over USB-C.
Operating_Temperature: 0°to 40°C (32° to 104°F)
Storage_Temperature: -20°to 60°C (‑4° to 140°F)
Relative_Humidity: 0% to 90% non-condensing
Connections: USB-C with Locking Connector Video, power, data and software updates.
Operating_Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements: Powered over USB-C.
Environmental_Specifications: Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non-condensing
What's_Included: Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Blackmagic PYXIS Monitor Swivel Mount Blackmagic PYXIS Monitor Fixed Mount and screws Blackmagic PYXIS Monitor Dovetail Shoe and screws Blackmagic URSA Cine EVF Bracket rod mount Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod 2 x short 15mm carbon fibre rods 1 x long USB‑C viewfinder Cable 1 x short USB‑C viewfinder Cable Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty: Product Warranty 1 Year Limited Manufacturer’s Warranty.
Tally: Rear facing LED tally light.
Display_Resolution: Full 1920 x 1080.
Display_Type: LCD capacitive touchscreen.
Features: Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Usb-C_With_Locking_Connector: Video, power, data and software updates.
Display_Size: 5 inch.
Display_Brightness: 1500 nits.
On_Screen_Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Toggle: Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Product_Warranty: 1 Year Limited Manufacturer’s Warranty.
Control: On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Accelerometer: Automatically rotates image when monitor mounted upside down.
Function_Button_Presets: FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Mounting_Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Mounting_Brackets: Blackmagic PYXIS Monitor Swivel Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in EVF Kit. Blackmagic URSA Cine EVF Bracket ‑ included in EVF Kit.

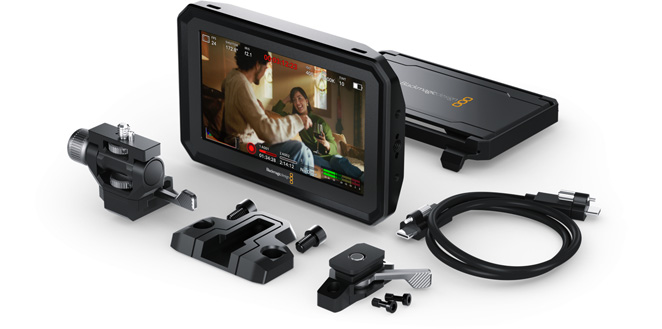

Blackmagic PYXIS Monitor Kit

HK$3,750

Add to Compare

Blackmagic PYXIS Monitor Kit

Price: HK$3,750
Description: Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
Frame_Rates: Up to 60fps.
N/A: Powered over USB-C.
Operating_Temperature: 0° to 40°C (32° to 104°F)
Storage_Temperature: -20° to 60°C (‑4° to 140°F)
Relative_Humidity: 0% to 90% non‑condensing
Connections: USB-C with Locking Connector Video, power, data and software updates.
Operating_Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements: Powered over USB-C.
Environmental_Specifications: Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non‑condensing
What's_Included: Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Blackmagic PYXIS Monitor Swivel Mount Blackmagic PYXIS Monitor Fixed Mount and screws Blackmagic PYXIS Monitor Dovetail Shoe and screws 1 x USB-C Viewfinder Cable Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty: Product Warranty 1 Year Limited Manufacturer’s Warranty.
Tally: Rear facing LED tally light.
Display_Resolution: Full 1920 x 1080.
Display_Type: LCD capacitive touchscreen.
Features: Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Usb-C_With_Locking_Connector: Video, power, data and software updates.
Display_Size: 5 inch.
Display_Brightness: 1500 nits.
On_Screen_Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Toggle: Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Product_Warranty: 1 Year Limited Manufacturer’s Warranty.
Control: On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Accelerometer: Automatically rotates image when monitor mounted upside down.
Function_Button_Presets: FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Mounting_Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Mounting_Brackets: Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit.

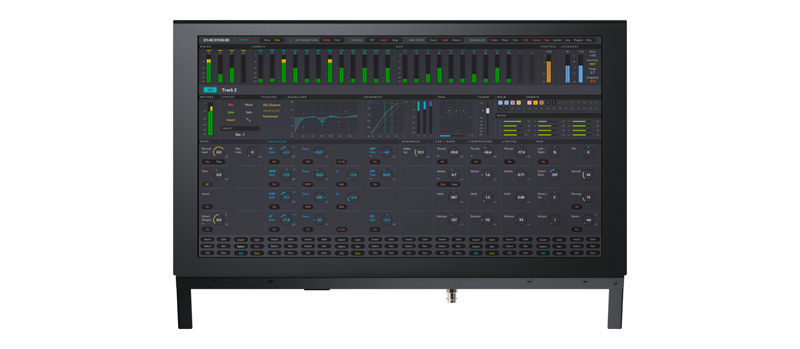

Fairlight Console LCD Monitor

HK$10,650

Add to Compare

Fairlight Console LCD Monitor

Price: HK$10,650
Description: Add a high resolution LCD monitor to every bay of your Fairlight console with Fairlight Console LCD Monitor! When installed above channel faders and controls you get instant graphic feedback for that channel, access to additional controls and more. Featuring an ethernet interface to display channel information, there is also an HDMI interface you can connect to your computer to see native plug‑in interfaces and an SDI BNC for video program or studio camera previews.
Power_Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage: 20W max.
Operating_Temperature: 0° to 40°C (32° to 104°F)
Storage_Temperature: -20° to 60°C (-4° to 140°F)
Relative_Humidity: 0% to 90% non-condensing
N/A: 1 Year Limited Manufacturer’s Warranty.
Connections: Ethernet Ethernet supports 10/100/1000 BaseT. HDMI Video Input HDMI Type A. SDI Inputs 1 x 3G‑SDI. SDI Rates 1.5G, 3G.
Power_Requirements: Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 20W max.
Operating_Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications: Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
What's_Included: Fairlight Console LCD Monitor
Warranty: 1 Year Limited Manufacturer’s Warranty.
Updates_And_Configuration: 1 x USB Type‑C for software configuration and software updates.
Ethernet: Ethernet supports 10/100/1000 BaseT.
Software: Internal software upgrade via updater application.
Settings_Control: Fairlight Studio and Console setup utility software when connected by USB.
Hdmi_Video_Input: HDMI Type A.
Sdi_Inputs: 1 x 3G‑SDI.
Sdi_Rates: 1.5G, 3G.
Hdmi_Video_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Video_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Sdi_Video_Sampling: 4:2:2
Sdi_Color_Precision: 10-bit
Sdi_Color_Space: YUV
Standards: HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Color Precision 10-bit SDI Color Space YUV

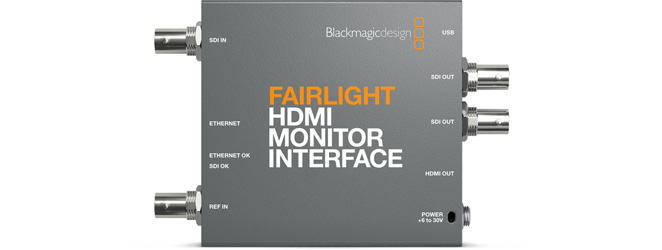

Fairlight HDMI Monitor Interface

HK$2,300

Add to Compare

Fairlight HDMI Monitor Interface

Price: HK$2,300
Description: If you are using the Fairlight Console components in your own custom desk with HDMI monitors, you can use Fairlight HDMI Monitor Interface to generate the graphical feedback from Fairlight Console Channel Control! This compact converter can be placed discretely on the back of your HDMI monitor and converts the Fairlight console ethernet data to HDMI. You get instant graphic feedback for the channel control status just as you would with the Fairlight Console LCD Monitor! The interface input can also be switched to SDI so you can see the talent up close for checking lip sync while editing, and an SDI output that mirrors the HDMI output lets you connect the interface to a remote SDI monitor!
Power_Supply: +12V universal power supply included with international socket adapters for most countries.
Operating_Temperature: 0° to 40°C (32° to 104°F)
Storage_Temperature: -20° to 60°C (-4° to 140°F)
Relative_Humidity: 0% to 90% non-condensing
N/A: 1 Year Limited Manufacturer's Warranty.
Connections: Ethernet Ethernet supports 10/100/1000 BaseT. HDMI Video Output HDMI Type A out. SDI Inputs 1 x 3G‑SDI SDI Video Outputs 2 x 3G‑SDI SDI Rates 1.5G, 3G. Updates and Configuration 1 x USB Type‑C for software configuration and software updates.
Power_Requirements: Power Supply +12V universal power supply included with international socket adapters for most countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Environmental_Specifications: Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
What's_Included: Fairlight HDMI Monitor Interface 12V universal power supply with international socket adapters for most countries.
Warranty: 1 Year Limited Manufacturer's Warranty.
Updates_And_Configuration: 1 x USB Type‑C for software configuration and software updates.
Ethernet: Ethernet supports 10/100/1000 BaseT.
Software: Internal software upgrade via updater application.
Settings_Control: Fairlight Studio and Console setup utility software when connected by USB.
Sdi_Inputs: 1 x 3G‑SDI
Sdi_Rates: 1.5G, 3G.
Hdmi_Video_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Video_Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Sdi_Video_Sampling: 4:2:2
Sdi_Color_Precision: 10-bit
Sdi_Color_Space: YUV
Standards: HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Color Precision 10-bit SDI Color Space YUV
Hdmi_Video_Output: HDMI Type A out.
Sdi_Video_Outputs: 2 x 3G‑SDI
Power_Consumption: 6W max.
Operational_Voltage_Range: 6 - 30V DC.

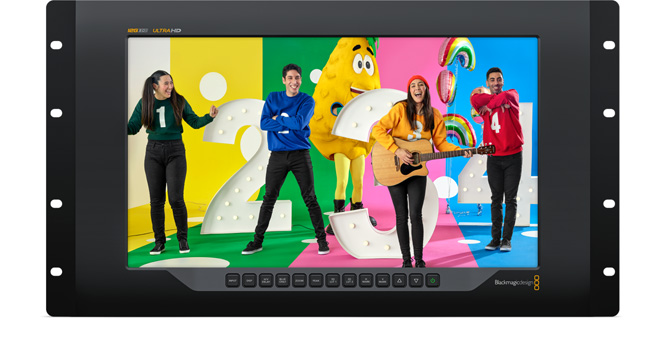

SmartView 4K G3

HK$10,650

Add to Compare

SmartView 4K G3

Price: HK$10,650
Description: SmartView 4K G3 is the first Ultra HD broadcast monitor with both 12G-SDI and SMPTE-2110 IP video inputs. SmartView 4K G3 connects directly to IP based broadcast systems as well as a range of 12G-SDI professional video equipment up to 2160p60, making it perfect for broadcast and live production. It includes AC and 12V DC power connections, 3D LUTs and monitoring controls such as focus peaking, H/V delay, blue only and framing guides.
Sdi_Inputs: 2 Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
Sdi_Outputs: 1 loop out. Reclocked video output that automatically switches to input selection.
Sdi_Rates: 270Mb, 1.5G, 3G, 6G, 12G.
Optical_Video_Input: SFP Optical Fiber connector cage. Supports 2110 IP video and optical SDI.
Multi_Rate_Support: Auto detection of 4K, Ultra HD, 2K, HD or SD inputs.
Updates_And_Configuration: USB
Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Tally: 9-pin D connector
Sd_Format_Support: 525i59.94 NTSC, 625i50 PAL
Hd_Format_Support: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2k_Format_Support: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
Ultra_Hd_Format_Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4k_Format_Support: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
Sdi_Color_Space: REC 601, REC 709
Sdi_Auto_Switching: Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
Video_Sampling: 4:2:2 and 4:4:4
Smpte_2110-20_(Uncompressed Video): IGMP v2
Smpte_2110-21_(Traffic_Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Smpte_2110-40_(Ancillary_Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol: IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
Nmos_Is‑04_Discovery_And_Registration: v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp‑002‑01: Natural Grouping
Nmos_Bcp‑004‑01: Receiver capabilities
Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Internal_Software_Upgrade: Via included firmware updater software.
Settings Control: Via USB or Ethernet.
N/A: 6 rack units.
Display_Element: 15.6" TFT Active Matrix LCD
Display_Resolution: 3840 x 2160 pixels
Response: 25 ms
Contrast_Ratio: 1000:1
Color_Depth: 16.7 million colors
Power_Supply: 1 x Internal 100 - 240V AC 50/60Hz.
Power_Inputs: 1 x IEC C14 socket for AC power. 1 x 5.5mm barrel +12V DC In for external power supply or battery use.
Power_Consumption: 24 W
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 60° C (-4° to 140° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Inputs 2 Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Outputs 1 loop out. Reclocked video output that automatically switches to input selection. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Optical Video Input SFP Optical Fiber connector cage. Supports 2110 IP video and optical SDI. Multi Rate Support Auto detection of 4K, Ultra HD, 2K, HD or SD inputs. Updates and Configuration USB Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. Tally 9-pin D connector
Standards: SD Format Support 525i59.94 NTSC, 625i50 PAL HD Format Support 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Format Support 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30 Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Format Support 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082. SDI Color Space REC 601, REC 709 SDI Auto Switching Automatically selects between SD, HD, 3G, 6G and 12G-SDI. Video Sampling 4:2:2 and 4:4:4
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 NMOS IS‑04 Discovery and Registration v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP‑002‑01 Natural Grouping NMOS BCP‑004‑01 Receiver capabilities Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Software: Internal Software Upgrade Via included firmware updater software. Settings Control Via USB or Ethernet.
Operating_Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Display: Display Element 15.6" TFT Active Matrix LCD Display Resolution 3840 x 2160 pixels Response 25 ms Contrast Ratio 1000:1 Color Depth 16.7 million colors
Power_Requirements: Power Supply 1 x Internal 100 - 240V AC 50/60Hz. Power Inputs 1 x IEC C14 socket for AC power. 1 x 5.5mm barrel +12V DC In for external power supply or battery use. Power Consumption 24 W
Physical_Installation: 6 rack units.
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
What's_Included: SmartView 4K G3 Welcome wallet with QR code for software download

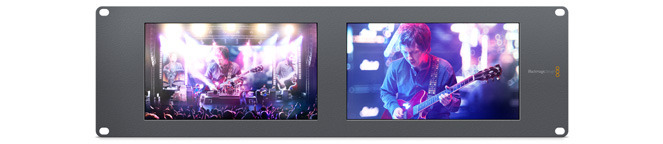

SmartView Duo

HK$4,800

Add to Compare

SmartView Duo

Price: HK$4,800
Description: Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!
Sdi_Video_Input: Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
Multi_Rate_Support: Auto detection of 2K, HD or standard definition inputs.
Tally: 9-pin D connector
2k_Format_Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Sdi_Compliance: SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M .
Video_Sampling: 4:2:2 and 4:4:4
Internal_Software_Upgrade: Via included firmware updater software.
N/A: Windows 10, 64-bit.
Power_Supply: 12V universal power supply included with international socket adapters for all countries.
Power_Consumption: < 20 Watts
Operational_Voltage_Range: 12V - 15V
Operating_Temperature: 0° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Input Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output. Multi Rate Support Auto detection of 2K, HD or standard definition inputs. Updates and Configuration Via USB 2.0 high speed (480 Mb/s) Ethernet 10/100 BaseT with loop through. Tally 9-pin D connector
Standards: SDI Compliance SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M . SDI Color Space REC 601 , REC 709 SDI Auto Switching Automatically selects between SD, HD and 3 Gb/s SDI . Video Sampling 4:2:2 and 4:4:4 SDI Format Support 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Software: Internal Software Upgrade Via included firmware updater software. SmartView Utility Software Via USB or Ethernet.
Operating_Systems: Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements: Power Supply 12V universal power supply included with international socket adapters for all countries. Power Consumption < 20 Watts Operational Voltage Range 12V - 15V
Environmental_Specifications: Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: SmartView Duo Power Supply Welcome wallet with QR code for software download
Updates_And_Configuration: Via USB 2.0 high speed (480 Mb/s)
Ethernet: 10/100 BaseT with loop through.
Sdi_Color_Space: REC 601 , REC 709
Sdi_Auto_Switching: Automatically selects between SD, HD and 3 Gb/s SDI .
Sdi_Format_Support: 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Smartview_Utility_Software: Via USB or Ethernet.
Display_Element: TFT Active Matrix LCD.
Display_Resolution: 800 x 480 pixels
Response: < 15 ms
Contrast_Ratio: Typically 500:1
Color_Depth: 16.7 Million Colors.
Display_Orientation: Displays can rotate upside down for optimum viewing angle.
Display: Display Element TFT Active Matrix LCD. Display Resolution 800 x 480 pixels Response < 15 ms Contrast Ratio Typically 500:1 Color Depth 16.7 Million Colors. Display Orientation Displays can rotate upside down for optimum viewing angle.
Warranty: 1 Year Limited Manufacturer’s Warranty.

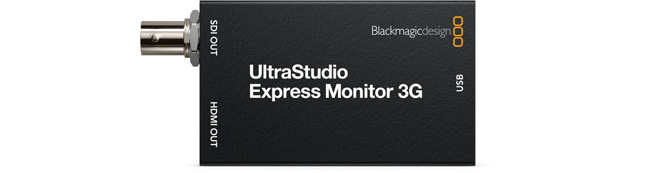

UltraStudio Express Monitor 3G

HK$1,350

Add to Compare

UltraStudio Express Monitor 3G

Price: HK$1,350
Description: Get compact 3G-SDI and HDMI video playback from your USB4 or Thunderbolt 4 laptop or desktop computer! UltraStudio Express Monitor 3G supports broadcast quality 10-bit SDI and HDMI video outputs from popular editing software such as DaVinci Resolve or broadcast graphics software.
Sdi_Video_Outputs: 1 x 10-bit SD/HD switchable
Sdi_Rates: 270Mb, 1.5G, 3G
Sdi_Audio_Outputs: 16 Channels embedded in SD/HD
Hdmi_Video_Outputs: 1 x HDMI 2.0 type A connector
Hdmi_Audio_Outputs: 8 Channels embedded in SD/HD
Computer_Interface: 1 x USB Type-C® supporting USB 40Gbps.
N/A: 1 Year Limited Manufacturer’s Warranty.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Other_Supported_Applications_Include:: The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika. These are third party applications and support may vary, check with your software vendor.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2k_Video_Standards: 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
Sdi_Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE ST2108-1
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Sdi_Audio_Sampling: Television standard sample rate of 48 kHz and 24-bit.
Sdi_Video_Sampling: 4:2:2 and 4:4:4
Sdi_Color_Space: Rec 601, Rec 709 and Rec 2020.
Hdmi_Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Hdmi_Video_Sampling: 4:2:2 and 4:4:4
Hdmi_Color_Space: Rec 601, Rec 709 and Rec 2020.
Hdmi_Configuration: HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colorspace_Conversion: Hardware based real time.
Physical_Installation: Physical Installation Requires computer with a USB Type-C® port with 40Gbps signalling rate.
Operating_Temperature: 5° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Outputs 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G SDI Audio Outputs 16 Channels embedded in SD/HD HDMI Video Outputs 1 x HDMI 2.0 type A connector HDMI Audio Outputs 8 Channels embedded in SD/HD Computer Interface 1 x USB Type-C® supporting USB 40Gbps.
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Sdi_Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE ST2108-1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2 and 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space Rec 601, Rec 709 and Rec 2020. SDI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support SDI video connection is switchable between SD and HD.
Hdmi_Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display. HDMI Color Space Rec 601, Rec 709 and Rec 2020. HDMI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI video connection is switchable between SD and HD.
Processing: Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Colorspace Conversion Hardware based real time.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Environmental_Specifications: Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
Hdmi_Color_Precision: 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards.
Hardware_Frame_Buffer: Hardware Frame Buffer v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
Sdi_Hdr_Support: HDR metadata packing, HLG and PQ transfer characteristics.
Hdmi_Hdr_Support: HDR metadata packing, HLG and PQ transfer characteristics.

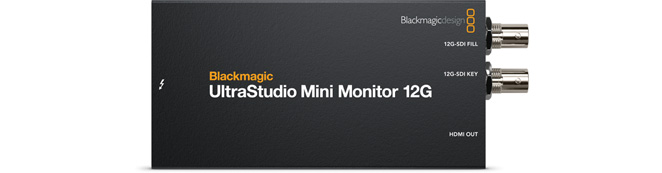

UltraStudio Mini Monitor 12G

HK$3,250

Add to Compare

UltraStudio Mini Monitor 12G

Price: HK$3,250
Description: Get 12G-SDI and HDMI video playback from your Thunderbolt™ laptop or desktop computer! The compact UltraStudio Mini Monitor 12G supports broadcast quality 10-bit SDI and HDMI video outputs from popular editing software such as DaVinci Resolve or broadcast graphics software using the 10-bit fill and key outputs. UltraStudio Mini Monitor 12G has multi-rate HDMI and 12G-SDI connections which support HD for broadcast video use as well as the latest Ultra HD video standards up to 2160p60.
Sdi_Rates: 270Mb, 1.5G, 3G, 6G, 12G.
Sdi_Audio_Outputs: 16 channels embedded audio on SDI output.
Computer_Interface: Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)
Video_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Sdi_Video_Standards: SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 2160p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space Rec. 601, Rec. 709 and Rec. 2020. HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support SDI video connection is switchable between SD, HD, 2K, Ultra HD and 4K.
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2k_Video_Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4k_Video_Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Sdi_Audio_Sampling: Television standard sample rate of 48 kHz and 24-bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 up to 2160p30, and 8, 10-bit YUV 4:2:2 in all standards.
Sdi_Color_Space: Rec. 601, Rec. 709 and Rec. 2020.
Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Multiple_Rate_Support: HDMI video connection is switchable between SD, HD, Ultra HD and 4K.
N/A: 1 Year Limited Manufacturer’s Warranty.
Colorspace_Conversion: Hardware based real time.
Operating_Temperature: 5° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing
Connections: SDI Video Outputs 2 SDI Fill Outputs 1 SDI Key Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. SDI Audio Outputs 16 channels embedded audio on SDI output. HDMI 2.0 Video Outputs 1 HDMI Audio Outputs 8 channels embedded audio on HDMI output. Computer Interface Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Hardware_Frame_Buffer: 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), Ay10 (10-bit YUVA), r210 (10-bit RGB), v210 (10-bit YUV), R12B, R12L (12-bit RGB).
Processing: Colorspace Conversion Hardware based real time.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Input: Power Input Powered by Thunderbolt cable. Requires computer with a Thunderbolt 4 USB-C port. Power Usage 15 W
Environmental_Specifications: Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Other_Supported_Applications_Include:: The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika. These are third party applications and support may vary, check with your software vendor.
Hdmi_Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Hdmi_Video_Sampling: 4:2:2 and 4:4:4
Hdmi_Color_Precision: 8, 10 and 12-bit RGB 444, 8-bit YUV 444* and 12-bit YUV 422* in all standards * converted from 10-bit YUV 422
Hdmi_Configuration: HDMI 2.0 supports Deep Color.
Hdmi_Color_Space: Rec. 601, Rec. 709 and Rec. 2020.
Hdmi_Video_Standards: SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 8, 10 and 12-bit RGB 444, 8-bit YUV 444* and 12-bit YUV 422* in all standards * converted from 10-bit YUV 422 HDMI Configuration HDMI 2.0 supports Deep Color. HDMI Color Space Rec. 601, Rec. 709 and Rec. 2020. HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI video connection is switchable between SD, HD, Ultra HD and 4K.
Hdmi_2.0_Video_Outputs: 1
Hdmi_Audio_Outputs: 8 channels embedded audio on HDMI output.

🧩 Blackmagic Products - Final Version

Monitoring

Blackmagic Audio Monitor 12G G3

Blackmagic Audio Monitor 12G G3

Blackmagic PYXIS Monitor

Blackmagic PYXIS Monitor

Blackmagic PYXIS Monitor EVF Kit

Blackmagic PYXIS Monitor EVF Kit

Blackmagic PYXIS Monitor Kit

Blackmagic PYXIS Monitor Kit

Fairlight Console LCD Monitor

Fairlight Console LCD Monitor

Fairlight HDMI Monitor Interface

Fairlight HDMI Monitor Interface

SmartView 4K G3

SmartView 4K G3

SmartView Duo

SmartView Duo

UltraStudio Express Monitor 3G

UltraStudio Express Monitor 3G

UltraStudio Mini Monitor 12G

UltraStudio Mini Monitor 12G
