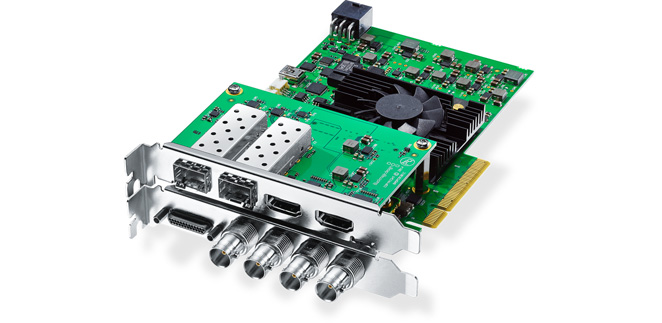

DeckLink 4K Extreme 12G

HK$9,300

Add to Compare

DeckLink 4K Extreme 12G

Price: HK$9,300
Description: Advanced digital cinema capture card featuring full frame DCI 4K input and output via 12G‑SDI! You get dual link multi rate 12G‑SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 25p! Capture 10‑bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!
Sdi_Video_Inputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
Sdi_Video_Outputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
Sdi_Audio_Inputs: 16 Channels embedded in SD/HD/2K/4K.
Sdi_Audio_Outputs: 16 Channels embedded in SD/HD/2K/4K.
N/A: Linux
Hdmi_Video_Inputs: HDMI type A connector with support for 2160p60.
Hdmi_Video_Outputs: HDMI type A connector with support for 2160p60.
Hdmi_Audio_Inputs: 8 Channels embedded in SD/HD/4K
Hdmi_Audio_Outputs: 8 Channels embedded in SD/HD/4K.
Sync_Input: Tri-Sync or Black Burst.
Computer_Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card.
Software_Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95*, 1080p48*, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95*, 2160p48*, 2160p50, 2160p59.94, 2160p60
4k_Video_Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI*, 4Kp48 DCI*, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
3d_Sdi_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI, 2KPsF47.95 DCI, 2KPsF48 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI *SDI only
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, SMPTE 2082-10, SMPTE 2108-1, ITU-R BT.656 and ITU‑R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz at 24‑bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes
Color_Space: REC 601, REC 709, REC 2020
Hdr_Support: HDR metadata packing, HLG and PQ transfer characteristics. (HDMI supports static HDR metadata only)
Multiple_Rate_Support: HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.
Hdmi_Video_Sampling: 4:4:4, 4:2:2 and 4:2:0
Hdmi_Color_Precision: 8, 10 and 12-bit (Deep Color).
Hdmi_Configuration: HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
Copy_Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace_Conversion: Hardware based real time on output.
3d_Processing: Dual stream and frame packed capture and playback.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 30 W
Connections: SDI Video Inputs 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable. SDI Video Outputs 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable. Analog Video Inputs 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD. Analog Video Outputs 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD. Analog Audio Inputs 2 Channels of professional balanced analog audio via XLR connectors. Analog Audio Outputs 2 Channels of professional balanced analog audio via XLR connectors. Optical Fiber Inputs/Outputs (Optional) 2 x 12Gb/s Optical Fiber. AES/EBU Audio Inputs 2 Channels unbalanced with sample rate converter. AES/EBU Audio Outputs 2 Channels unbalanced. SDI Audio Inputs 16 Channels embedded in SD/HD/2K/4K. SDI Audio Outputs 16 Channels embedded in SD/HD/2K/4K. HDMI Video Inputs HDMI type A connector with support for 2160p60. HDMI Video Outputs HDMI type A connector with support for 2160p60. HDMI Audio Inputs 8 Channels embedded in SD/HD/4K HDMI Audio Outputs 8 Channels embedded in SD/HD/4K. Sync Input Tri-Sync or Black Burst. Device Control Sony™ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control. Computer Interface PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4.
Software: Software Included DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Processing: Ultra HD Down Conversion Built in, high quality hardware down converter outputs Ultra HD to HD with down converted signal on SDI outputs C & D and HDMI output when connected to an HD only TV. HD to SD Down Conversion HD to SD with down converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. HD Cross Conversion Built in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Colorspace Conversion Hardware based real time on output. 3D Processing Dual stream and frame packed capture and playback.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 30 W
Environmental_Specifications: Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
What's_Included: DeckLink 4K Extreme 12G HDMI mezzanine card Breakout cable for analog and RS-422 control. External power cable
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non‑condensing
Physical_Installation: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Analog_Video_Inputs: 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
Analog_Video_Outputs: 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
Analog_Audio_Inputs: 2 Channels of professional balanced analog audio via XLR connectors.
Analog_Audio_Outputs: 2 Channels of professional balanced analog audio via XLR connectors.
Optical_Fiber_Inputs/Outputs_(Optional): 2 x 12Gb/s Optical Fiber.
Aes/Ebu_Audio_Inputs: 2 Channels unbalanced with sample rate converter.
Aes/Ebu_Audio_Outputs: 2 Channels unbalanced.
Device_Control: Sony™ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control.
2k_Video_Standards_(Sdi_Only): 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
3d_Hdmi_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Down_Conversion: Built in, high quality hardware down converter outputs Ultra HD to HD with down converted signal on SDI outputs C & D and HDMI output when connected to an HD only TV.
Hd_To_Sd_Down_Conversion: HD to SD with down converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3.
Hd_Up_Conversion: Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Hd_Cross_Conversion: Built in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95*, 1080p48*, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards (SDI Only) 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95*, 2160p48*, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI*, 4Kp48 DCI*, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI 3D SDI Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI, 2KPsF47.95 DCI, 2KPsF48 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI *SDI only 3D HDMI Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, SMPTE 2082-10, SMPTE 2108-1, ITU-R BT.656 and ITU‑R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz at 24‑bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes Color Space REC 601, REC 709, REC 2020 HDR Support HDR metadata packing, HLG and PQ transfer characteristics. (HDMI supports static HDR metadata only) HDMI Video Sampling 4:4:4, 4:2:2 and 4:2:0 HDMI Color Precision 8, 10 and 12-bit (Deep Color). HDMI Configuration HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display. Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

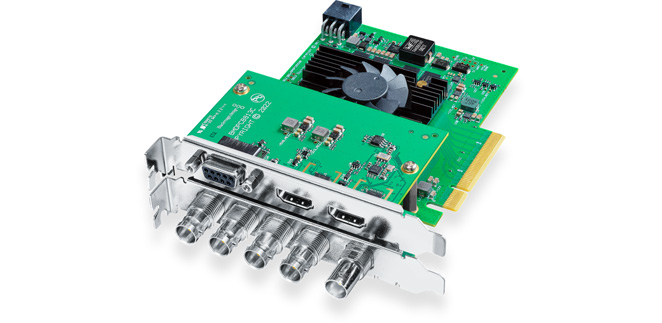

DeckLink 8K Pro G2

HK$6,350

Add to Compare

DeckLink 8K Pro G2

Price: HK$6,350
Description: DeckLink 8K Pro G2 includes four bi-directional 12G-SDI plus HDMI 2.1 connections to support all SD, HD, Ultra HD, 4K and 8K standards, making it the ultimate professional 8K PCIe capture and playback card for designed for feature film production. You can also use the free DeckLink SDK to configure up to 4 video streams in any direction, format or frame rate up to 4K DCI 60p, for true multi channel capture and playback. DeckLink 8K Pro G2 supports 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color. In addition, you can work at up to 120 frames per second in HD and 4K, and up to 60 frames per second in 8K. The four 12G-SDI connections support up to 64 channels of embedded audio. DeckLink 8K Pro G2 is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows!
Sdi_Video_Inputs: 4 x bi-directional 12G‑SDI Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
Sdi_Video_Outputs: 4 x bi-directional 12G‑SDI Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
Sdi_Audio_Inputs: 16/32/64 Channels embedded in SD/HD/2K/4K/8K.*
Sdi_Audio_Outputs: 16/32/64 Channels embedded in SD/HD/2K/4K/8K.*
N/A: Linux
Hdmi_Video_Inputs: 1 x HDMI 2.1
Hdmi_Video_Outputs: 1 x HDMI 2.1
Hdmi_Audio_Inputs: 8 Channels embedded in TMDS. 32 Channels embedded in FRL.
Hdmi_Audio_Outputs: 8 Channels embedded in TMDS. 32 Channels embedded in FRL.
Sync_Input: Tri-Sync or Black Burst.
Remote_Control: 1 x RS‑422 Out
Computer_Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Software_Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p100, 1080p119, 1080p120
2k_Video_Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 2160p50, 2160p59.94, 2160p60, 2160p100*, 2160p119*, 2160p120*
4k_Video_Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp100 DCI*, 4Kp119 DCI*, 4Kp120 DCI*
8k_Video_Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50*, 4320p59.94*, 4320p60* * Uncompressed only
8k_Dci_Video_Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI
3d_Sdi_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
Sdi_Compliance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz at 24‑bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space: REC 601, REC 709, REC 2020.
Hdr_Support: Dolby Vision (up to Ultra HD and 4K DCI 60p), HDR static metadata packing, HLG and PQ transfer characteristics.
Multiple_Rate_Support: HDMI video connections are switchable between SD/HD/UHD and 4K.
Hdmi_Audio_Sampling: Television standard sample rate of 48 kHz and 24‑bit.
Hdmi_Video_Sampling: 4:2:2, 4:4:4 and 4:2:0 *
Hdmi_Color_Precision: 8, 10 and 12-bit * * supported video sampling and colour precision are dependent on connected HDMI device capabilities, video resolution and frame rate.
Hdmi_Color_Space: REC 601, REC 709, REC 2020.
Hdmi_Configuration: HDMI 2.1 supports Deep Color and HDR. Automatically configures to connected display.
Copy_Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace_Conversion: Hardware based real time on output.
3d_Processing: Left eye/right eye dual stream capture and playback (SDI only).
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 30 W
Operating_Temperature:: 5° to 50° C (41° to 122° F)
Storage_Temperature:: -20° to 60° C (-4° to 140° F)
Relative_Humidity:: 0% to 90% non‑condensing
Connections: SDI Video Inputs 4 x bi-directional 12G‑SDI Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. SDI Video Outputs 4 x bi-directional 12G‑SDI Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. SDI Audio Inputs 16/32/64 Channels embedded in SD/HD/2K/4K/8K.* SDI Audio Outputs 16/32/64 Channels embedded in SD/HD/2K/4K/8K.* *number of audio channels dependent on the video resolution, frame rate and link configuration. HDMI Video Inputs 1 x HDMI 2.1 HDMI Video Outputs 1 x HDMI 2.1 HDMI Audio Inputs 8 Channels embedded in TMDS. 32 Channels embedded in FRL. HDMI Audio Outputs 8 Channels embedded in TMDS. 32 Channels embedded in FRL. Sync Input Tri-Sync or Black Burst. Remote Control 1 x RS‑422 Out Computer Interface PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
Software: Software Included DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
Sdi_Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 8K DCI Video Standards 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI 3D SDI Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz at 24‑bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020. HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support SDI video connections are switchable between SD/HD/2K/4K and 8K.
Hdmi_2.1_Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p100, 1080p119, 1080p120 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 2160p50, 2160p59.94, 2160p60, 2160p100*, 2160p119*, 2160p120* 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp100 DCI*, 4Kp119 DCI*, 4Kp120 DCI* 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50*, 4320p59.94*, 4320p60* * Uncompressed only HDMI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. HDMI Video Sampling 4:2:2, 4:4:4 and 4:2:0 * HDMI Color Precision 8, 10 and 12-bit * * supported video sampling and colour precision are dependent on connected HDMI device capabilities, video resolution and frame rate. HDMI Color Space REC 601, REC 709, REC 2020. HDR Support Dolby Vision (up to Ultra HD and 4K DCI 60p), HDR static metadata packing, HLG and PQ transfer characteristics. HDMI Configuration HDMI 2.1 supports Deep Color and HDR. Automatically configures to connected display. Multiple Rate Support HDMI video connections are switchable between SD/HD/UHD and 4K. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing: Colorspace Conversion Hardware based real time on output. 3D Processing Left eye/right eye dual stream capture and playback (SDI only). Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 30 W
Environmental_Specifications: Operating Temperature: 5° to 50° C (41° to 122° F) Storage Temperature: -20° to 60° C (-4° to 140° F) Relative Humidity: 0% to 90% non‑condensing
What's_Included: DeckLink 8K Pro G2 HDMI 2.1 mezzanine card External power cable Spacers and screws Welcome wallet with QR code for software download
Warranty: 3 Year Limited Manufacturer’s Warranty.

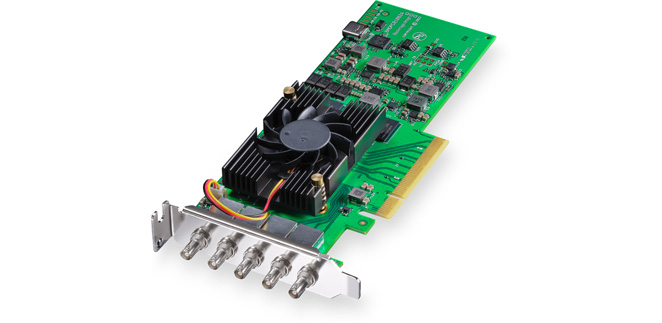

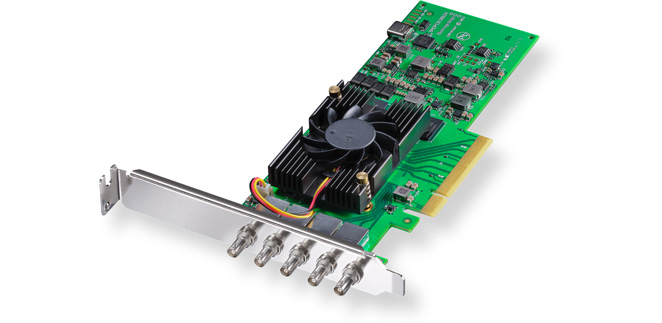

DeckLink 8K Pro Mini

HK$5,900

Add to Compare

DeckLink 8K Pro Mini

Price: HK$5,900
Description: DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card. Featuring 4 independent 12G‑SDI Micro BNC connections, DeckLink 8K Pro Mini can work in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 color, making it perfect for next generation high resolution and high dynamic range workflows!
Sdi_Video_Inputs: 4 x bi-directional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
Sdi_Video_Outputs: 4 x bi-directional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
Sdi_Audio_Inputs: 16/32/64 Channels embedded in SD/HD/2K/4K/8K.*
Sdi_Audio_Outputs: 16/32/64 Channels embedded in SD/HD/2K/4K/8K.*
N/A: Linux
Sync_Input: Tri-Sync or Black Burst.
Computer_Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Software_Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2k_Video_Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
4k_Video_Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
8k_Video_Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
8k_Dci_Video_Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI
3d_Sdi_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
Sdi_Compliance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz at 24‑bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space: REC 601, REC 709, REC 2020.
Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Multiple_Rate_Support: SDI video connections are switchable between SD/HD/2K/4K and 8K.
Colorspace_Conversion: Hardware based real time on output.
3d_Processing: Left eye/right eye dual stream capture and playback.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 18 W
Connections: SDI Video Inputs 4 x bi-directional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. SDI Video Outputs 4 x bi-directional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. SDI Audio Inputs 16/32/64 Channels embedded in SD/HD/2K/4K/8K.* SDI Audio Outputs 16/32/64 Channels embedded in SD/HD/2K/4K/8K.* *number of audio channels dependent on the video resolution, frame rate and link configuration. Sync Input Tri-Sync or Black Burst. Computer Interface PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
Software: Software Included DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
Processing: Colorspace Conversion Hardware based real time on output. 3D Processing Left eye/right eye dual stream capture and playback. Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 18 W
Environmental_Specifications: Operating Temperature 5° to 50° C (41° to 122° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
What's_Included: DeckLink 8K Pro Mini Low profile slot bracket
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non‑condensing
Physical_Installation: Low profile PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 8K DCI Video Standards 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI 3D SDI Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz at 24‑bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020. HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support SDI video connections are switchable between SD/HD/2K/4K and 8K.

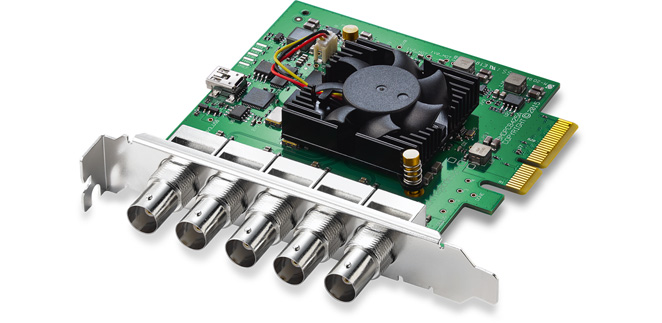

DeckLink Duo 2

HK$4,300

Add to Compare

DeckLink Duo 2

Price: HK$4,300
Description: Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCI Express capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
Sdi_Video_Inputs: 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
Sdi_Video_Outputs: 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
Sdi_Audio_Inputs: 16 channels embedded in SD and HD.
Sdi_Audio_Outputs: 16 channels embedded in SD and HD.
N/A: Linux
Sync_Input: Tri-Sync or Black Burst.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
Color_Space: REC 601, REC 709, REC 2020
Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 10 W
Connections: SDI Video Inputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. SDI Video Outputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. SDI Audio Inputs 16 channels embedded in SD and HD. SDI Audio Outputs 16 channels embedded in SD and HD. Sync Input Tri-Sync or Black Burst. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Processing: Colorspace Conversion Hardware based real time. HD Down Conversion Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. Cross Conversion Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 10 W
Environmental_Specifications: Operating Temperature 5° to 40 ° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink Duo 2
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non-condensing
Physical_Installation: PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. SDI Video Sampling 4:2:2, 4:4:4 Color Space REC 601, REC 709, REC 2020 HDR Support HDR static metadata packing, HLG and PQ transfer characteristics.
Hd_Up_Conversion: Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Hd_Down_Conversion: Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
Cross_Conversion: Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.

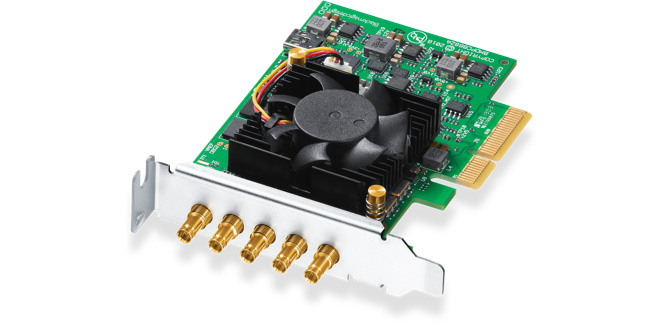

DeckLink Duo 2 Mini

HK$4,900

Add to Compare

DeckLink Duo 2 Mini

Price: HK$4,900
Description: Featuring 4 independent 3G-SDI mini DIN connections, DeckLink Duo 2 Mini is a low profile, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
Sdi_Video_Inputs: 4 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.
Sdi_Video_Outputs: 4 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.
Sdi_Audio_Inputs: 16 channels embedded in SD and HD.
Sdi_Audio_Outputs: 16 channels embedded in SD and HD.
N/A: Linux
Sync_Input: Tri-Sync or Black Burst.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
Color_Space: REC 601, REC 709
Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 10 W
Connections: SDI Video Inputs 4 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD. SDI Video Outputs 4 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD. SDI Audio Inputs 16 channels embedded in SD and HD. SDI Audio Outputs 16 channels embedded in SD and HD. Sync Input Tri-Sync or Black Burst. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Processing: Colorspace Conversion Hardware based real time. HD Down Conversion Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. Cross Conversion Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 10 W
Environmental_Specifications: Operating Temperature 5° to 40 ° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink Duo 2 Mini
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non-condensing
Physical_Installation: PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. SDI Video Sampling 4:2:2, 4:4:4 Color Space REC 601, REC 709 HDR Support HDR static metadata packing, HLG and PQ transfer characteristics.
Hd_Up_Conversion: Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Hd_Down_Conversion: Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
Cross_Conversion: Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.

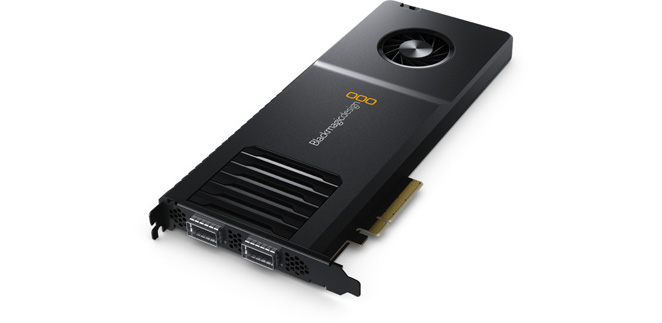

DeckLink IP 100G

HK$14,750

Add to Compare

DeckLink IP 100G

Price: HK$14,750
Description: DeckLink IP 100G features up to 8 channels of Ultra HD video, in simultaneous capture and playback to 2110 IP broadcast systems via dual QSFP28 optical fiber Ethernet connections for full redundancy. It is designed to work with the highest quality video with support for capture and playback to popular formats such as Apple ProRes, DNxHD and even 10-bit uncompressed. DeckLink IP 100G connections are multi rate so they support all SD, HD and Ultra HD standards up to 2160p60.
100g_Ethernet_Ports: 2 x 100Gb/s QSFP28 connectors. Please click here to view supported QSFP28 modules.
Computer_Interface: PCI Express 8 lane generation 4, compatible with 8 and 16 lane PCI Express slots.
Power: 6-pin 2x3 auxiliary power connector.
Software_Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
N/A: Linux
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2k_Video_Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4k_Video_Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Audio_Sampling: Television standard sample rate of 48 kHz at 24‑bit.
Color_Precision: 8 and 10-bit YUV 4:2:2: in all modes.
Color_Space: REC 601, REC 709, REC 2020.
Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Smpte_2110-20_(Uncompressed Video): IGMP v2/v3
Smpte_2110-21_(Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Smpte_2110-40_(Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Smpte_2022-7_(Redundant_Streams): Receiver class A
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 50 Watts
Operating_Temperature:: 5° to 50° C (41° to 122° F)
Storage_Temperature:: -20° to 60° C (-4° to 140° F)
Relative_Humidity:: 0% to 90% non‑condensing
Connections: 100G Ethernet Ports 2 x 100Gb/s QSFP28 connectors. Please click here to view supported QSFP28 modules. Computer Interface PCI Express 8 lane generation 4, compatible with 8 and 16 lane PCI Express slots. Power 6-pin 2x3 auxiliary power connector.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
Software: Software Included DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI Audio Sampling Television standard sample rate of 48 kHz at 24‑bit. Color Precision 8 and 10-bit YUV 4:2:2: in all modes. Color Space REC 601, REC 709, REC 2020. HDR Support HDR static metadata packing, HLG and PQ transfer characteristics.
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v2/v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. SMPTE 2022-7 (Redundant streams) Receiver class A Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Processing: Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 50 Watts
Environmental_Specifications: Operating Temperature: 5° to 50° C (41° to 122° F) Storage Temperature: -20° to 60° C (-4° to 140° F) Relative Humidity: 0% to 90% non‑condensing
What's_Included: DeckLink IP 100G Welcome wallet with QR code for software download
Warranty: 3 Year Limited Manufacturer’s Warranty.

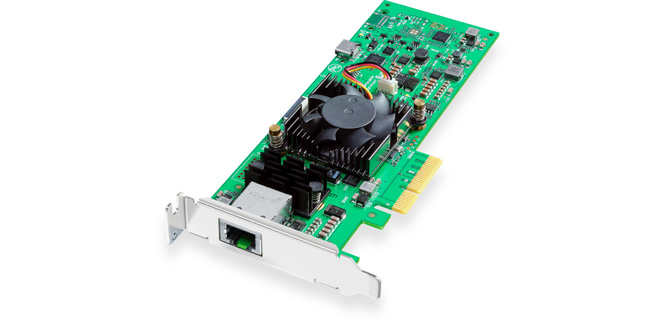

DeckLink IP HD

HK$3,700

Add to Compare

DeckLink IP HD

Price: HK$3,700
Description: DeckLink IP HD features 2 channels of video capture and 2 channels of video playback to 2110 IP broadcast systems via a single RJ45 style Ethernet connection. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed. DeckLink IP connections are multi rate so they support 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
N/A: Linux
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space: REC 601, REC 709, REC 2020
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 10 Watts
Connections: 10G Ethernet Port 1 x 10G BASE-T 10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v2/v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Processing: Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 10 Watts
Environmental_Specifications: Operating Temperature 5° to 40 ° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink IP HD Low profile slot bracket Welcome wallet with QR code for software download
Warranty: 3 Year Limited Manufacturer’s Warranty.
10g_Ethernet_Port: 1 x 10G BASE-T 10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels.
Physical_Installation: PCI Express low profile.
Smpte_2110-20_(Uncompressed_Video): IGMP v2/v3
Smpte_2110-21_(Traffic_Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-40_(Ancillary_Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Operating_Temperature: 5° to 40 ° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing

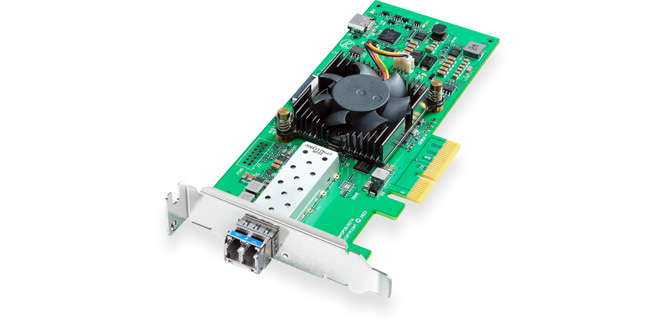

DeckLink IP HD Optical

HK$4,800

Add to Compare

DeckLink IP HD Optical

Price: HK$4,800
Description: DeckLink IP HD Optical features 2 channels of video capture and 2 channels of video playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed. DeckLink IP connections are multi rate so they support 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
N/A: Linux
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space: REC 601, REC 709, REC 2020
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 10 Watts
Connections: 10G Optical Fiber SFP+ Port 1 x 10GBASE-LR Supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v2/v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Processing: Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 10 Watts
Environmental_Specifications: Operating Temperature 5° to 40 ° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink IP HD Optical 10GBASE-LR Optical Fiber SFP+ Module and Cage Low profile slot bracket Welcome wallet with QR code for software download
Warranty: 3 Year Limited Manufacturer’s Warranty.
Physical_Installation: PCI Express low profile.
Smpte_2110-20_(Uncompressed_Video): IGMP v2/v3
Smpte_2110-21_(Traffic_Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-40_(Ancillary_Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Operating_Temperature: 5° to 40 ° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing
10g_Optical_Fiber_Sfp+_Port: 1 x 10GBASE-LR Supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels.

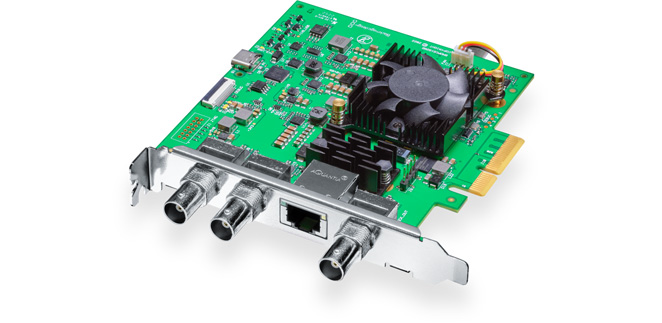

DeckLink IP/SDI HD

HK$4,200

Add to Compare

DeckLink IP/SDI HD

Price: HK$4,200
Description: Connect to both 3G-SDI and 2110 IP systems with DeckLink IP/SDI HD. It has 2 capture and playback channels to 2110 IP via RJ45 Ethernet, 2 direction configurable 3G-SDI connections and reference out. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, and supports 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
N/A: Linux
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98*, 1080PsF24*, 1080PsF25*, 1080PsF29.97*, 1080PsF30* * PsF SDI ONLY
Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space: REC 601, REC 709, REC 2020
Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Smpte_2110-30_(Pcm): Audio Conformance level: Level C
Precision_Time_Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is-04_Discovery_And_Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is-05_Connection_Management: v1.1.2
Nmos_Bcp-002-01: Natural Grouping
Nmos_Bcp-004-01: Receiver capabilities
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 10 Watts
Connections: SDI Ports 2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. 16 channels audio embedded in SD and HD. 10G Ethernet Port 1 x 10G BASE-T 10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels. Sync Output Tri-Sync or Black Burst. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98*, 1080PsF24*, 1080PsF25*, 1080PsF29.97*, 1080PsF30* * PsF SDI ONLY SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, level A and B, ITU‑R BT.656 and ITU‑R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020 HDR Support HDR static metadata packing, HLG and PQ transfer characteristics.
Ip_Video_Compliance: SMPTE 2110-20 (Uncompressed Video) IGMP v2/v3 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Processing: Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 10 Watts
Environmental_Specifications: Operating Temperature 5° to 40 ° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink IP/SDI HD Welcome wallet with QR code for software download
Warranty: 3 Year Limited Manufacturer’s Warranty.
10g_Ethernet_Port: 1 x 10G BASE-T 10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels.
Physical_Installation: PCI Express full height.
Smpte_2110-20_(Uncompressed_Video): IGMP v2/v3
Smpte_2110-21_(Traffic_Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_2110-40_(Ancillary_Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Operating_Temperature: 5° to 40 ° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing
Sdi_Ports: 2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. 16 channels audio embedded in SD and HD.
Sync_Output: Tri-Sync or Black Burst.
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, level A and B, ITU‑R BT.656 and ITU‑R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.

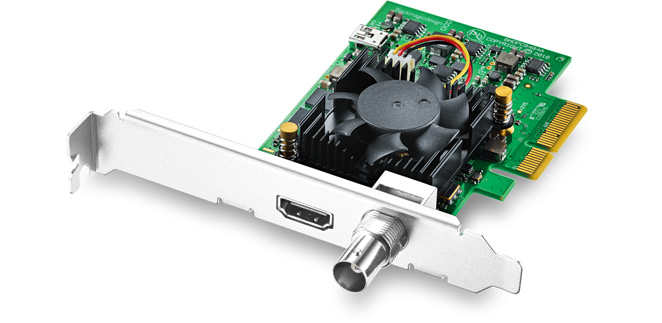

DeckLink Mini Monitor 4K

HK$1,700

Add to Compare

DeckLink Mini Monitor 4K

Price: HK$1,700
Description: DeckLink Mini Monitor 4K is a low profile PCI Express playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.
Sdi_Video_Outputs: 1 x 10 bit SD/HD/Ultra HD switchable.
Sdi_Audio_Outputs: 16 channels embedded in SD, HD, Ultra HD.
N/A: Linux
Hdmi_Video_Outputs: 1 x HDMI 2.0a connector.
Hdmi_Audio_Outputs: 8 Channels embedded in SD, HD, Ultra HD.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Sdi_Video_Sampling: 4:4:4 & 4:2:2
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space: REC 601, REC 709, REC 2020.
Multiple_Rate_Support: HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
Hdmi_Video_Sampling: 4:4:4, 4:2:2 & 4:2:0
Hdmi_Color_Precision: Up to 12-bit (Deep Color)
Hdmi_Configuration: HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 10 W
Connections: SDI Video Outputs 1 x 10 bit SD/HD/Ultra HD switchable. SDI Audio Outputs 16 channels embedded in SD, HD, Ultra HD. HDMI Video Outputs 1 x HDMI 2.0a connector. HDMI Audio Outputs 8 Channels embedded in SD, HD, Ultra HD. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Processing: HD to SD Down Conversion Software based down conversion during video playback. HD Cross Conversion Software based cross conversion from 720p to 1080HD on playback. Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 10 W
Environmental_Specifications: Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink Mini Monitor 4K Low profile slot bracket
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non-condensing
Physical_Installation: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K DCI Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p. 2K Video Standards (SDI Only) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes. SDI Video Sampling 4:4:4 & 4:2:2 Color Space REC 601, REC 709, REC 2020. SDI HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. HDMI Video Sampling 4:4:4, 4:2:2 & 4:2:0 HDMI Configuration HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display. HDMI Resolution Pixel for pixel HD resolution output to connected device. HDMI Color Precision Up to 12-bit (Deep Color) HDMI HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
Hd_To_Sd_Down_Conversion: Software based down conversion during video playback.
Hd_Cross_Conversion: Software based cross conversion from 720p to 1080HD on playback.
Hdmi_Resolution: Pixel for pixel HD resolution output to connected device.
4k_Dci_Video_Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
Sdi_Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Hdmi_Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.

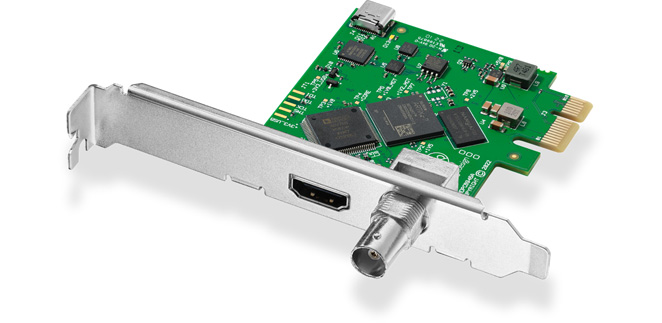

DeckLink Mini Monitor HD

HK$1,150

Add to Compare

DeckLink Mini Monitor HD

Price: HK$1,150
Description: Get broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer! DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 that let you connect to any television, monitor or projector for broadcast monitoring, including the latest high dynamic range (HDR) formats! Works with software such as DaVinci Resolve, Final Cut Pro and more.
N/A: Linux
Computer_Interface: PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
2k_Video_Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI,2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108–1
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
Multiple_Rate_Support: HDMI video connection is switchable between SD and HD.
Hdmi_Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Hdmi_Video_Sampling: 4:2:2 and 4:4:4
Hdmi_Color_Precision: 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards.
Hdmi_Color_Space: REC 601, REC 709 and REC 2020
Hdmi_Configuration: HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display.
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 3 W
Connections: SDI Video Output 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G SDI Audio Output 16 channels embedded in SD/HD HDMI Video Output 1 x HDMI 2.0 type A connector HDMI Audio Output 8 channels embedded in SD/HD Computer Interface PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Sdi_Video_Standards: SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI,2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108–1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space REC 601, REC 709 and REC 2020 SDI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support SDI video connection is switchable between SD and HD.
Processing: Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Colorspace Conversion Hardware based real time.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 3 W
Environmental_Specifications: Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink Mini Monitor HD Low profile slot bracket
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non-condensing
Physical_Installation: PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Sdi_Hdr_Support: HDR metadata packing, HLG and PQ transfer characteristics.
Hdmi_Hdr_Support: HDR metadata packing, HLG and PQ transfer characteristics.
Sdi_Rates: 270Mb, 1.5G, 3G
Sdi_Audio_Sampling: Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Space: REC 601, REC 709 and REC 2020
Hdmi_Video_Standards: SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display. HDMI Color Space REC 601, REC 709 and REC 2020 HDMI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI video connection is switchable between SD and HD.
Hardware_Frame_Buffer: v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
Sdi_Video_Output: 1 x 10-bit SD/HD switchable
Sdi_Audio_Output: 16 channels embedded in SD/HD
Hdmi_Video_Output: 1 x HDMI 2.0 type A connector
Hdmi_Audio_Output: 8 channels embedded in SD/HD

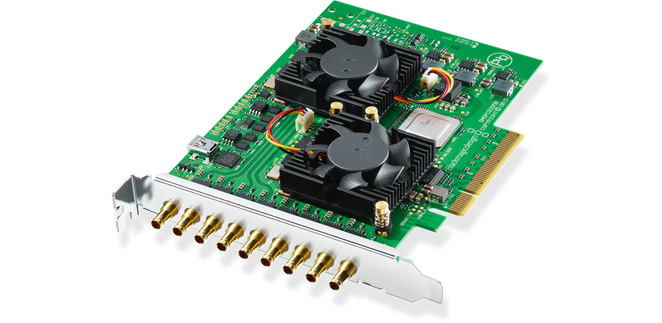

DeckLink Quad 2

HK$8,150

Add to Compare

DeckLink Quad 2

Price: HK$8,150
Description: DeckLink Quad 2 features 8 independent 3G-SDI mini DIN capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
Sdi_Video_Inputs: 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.
Sdi_Video_Outputs: 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.
Sdi_Audio_Inputs: 16 channels embedded in SD and HD.
Sdi_Audio_Outputs: 16 channels embedded in SD and HD.
N/A: Linux
Sync_Input: Tri-Sync or Black Burst.
Computer_Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz and 24 bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
Color_Space: REC 601, REC 709, REC 2020.
Hdr_Support: HDR static metadata packing, HLG and PQ transfer characteristics.
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 22 W
Connections: SDI Video Inputs 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD. SDI Video Outputs 8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD. SDI Audio Inputs 16 channels embedded in SD and HD. SDI Audio Outputs 16 channels embedded in SD and HD. Sync Input Tri-Sync or Black Burst. Computer Interface PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Processing: Colorspace Conversion Hardware based real time. HD Down Conversion Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. Cross Conversion Built in, high quality hardware cross conversion from 720HD to 1080HD on playback, 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 22 W
Environmental_Specifications: Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink Quad 2
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non-condensing
Physical_Installation: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. SDI Video Sampling 4:2:2, 4:4:4 Color Space REC 601, REC 709, REC 2020. HDR Support HDR static metadata packing, HLG and PQ transfer characteristics.
Hd_Up_Conversion: Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Hd_Down_Conversion: Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
Cross_Conversion: Built in, high quality hardware cross conversion from 720HD to 1080HD on playback, 1080HD to 720HD on playback.

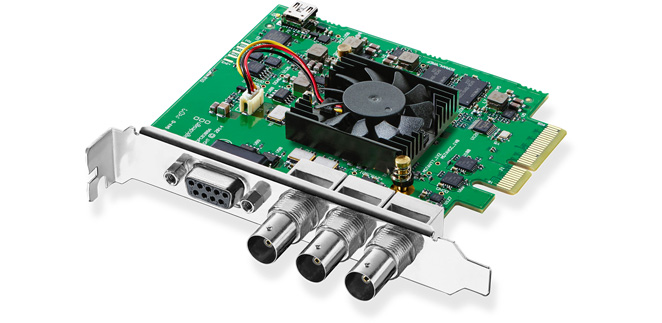

DeckLink SDI 4K

HK$2,450

Add to Compare

DeckLink SDI 4K

Price: HK$2,450
Description: DeckLink SDI 4K is perfect when you need an SDI only solution but demand the highest quality SDI capture and playback. You get incredible quality 6G-SDI on any PCI Express Mac, Windows or Linux computer. DeckLink SDI 4K is the world’s smallest and most affordable multi rate SD/HD and Ultra HD SDI video card that lets you connect to any SD, HD-SDI, 2K and Ultra HD equipment. You also get RS-422 deck control, internal keying and reference input for a complete solution for editing, paint, design and more.
Sdi_Video_Inputs: 1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
Sdi_Video_Outputs: 1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
Sdi_Audio_Inputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
Sdi_Audio_Outputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
N/A: Linux
Sync_Input: Tri-Sync or Black Burst.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4k_Video_Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz at 24 bit.
Color_Space: REC 601, REC 709.
Multiple_Rate_Support: SDI video connections are switchable between SD/HD/2K and UHD.
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Connections: SDI Video Inputs 1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4. SDI Video Outputs 1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4. SDI Audio Inputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. SDI Audio Outputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. Sync Input Tri-Sync or Black Burst. Device Control Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. Computer Interface PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Processing: HD Down Conversion Built in, high quality hardware down converter outputs HD or SD on SDI output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. Cross Conversion Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Colorspace Conversion Hardware based real time.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 11 W
Environmental_Specifications: Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink SDI 4K
Warranty: 3 Year Limited Manufacturer’s Warranty.
Relative_Humidity: 0% to 90% non-condensing
Physical_Installation: PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards (SDI Only) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz at 24 bit. Video Sampling 4:2:2 and 4:4:4* *4K is 4:2:2 Color Precision 10-bit. Color Space REC 601, REC 709. Multiple Rate Support SDI video connections are switchable between SD/HD/2K and UHD.
Device_Control: Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
2k_Video_Standards_(Sdi_Only): 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
Hd_Up_Conversion: Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Color_Precision: 10-bit.
Hd_Down_Conversion: Built in, high quality hardware down converter outputs HD or SD on SDI output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Cross_Conversion: Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
Video_Sampling: 4:2:2 and 4:4:4* *4K is 4:2:2

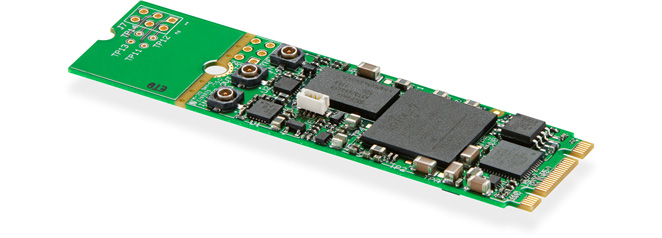

DeckLink SDI Micro

HK$1,200

Add to Compare

DeckLink SDI Micro

Price: HK$1,200
Description: Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!
N/A: Linux
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Sdi_Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.
Sdi_Video_Sampling: 4:2:2, 4:4:4
Sdi_Color_Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Power_Consumption: 4.03 W (max)
Connections: M.2 M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 4.03 W (max)
Environmental_Specifications: Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -40°C to 75°C (-40°F to 167°F) Relative Humidity 0% to 90% non-condensing
Relative_Humidity: 0% to 90% non-condensing
Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.
Part_Numbers: DeckLink SDI Micro, order code: BDLKMICROSDI SDI Cable, order code: CABLE-BDLKMIR/SDI
Available_Accessories: Part Numbers DeckLink SDI Micro, order code: BDLKMICROSDI SDI Cable, order code: CABLE-BDLKMIR/SDI
M.2: M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.

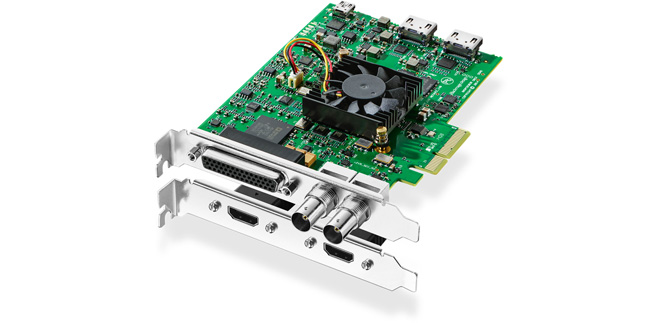

DeckLink Studio 4K

HK$5,400

Add to Compare

DeckLink Studio 4K

Price: HK$5,400
Description: If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, Black Burst and Tri-Sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design!
Sdi_Video_Inputs: 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
Sdi_Video_Outputs: 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
Sdi_Audio_Inputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
Sdi_Audio_Outputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
N/A: Linux
Hdmi_Video_Inputs: 1 x HDMI type A connector.
Hdmi_Video_Outputs: 1 x HDMI type A connector.
Hdmi_Audio_Inputs: 8 Channels embedded in SD, HD, 4K.
Hdmi_Audio_Outputs: 8 Channels embedded in SD, HD, 4K
Sync_Input: Tri-Sync or Black Burst.
Computer_Interface: PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
Software_Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4k_Video_Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI Only
Sdi_Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
Sdi_Metadata_Support: RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling: Television standard sample rate of 48 kHz at 24 bit.
Sdi_Video_Sampling: 4:2:2, 4:4:4* *4K is 4:2:2.
Sdi_Color_Precision: 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes.
Color_Space: REC 601, REC 709
Multiple_Rate_Support: HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD.
Hdmi_Video_Sampling: 4:4:4, 4:2:2 & 4:2:0
Hdmi_Color_Precision: 10-bit RGB HD 10-bit YUV in HD and 4K
Hdmi_Configuration: HDMI 1.4b. Automatically configures to connected display.
Copy_Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace_Conversion: Hardware based real time.
Real_Time_Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power_Consumption: 22 W
Connections: SDI Video Inputs 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. SDI Video Outputs 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. Analog Video Inputs 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD. Analog Video Outputs 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD. Analog Audio Inputs 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Analog Audio Outputs 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs. AES/EBU Audio Inputs 2 Channels unbalanced with sample rate converter. AES/EBU Audio Outputs 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature. SDI Audio Inputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. SDI Audio Outputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. HDMI Video Inputs 1 x HDMI type A connector. HDMI Video Outputs 1 x HDMI type A connector. HDMI Audio Inputs 8 Channels embedded in SD, HD, 4K. HDMI Audio Outputs 8 Channels embedded in SD, HD, 4K Sync Input Tri-Sync or Black Burst. Device Control Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. Computer Interface PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR & DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software: Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Processing: HD Down Conversion Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. Cross Conversion Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Colorspace Conversion Hardware based real time.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 22 W
Environmental_Specifications: Operating temperature 5° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included: DeckLink Studio 4K Breakout cable for analog and RS-422 control. HDMI bracket
Warranty: 3 Year Limited Manufacturer’s Warranty.
Operating_Temperature: 5° to 40° C (32° to 104° F)
Storage_Temperature: -20° to 45° C (-4° to 113° F)
Relative_Humidity: 0% to 90% non-condensing
Physical_Installation: PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards (SDI Only) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI Only SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Video Sampling 4:2:2, 4:4:4* *4K is 4:2:2. SDI Color Precision 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709 HDMI Video Sampling 4:4:4, 4:2:2 & 4:2:0 HDMI Color Precision 10-bit RGB HD 10-bit YUV in HD and 4K HDMI Configuration HDMI 1.4b. Automatically configures to connected display. Audio Sampling Television standard sample rate of 48 kHz at 24 bit. Color Precision 10-bit Color Space REC 601, REC 709 HDMI Resolution Pixel for pixel up to 4K resolutions. Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Analog_Video_Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD.
Analog_Video_Outputs: 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.
Analog_Audio_Inputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors.
Analog_Audio_Outputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
Aes/Ebu_Audio_Inputs: 2 Channels unbalanced with sample rate converter.
Aes/Ebu_Audio_Outputs: 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.
Device_Control: Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Hd_Up_Conversion: Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Color_Precision: 10-bit
Hdmi_Resolution: Pixel for pixel up to 4K resolutions.
Hd_Down_Conversion: Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Cross_Conversion: Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.

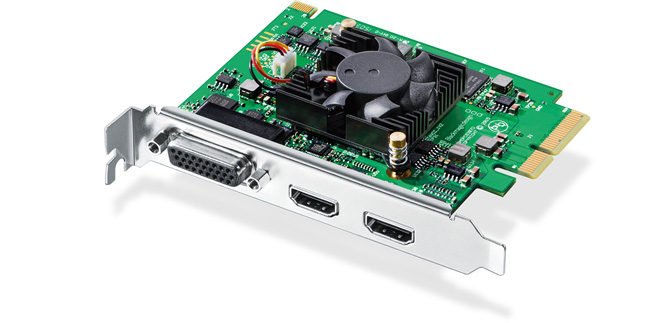

Intensity Pro 4K

HK$2,300

Add to Compare

Intensity Pro 4K

Price: HK$2,300
Description: Intensity Pro 4K lets you capture and playback on PCI Express Mac, Windows and Linux computers. Featuring HDMI and analog breakout connections, Intensity Pro 4K works with NTSC/PAL, HD and Ultra HD video with or without compression and is compatible with all popular video editing, audio, and streaming software. DaVinci Resolve and Media Express software are included free so you get professional editing, grading and media management without having to buy extra software!
Hdmi_Video_Inputs: 1 x HDMI type A connector.
Hdmi_Video_Outputs: 1 x HDMI type A connector.
Hdmi_Audio_Inputs: 8 Channels embedded in SD, HD and Ultra HD.
Hdmi_Audio_Outputs: 8 Channels embedded in SD, HD and Ultra HD.
Analog_Video_Inputs: Component, Composite or S-Video.
Analog_Video_Outputs: Component, Composite or S-Video.
Analog_Audio_Inputs: 2 Channel RCA HiFi audio in 24-bit.
Analog_Audio_Outputs: 2 Channel RCA HiFi audio in 24-bit.
Multiple_Rate_Support: HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.
Computer_Interface: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Physical_Installation: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Sd_Video_Standards: 525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra Hd_Video_Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Audio_Sampling: Television standard sample rate of 48kHz and 24-bit.
Color_Space: REC 601, REC 709.
Hdmi_Video_Sampling: 4:4:4, 4:2:2 & 4:2:0.
Hdmi_Color_Precision: 8, 10-bit (Deep Color) RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2 in all modes.
Hdmi_Configuration: HDMI 1.4b supports Deep Color and automatically configures to connected display.
Copy_Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
N/A: Linux
Connections: HDMI Video Inputs 1 x HDMI type A connector. HDMI Video Outputs 1 x HDMI type A connector. HDMI Audio Inputs 8 Channels embedded in SD, HD and Ultra HD. HDMI Audio Outputs 8 Channels embedded in SD, HD and Ultra HD. Analog Video Inputs Component, Composite or S-Video. Analog Video Outputs Component, Composite or S-Video. Analog Audio Inputs 2 Channel RCA HiFi audio in 24-bit. Analog Audio Outputs 2 Channel RCA HiFi audio in 24-bit. Multiple Rate Support HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD. Computer Interface PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software: Software Included DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards: SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 Audio Sampling Television standard sample rate of 48kHz and 24-bit. Color Space REC 601, REC 709. HDMI Video Sampling 4:4:4, 4:2:2 & 4:2:0. HDMI Color Precision 8, 10-bit (Deep Color) RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2 in all modes. HDMI Configuration HDMI 1.4b supports Deep Color and automatically configures to connected display. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing: Ultra HD/HD Down Conversion Software based down conversion during video playback. HD Up Conversion Real time SD to 1080HD and 720HD during video capture. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating_Systems: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements: Power Consumption 17 Watts
Environmental_Specifications: Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Warranty: 1 Year Limited Manufacturer’s Warranty.

🧩 Blackmagic Products - Final Version

Capture and Playback

DeckLink 4K Extreme 12G

DeckLink 4K Extreme 12G

DeckLink 8K Pro G2

DeckLink 8K Pro G2

DeckLink 8K Pro Mini

DeckLink 8K Pro Mini

DeckLink Duo 2

DeckLink Duo 2

DeckLink Duo 2 Mini

DeckLink Duo 2 Mini

DeckLink IP 100G

DeckLink IP 100G

DeckLink IP HD

DeckLink IP HD

DeckLink IP HD Optical

DeckLink IP HD Optical

DeckLink IP/SDI HD

DeckLink IP/SDI HD

DeckLink Mini Monitor 4K

DeckLink Mini Monitor 4K

DeckLink Mini Monitor HD

DeckLink Mini Monitor HD

DeckLink Quad 2

DeckLink Quad 2

DeckLink SDI 4K

DeckLink SDI 4K

DeckLink SDI Micro

DeckLink SDI Micro

DeckLink Studio 4K

DeckLink Studio 4K

Intensity Pro 4K

Intensity Pro 4K
