🧩 Blackmagic Products - Final Version
ENG / ä¸ć–‡
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection

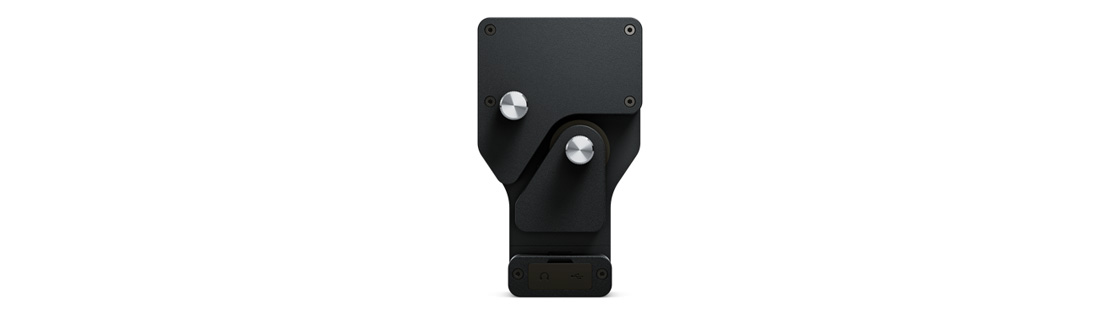

Cintel Scanner
Cintel Audio and KeyKode Reader
Add to Compare
View Details
Cintel Audio and KeyKode Reader
Price:
HK$29,150
Description:
The Cintel Audio and KeyKode Reader lets you capture professional, high quality audio and KeyKode information with images directly from film with the Cintel Scanner. You get LED illumination with advanced optics and precision mechanical adjustments along with a precision capstan and encoder that automatically corrects wow and flutter. With unique identification numbers for each film frame it is easy to correlate with corresponding video time frames.
Computer_Interface:
USB Type-C for software updates.
Operating_Temperature:
18 - 28°C
Relative_Humidity:
Maximum 65% non-condensing.
Connections:
Preview Audio Output 3.5mm stereo headphone jack. Audio Connection XLR6 Computer Interface USB Type-C for software updates.
Power_Requirements:
Power Consumption Voltage 12V. Power 10W.
Ideal_Film_Conditions:
Operating Temperature 18 - 28°C Relative Humidity Maximum 65% non-condensing.
Whats_Included:
Cintel Audio and KeyKode Reader
Warranty:
1 Year Limited Manufacturer’s Warranty.
Equalisation:
Optical audio SMPTE, Magnetic audio IEC.
Supported_Keykode_Scanspeeds:
All scanner speeds.
Led_Type:
Optical audio and KeyKode Deep RED.
Supported_Audio_Scanspeeds:
6fps-125% chosen film rate. i.e. 24fps film frame rate has a 30fps maximum scan speed and 16mm film has a 12fps lower limit.
Supported_Optical_Audio_Types:
Variable Area. Variable Density.
Audio_Sampling_Rate_And_Bitdepth:
48kHz 24 bit PCM WAVÂ file
Optical_Audio_35mm:
Bandwidth: 40Hz-16kHz ±2dB SnR Signal to Noise Ratio: Transparent film base -65dB (measured with flat weighting). Wow and Flutter: < 0.15% (measured with IEC 60386 2012 weighting)
Optical_Audio_16mm:
Bandwidth: 40Hz-7kHz ±2dB SnR Signal to Noise Ratio: Transparent film base -65dB (measured with flat weighting). Wow and Flutter: < 0.3% (measured with IEC 60386 2012 weighting).
Magnetic_Audio:
Engagement Pressure: 15 grams Bandwidth: 32Hz-14kHz ±2dB SnR Signal to Noise Ratio: -55dB (measured with flat weighting). Wow and Flutter: < 0.3% (measured with IEC 60386 2012 weighting).
Full_Modulation_Level:
-18dBFS
Headphones_Level:
-18dBu at 50Ω load (for monitoring purposes only).
Preview_Audio_Output:
3.5mm stereo headphone jack.
Audio_Connection:
XLR6
Power_Consumption:
Voltage 12V. Power 10W.
Features:
Equalisation Optical audio SMPTE, Magnetic audio IEC. Supported KeyKode Scan Speeds All scanner speeds. LED Type Optical audio and KeyKode Deep RED. Supported Audio Scan Speeds 6fps-125% chosen film rate. i.e. 24fps film frame rate has a 30fps maximum scan speed and 16mm film has a 12fps lower limit. Supported Optical Audio Types Variable Area. Variable Density. Audio Sampling Rate and Bit Depth 48kHz 24 bit PCM WAV file Optical Audio 35mm Bandwidth: 40Hz-16kHz ±2dB SnR Signal to Noise Ratio: Transparent film base -65dB (measured with flat weighting). Wow and Flutter: < 0.15% (measured with IEC 60386 2012 weighting) Optical Audio 16mm Bandwidth: 40Hz-7kHz ±2dB SnR Signal to Noise Ratio: Transparent film base -65dB (measured with flat weighting). Wow and Flutter: < 0.3% (measured with IEC 60386 2012 weighting). Magnetic Audio Engagement Pressure: 15 grams Bandwidth: 32Hz-14kHz ±2dB SnR Signal to Noise Ratio: -55dB (measured with flat weighting). Wow and Flutter: < 0.3% (measured with IEC 60386 2012 weighting). Full Modulation Level -18dBFS Headphones Level -18dBu at 50Ω load (for monitoring purposes only).
Src:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-audio-and-keykode-reader-sm.jpg?_v=1520382554
Col_1120w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-audio-and-keykode-reader-md.jpg?_v=1520382554
Col_1324w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-audio-and-keykode-reader-xl.jpg?_v=1520382554
Col_662w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-audio-and-keykode-reader-sm.jpg?_v=1520382554

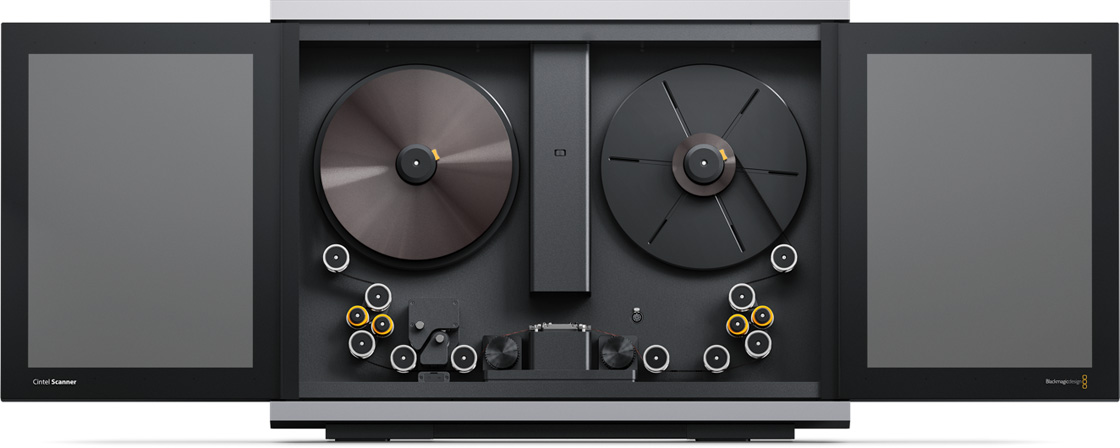

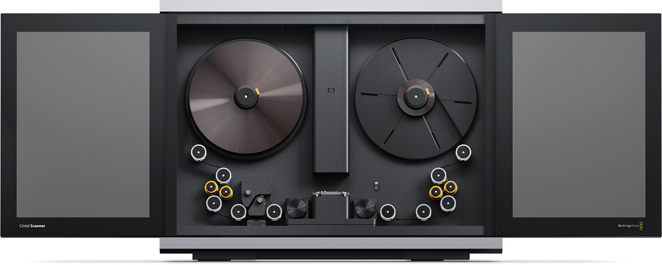

Cintel Scanner G3 HDR+
Add to Compare
View Details
Cintel Scanner G3 HDR+
Price:
HK$262,450
Description:
The Cintel Scanner is a complete solution to realtime film scanning and grading that features precision mechanical film handling components, optics, a high intensity diffuse light source and a built in camera. The precision capstans handle film more gently than ever before. Cintel Scanner includes a 35mm film gate, film spools, a set of four cleaning rollers, desk mount feet and DaVinci Resolve Studio software. Cintel transfers film directly to DaVinci Resolve which gives you the power to edit film rolls back together, scans to be color graded, reframed, noise reduced and audio extracted. Using DaVinci Resolve to operate the scanner means you have much more creative control than a simple telecine because DaVinci Resolve has many more features than is possible to do in hardware.
Film_Stocks:
Print, Negative, Interpositive, Internegative. Mono and Color.
Film_Gauges:
35mm (2, 3, 4 perforations), Super 35mm (2, 3, 4 perforations). 16mm, Super 16mm 8mm, Super 8mm
Native_Resolution:
4096 x 3072
Effective_Resolutions:
3840 x 2880 - Super 35 3390 x 2465 - Standard 35 3390 x 2865 - Anamorphic 35 1903 x 1143 - Super 16 1581 x 1154 - Standard 16 892 x 638 - Super 8 752 x 567 - Standard 8
Hdmi_Formats:
3840 x 2160 Ultra HD 1920 x 1080 HD (auto selected to match monitor resolution)
Dynamic_Range:
Normal Scans: 12 stops HDR Scans: up to 3.5 additional stops
Audio:
Extraction from scanned image.
Transport_Type:
Rubber Capstan.
Dirt_And_Scratch_Reduction:
Diffuse light source. Cleaning rollers.
Mounting_Options:
Desk Mount. Wall Mount.
Continuous_Motion:
Run speed: 1 - 30Â fps Shuttle: 1 - 150Â fps (16mm) 1 - 200Â fps (16mm)
Acceleration:
5 - 30 fps/s
Film_Shrinkage_Tolerance:
Up to 2% guaranteed, more may be possible if user care is taken.
Capacity:
2000 ft
Hdmi_Video_Output:
1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only.
Computer_Interface:
Thunderbolt™ 3 for capture of image and audio, software updates and supports USB-C charging with 15W at 5V. PCI Express 4 lane generation 2.
Biphasetimecode_Output:
XLR3 Bi-phase: 4.5 Volt DC coupled. Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30Â fps.
Analog_Audio_Inputs:
2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBVÂ levels.
Aesebu_Audio_Input:
1 Channel with sample rate converter on XLRÂ connector.
Options_Interface:
XLR6
Na:
Linux
Voltage_Range:
100 - 240VÂ AC.
Power:
200W
Operating_Temperature:
18 to 28°C (64.4º to 82.4º F).
Relative_Humidity:
Maximum 65% non-condensing.
Scanner_Features:
Film Stocks Print, Negative, Interpositive, Internegative. Mono and Color. Film Gauges 35mm (2, 3, 4 perforations), Super 35mm (2, 3, 4 perforations). 16mm, Super 16mm 8mm, Super 8mm Native Resolution 4096 x 3072 Effective Resolutions 3840 x 2880 - Super 35 3390 x 2465 - Standard 35 3390 x 2865 - Anamorphic 35 1903 x 1143 - Super 16 1581 x 1154 - Standard 16 892 x 638 - Super 8 752 x 567 - Standard 8 HDMI Formats 3840 x 2160 Ultra HD 1920 x 1080 HD (auto selected to match monitor resolution) Dynamic Range Normal Scans: 12 stops HDR Scans: up to 3.5 additional stops Audio Extraction from scanned image. Transport Type Rubber Capstan. Dirt and Scratch Reduction Diffuse light source. Cleaning rollers. Mounting Options Desk Mount. Wall Mount.
Transport_Features:
Continuous Motion Run speed: 1 - 30Â fps Shuttle: 1 - 150Â fps (16mm) 1 - 200Â fps (16mm) Acceleration 5 - 30 fps/s Film Shrinkage Tolerance Up to 2% guaranteed, more may be possible if user care is taken. Capacity 2000 ft
Connections:
HDMI Video Output 1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only. Computer Interface Thunderbolt™ 3 for capture of image and audio, software updates and supports USB-C charging with 15W at 5V. PCI Express 4 lane generation 2. Bi-phase/Timecode Output XLR3 Bi-phase: 4.5 Volt DC coupled. Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30 fps. Analog Audio Inputs 2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBV levels. AES/EBU Audio Input 1 Channel with sample rate converter on XLR connector. Options Interface XLR6
Operating_Systems:
Cintel requires Desktop Video installed on the host computer to operate. Scanning can be controlled though DaVinci Resolve or through third party software using the Cintel SDK. Operating Systems as per Desktop Video Read Me Download Desktop Video here. Download DaVinci Resolve here.
Accessories:
Cintel Scanner 35mm Gate HDR Cintel Scanner 16mm Gate HDR Cintel Scanner 8mm Gate HDR* Cintel Audio and KeyKode Reader Cintel Cleaning Roller Kit Blackmagic PCI Express Cable Kit
Power_Requirements:
Voltage Range 100 - 240VÂ AC. Power 200W
Ideal_Film_Conditions:
Operating Temperature 18 to 28°C (64.4º to 82.4º F). Relative Humidity Maximum 65% non-condensing.
Whats_Included:
Cintel Scanner G3 HDR+ Desk Stand 8 x 1mm Reel Spacers Cintel Scanner 35mm Gate DaVinci Resolve Studio Dongle Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-sm.jpg?_v=1600751429
Col_1120w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-md.jpg?_v=1600751429
Col_1324w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-xl.jpg?_v=1600751429
Col_662w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-sm.jpg?_v=1600751429

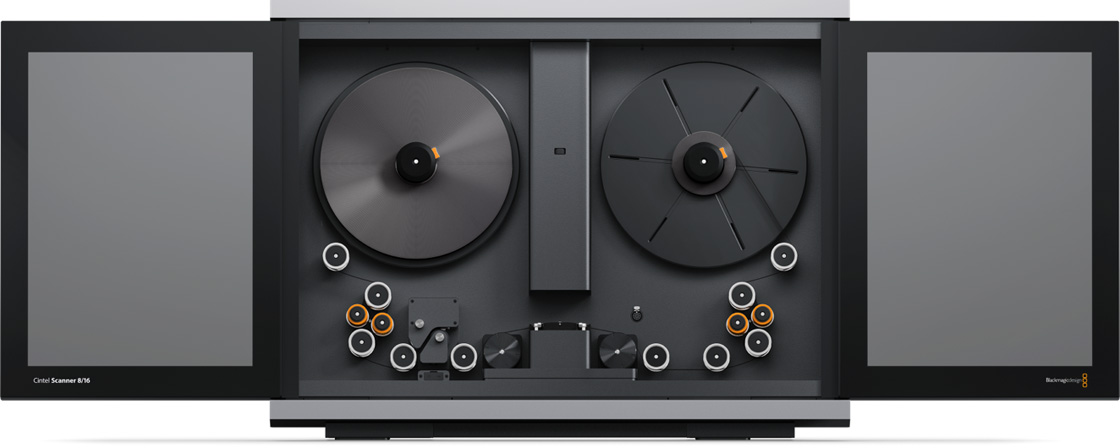

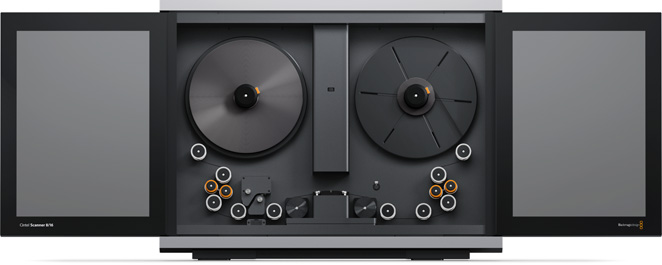

Cintel Scanner G3 HDR+ 8/16
Add to Compare
View Details
Cintel Scanner G3 HDR+ 8/16
Price:
HK$262,450
Description:
Cintel Scanner G3 HDR+ 8/16 is an advanced 8mm HD and 16mm Ultra HD film scanner with optics specifically designed for higher resolution capture of smaller format film. Includes capstan based transport for delicate archive film, new light source for higher speed realtime HDR, powerful film restoration tools with DaVinci Resolve and scanning via Thunderbolt to Mac and Windows computers.
Film_Stocks:
Print, Negative, Interpositive, Internegative. Mono and Color.
Film_Gauges:
16mm, Super 16mm 8mm, Super 8mm
Native_Resolution:
4096 x 3072
Effective_Resolutions:
2966 x 1781 - Super 16 2464 x 1798 - Standard 16 1390 x 994 - Super 8 1172 x 884 - Standard 8
Hdmi_Formats:
3840 x 2160 Ultra HD 1920 x 1080 HD (auto selected to match monitor resolution)
Dynamic_Range:
Normal Scans: 12 stops HDR Scans: up to 3.5 additional stops
Audio:
Extraction from scanned image.
Transport_Type:
Rubber Capstan.
Dirt_And_Scratch_Reduction:
Diffuse light source. Cleaning rollers.
Mounting_Options:
Desk Mount. Wall Mount.
Continuous_Motion:
Run speed: 1 - 30Â fps Shuttle: 1 - 150Â fps (16mm) 1 - 200Â fps (8mm)
Acceleration:
10 - 60Â fps/s
Film_Shrinkage_Tolerance:
Up to 2% guaranteed, more may be possible if user care is taken.
Capacity:
2000Â ft
Hdmi_Video_Output:
1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only.
Computer_Interface:
Thunderbolt™ 3 for capture of image and audio, software updates and supports USB-C charging with 15W at 5V. PCI Express 4 lane generation 2.
Biphasetimecode_Output:
XLR3 Bi-phase: 4.5 Volt DC coupled. Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30Â fps.
Analog_Audio_Inputs:
2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBVÂ levels.
Aesebu_Audio_Input:
1 Channel with sample rate converter on XLRÂ connector.
Options_Interface:
XLR6
Na:
Linux
Voltage_Range:
100 - 240VÂ AC.
Power:
200W
Operating_Temperature:
18 to 28°C (64.4º to 82.4º F).
Relative_Humidity:
Maximum 65% non-condensing.
Scanner_Features:
Film Stocks Print, Negative, Interpositive, Internegative. Mono and Color. Film Gauges 16mm, Super 16mm 8mm, Super 8mm Native Resolution 4096 x 3072 Effective Resolutions 2966 x 1781 - Super 16 2464 x 1798 - Standard 16 1390 x 994 - Super 8 1172 x 884 - Standard 8 HDMI Formats 3840 x 2160 Ultra HD 1920 x 1080 HD (auto selected to match monitor resolution) Dynamic Range Normal Scans: 12 stops HDR Scans: up to 3.5 additional stops Audio Extraction from scanned image. Transport Type Rubber Capstan. Dirt and Scratch Reduction Diffuse light source. Cleaning rollers. Mounting Options Desk Mount. Wall Mount.
Transport_Features:
Continuous Motion Run speed: 1 - 30Â fps Shuttle: 1 - 150Â fps (16mm) 1 - 200Â fps (8mm) Acceleration 10 - 60Â fps/s Film Shrinkage Tolerance Up to 2% guaranteed, more may be possible if user care is taken. Capacity 2000Â ft
Connections:
HDMI Video Output 1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only. Computer Interface Thunderbolt™ 3 for capture of image and audio, software updates and supports USB-C charging with 15W at 5V. PCI Express 4 lane generation 2. Bi-phase/Timecode Output XLR3 Bi-phase: 4.5 Volt DC coupled. Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30 fps. Analog Audio Inputs 2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBV levels. AES/EBU Audio Input 1 Channel with sample rate converter on XLR connector. Options Interface XLR6
Operating_Systems:
Cintel requires Desktop Video installed on the host computer to operate. Scanning can be controlled though DaVinci Resolve or through third party software using the Cintel SDK. Operating Systems as per Desktop Video Read Me Download Desktop Video here. Download DaVinci Resolve here.
Accessories:
Cintel Scanner 16mm Gate HDR Cintel Scanner 8mm Gate HDR Cintel Audio and KeyKode Reader Cintel Cleaning Roller Kit Blackmagic PCI Express Cable Kit
Power_Requirements:
Voltage Range 100 - 240VÂ AC. Power 200W
Ideal_Film_Conditions:
Operating Temperature 18 to 28°C (64.4º to 82.4º F). Relative Humidity Maximum 65% non-condensing.
Whats_Included:
Cintel Scanner G3 HDR+ 8/16 Desk Stand 8 x 1mm Reel Spacers + 16mm Packer kit Cintel Scanner 16mm HDR Gate Cintel Scanner 8mm HDR Gate DaVinci Resolve Studio Dongle Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-8-16-sm.jpg?_v=1742791626
Col_1120w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-8-16-md.jpg?_v=1742791626
Col_1324w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-8-16-xl.jpg?_v=1742791625
Col_662w:
https://images.blackmagicdesign.com/images/products/cintel/techspecs/hero/cintel-scanner-g3-hdr-plus-8-16-sm.jpg?_v=1742791626
×
