🧩 Blackmagic Products - Final Version
ENG / ä¸ć–‡
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
Monitoring

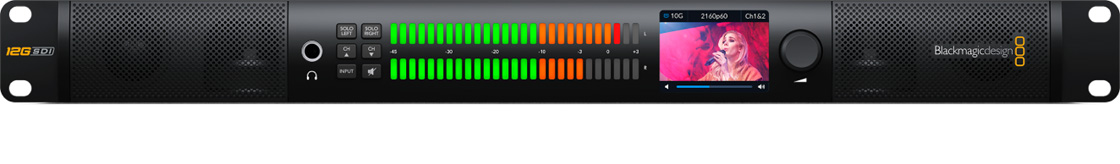

Blackmagic Audio Monitor 12G G3
Add to Compare
View Details
Blackmagic Audio Monitor 12G G3
Price:
HK$10,650
Description:
Blackmagic Audio Monitor 12G G3 is a powerful rack mount audio monitoring solution in a compact 1 rack unit size. This new model features 10G Ethernet SMPTE-2110 IP input to allow monitoring of IP broadcast systems without an external converter. Blackmagic Audio Monitor 12G G3 also includes a large audio meter with accurate ballistics, 12G-SDI input for SD, HD and Ultra HD support, balanced analog XLR, HiFi and AES/EBU inputs and HDMI video output for monitoring SDI and IP video sources.
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
1 loop out.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Outputs:
1
Multi_Rate_Support:
SDI and HDMI are switchable between standard definition, high definition and ultra high definition.
Sdi_Video_Loop:
1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
Analog_Audio_Inputs:
2 x XLR. 2 x RCA HiFi.
Analog_Audio_Outputs:
1 x 6.5mm headphone socket.
Digital_Audio_Inputs:
1 x XLR.
Built_In_Speaker:
Stereo with 2‑way crossover and independent stereo subwoofers.
Aesebu_Audio_Inputs:
2 channels balanced 110Ω AES/EBU via XLR.
Sdi_Audio_Inputs:
16 channels embedded in SD, HD and UltraHD 4K.
Sdi_Audio_Outputs:
16 channels embedded audio loop out.
Hdmi_Audio_Outputs:
8 Channels embedded in SD, HD and 4K.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Computer_Interface:
USB‑C for configuration and firmware updates.
Metering:
2 x 27 RGB segment LED VU, PPM or Loudness meters.
Modes:
Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2KÂ DCIÂ 23.98p, 2KÂ DCIÂ 24p, 2KÂ DCIÂ 25p, 2KÂ 23.98PsF, 2KÂ 24PsF, 2KÂ 25PsF
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2084, SMPTE 2108‑1.
Sdi_Auto_Switching:
Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI and 12G‑SDI.
Audio_Sampling:
96 KHz and 24 bit.
Video_Sampling:
4:2:2 and 4:4:4
Na:
1 rack unit.
Smpte_211020_Uncompressed_Video:
IGMP v2
Smpte_211021_Traffic_Shaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillary_Data:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer‑to-peer via mDNS/DNS‑SD
Nmos_Is05_Connectionmanagement:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Builtin_Control_Panel:
2.2 inch display for viewing video input, video standard and selected audio input.
Internal_Software_Upgrade:
Via USB connection and Ethernet
Display_Element:
2.2 inch diagonal color LCD.
Display_Resolution:
320 x 240.
Input_Display:
SDI video, format, audio type and audio channels.
Power_Supply:
1 x Internal 100 - 240V AC.
Power_Usage:
55Â Watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 loop out. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Outputs 1 Multi Rate Support SDI and HDMI are switchable between standard definition, high definition and ultra high definition. SDI Video Loop 1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI. Analog Audio Inputs 2 x XLR. 2 x RCA HiFi. Analog Audio Outputs 1 x 6.5mm headphone socket. Digital Audio Inputs 1 x XLR. Built in Speaker Stereo with 2‑way crossover and independent stereo subwoofers. AES/EBU Audio Inputs 2 channels balanced 110Ω AES/EBU via XLR. SDI Audio Inputs 16 channels embedded in SD, HD and UltraHD 4K. SDI Audio Outputs 16 channels embedded audio loop out. HDMI Audio Outputs 8 Channels embedded in SD, HD and 4K. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. Computer Interface USB‑C for configuration and firmware updates. Metering 2 x 27 RGB segment LED VU, PPM or Loudness meters. Modes Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2084, SMPTE 2108‑1. SDI Auto Switching Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI and 12G‑SDI. Audio Sampling 96 KHz and 24 bit. Video Sampling 4:2:2 and 4:4:4
Audio_Meter_Ballistics:
54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale.
Ip_Video_Compliance:
SMPTE 2110‑20 (Uncompressed Video) IGMP v2 SMPTE 2110‑21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110‑30 (PCM) Audio Conformance level: Level C SMPTE 2110‑40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 NMOS IS‑04 Discovery and Registration v1.3.2 Peer‑to-peer via mDNS/DNS‑SD NMOS IS‑05 Connection Management v1.1.2 NMOS BCP‑002‑01 Natural Grouping NMOS BCP‑004‑01 Receiver capabilities Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Control:
Built-in Control Panel 2.2 inch display for viewing video input, video standard and selected audio input.
Software:
Internal Software Upgrade Via USB connection and Ethernet
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Display:
Display Element 2.2 inch diagonal color LCD. Display Resolution 320 x 240. Input Display SDI video, format, audio type and audio channels.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC. Power Usage 55 Watts
Physical_Installation:
1 rack unit.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Audio Monitor 12G G3 PPM and Loudness Scale Stickers Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicaudiomonitor/techspecs/hero/blackmagic-audio-monitor-12g-g3-sm.jpg?_v=1712902385
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicaudiomonitor/techspecs/hero/blackmagic-audio-monitor-12g-g3-md.jpg?_v=1712902385
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicaudiomonitor/techspecs/hero/blackmagic-audio-monitor-12g-g3-xl.jpg?_v=1712902385
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicaudiomonitor/techspecs/hero/blackmagic-audio-monitor-12g-g3-sm.jpg?_v=1712902385

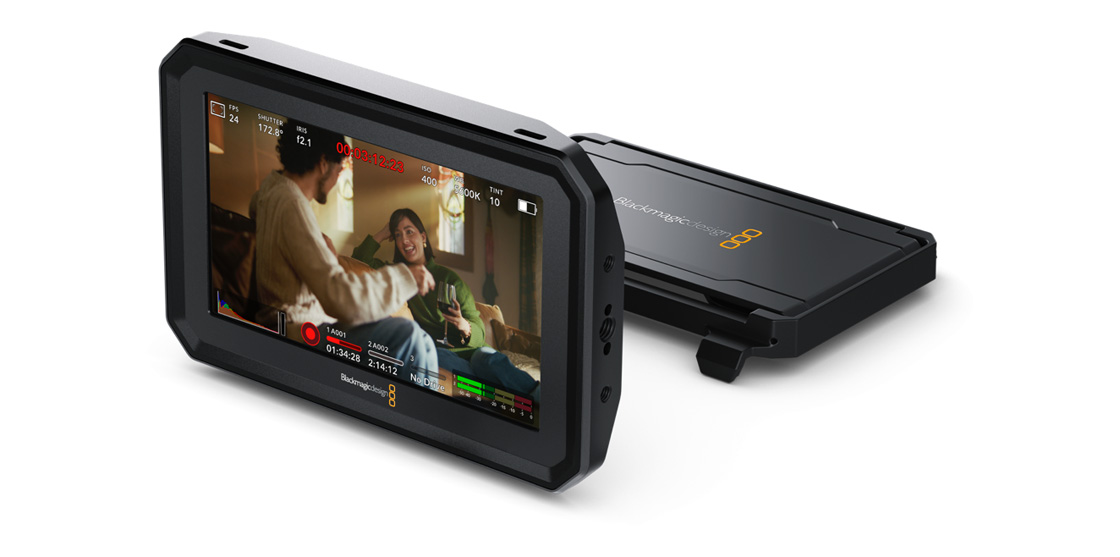

Blackmagic PYXIS Monitor
Add to Compare
View Details
Blackmagic PYXIS Monitor
Price:
HK$2,450
Description:
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.
Frame_Rates:
Up to 60fps.
Na:
Powered over USB-C.
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Connections:
USB-C with Locking Connector Video, power, data and software updates.
Control:
On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB-C.
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Usbc_With_Locking_Connector:
Video, power, data and software updates.
Display_Size:
5 inch.
Display_Resolution:
Full 1920 x 1080.
Display_Type:
LCD capacitive touchscreen.
Display_Brightness:
1500 nits.
Tally:
Rear facing LED tally light.
Accelerometer:
Automatically rotates image when monitor mounted upside down.
On_Screen_Controls:
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls:
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Presets:
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Function_Button_Toggle:
Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting_Points:
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Features:
Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-sm.jpg?_v=1726110493
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-md.jpg?_v=1726110493
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-xl.jpg?_v=1726110493
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-sm.jpg?_v=1726110493

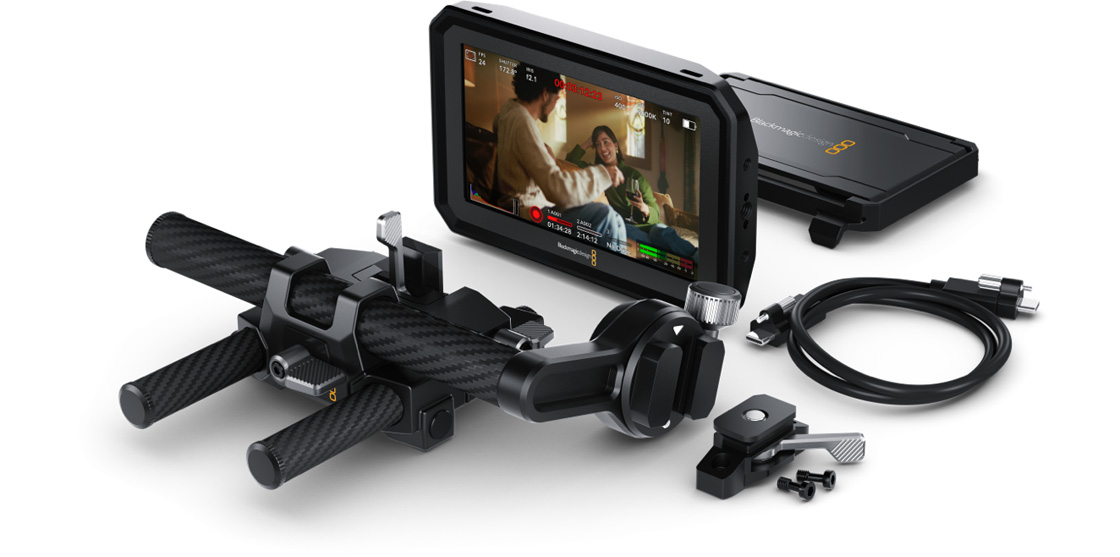

Blackmagic PYXIS Monitor EVF Kit
Add to Compare
View Details
Blackmagic PYXIS Monitor EVF Kit
Price:
HK$5,300
Description:
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as an electronic viewfinder.
Frame_Rates:
Up to 60fps.
Na:
Powered over USB-C.
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 60°C (‑4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Connections:
USB-C with Locking Connector Video, power, data and software updates.
Control:
On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB-C.
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Blackmagic PYXIS Monitor Swivel Mount Blackmagic PYXIS Monitor Fixed Mount and screws Blackmagic PYXIS Monitor Dovetail Shoe and screws Blackmagic URSA Cine EVF Bracket rod mount Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod 2 x short 15mm carbon fibre rods 1 x long USB‑C viewfinder Cable 1 x short USB‑C viewfinder Cable Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Usbc_With_Locking_Connector:
Video, power, data and software updates.
Display_Size:
5 inch.
Display_Resolution:
Full 1920 x 1080.
Display_Type:
LCD capacitive touchscreen.
Display_Brightness:
1500 nits.
Tally:
Rear facing LED tally light.
Accelerometer:
Automatically rotates image when monitor mounted upside down.
On_Screen_Controls:
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls:
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Presets:
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Function_Button_Toggle:
Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting_Points:
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Features:
Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Mounting_Brackets:
Blackmagic PYXIS Monitor Swivel Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in EVF Kit. Blackmagic URSA Cine EVF Bracket ‑ included in EVF Kit.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-sm.jpg?_v=1726110494
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-md.jpg?_v=1726110494
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-xl.jpg?_v=1726110494
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-sm.jpg?_v=1726110494

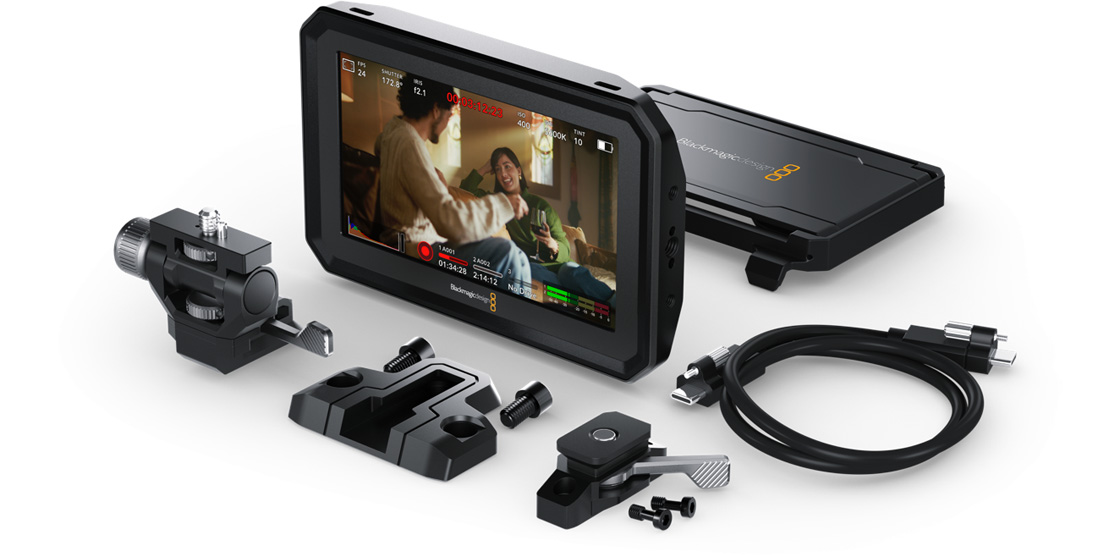

Blackmagic PYXIS Monitor Kit
Add to Compare
View Details
Blackmagic PYXIS Monitor Kit
Price:
HK$3,650
Description:
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
Frame_Rates:
Up to 60fps.
Na:
Powered over USB-C.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (‑4° to 140°F)
Relative_Humidity:
0% to 90% non‑condensing
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Connections:
USB-C with Locking Connector Video, power, data and software updates.
Control:
On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB-C.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Blackmagic PYXIS Monitor Swivel Mount Blackmagic PYXIS Monitor Fixed Mount and screws Blackmagic PYXIS Monitor Dovetail Shoe and screws 1 x USB-C Viewfinder Cable Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Usbc_With_Locking_Connector:
Video, power, data and software updates.
Display_Size:
5 inch.
Display_Resolution:
Full 1920 x 1080.
Display_Type:
LCD capacitive touchscreen.
Display_Brightness:
1500 nits.
Tally:
Rear facing LED tally light.
Accelerometer:
Automatically rotates image when monitor mounted upside down.
On_Screen_Controls:
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls:
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Presets:
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Function_Button_Toggle:
Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting_Points:
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Features:
Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Mounting_Brackets:
Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-sm.jpg?_v=1726110495
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-md.jpg?_v=1726110495
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-xl.jpg?_v=1726110494
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-sm.jpg?_v=1726110495

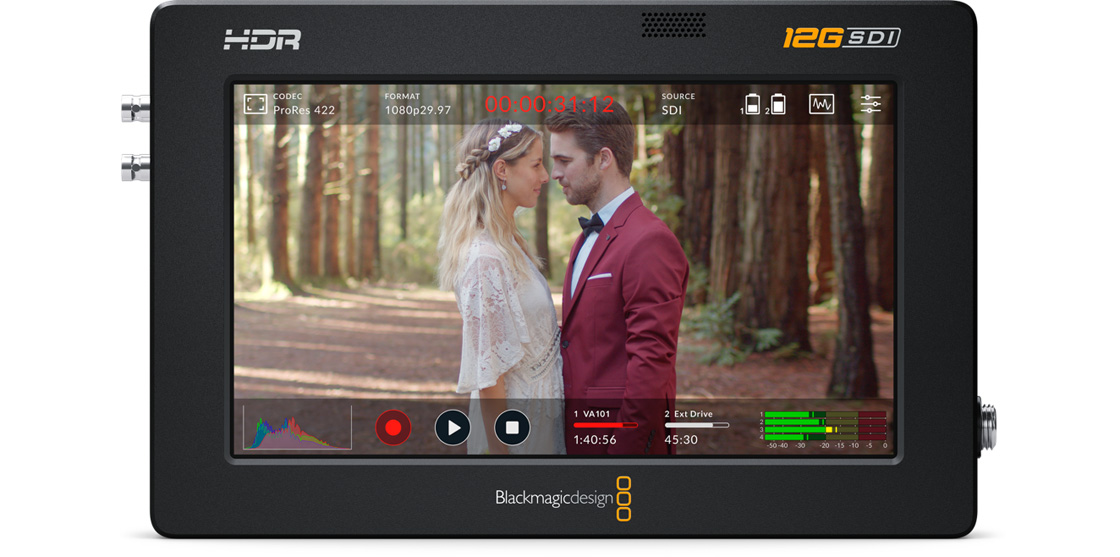

Blackmagic Video Assist 5” 12G HDR
Add to Compare
View Details
Blackmagic Video Assist 5” 12G HDR
Price:
HK$4,900
Description:
Blackmagic Video Assist 5” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. The built in SD card recorder save files in broadcast quality 10‑bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!
Sdi_Video_Inputs:
1 x Micro BNC
Sdi_Video_Outputs:
1 x Micro BNC
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20a_Video_Inputs:
1.0
Hdmi_20a_Video_Outputs:
1.0
Analog_Audio_Inputs:
None, embedded audio only.
Analog_Audio_Outputs:
1 x 3.5 mm headphone jack.
Built_In_Speaker:
Mono
Screen_Dimensions:
5Â inch 1920 x 1080.
Screen_Brightness:
2500nits
Screen_Color:
P3 wide color gamut
Sdi_Audio_Inputs:
16 channels embedded via 12G-SDI
Sdi_Audio_Outputs:
16 channels embedded via 12G-SDI
Hdmi_Audio_Inputs:
8 channels embedded via HDMI 2.0a
Hdmi_Audio_Outputs:
8 channels embedded via HDMI 2.0a
Sd_Interface:
1 x UHS-II SDÂ slot.
Storage_Type:
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SDÂ cards.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
Sd_Video_Standards:
525i59.94Â NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI
Sdi_Compliance:
SMPTEÂ 259M, SMPTEÂ 292M, SMPTEÂ 296M, SMPTEÂ 425M, SMPTEÂ 2084
Sdi_Metadata_Support:
HD RP188
Audio_Sampling:
Television standard sample rate of 48Â kHz and 24-bit.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Hdr_Support:
HDR10, Hybrid Log Gamma
Multiple_Rate_Support:
SDI and HDMI switches between 270Â Mb/s, 1.5Â Gb/s, 3Â Gb/s, 6Â Gb/s and 12 Gb/s
Sdi_Raw:
Blackmagic RAW
Hdmi_Color_Precision:
10-bit
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media:
Media 1 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording. Media Type SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Media_Type:
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SDÂ cards.
Na:
Windows 11
Recorder_Control:
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
External_Control:
SDI and HDMI start/stop and timecode run.
Canon:
Canon EOS C300 Mark II
Fujifilm:
FUJIFILM GFX100 FUJIFILM GFX100 II FUJIFILM GFX100S FUJIFILM GFX100S II FUJIFILM X-H2s FUJIFILM X-H2 FUJIFILM X-M5 FUJIFILM X-T5 FUJIFILM X-T50 FUJIFILM X-S20
Leica:
Leica SL2-S
Nikon:
Nikon Z 6 Nikon Z 7 Nikon Z 6II Nikon Z 7II
Panasonic:
Panasonic AU-EVA1 Panasonic AW-UB10 Panasonic AW-UB50 Panasonic LUMIX BGH1 Panasonic LUMIX BS1H Panasonic LUMIX GH5S Panasonic LUMIX GH6 Panasonic LUMIX GH7 Panasonic LUMIX G9II Panasonic LUMIX S1 Panasonic LUMIX S1II Panasonic LUMIX S1IIE Panasonic LUMIX S1H Panasonic LUMIX S1RII Panasonic LUMIX S5 Panasonic LUMIX S5D Panasonic LUMIX S5II Panasonic LUMIX S5IIX
Sigma:
SIGMA fp SIGMA fp L
Z_Cam:
Z CAM E2 Z CAM E2-M4 Z CAM E2-F6 Z CAM E2-S6
Software_Included:
Blackmagic OS
Scopes:
Scopes Waveform, RGB Parade, Vector, RGBÂ Histogram. Viewing Modes Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDRÂ graticules.
Viewing_Modes:
Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDRÂ graticules.
Power_Supply:
1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x Micro BNC SDI Video Outputs 1 x Micro BNC SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0a Video Inputs 1 HDMI 2.0a Video Outputs 1 Analog Audio Inputs None, embedded audio only. Analog Audio Outputs 1 x 3.5 mm headphone jack. Built in Speaker Mono Screen Dimensions 5 inch 1920 x 1080. Screen Brightness 2500nits Screen Color P3 wide color gamut SDI Audio Inputs 16 channels embedded via 12G-SDI SDI Audio Outputs 16 channels embedded via 12G-SDI HDMI Audio Inputs 8 channels embedded via HDMI 2.0a HDMI Audio Outputs 8 channels embedded via HDMI 2.0a Remote Control None SD Interface 1 x UHS-II SD slot. Storage Type Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
Sdi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084 SDI Metadata Support HD RP188 Audio Sampling Television standard sample rate of 48 kHz and 24-bit. Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space REC 601, REC 709, REC 2020 HDR Support HDR10, Hybrid Log Gamma Multiple Rate Support SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s SDI RAW Blackmagic RAW
Hdmi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI HDMI Color Precision 10-bit HDR Support HDR10, Hybrid Log Gamma Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Supported_Codecs:
Blackmagic RAW Constant Bitrate 3:1 , Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes 422 HQ , Apple ProRes 422 , Apple ProRes 422 LT , Apple ProRes 422 Proxy , DNxHR HQX , DNxHR SQ , DNxHR LB , DNxHR HQX MXF , DNxHR SQ MXF , DNxHR LB MXF .
Control:
Recorder Control Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus. External Control SDI and HDMI start/stop and timecode run.
Blackmagic_Raw:
Canon Canon EOS C300 Mark II FUJIFILM FUJIFILM GFX100 FUJIFILM GFX100 II FUJIFILM GFX100S FUJIFILM GFX100S II FUJIFILM X-H2s FUJIFILM X-H2 FUJIFILM X-M5 FUJIFILM X-T5 FUJIFILM X-T50 FUJIFILM X-S20 Leica Leica SL2-S Nikon Nikon Z 6 Nikon Z 7 Nikon Z 6II Nikon Z 7II Panasonic Panasonic AU-EVA1 Panasonic AW-UB10 Panasonic AW-UB50 Panasonic LUMIX BGH1 Panasonic LUMIX BS1H Panasonic LUMIX GH5S Panasonic LUMIX GH6 Panasonic LUMIX GH7 Panasonic LUMIX G9II Panasonic LUMIX S1 Panasonic LUMIX S1II Panasonic LUMIX S1IIE Panasonic LUMIX S1H Panasonic LUMIX S1RII Panasonic LUMIX S5 Panasonic LUMIX S5D Panasonic LUMIX S5II Panasonic LUMIX S5IIX SIGMA SIGMA fp SIGMA fp L Z CAM Z CAM E2 Z CAM E2-M4 Z CAM E2-F6 Z CAM E2-S6
Software:
Software Included Blackmagic OS
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 11
Power_Requirements:
Power Supply 1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Video Assist 5” 12G HDR Universal power supply with locking connector and international adapters NP-F series battery USB charger
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-12g-hdr-sm.jpg?_v=1664770317
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-12g-hdr-md.jpg?_v=1664770317
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-12g-hdr-xl.jpg?_v=1664770317
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-12g-hdr-sm.jpg?_v=1664770317

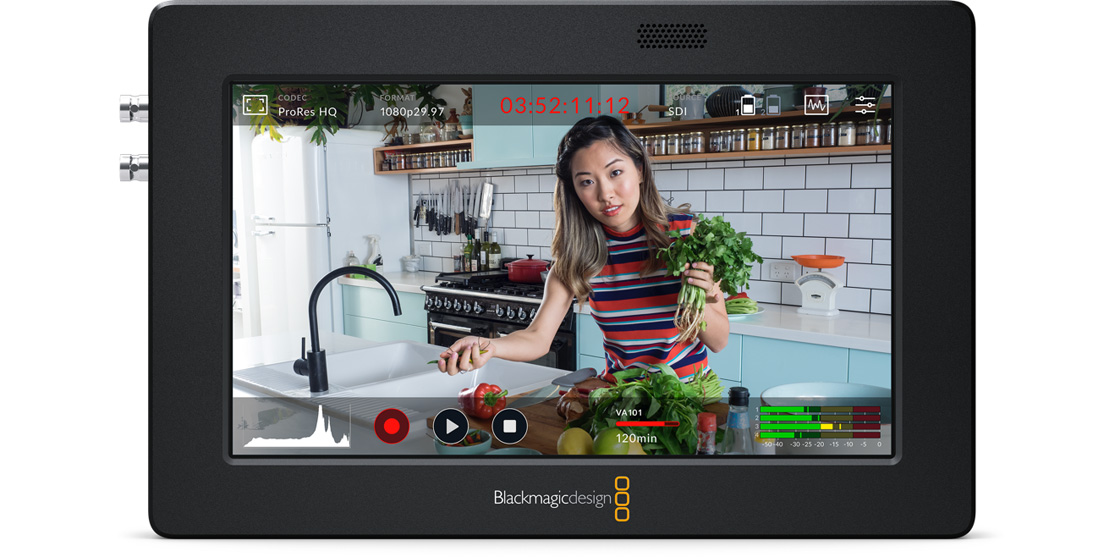

Blackmagic Video Assist 5” 3G
Add to Compare
View Details
Blackmagic Video Assist 5” 3G
Price:
HK$2,700
Description:
Blackmagic Video Assist 5” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5” 3G really is 4 products in one!
Sdi_Video_Inputs:
1 x Micro BNC
Sdi_Video_Outputs:
1 x Micro BNC
Sdi_Rates:
270Mb, 1.5G, 3G
Analog_Audio_Inputs:
None, embedded audio only.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack.
Built_In_Speaker:
Mono
Screen_Dimensions:
5Â inch 1920 x 1080.
Screen_Brightness:
300nits
Sdi_Audio_Inputs:
16 channels embedded via SDI
Sdi_Audio_Outputs:
16 channels embedded via SDI
Hdmi_Audio_Inputs:
8 channels embedded via HDMI
Hdmi_Audio_Outputs:
8 channels embedded via HDMI
Sd_Interface:
1 x UHS-I SDÂ slot.
Storage_Type:
SDXC UHS-I and SDHC UHS-I SDÂ cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SDÂ cards.
Computer_Interface:
1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control.
Sd_Video_Standards:
525i59.94Â NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
Sdi_Compliance:
SMPTEÂ 259M, SMPTEÂ 292M, SMPTEÂ 296M, SMPTEÂ 425M
Sdi_Metadata_Support:
HD RP188
Audio_Sampling:
Television standard sample rate of 48Â kHz and 24-bit.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
RECÂ 601, RECÂ 709
Multiple_Rate_Support:
SDI and HDMI switches between 270Â Mb/s, 1.5Â Gb/s and 3 Gb/s.
Hdmi_Color_Precision:
10-bit
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media:
Media 1 x UHS-I SD for HDÂ recording. Media Type SDXC UHS-I and SDHC UHS-I SDÂ cards.
Media_Type:
SDXC UHS-I and SDHC UHS-I SDÂ cards.
Na:
Windows 11
Recorder_Control:
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
External_Control:
SDI and HDMI start/stop, timecode run.
Software_Included:
Blackmagic OS
Scopes:
Scopes Waveform, RGB Parade, Vector, Histogram. Viewing Modes Scopes with picture in picture or picture overlay and opacity control.
Viewing_Modes:
Scopes with picture in picture or picture overlay and opacity control.
Power_Supply:
1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x Micro BNC SDI Video Outputs 1 x Micro BNC SDI Rates 270Mb, 1.5G, 3G HDMI Video Inputs 1 HDMI Video Outputs 1 Analog Audio Inputs None, embedded audio only. Analog Audio Outputs 1 x 3.5mm headphone jack. Built in Speaker Mono Screen Dimensions 5 inch 1920 x 1080. Screen Brightness 300nits SDI Audio Inputs 16 channels embedded via SDI SDI Audio Outputs 16 channels embedded via SDI HDMI Audio Inputs 8 channels embedded via HDMI HDMI Audio Outputs 8 channels embedded via HDMI Remote Control None SD Interface 1 x UHS-I SD slot. Storage Type SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. Computer Interface 1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control.
Sdi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50Â PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI SDI Compliance SMPTEÂ 259M, SMPTEÂ 292M, SMPTEÂ 296M, SMPTEÂ 425M SDI Metadata Support HD RP188 Audio Sampling Television standard sample rate of 48Â kHz and 24-bit. Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space RECÂ 601, RECÂ 709 Multiple Rate Support SDI and HDMI switches between 270Â Mb/s, 1.5Â Gb/s and 3 Gb/s.
Hdmi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 10-bit Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Supported_Codecs:
ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, D NxHD 145 MXF, DNxHD 45 MXF.
Control:
Recorder Control Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus. External Control SDI and HDMI start/stop, timecode run.
Software:
Software Included Blackmagic OS
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 11
Power_Requirements:
Power Supply 1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Video Assist 5” 3G Universal power supply with international adapters NP-F series battery USB charger
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Video_Inputs:
1.0
Hdmi_Video_Outputs:
1.0
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-3g-sm.jpg?_v=1589151497
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-3g-md.jpg?_v=1589151497
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-3g-xl.jpg?_v=1589151496
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-5-inch-3g-sm.jpg?_v=1589151497

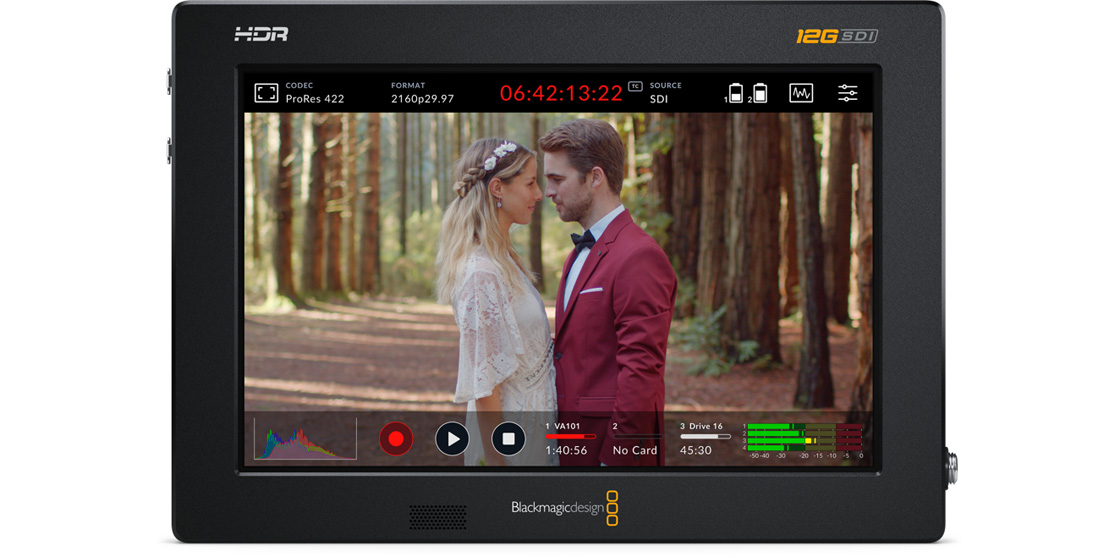

Blackmagic Video Assist 7” 12G HDR
Add to Compare
View Details
Blackmagic Video Assist 7” 12G HDR
Price:
HK$6,550
Description:
Blackmagic Video Assist 7" 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10‑bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of ‑128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files!
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
1
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20a_Video_Inputs:
1.0
Hdmi_20a_Video_Outputs:
1.0
Analog_Audio_Inputs:
2 x balanced mini XLR with phantom power
Analog_Audio_Outputs:
1 x 3.5 mm headphone jack.
Built_In_Speaker:
Mono
Screen_Dimensions:
7Â inch 1920 x 1200.
Screen_Brightness:
2500nits
Screen_Color:
P3 wide color gamut
Sdi_Audio_Inputs:
16 channels embedded via 12G-SDI
Sdi_Audio_Outputs:
16 channels embedded via 12G-SDI
Hdmi_Audio_Inputs:
8 channels embedded via HDMI 2.0a
Hdmi_Audio_Outputs:
8 channels embedded via HDMI 2.0a
Remote_Control:
1 x 2.5mm LANC for Record Start and Stop.
Sd_Interface:
Dual UHS-II SDÂ slots
Storage_Type:
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
Sd_Video_Standards:
525i59.94Â NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI
Sdi_Compliance:
SMPTEÂ 259M, SMPTEÂ 292M, SMPTEÂ 296M, SMPTEÂ 425M, SMPTEÂ 2084
Sdi_Metadata_Support:
HD RP188
Audio_Sampling:
Television standard sample rate of 48Â kHz and 24-bit.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Hdr_Support:
HDR10, Hybrid Log Gamma
Multiple_Rate_Support:
SDI and HDMI switches between 270Â Mb/s, 1.5Â Gb/s, 3Â Gb/s, 6Â Gb/s and 12 Gb/s
Sdi_Raw:
Blackmagic RAW
Hdmi_Color_Precision:
10-bit
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media:
Media 2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording. Media Type SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Media_Type:
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SDÂ cards.
Na:
Windows 11
Recorder_Control:
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External_Control:
LANC, SDI and HDMI start/stop and timecode run.
Canon:
Canon EOS C300 Mark II
Fujifilm:
FUJIFILM GFX100 FUJIFILM GFX100 II FUJIFILM GFX100S FUJIFILM GFX100S II FUJIFILM X-H2s FUJIFILM X-H2 FUJIFILM X-M5 FUJIFILM X-T5 FUJIFILM X-T50 FUJIFILM X-S20
Leica:
Leica SL2-S
Nikon:
Nikon Z 6 Nikon Z 7 Nikon Z 6II Nikon Z 7II
Panasonic:
Panasonic AU-EVA1 Panasonic AW-UB10 Panasonic AW-UB50 Panasonic LUMIX BGH1 Panasonic LUMIX BS1H Panasonic LUMIX GH5S Panasonic LUMIX GH6 Panasonic LUMIX GH7 Panasonic LUMIX G9II Panasonic LUMIX S1 Panasonic LUMIX S1II Panasonic LUMIX S1IIE Panasonic LUMIX S1H Panasonic LUMIX S1RII Panasonic LUMIX S5 Panasonic LUMIX S5D Panasonic LUMIX S5II Panasonic LUMIX S5IIX
Sigma:
SIGMA fp SIGMA fp L
Z_Cam:
Z CAM E2 Z CAM E2-M4 Z CAM E2-F6 Z CAM E2-S6
Software_Included:
Blackmagic OS
Scopes:
Scopes Waveform, RGB Parade, Vector, RGBÂ Histogram. Viewing Modes Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDRÂ graticules.
Viewing_Modes:
Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDRÂ graticules.
Power_Supply:
1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0a Video Inputs 1 HDMI 2.0a Video Outputs 1 Analog Audio Inputs 2 x balanced mini XLR with phantom power Analog Audio Outputs 1 x 3.5 mm headphone jack. Built in Speaker Mono Screen Dimensions 7 inch 1920 x 1200. Screen Brightness 2500nits Screen Color P3 wide color gamut SDI Audio Inputs 16 channels embedded via 12G-SDI SDI Audio Outputs 16 channels embedded via 12G-SDI HDMI Audio Inputs 8 channels embedded via HDMI 2.0a HDMI Audio Outputs 8 channels embedded via HDMI 2.0a Remote Control 1 x 2.5mm LANC for Record Start and Stop. SD Interface Dual UHS-II SD slots Storage Type Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
Sdi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084 SDI Metadata Support HD RP188 Audio Sampling Television standard sample rate of 48 kHz and 24-bit. Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space REC 601, REC 709, REC 2020 HDR Support HDR10, Hybrid Log Gamma Multiple Rate Support SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s SDI RAW Blackmagic RAW
Hdmi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI HDMI Color Precision 10-bit HDR Support HDR10, Hybrid Log Gamma Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Supported_Codecs:
Blackmagic RAW Constant Bitrate 3:1 , Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes 422 HQ , Apple ProRes 422 , Apple ProRes 422 LT , Apple ProRes 422 Proxy , DNxHR HQX , DNxHR SQ , DNxHR LB , DNxHR HQX MXF , DNxHR SQ MXF , DNxHR LB MXF .
Control:
Recorder Control Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. External Control LANC, SDI and HDMI start/stop and timecode run.
Blackmagic_Raw:
Canon Canon EOS C300 Mark II FUJIFILM FUJIFILM GFX100 FUJIFILM GFX100 II FUJIFILM GFX100S FUJIFILM GFX100S II FUJIFILM X-H2s FUJIFILM X-H2 FUJIFILM X-M5 FUJIFILM X-T5 FUJIFILM X-T50 FUJIFILM X-S20 Leica Leica SL2-S Nikon Nikon Z 6 Nikon Z 7 Nikon Z 6II Nikon Z 7II Panasonic Panasonic AU-EVA1 Panasonic AW-UB10 Panasonic AW-UB50 Panasonic LUMIX BGH1 Panasonic LUMIX BS1H Panasonic LUMIX GH5S Panasonic LUMIX GH6 Panasonic LUMIX GH7 Panasonic LUMIX G9II Panasonic LUMIX S1 Panasonic LUMIX S1II Panasonic LUMIX S1IIE Panasonic LUMIX S1H Panasonic LUMIX S1RII Panasonic LUMIX S5 Panasonic LUMIX S5D Panasonic LUMIX S5II Panasonic LUMIX S5IIX SIGMA SIGMA fp SIGMA fp L Z CAM Z CAM E2 Z CAM E2-M4 Z CAM E2-F6 Z CAM E2-S6
Software:
Software Included Blackmagic OS
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 11
Power_Requirements:
Power Supply 1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Video Assist 7” 12G HDR Universal power supply with locking connector and international adapters NP-F series battery USB charger
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-12g-hdr-sm.jpg?_v=1664770318
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-12g-hdr-md.jpg?_v=1664770318
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-12g-hdr-xl.jpg?_v=1664770318
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-12g-hdr-sm.jpg?_v=1664770318

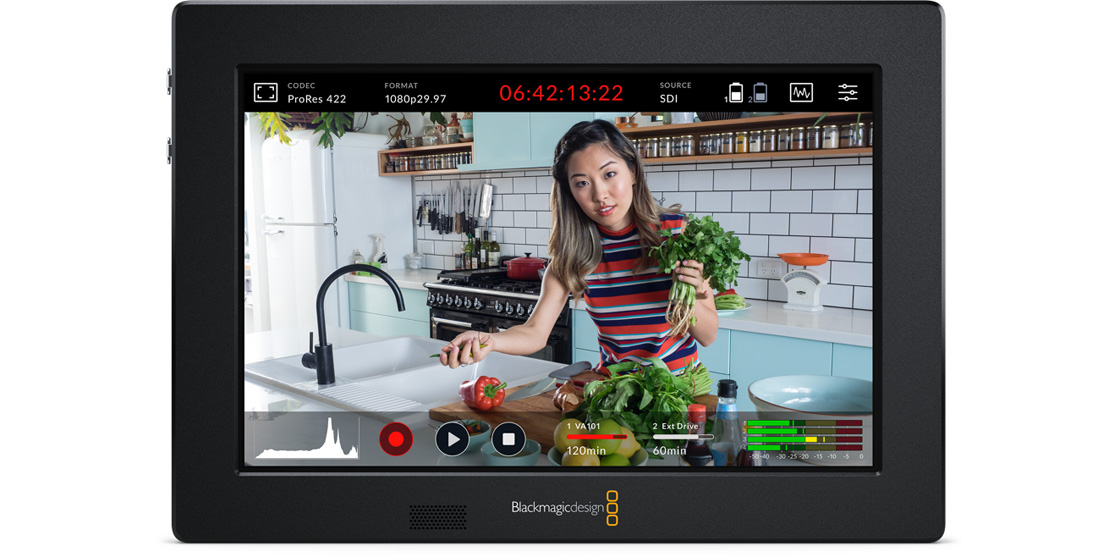

Blackmagic Video Assist 7” 3G
Add to Compare
View Details
Blackmagic Video Assist 7” 3G
Price:
HK$4,650
Description:
Blackmagic Video Assist 7” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 7” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 7” 3G really is 4 products in one!
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
1
Sdi_Rates:
270Mb, 1.5G, 3G
Analog_Audio_Inputs:
2 x balanced mini XLR with phantom power
Analog_Audio_Outputs:
1 x 3.5mm headphone jack.
Built_In_Speaker:
Mono
Screen_Dimensions:
7Â inch 1920 x 1200.
Screen_Brightness:
310nits
Sdi_Audio_Inputs:
16 channels embedded via SDI
Sdi_Audio_Outputs:
16 channels embedded via SDI
Hdmi_Audio_Inputs:
8 channels embedded via HDMI
Hdmi_Audio_Outputs:
8 channels embedded via HDMI
Remote_Control:
1 x 2.5mm LANC for Record Start and Stop.
Sd_Interface:
Dual UHS-I SDÂ slots.
Storage_Type:
SDXC UHS-I and SDHC UHS-I SDÂ cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SDÂ cards.
Computer_Interface:
1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control.
Sd_Video_Standards:
525i59.94Â NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
Sdi_Compliance:
SMPTEÂ 259M, SMPTEÂ 292M, SMPTEÂ 296M, SMPTEÂ 425M
Sdi_Metadata_Support:
HD RP188
Audio_Sampling:
Television standard sample rate of 48Â kHz and 24-bit.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
RECÂ 601, RECÂ 709
Multiple_Rate_Support:
SDI and HDMI switches between 270Â Mb/s, 1.5Â Gb/s and 3 Gb/s.
Hdmi_Color_Precision:
10-bit
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media:
Media 2 x UHS-I SD for HDÂ recording. Media Type SDXC UHS-I and SDHC UHS-I SDÂ cards.
Media_Type:
SDXC UHS-I and SDHC UHS-I SDÂ cards.
Na:
Windows 11
Recorder_Control:
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External_Control:
LANC, SDI and HDMI start/stop, timecode run.
Software_Included:
Blackmagic OS
Scopes:
Scopes Waveform, RGB Parade, Vector, Histogram. Viewing Modes Scopes with picture in picture or picture overlay and opacity control.
Viewing_Modes:
Scopes with picture in picture or picture overlay and opacity control.
Power_Supply:
1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 270Mb, 1.5G, 3G HDMI Video Inputs 1 HDMI Video Outputs 1 Analog Audio Inputs 2 x balanced mini XLR with phantom power Analog Audio Outputs 1 x 3.5mm headphone jack. Built in Speaker Mono Screen Dimensions 7 inch 1920 x 1200. Screen Brightness 310nits SDI Audio Inputs 16 channels embedded via SDI SDI Audio Outputs 16 channels embedded via SDI HDMI Audio Inputs 8 channels embedded via HDMI HDMI Audio Outputs 8 channels embedded via HDMI Remote Control 1 x 2.5mm LANC for Record Start and Stop. SD Interface Dual UHS-I SD slots. Storage Type SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. Computer Interface 1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control.
Sdi_Video_Standards:
SD Video Standards 525i59.94Â NTSC, 625i50Â PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI SDI Compliance SMPTEÂ 259M, SMPTEÂ 292M, SMPTEÂ 296M, SMPTEÂ 425M SDI Metadata Support HD RP188 Audio Sampling Television standard sample rate of 48Â kHz and 24-bit. Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space RECÂ 601, RECÂ 709 Multiple Rate Support SDI and HDMI switches between 270Â Mb/s, 1.5Â Gb/s and 3 Gb/s.
Hdmi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 10-bit Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Supported_Codecs:
ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF.
Control:
Recorder Control Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. External Control LANC, SDI and HDMI start/stop, timecode run.
Software:
Software Included Blackmagic OS
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 11
Power_Requirements:
Power Supply 1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included)
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Video Assist 7” 3G Universal power supply with international adapters NP-F series battery USB charger
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Video_Inputs:
1.0
Hdmi_Video_Outputs:
1.0
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-3g-sm.jpg?_v=1589151498
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-3g-md.jpg?_v=1589151497
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-3g-xl.jpg?_v=1589151497
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideoassist/techspecs/hero/blackmagic-video-assist-7-inch-3g-sm.jpg?_v=1589151498

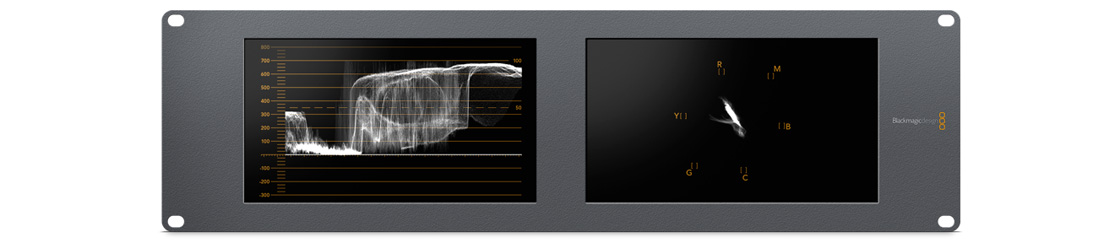

SmartScope Duo 4K
Add to Compare
View Details
SmartScope Duo 4K
Price:
HK$7,250
Description:
SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view!
Sdi_Video_Input:
Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
Sdi_Video_Output:
1 x 10 bit loop through SD, HD and 6G-SDI switchable.
Sdi_Audio_Input:
16 channels embedded in SD, HD and UHD.
Sdi_Audio_Output:
16 channels embedded in SD, HD and UHD.
Multi_Rate_Support:
Standard definition SDI, high definition SDI and 6G-SDI.
Tally:
9-pin D connector
Sd_Format_Support:
525i29.97 NTSC , 625i50 PAL
Hd_Format_Support:
720p50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60
Col_2k_Format_Support:
2K DCI 23.98p, 2K DCI 24p, 2KÂ DCIÂ 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2KÂ DCIÂ 25PsF
Ultra_Hd_Format_Support:
2160p23.98, 24, 25, 29.97, 30
Sdi_Compliance:
SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M .
Audio_Sampling:
Television sample rate of 48KHz
Video_Sampling:
4:2:2 and 4:4:4
Color_Precision:
8-bit
Color_Space:
YUV and RGB
Computer_Interface:
USB 2.0 for software updates and Ethernet for configuration
Colorspace_Conversion:
Hardware based real time.
Software_Included:
Configuration utility for MAC and Windows.
Internal_Software_Upgrade:
Via included firmware updater software.
Physical_Installation:
3RU
Na:
Windows 10, 64-bit.
Power_Supply:
12V universal power supply included with international socket adapters for all countries.
Power_Consumption:
< 20 Watts
Operational_Voltage_Range:
12V - 15V
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Input Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output. SDI Video Output 1 x 10 bit loop through SD, HD and 6G-SDI switchable. SDI Audio Input 16 channels embedded in SD, HD and UHD. SDI Audio Output 16 channels embedded in SD, HD and UHD. Multi Rate Support Standard definition SDI, high definition SDI and 6G-SDI. Tally 9-pin D connector
Standards:
SD Format Support 525i29.97 NTSC , 625i50 PAL HD Format Support 720p50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60 2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2KÂ DCIÂ 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2KÂ DCIÂ 25PsF Ultra HD Format Support 2160p23.98, 24, 25, 29.97, 30 SDI Compliance SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M . Audio Sampling Television sample rate of 48KHz Video Sampling 4:2:2 and 4:4:4 Color Precision 8-bit Color Space YUV and RGB Computer Interface USB 2.0 for software updates and Ethernet for configuration Colorspace Conversion Hardware based real time.
Software:
Software Included Configuration utility for MAC and Windows. Internal Software Upgrade Via included firmware updater software. Physical Installation 3RU
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 12V universal power supply included with international socket adapters for all countries. Power Consumption < 20 Watts Operational Voltage Range 12V - 15V
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
SmartScope Duo 4K Power Supply Welcome wallet with QR code for software download
Src:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartscope-duo-4k-sm.jpg?_v=1520381535
Col_1120w:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartscope-duo-4k-md.jpg?_v=1520381535
Col_1324w:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartscope-duo-4k-xl.jpg?_v=1520381535
Col_662w:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartscope-duo-4k-sm.jpg?_v=1520381535

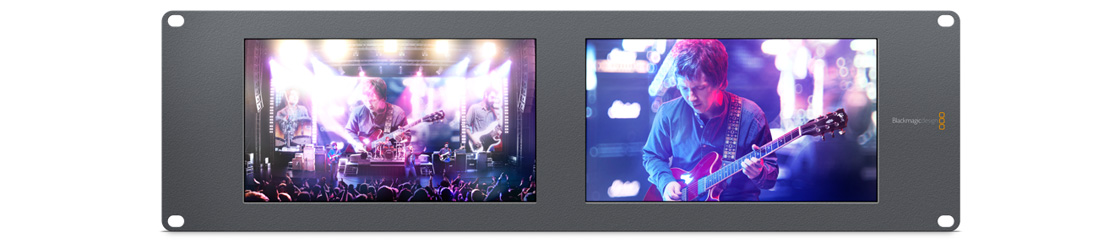

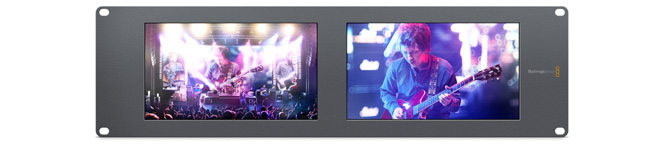

SmartView Duo
Add to Compare
View Details
SmartView Duo
Price:
HK$4,500
Description:
Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!
Sdi_Video_Input:
Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
Multi_Rate_Support:
Auto detection of 2K, HD or standard definition inputs.
Tally:
9-pin D connector
Col_2k_Format_Support:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Sdi_Compliance:
SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M .
Video_Sampling:
4:2:2 and 4:4:4
Internal_Software_Upgrade:
Via included firmware updater software.
Na:
Windows 10, 64-bit.
Power_Supply:
12V universal power supply included with international socket adapters for all countries.
Power_Consumption:
< 20 Watts
Operational_Voltage_Range:
12V - 15V
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Input Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output. Multi Rate Support Auto detection of 2K, HD or standard definition inputs. Updates and Configuration Via USB 2.0 high speed (480 Mb/s) Ethernet 10/100 BaseT with loop through. Tally 9-pin D connector
Standards:
SDI Compliance SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M . SDI Color Space REC 601 , REC 709 SDI Auto Switching Automatically selects between SD, HD and 3 Gb/s SDI . Video Sampling 4:2:2 and 4:4:4 SDI Format Support 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Software:
Internal Software Upgrade Via included firmware updater software. SmartView Utility Software Via USB or Ethernet.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 12V universal power supply included with international socket adapters for all countries. Power Consumption < 20 Watts Operational Voltage Range 12V - 15V
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
SmartView Duo Power Supply Welcome wallet with QR code for software download
Updates_And_Configuration:
Via USB 2.0 high speed (480 Mb/s)
Ethernet:
10/100 BaseT with loop through.
Sdi_Color_Space:
REC 601 , REC 709
Sdi_Auto_Switching:
Automatically selects between SD, HD and 3 Gb/s SDI .
Sdi_Format_Support:
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Smartview_Utility_Software:
Via USB or Ethernet.
Display_Element:
TFT Active Matrix LCD.
Display_Resolution:
800 x 480 pixels
Response:
< 15 ms
Contrast_Ratio:
Typically 500:1
Color_Depth:
16.7 Million Colors.
Display_Orientation:
Displays can rotate upside down for optimum viewing angle.
Display:
Display Element TFT Active Matrix LCD. Display Resolution 800 x 480 pixels Response < 15 ms Contrast Ratio Typically 500:1 Color Depth 16.7 Million Colors. Display Orientation Displays can rotate upside down for optimum viewing angle.
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartview-duo-sm.jpg?_v=1520381538
Col_1120w:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartview-duo-md.jpg?_v=1520381538
Col_1324w:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartview-duo-xl.jpg?_v=1520381538
Col_662w:
https://images.blackmagicdesign.com/images/products/smartview/techspecs/hero/smartview-duo-sm.jpg?_v=1520381538

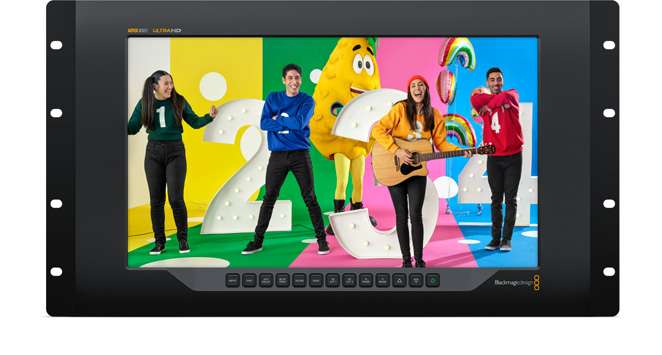

SmartView 4K G3
Add to Compare
View Details
SmartView 4K G3
Price:
HK$10,400
Description:
SmartView 4K G3 is the first Ultra HD broadcast monitor with both 12G-SDI and SMPTE-2110 IP video inputs. SmartView 4K G3 connects directly to IP based broadcast systems as well as a range of 12G-SDI professional video equipment up to 2160p60, making it perfect for broadcast and live production. It includes AC and 12V DC power connections, 3D LUTs and monitoring controls such as focus peaking, H/V delay, blue only and framing guides.
Sdi_Inputs:
2 Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
Sdi_Outputs:
1 loop out. Reclocked video output that automatically switches to input selection.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Optical_Video_Input:
SFP Optical Fiber connector cage. Supports 2110 IP video and optical SDI.
Multi_Rate_Support:
Auto detection of 4K, Ultra HD, 2K, HD or SD inputs.
Updates_And_Configuration:
USB
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Tally:
9-pin D connector
Sd_Format_Support:
525i59.94Â NTSC, 625i50Â PAL
Hd_Format_Support:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Format_Support:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
Ultra_Hd_Format_Support:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Format_Support:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
Sdi_Color_Space:
REC 601, REC 709
Sdi_Auto_Switching:
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
Video_Sampling:
4:2:2 and 4:4:4
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Traffic_Shaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillary_Data:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Internal_Software_Upgrade:
Via included firmware updater software.
Settingscontrol:
Via USB or Ethernet.
Na:
6 rack units.
Display_Element:
15.6" TFT Active Matrix LCD
Display_Resolution:
3840 x 2160Â pixels
Response:
25Â ms
Contrast_Ratio:
1000:1
Color_Depth:
16.7 million colors
Power_Supply:
1 x Internal 100 - 240V ACÂ 50/60Hz.
Power_Inputs:
1 x IEC C14 socket for AC power. 1 x 5.5mm barrel +12V DC In for external power supply or battery use.
Power_Consumption:
24 W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Inputs 2 Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Outputs 1 loop out. Reclocked video output that automatically switches to input selection. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Optical Video Input SFP Optical Fiber connector cage. Supports 2110 IP video and optical SDI. Multi Rate Support Auto detection of 4K, Ultra HD, 2K, HD or SD inputs. Updates and Configuration USB Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. Tally 9-pin D connector
Standards:
SD Format Support 525i59.94 NTSC, 625i50 PAL HD Format Support 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Format Support 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30 Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Format Support 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082. SDI Color Space REC 601, REC 709 SDI Auto Switching Automatically selects between SD, HD, 3G, 6G and 12G-SDI. Video Sampling 4:2:2 and 4:4:4
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 NMOS IS‑04 Discovery and Registration v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP‑002‑01 Natural Grouping NMOS BCP‑004‑01 Receiver capabilities Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Software:
Internal Software Upgrade Via included firmware updater software. Settings Control Via USB or Ethernet.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Display:
Display Element 15.6" TFT Active Matrix LCD Display Resolution 3840 x 2160 pixels Response 25 ms Contrast Ratio 1000:1 Color Depth 16.7 million colors
Power_Requirements:
Power Supply 1 x Internal 100 - 240V ACÂ 50/60Hz. Power Inputs 1 x IEC C14 socket for AC power. 1 x 5.5mm barrel +12V DC In for external power supply or battery use. Power Consumption 24 W
Physical_Installation:
6 rack units.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
SmartView 4K G3 Welcome wallet with QR code for software download
Src:
https://images.blackmagicdesign.com/images/products/smartview4k/techspecs/hero/smartview-4k-g3-sm.jpg?_v=1712901500
Col_1120w:
https://images.blackmagicdesign.com/images/products/smartview4k/techspecs/hero/smartview-4k-g3-md.jpg?_v=1712901500
Col_1324w:
https://images.blackmagicdesign.com/images/products/smartview4k/techspecs/hero/smartview-4k-g3-xl.jpg?_v=1712901499
Col_662w:
https://images.blackmagicdesign.com/images/products/smartview4k/techspecs/hero/smartview-4k-g3-sm.jpg?_v=1712901500

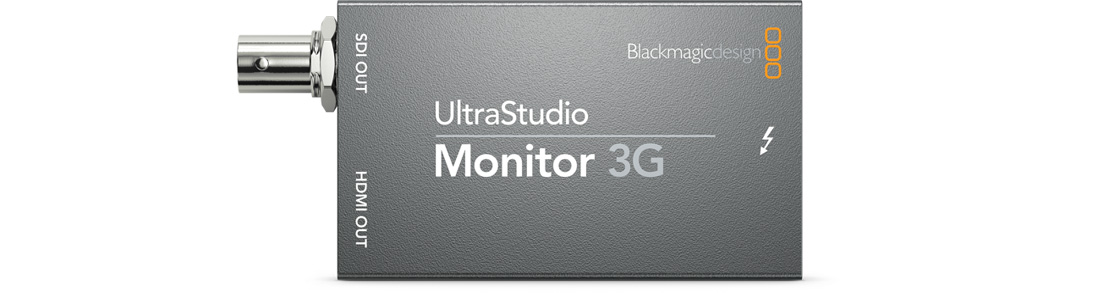

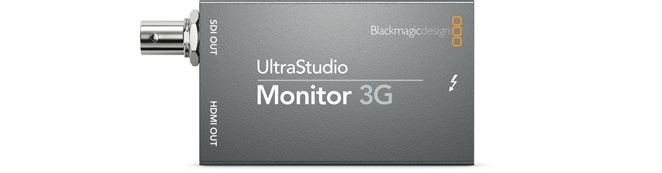

UltraStudio Monitor 3G
Add to Compare
View Details
UltraStudio Monitor 3G
Price:
HK$1,050
Description:
Get the world’s smallest 3G-SDI and HDMI video playback fromyour Thunderbolt 3laptop or desktop computer! UltraStudio Monitor 3G supports broadcast quality 10 bit professional SDI and HDMI monitoring from popular editing software such as DaVinci Resolve, Final Cut Pro, Media Composer and Adobe Premiere Pro CC, plus high end broadcast graphics and titling systems.
Sdi_Video_Outputs:
1 x 10-bit SD/HD switchable
Sdi_Rates:
270Mb, 1.5G, 3G
Sdi_Audio_Outputs:
16 Channels embedded in SD/HD
Hdmi_Video_Outputs:
1 x HDMI 2.0 type AÂ connector
Hdmi_Audio_Outputs:
8 Channels embedded in SD/HD
Computer_Interface:
Thunderbolt™ 3 (Mac OS, Windows and Linux)
Na:
1 Year Limited Manufacturer’s Warranty.
Software_Included:
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade:
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Other_Supported_Applications_Include:
The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika. These are third party applications and support may vary, check with your software vendor.
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance:
SMPTEÂ 259M, SMPTEÂ 274M, SMPTEÂ 296M, SMPTEÂ 424M, SMPTE 425M A/B and SMPTE ST2108-1
Sdi_Metadata_Support:
RP 188/SMPTE 12M-2 and closed captioning.
Sdi_Audio_Sampling:
Television standard sample rate of 48Â kHz and 24-bit.
Sdi_Video_Sampling:
4:2:2, 4:4:4
Sdi_Color_Space:
REC 601, REC 709 and RECÂ 2020
Hdmi_Audio_Sampling:
Television standard sample rate of 48Â kHz and 24 bit.
Hdmi_Video_Sampling:
4:2:2 and 4:4:4
Hdmi_Color_Space:
REC 601, REC 709 and RECÂ 2020
Hdmi_Configuration:
HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
Multiple_Rate_Support:
HDMI video connection is switchable between SD and HD.
Real_Time_Effects:
DaVinci Resolve, Final Cut Pro internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colorspace_Conversion:
Hardware based real time.
Physical_Installation:
Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.
Operating_Temperature:
5° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Outputs 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G SDI Audio Outputs 16 Channels embedded in SD/HD HDMI Video Outputs 1 x HDMI 2.0 type A connector HDMI Audio Outputs 8 Channels embedded in SD/HD Computer Interface Thunderbolt™ 3 (Mac OS, Windows and Linux)
Software:
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Sdi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108-1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space REC 601, REC 709 and REC 2020 SDI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support SDI video connection is switchable between SD and HD.
Hdmi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display. HDMI Color Space REC 601, REC 709 and REC 2020 HDMI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI video connection is switchable between SD and HD.
Processing:
Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Colorspace Conversion Hardware based real time. Physical Installation Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11. Linux
Environmental_Specifications:
Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Sdi_Color_Precision:
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
Hdmi_Color_Precision:
10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards.
Hardware_Frame_Buffer:
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
Sdi_Hdr_Support:
HDR metadata packing, HLG and PQ transfer characteristics.
Hdmi_Hdr_Support:
HDR metadata packing, HLG and PQ transfer characteristics.
Src:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-monitor-3g-sm.jpg?_v=1589176280
Col_1120w:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-monitor-3g-md.jpg?_v=1589176280
Col_1324w:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-monitor-3g-xl.jpg?_v=1589176279
Col_662w:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-monitor-3g-sm.jpg?_v=1589176280
×
