🧩 Blackmagic Products - Final Version
ENG / ä¸ć–‡
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
Routing and Distribution

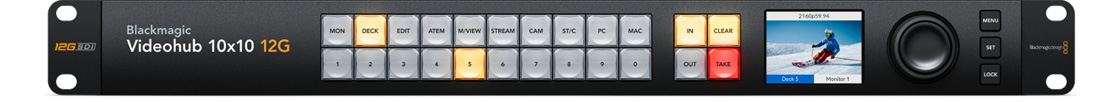

Blackmagic Videohub 10x10 12G
Add to Compare
View Details
Blackmagic Videohub 10x10 12G
Price:
HK$11,450
Description:
Blackmagic Videohub 10x10 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 10 12G-SDI inputs and 10 12G-SDI outputs plus reference connections in a one rack unit size. The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
10 Please click here for a summary of compatible media.
Sdi_Video_Outputs:
10
Sdi_Rates:
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Sdi_Reclocking:
On all SDI outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
USB‑C
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Video_Sampling:
YUV 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTE 352M.
Built_In_Control_Panel:
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display.
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Displays:
Built in 2.2 inch LCD for video and menu settings.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required.
Power_Fail_Protection:
Crosspoint connections preserved and restored instantly at power on.
Power_Usage:
20.8 WÂ max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 10 Please click here for a summary of compatible media. SDI Video Outputs 10 SDI Rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync None SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Ethernet Supports 10/100/1000 BASE‑T. Computer Interface USB‑C
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Display:
Displays Built in 2.2 inch LCD for video and menu settings.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. Power Fail Protection Crosspoint connections preserved and restored instantly at power on. Power Usage 20.8 W max.
Physical_Installation:
1 rack unit height.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub 10x10 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-10x10-12g-sm.jpg?_v=1679973919
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-10x10-12g-md.jpg?_v=1679973919
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-10x10-12g-xl.jpg?_v=1679973918
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-10x10-12g-sm.jpg?_v=1679973919

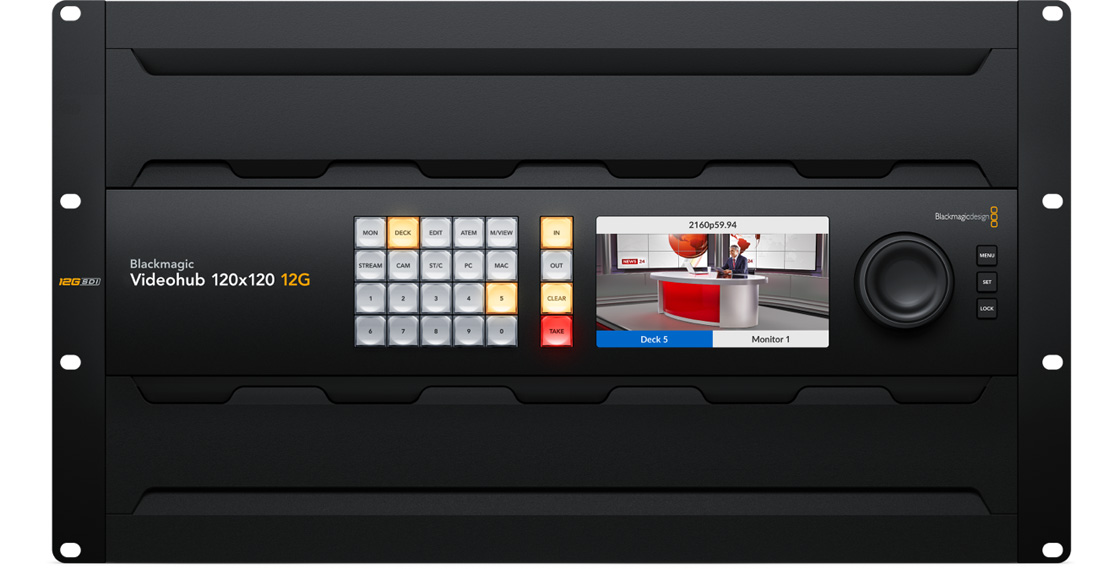

Blackmagic Videohub 120x120 12G
Add to Compare
View Details
Blackmagic Videohub 120x120 12G
Price:
HK$106,450
Description:
Blackmagic Videohub 120x120 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. The 12G-SDI inputs feature LEDs on each BNC that indicate an SDI signal, plus there are 12G-SDI outputs, redundant power and reference connections in a four rack unit design. The large HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
120 Please click here for a summary of compatible media.
Sdi_Video_Outputs:
120
Sdi_Rates:
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Sdi_Reclocking:
On all SDI outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
USB-C
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Video_Sampling:
YUV 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTE 352M.
Built_In_Control_Panel:
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Displays:
Built in 5 inch LCD for video and menu settings.
Power_Supply:
2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required.
Power_Fail_Protection:
Crosspoint connections preserved and restored instantly at power on.
Power_Usage:
140 WÂ max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 120 Please click here for a summary of compatible media. SDI Video Outputs 120 SDI Rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync None SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Ethernet Supports 10/100/1000 BASE‑T. Computer Interface USB-C
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Display:
Displays Built in 5 inch LCD for video and menu settings.
Power_Requirements:
Power Supply 2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required. Power Fail Protection Crosspoint connections preserved and restored instantly at power on. Power Usage 140 W max.
Physical_Installation:
6 rack units height.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub 120x120 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-120x120-12g-sm.jpg?_v=1712569772
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-120x120-12g-md.jpg?_v=1712569772
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-120x120-12g-xl.jpg?_v=1712569772
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-120x120-12g-sm.jpg?_v=1712569772

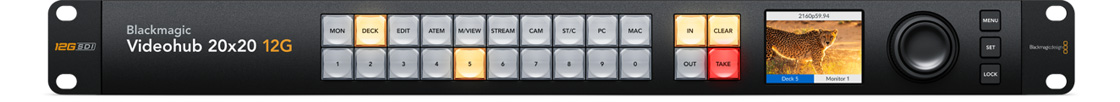

Blackmagic Videohub 20x20 12G
Add to Compare
View Details
Blackmagic Videohub 20x20 12G
Price:
HK$19,650
Description:
Blackmagic Videohub 20x20 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 20 12G-SDI inputs and 20 12G-SDI outputs plus reference connections in a one rack unit size. The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
20 Please click here for a summary of compatible media.
Sdi_Video_Outputs:
20
Sdi_Rates:
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Sdi_Reclocking:
On all SDI outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
USB‑C
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Video_Sampling:
YUV 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTE 352M.
Built_In_Control_Panel:
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display.
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Displays:
Built in 2.2 inch LCD for video and menu settings.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required.
Power_Fail_Protection:
Crosspoint connections preserved and restored instantly at power on.
Power_Usage:
27.5 WÂ max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 20 Please click here for a summary of compatible media. SDI Video Outputs 20 SDI Rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync None SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Ethernet Supports 10/100/1000 BASE‑T. Computer Interface USB‑C
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Display:
Displays Built in 2.2 inch LCD for video and menu settings.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. Power Fail Protection Crosspoint connections preserved and restored instantly at power on. Power Usage 27.5 W max.
Physical_Installation:
1 rack unit height.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub 20x20 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-20x20-12g-sm.jpg?_v=1679973920
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-20x20-12g-md.jpg?_v=1679973920
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-20x20-12g-xl.jpg?_v=1679973919
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-20x20-12g-sm.jpg?_v=1679973920

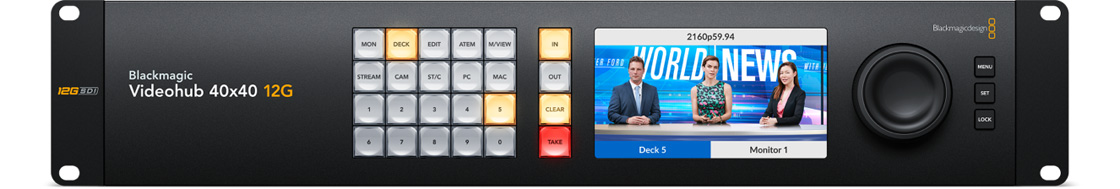

Blackmagic Videohub 40x40 12G
Add to Compare
View Details
Blackmagic Videohub 40x40 12G
Price:
HK$32,750
Description:
Blackmagic Videohub 40x40 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 40 12G-SDI inputs and 40 12G-SDI outputs, redundant power and reference connections in two rack units size. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
40 Please click here for a summary of compatible media.
Sdi_Video_Outputs:
40
Sdi_Rates:
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Sdi_Reclocking:
On all SDI outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
USB‑C
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Video_Sampling:
YUV 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTE 352M.
Built_In_Control_Panel:
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Displays:
Built in 5 inch LCD for video and menu settings.
Power_Supply:
2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required.
Power_Fail_Protection:
Crosspoint connections preserved and restored instantly at power on.
Power_Usage:
46.5 WÂ max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 40 Please click here for a summary of compatible media. SDI Video Outputs 40 SDI Rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync None SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Ethernet Supports 10/100/1000 BASE‑T. Computer Interface USB‑C
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Display:
Displays Built in 5 inch LCD for video and menu settings.
Power_Requirements:
Power Supply 2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required. Power Fail Protection Crosspoint connections preserved and restored instantly at power on. Power Usage 46.5 W max.
Physical_Installation:
2 rack units height.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub 40x40 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-40x40-12g-sm.jpg?_v=1680582535
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-40x40-12g-md.jpg?_v=1680582534
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-40x40-12g-xl.jpg?_v=1680582533
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-40x40-12g-sm.jpg?_v=1680582535

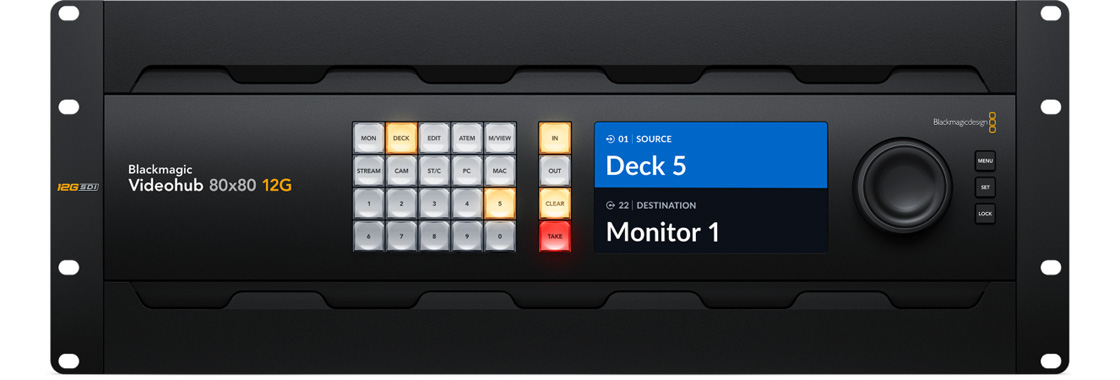

Blackmagic Videohub 80x80 12G
Add to Compare
View Details
Blackmagic Videohub 80x80 12G
Price:
HK$81,900
Description:
Blackmagic Videohub 80x80 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. The 80 12G-SDI inputs feature LEDs on each BNC that indicate an SDI signal, plus there are 80 12G-SDI outputs, redundant power and reference connections in a stylish four rack unit design. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
80 Please click here for a summary of compatible media.
Sdi_Video_Outputs:
80
Sdi_Rates:
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Sdi_Reclocking:
On all SDI outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
USB-C
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Video_Sampling:
YUV 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTE 352M.
Built_In_Control_Panel:
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Displays:
Built in 5 inch LCD for video and menu settings.
Power_Supply:
2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required.
Power_Fail_Protection:
Crosspoint connections preserved and restored instantly at power on.
Power_Usage:
92 WÂ max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 80 Please click here for a summary of compatible media. SDI Video Outputs 80 SDI Rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync None SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Ethernet Supports 10/100/1000 BASE‑T. Computer Interface USB-C
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Display:
Displays Built in 5 inch LCD for video and menu settings.
Power_Requirements:
Power Supply 2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required. Power Fail Protection Crosspoint connections preserved and restored instantly at power on. Power Usage 92 W max.
Physical_Installation:
4 rack units height.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub 80x80 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-80x80-12g-sm.jpg?_v=1696221114
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-80x80-12g-md.jpg?_v=1696221114
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-80x80-12g-xl.jpg?_v=1696221113
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohub/techspecs/hero/blackmagic-videohub-80x80-12g-sm.jpg?_v=1696221114

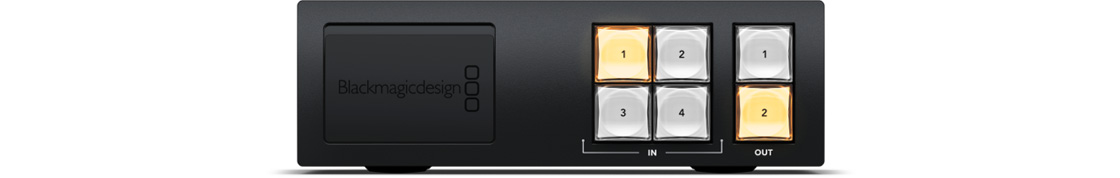

Blackmagic Videohub Mini 4x2 12G
Add to Compare
View Details
Blackmagic Videohub Mini 4x2 12G
Price:
HK$4,900
Description:
Blackmagic Videohub Mini 4x2 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 4 12G-SDI inputs and 2 12G-SDI outputs in a tiny 1/3 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
4 Front panel input overrides rear input 4
Sdi_Video_Outputs:
2
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all 4 inputs for clean switch.
Sdi_Reclocking:
On all SDIÂ outputs.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50Â DCI, 2Kp59.94Â DCI, 2Kp60Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30Â DCI, 4Kp47.95Â DCI, 4Kp48Â DCI, 4Kp50Â DCI, 4Kp59.94Â DCI, 4Kp60Â DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Video_Sampling:
YUVÂ 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Control_Panel:
6 x buttons
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection.
Power_Usage:
17W max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 4 Front panel input overrides rear input 4 SDI Video Outputs 2 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync On all 4 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Inputs None Reference Outputs None Webcam Output USB‑C Ethernet Supports 10/100/1000 BASE‑T. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 6 x buttons External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection. Power Usage 17W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub Mini 4x2 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Webcam_Output:
USB‑C
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-sm.jpg?_v=1741322974
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-md.jpg?_v=1741322974
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-xl.jpg?_v=1741322973
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-sm.jpg?_v=1741322974

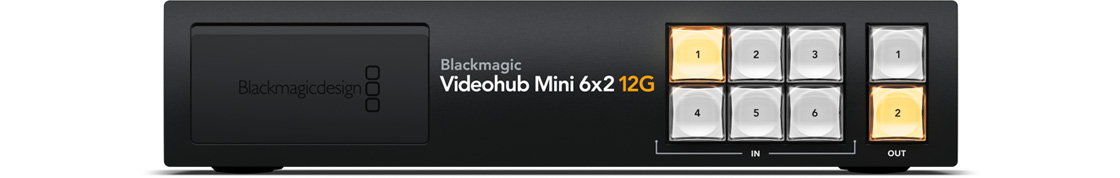

Blackmagic Videohub Mini 6x2 12G
Add to Compare
View Details
Blackmagic Videohub Mini 6x2 12G
Price:
HK$6,550
Description:
Blackmagic Videohub Mini 6x2 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 6 12G-SDI inputs and 2 12G-SDI outputs plus reference connections for locking clean switch outputs in a compact 1/2 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
6 Front panel input overrides rear input 6
Sdi_Video_Outputs:
2 Front panel output mirrors rear output 2
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all 6 inputs for clean switch.
Sdi_Reclocking:
On all SDIÂ outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50Â DCI, 2Kp59.94Â DCI, 2Kp60Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30Â DCI, 4Kp47.95Â DCI, 4Kp48Â DCI, 4Kp50Â DCI, 4Kp59.94Â DCI, 4Kp60Â DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24‑bit.
Sdi_Video_Sampling:
YUVÂ 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Control_Panel:
8 x buttons
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection.
Power_Usage:
18.5W max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 6 Front panel input overrides rear input 6 SDI Video Outputs 2 Front panel output mirrors rear output 2 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync On all 6 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Webcam Output USB‑C Ethernet Supports 10/100/1000 BASE‑T. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24‑bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 8 x buttons External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection. Power Usage 18.5W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub Mini 6x2 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Webcam_Output:
USB‑C
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-sm.jpg?_v=1743582210
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-md.jpg?_v=1743582209
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-xl.jpg?_v=1743582209
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-sm.jpg?_v=1743582210

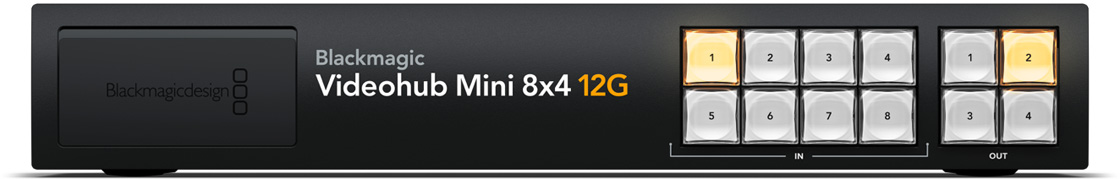

Blackmagic Videohub Mini 8x4 12G
Add to Compare
View Details
Blackmagic Videohub Mini 8x4 12G
Price:
HK$8,150
Description:
Blackmagic Videohub Mini 8x4 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 8 12G-SDI inputs and 4 12G-SDI outputs plus reference connections for locking clean switch outputs in a compact 2/3 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
8 Front panel input overrides rear input 8
Sdi_Video_Outputs:
4 Front panel output mirrors rear output 4
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all 8 inputs for clean switch.
Sdi_Reclocking:
On all SDIÂ outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50Â DCI, 2Kp59.94Â DCI, 2Kp60Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30Â DCI, 4Kp47.95Â DCI, 4Kp48Â DCI, 4Kp50Â DCI, 4Kp59.94Â DCI, 4Kp60Â DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24‑bit.
Sdi_Video_Sampling:
YUVÂ 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Control_Panel:
12 x buttons
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection.
Power_Usage:
23W max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 8 Front panel input overrides rear input 8 SDI Video Outputs 4 Front panel output mirrors rear output 4 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync On all 8 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Webcam Output USB‑C Ethernet Supports 10/100/1000 BASE‑T. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24‑bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 12 x buttons External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection. Power Usage 23W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub Mini 8x4 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Webcam_Output:
USB‑C
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-sm.jpg?_v=1743582243
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-md.jpg?_v=1743582242
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-xl.jpg?_v=1743582242
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-sm.jpg?_v=1743582243
Smart Videohub CleanSwitch 12x12
Add to Compare
View Details
Smart Videohub CleanSwitch 12x12
Price:
HK$12,250
Description:
Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.
Sdi_Video_Inputs:
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
Sdi_Video_Outputs:
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
Sdi_Rates:
3
Video_Input_Resync:
On all 12 inputs for clean switch.
Sdi_Reclocking:
On all SDI outputs.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601.
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24 bit.
Sdi_Video_Sampling:
4:2:2 and 4:4:4
Sdi_Color_Precision:
10-bit 4:2:2 and 4:4:4
Sdi_Color_Space:
YUV or RGB.
Sdi_Auto_Switching:
Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTE 352M.
Built_In_Control_Panel:
12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet.
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Power_Supply:
IEC power cable required. 100 - 240V AC input.
Power_Fail_Protection:
Router connections preserved and restored instantly at power on.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI. SDI Video Outputs 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI. SDI Rates 3 Video Input Re-Sync On all 12 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Input Tri-Sync or Black Burst. Control Panel Connection Ethernet. Serial Control Connection RJ-6 RS-422. Multi Rate Support Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video. Updates USB Front Panel Router Control 12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. Router Configuration Via front panel LCD or RJ45 Ethernet. RS-422 Router Control 1 x input for controlling router crosspoint switching.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL. HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48kHz and 24 bit. SDI Color Precision 10-bit 4:2:2 and 4:4:4 SDI Color Space YUV or RGB. SDI Auto Switching Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Display:
Built in LCD for video and menu settings.
Power_Requirements:
Power Fail Protection Router connections preserved and restored instantly at power on. Power Supply IEC power cable required. 100 - 240V AC input.
Physical_Installation:
1 rack unit size. Less than 6 inches deep.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Smart Videohub CleanSwitch 12x12 Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Reference_Input:
Tri-Sync or Black Burst.
Serial_Control_Connection:
RJ-6 RS-422.
Multi_Rate_Support:
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.
Updates:
USB
Front_Panel_Router_Control:
12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router_Configuration:
Via front panel LCD or RJ45 Ethernet.
Rs422_Router_Control:
1 x input for controlling router crosspoint switching.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL.
Src:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/smart-videohub-cleanswitch-12x12-sm.jpg?_v=1542170431
Col_1120w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/smart-videohub-cleanswitch-12x12-md.jpg?_v=1542170431
Col_1324w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/smart-videohub-cleanswitch-12x12-xl.jpg?_v=1542170430
Col_662w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/smart-videohub-cleanswitch-12x12-sm.jpg?_v=1542170431
Videohub Master Control Pro
Add to Compare
View Details
Videohub Master Control Pro
Price:
HK$6,200
Description:
When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Plus Videohub Master Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!
Ethernet:
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
Computer_Interface:
USB-C for configuration and software updates.
Na:
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power_Supply:
Internal 100 - 240 V AC
Relative_Humidity:
0% to 90% non-condensing
Connections:
Ethernet RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. RS-422 In and Out (for future implementation) Computer Interface USB-C for configuration and software updates. Power 100 - 240 AC
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Fail Requirements Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. Power Supply Internal 100 - 240 V AC
Physical_Installation:
1 rack unit size. Less than 3 inches deep.
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Videohub Master Control Pro
Warranty:
1 Year Limited Manufacturer’s Warranty.
Rs422:
In and Out (for future implementation)
Power:
100 - 240 AC
Precision_Time_Protocol:
IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Hardware_Control:
21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
Ip_Video_Compliance:
Precision Time Protocol IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 NMOS IS-04 Discovery and Registration v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP‑002‑01 Natural Grouping NMOS BCP‑004‑01 Receiver capabilities
Button_Configuration:
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power_Fail_Requirements:
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Internal_Software:
Internal Software upgrade via included firmware updater application via USB or ethernet.
Src:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-master-control-pro-sm.jpg?_v=1679973922
Col_1120w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-master-control-pro-md.jpg?_v=1679973922
Col_1324w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-master-control-pro-xl.jpg?_v=1679973922
Col_662w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-master-control-pro-sm.jpg?_v=1679973922
Videohub Smart Control Pro
Add to Compare
View Details
Videohub Smart Control Pro
Price:
HK$6,350
Description:
When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Plus Videohub Smart Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!
Ethernet:
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
Computer_Interface:
USB-C for configuration and software updates.
Na:
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power_Supply:
Internal 100 - 240 V AC
Power_Fail_Protection:
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Ethernet RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. RS-422 In and Out (for future implementation) Computer Interface USB-C for configuration and software updates. Power 100 - 240 AC
Software:
Internal Software upgrade via included firmware updater application via USB.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Fail Protection Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. Power Supply Internal 100 - 240 V AC
Physical_Installation:
1 rack unit size. Less than 3 inches deep.
Environmental_Specifications:
Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Videohub Smart Control Pro
Warranty:
1 Year Limited Manufacturer’s Warranty.
Rs422:
In and Out (for future implementation)
Power:
100 - 240 AC
Precision_Time_Protocol:
IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Macro_Capability:
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware_Control:
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IPÂ network.
Ip_Video_Compliance:
Precision Time Protocol IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 NMOS IS-04 Discovery and Registration v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP‑002‑01 Natural Grouping NMOS BCP‑004‑01 Receiver capabilities
Button_Configuration:
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Src:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-smart-control-pro-sm.jpg?_v=1680131226
Col_1120w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-smart-control-pro-md.jpg?_v=1680131226
Col_1324w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-smart-control-pro-xl.jpg?_v=1680131226
Col_662w:
https://images.blackmagicdesign.com/images/products/smartvideohub/techspecs/hero/videohub-smart-control-pro-sm.jpg?_v=1680131226
Blackmagic Videohub Mini 4x2 12G
Add to Compare
View Details
Blackmagic Videohub Mini 4x2 12G
Price:
HK$4,900
Description:
Blackmagic Videohub Mini 4x2 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 4 12G-SDI inputs and 2 12G-SDI outputs in a tiny 1/3 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
4 Front panel input overrides rear input 4
Sdi_Video_Outputs:
2
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all 4 inputs for clean switch.
Sdi_Reclocking:
On all SDIÂ outputs.
Webcam_Output:
USB‑C
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50Â DCI, 2Kp59.94Â DCI, 2Kp60Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30Â DCI, 4Kp47.95Â DCI, 4Kp48Â DCI, 4Kp50Â DCI, 4Kp59.94Â DCI, 4Kp60Â DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Video_Sampling:
YUVÂ 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Control_Panel:
6 x buttons
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection.
Power_Usage:
17W max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 4 Front panel input overrides rear input 4 SDI Video Outputs 2 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync On all 4 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Inputs None Reference Outputs None Webcam Output USB‑C Ethernet Supports 10/100/1000 BASE‑T. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 6 x buttons External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection. Power Usage 17W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub Mini 4x2 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-sm.jpg?_v=1741322974
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-md.jpg?_v=1741322974
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-xl.jpg?_v=1741322973
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-4x2-12g-sm.jpg?_v=1741322974
Blackmagic Videohub Mini 6x2 12G
Add to Compare
View Details
Blackmagic Videohub Mini 6x2 12G
Price:
HK$6,550
Description:
Blackmagic Videohub Mini 6x2 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 6 12G-SDI inputs and 2 12G-SDI outputs plus reference connections for locking clean switch outputs in a compact 1/2 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
6 Front panel input overrides rear input 6
Sdi_Video_Outputs:
2 Front panel output mirrors rear output 2
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all 6 inputs for clean switch.
Sdi_Reclocking:
On all SDIÂ outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Webcam_Output:
USB‑C
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50Â DCI, 2Kp59.94Â DCI, 2Kp60Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30Â DCI, 4Kp47.95Â DCI, 4Kp48Â DCI, 4Kp50Â DCI, 4Kp59.94Â DCI, 4Kp60Â DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24‑bit.
Sdi_Video_Sampling:
YUVÂ 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Control_Panel:
8 x buttons
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection.
Power_Usage:
18.5W max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 6 Front panel input overrides rear input 6 SDI Video Outputs 2 Front panel output mirrors rear output 2 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync On all 6 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Webcam Output USB‑C Ethernet Supports 10/100/1000 BASE‑T. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24‑bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 8 x buttons External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection. Power Usage 18.5W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub Mini 6x2 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-sm.jpg?_v=1743582210
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-md.jpg?_v=1743582209
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-xl.jpg?_v=1743582209
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-6x2-12g-sm.jpg?_v=1743582210
Blackmagic Videohub Mini 8x4 12G
Add to Compare
View Details
Blackmagic Videohub Mini 8x4 12G
Price:
HK$8,150
Description:
Blackmagic Videohub Mini 8x4 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 8 12G-SDI inputs and 4 12G-SDI outputs plus reference connections for locking clean switch outputs in a compact 2/3 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Sdi_Video_Inputs:
8 Front panel input overrides rear input 8
Sdi_Video_Outputs:
4 Front panel output mirrors rear output 4
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all 8 inputs for clean switch.
Sdi_Reclocking:
On all SDIÂ outputs.
Reference_Inputs:
Tri-Sync or Black Burst.
Reference_Outputs:
Reference terminating loop output.
Webcam_Output:
USB‑C
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2Kp29.97Â DCI, 2Kp30Â DCI, 2Kp47.95Â DCI, 2Kp48Â DCI, 2Kp50Â DCI, 2Kp59.94Â DCI, 2Kp60Â DCI 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI, 2KPsF29.97Â DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI, 4Kp29.97Â DCI, 4Kp30Â DCI, 4Kp47.95Â DCI, 4Kp48Â DCI, 4Kp50Â DCI, 4Kp59.94Â DCI, 4Kp60Â DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24‑bit.
Sdi_Video_Sampling:
YUVÂ 4:2:2 and RGBÂ 4:4:4
Sdi_Color_Precision:
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
Sdi_Color_Space:
RECÂ 601, RECÂ 709, RECÂ 2020
Sdi_Auto_Switching:
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Control_Panel:
12 x buttons
External_Control_Panel:
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control_Panel_Connection:
Ethernet
Software_Control:
Router control included free for Windows™ and Mac™.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit. Windows 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection.
Power_Usage:
23W max.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 8 Front panel input overrides rear input 8 SDI Video Outputs 4 Front panel output mirrors rear output 4 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync On all 8 inputs for clean switch. SDI Reclocking On all SDI outputs. Reference Inputs Tri-Sync or Black Burst. Reference Outputs Reference terminating loop output. Webcam Output USB‑C Ethernet Supports 10/100/1000 BASE‑T. Computer Interface 1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 SDI Audio Sampling Television standard sample rate of 48kHz and 24‑bit. SDI Video Sampling YUV 4:2:2 and RGB 4:4:4 SDI Color Precision 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. SDI Color Space REC 601, REC 709, REC 2020 SDI Auto Switching Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 12 x buttons External Control Panel Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. Control Panel Connection Ethernet
Software:
Software Control Router control included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. 1 x 12V DC input with reverse polarity protection. Power Usage 23W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Videohub Mini 8x4 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-sm.jpg?_v=1743582243
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-md.jpg?_v=1743582242
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-xl.jpg?_v=1743582242
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicvideohubmini/techspecs/hero/blackmagic-videohub-mini-8x4-12g-sm.jpg?_v=1743582243
×
