Standards Conversion

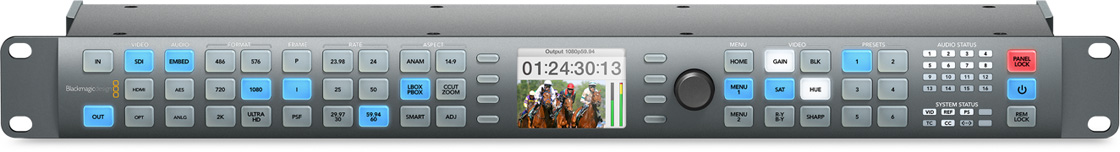

Teranex AV
Add to Compare
View Details
Teranex AV
Price:
HK$13,900
Description:
Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex’s patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!
Sdi_Video_Inputs:
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
Sdi_Video_Input_L_Oops:
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
Sdi_Video_Outputs:
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
Quad_Sdi_Video_Outputs:
4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDIÂ outputs.
Hdmi_Video_Inputs:
1x HDMI 2.0 type A connector. YUV or RGB, auto switching.
Hdmi_Video_Loop_Inputs:
1x HDMI 2.0 type A connector. Active Input loop.
Hdmi_Video_Outputs:
1x HDMI 2.0 type A connector. YUV or RGB, user selectable.
Sdi_Audio_Inputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Sdi_Audio_Outputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Hdmi_Audio_Inputs:
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
Hdmi_Audio_Outputs:
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical_Fiber_Connection_Optional:
1x SMPTE optical fiber SFP socket.
Optical_Fiber_Video_Inputs:
1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical_Fiber_Video_Outputs:
1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical_Fiber_Audio_Inputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical_Fiber_Audio_Outputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Analog_Audio_Inputs:
2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) . 2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.
Aesebu_Digital_Audio_Inputs:
2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)
Dolby_Support_Built_In:
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
Timecode_Inputs:
Support for VITC/ATC. No support for LTC.
Timecode_Outputs:
Support for VITC/ATC. No support for LTC.
Multi_Rate_Support:
SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference_Input:
1x BNC - Black Burst in SD or Tri-level sync in HD.
Reference_Output:
1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
Computer_Interface:
1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.
Processor_Interface:
Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Col_15gsdi_Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Col_3gsdi_Hd_Video_Standards:
1080p50, 1080p59.94, 1080p60 levels A and B
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p 2K DCI 23.98PsF, 2K DCIÂ 24PsF
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTEÂ 425M
Sdi_Metadata_Support:
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTEÂ 334M.
Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit HD, 20‑bit SD.
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Colorspace:
REC 601, RECÂ 709
Sdi_Video_Standards:
525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160Â switchable.
Hdmi_Colorprecision:
4:2:2 10‑bit
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Aspect_Ratio_Conversion:
Real time variable and fixed aspect ratio conversions.
Real_Time_Video_Processing:
Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control
Low_Latency_Processing:
Real time processing with 2 frame latency, available for select format conversions.
Format_Conversion:
Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion.
Colorspace_Conversion:
Hardware based real time
Still_Store:
Capture a video frame into non-volatile memory from the current input signal or freeze frame buffer.
Freeze_Frame:
Temporarily freeze incoming live video.
Test_Patterns:
SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black with selectable audio tones and selectable horizontal pattern motion.
Output_Switching:
Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video. The transition rate between output choices has a range of 0 to 5 seconds. A transition forces a dissolve through black.
Software_Control:
Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac.
Internal_Software_Upgrade:
Via USB type C using the included Teranex Setup application.
Na:
Windows 10, 64-bit.
Power_Supply:
1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50‑60Hz
Typical_Power_Consumption:
42 watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD SDI Video Input L oops 1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. 1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. SDI Video Outputs 1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD. Quad SDI Video Outputs 4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs. HDMI Video Inputs 1x HDMI 2.0 type A connector. YUV or RGB, auto switching. HDMI Video Loop Inputs 1x HDMI 2.0 type A connector. Active Input loop. HDMI Video Outputs 1x HDMI 2.0 type A connector. YUV or RGB, user selectable. SDI Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. SDI Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. HDMI Audio Inputs 8 channels in SD, HD, 3G HD, 2K and Ultra HD. HDMI Audio Outputs 8 channels in SD, HD, 3G HD, 2K and Ultra HD. Optical Fiber Connection (optional) 1x SMPTE optical fiber SFP socket. Optical Fiber Video Inputs 1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching. Optical Fiber Video Outputs 1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching. Optical Fiber Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. Optical Fiber Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. Analog Audio Inputs 2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) . 2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment. AES/EBU Digital Audio Inputs 2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs) Dolby® Support Built In Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions. Timecode Inputs Support for VITC/ATC. No support for LTC. Timecode Outputs Support for VITC/ATC. No support for LTC. Multi Rate Support SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD. Reference Input 1x BNC - Black Burst in SD or Tri-level sync in HD. Reference Output 1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate. Computer Interface 1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration. Processor Interface Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL 1.5G-SDI HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 3G-SDI HD Video Standards 1080p50, 1080p59.94, 1080p60 levels A and B 2K Video Standards 2K DCI 23.98p, 2K DCI 24p 2K DCI 23.98PsF, 2K DCI 24PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M SDI Metadata Support VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M. Audio Sampling Television standard sample rate of 48kHz and 24-bit HD, 20‑bit SD. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 601, REC 709 SDI Video Standards 525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable. HDMI Color Precision 4:2:2 10‑bit Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing:
Aspect Ratio Conversion Real time variable and fixed aspect ratio conversions. Real Time Video Processing Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control Low Latency Processing Real time processing with 2 frame latency, available for select format conversions. Format Conversion Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion. Colorspace Conversion Hardware based real time Still Store Capture a video frame into non-volatile memory from the current input signal or freeze frame buffer. Freeze Frame Temporarily freeze incoming live video. Test Patterns SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black with selectable audio tones and selectable horizontal pattern motion. Output Switching Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video. The transition rate between output choices has a range of 0 to 5 seconds. A transition forces a dissolve through black.
Software:
Software Control Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac. Internal Software Upgrade Via USB type C using the included Teranex Setup application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50‑60Hz Typical Power Consumption 42 watts
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex AV Welcome wallet with QR code for software download 2 x Bumper guards with 4x M4 screws
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-av-sm.jpg?_v=1538461723
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-av-md.jpg?_v=1538461723
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-av-xl.jpg?_v=1538461723
Col_662w:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-av-sm.jpg?_v=1538461723

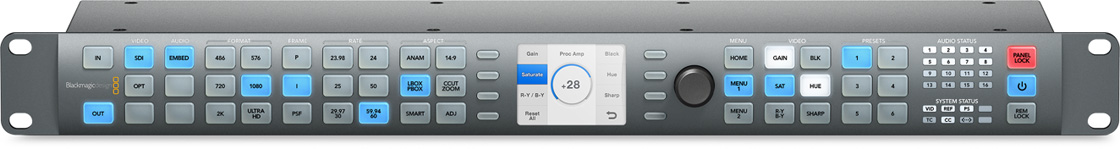

Teranex Express
Add to Compare
View Details
Teranex Express
Price:
HK$11,450
Description:
Teranex Express is the world’s first real time SD, HD and Ultra HD broadcast standards converter! Featuring advanced patented algorithms, Teranex Express gives you the visually transparent, high-quality conversions that are mandated by major broadcasters and studios worldwide! You get an incredible 1089 SD, HD and Ultra HD up, down and standards conversions in full 10-bit quality! You also get amazing processing with high quality de-interlacing, noise reduction, automatic cadence detection, removal and correction even with edited content, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.
Sdi_Video_Inputs:
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
Sdi_Video_Outputs:
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
Quad_Sdi_Video_Outputs:
SMPTE 435-1 - Quad HD Split (square division method) only. Utilizes SDI Out A for quadrant A, SDI Out B for quadrant B; reconfigures SDI In A Loop for quadrant C, SDI In B Loop for quadrant D.
Sdi_Audio_Inputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Sdi_Audio_Outputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical_Fiber_Connection_Optional:
1x SMPTE optical fiber SFP socket.
Optical_Fiber_Video_Inputs:
1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical_Fiber_Video_Outputs:
1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching. Not available while operating in Dual Link or Quad Link output modes.
Optical_Fiber_Audio_Inputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical_Fiber_Audio_Outputs:
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Dolby_Support_Built_In:
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
Timecode_Inputs:
Support for VITC/ATC. No support for LTC.
Timecode_Outputs:
Support for VITC/ATC. No support for LTC.
Multi_Rate_Support:
SDI connections are switchable between standard definition, high definition and UltraHD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference_Input:
1x BNC - Black Burst or Tri-level sync.
Computer_Interface:
1x USB 2.0 mini B port for software updates. 1x RJ45 10/100 Ethernet for remote control and configuration.
Processor_Interface:
Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Col_15gsdi_Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Col_3gsdi_Hd_Video_Standards:
1080p50, 1080p59.94, 1080p60 levels A and B
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
Sdi_Metadata_Support:
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit
Video_Sampling:
4:2:2 SDI
Color_Precision:
10-bit
Sdi_Video_Standards:
525 NTSC, 625 PAL, 720HD, 1080HD, 2K 2048 x 1080 and Ultra HD 3840 x 2160 auto switching.
Aspect_Ratio_Conversion:
Real time variable and fixed aspect ratio conversions.
Real_Time_Video_Processing:
Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control
Format_Conversion:
Real time up conversion, down conversion , cross conversion and SD/HD/UHD standards conversion.
Colorspace_Conversion:
Hardware based real time
Test_Patterns:
SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black.
Software_Control:
Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac.
Internal_Software_Upgrade:
Via USB Type-B 2.0 using the included Teranex Setup application
Na:
Windows 10, 64-bit.
Power_Supply:
1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz
Typical_Power_Consumption:
42 watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD and 6G Ultra HD auto switching. Usable as dual link input for 4:2:2 3G or 6G UHD. SDI Video Input Loops 1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. 1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3 Gb/s HD, 6G Ultra HD auto switching. SDI Video Outputs 1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B and 6G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD. Quad SDI Video Outputs SMPTE 435-1 - Quad HD Split (square division method) only. Utilizes SDI Out A for quadrant A, SDI Out B for quadrant B; reconfigures SDI In A Loop for quadrant C, SDI In B Loop for quadrant D. Optical Fiber Video Inputs 1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching. Optical Fiber Video Outputs 1x 10Âbit SD, HD, 3G HD, 2K, Ultra HD auto switching. Not available while operating in Dual Link or Quad Link output modes. SDI Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. SDI Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. Optical Fiber Connection (optional) 1x SMPTE optical fiber SFP socket. Optical Fiber Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. Optical Fiber Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD. Dolby® Support Built In Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions. Timecode Inputs Support for VITC/ATC. No support for LTC. Timecode Outputs Support for VITC/ATC. No support for LTC. Multi Rate Support SDI connections are switchable between standard definition, high definition and UltraHD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD. Reference Input 1x BNC - Black Burst or Tri-level sync. Computer Interface 1x USB 2.0 mini B port for software updates. 1x RJ45 10/100 Ethernet for remote control and configuration. Processor Interface Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL 1.5G-SDI HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 3G-SDI HD Video Standards 1080p50, 1080p59.94, 1080p60 levels A and B 2K Video Standards 2K DCI 23.98p, 2K DCI 24p 2K DCI 23.98PsF, 2K DCI 24PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M SDI Metadata Support VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M. Audio Sampling Television standard sample rate of 48kHz and 24-bit Video Sampling 4:2:2 SDI Color Precision 10-bit Color Space REC 601, REC 709 SDI Video Standards 525 NTSC, 625 PAL, 720HD, 1080HD, 2K 2048 x 1080 and Ultra HD 3840 x 2160 auto switching.
Processing:
Aspect Ratio Conversion Real time variable and fixed aspect ratio conversions. Real Time Video Processing Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control Format Conversion Real time up conversion, down conversion , cross conversion and SD/HD/UHD standards conversion. Colorspace Conversion Hardware based real time Test Patterns SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black.
Software:
Software Control Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac. Internal Software Upgrade Via USB Type-B 2.0 using the included Teranex Setup application
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz Typical Power Consumption 42 watts
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Teranex Express Welcome wallet with QR code for software download 2x Bumper guards with 4x M4 screws
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Video_Input_Loops:
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
Color_Space:
REC 601, REC 709
Physical_Installation:
1 rack unit size. Less than 5 inches deep.
Src:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-express-sm.jpg?_v=1538461724
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-express-md.jpg?_v=1538461723
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-express-xl.jpg?_v=1538461723
Col_662w:
https://images.blackmagicdesign.com/images/products/teranex/techspecs/hero/teranex-express-sm.jpg?_v=1538461724

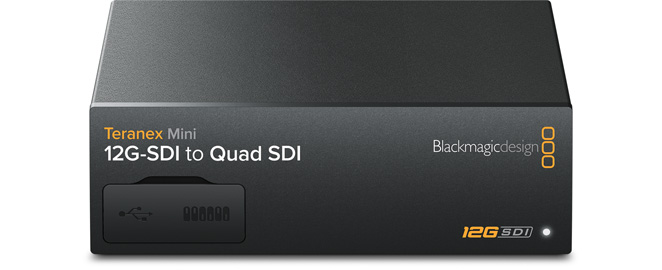

Teranex Mini 12G-SDI to Quad SDI
Add to Compare
View Details
Teranex Mini 12G-SDI to Quad SDI
Price:
HK$4,500
Description:
Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Na:
Windows 10, 64-bit.
Connections:
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 4 x 3G-SDI and 1 x 12G-SDI loop output. Embedded Audio Support 16 channels. Multi Rate Support Automatic switching between SD/HD/2K and 4K Updates and Configuration USB or Ethernet Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input . Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Teranex Mini 12G-SDI to Quad SDI Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Updates_And_Configuration:
USB or Ethernet
Sdi_Video_Rates:
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
Sdi_Video_Sampling:
4:2:2 and 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Space:
YUV & RGB
Software_Control:
Mac™ and Windows™ software upgrade via USB and Ethernet.
Basic_Settings_Control:
Mini Switches, USB and Ethernet via free software utility.
Power_Consumption:
16 Watts
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Sdi_Video_Inputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Sdi_Video_Outputs:
4 x 3G-SDI and 1 x 12G-SDI loop output.
Optional_Front_Panel_Control:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Supply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input .
Relative_Humidity:
0% to 90% non-condensing
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Space YUV & RGB
Multi_Rate_Support:
Automatic switching between SD/HD/2K and 4K
Internal_Software_Upgrade:
Via included updater application.
Power_Over_Ethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Operational_Voltage_Range:
100 - 240V AC
Embedded_Audio_Support:
16 channels.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-12g-sdi-to-quad-sdi-sm.jpg?_v=1539836843
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-12g-sdi-to-quad-sdi-md.jpg?_v=1539836843
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-12g-sdi-to-quad-sdi-xl.jpg?_v=1539836843
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-12g-sdi-to-quad-sdi-sm.jpg?_v=1539836843

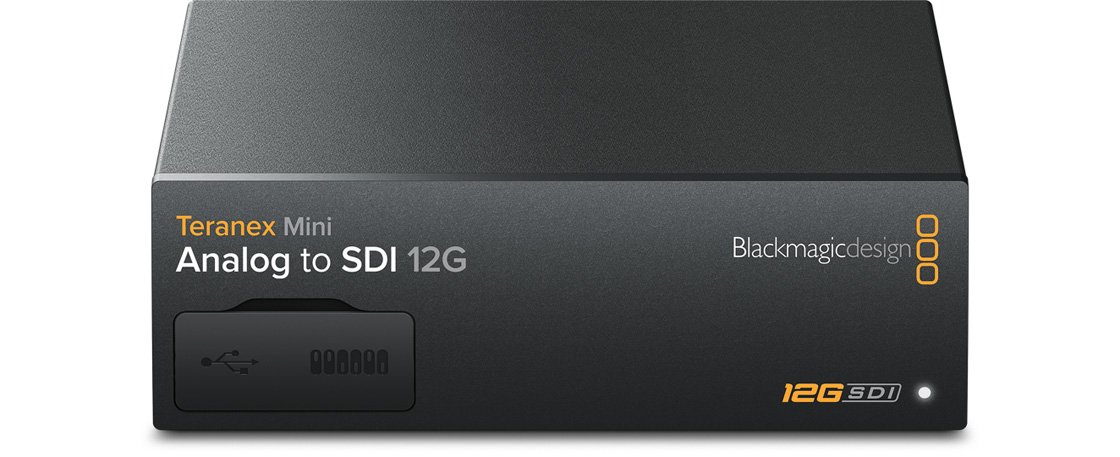

Teranex Mini Analog to SDI 12G
Add to Compare
View Details
Teranex Mini Analog to SDI 12G
Price:
HK$4,500
Description:
Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p25, 1080p29.97, 1080p50, 1080p59.94
Ultra_Hd_Video_Standards:
2160p25, 2160p29.97, 2160p50, 2160p59.94
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Na:
Windows 10, 64-bit.
Connections:
SDI Video Outputs 2 x 12G-SDI outputs. Analog Video Inputs Composite, Y/C or Component. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input. Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input. Multi Rate Support SDI output switchable between HD for composite and S-Video and Ultra HD for component HD. Updates and Configuration USB or Ethernet. Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Teranex Mini Analog to SDI 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Analog_Audio_Inputs:
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
Updates_And_Configuration:
USB or Ethernet.
Sdi_Video_Rates:
SDI video connections are switchable between standard definition and high definition.
Sdi_Video_Sampling:
4:2:2 and 4:4:4.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Precision:
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Sdi_Color_Space:
REC 601, REC 709
Software_Control:
Mac™ and Windows™ software upgrade via USB and Ethernet
Basic_Settings_Control:
Mini Switches, USB and Ethernet via free software utility
Power_Consumption:
16 Watts
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Sdi_Video_Outputs:
2 x 12G-SDI outputs.
Optional_Front_Panel_Control:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Supply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Relative_Humidity:
0% to 90% non-condensing
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p25, 1080p29.97, 1080p50, 1080p59.94 Ultra HD Video Standards 2160p25, 2160p29.97, 2160p50, 2160p59.94 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between standard definition and high definition. SDI Video Sampling 4:2:2 and 4:4:4. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. SDI Color Space REC 601, REC 709 Analog Video Standards 525i59.94 NTSC, 625i50 PAL Analog Color Space REC 601, REC 709 Analog Color Precision 4:2:2
Analog_Video_Inputs:
Composite, Y/C or Component.
Digital_Audio_Inputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
Multi_Rate_Support:
SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.
Analog_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Analog_Color_Space:
REC 601, REC 709
Analog_Color_Precision:
4:2:2
Internal_Software_Upgrade:
Via included updater application.
Power_Over_Ethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Operational_Voltage_Range:
100 - 240V AC
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-analog-to-sdi-12g-sm.jpg?_v=1539836843
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-analog-to-sdi-12g-md.jpg?_v=1539836843
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-analog-to-sdi-12g-xl.jpg?_v=1539836843
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-analog-to-sdi-12g-sm.jpg?_v=1539836843

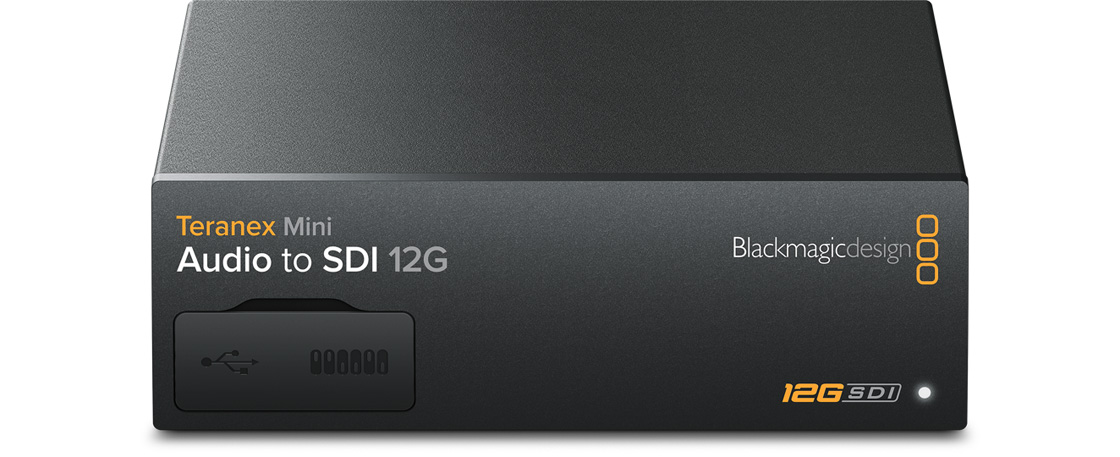

Teranex Mini Audio to SDI 12G
Add to Compare
View Details
Teranex Mini Audio to SDI 12G
Price:
HK$4,500
Description:
Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.
Sdi_Videoinputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Sdi_Videooutputs:
1 x 12G-SDIÂ output.
Multi_Ratesupport:
Automatic switching between SD/HD/2K and 4K.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Na:
Windows 10, 64-bit.
Operational_Voltagerange:
100 - 240V AC
Connections:
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 1 x 12G-SDI output. Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input. Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input. Embedded Audio Support 16 channels. Optical Audio Input S/PDIF Signal with TOSLINK Connector. Multi Rate Support Automatic switching between SD/HD/2K and 4K. Updates and Configuration USB or Ethernet. Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Teranex Mini Audio to SDI 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Analog_Audio_Inputs:
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
Updates_And_Configuration:
USB or Ethernet.
Sdi_Video_Rates:
SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
Sdi_Video_Sampling:
4:2:2, 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Precision:
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Sdi_Color_Space:
REC 601, RECÂ 709
Software_Control:
Mac™ and Windows™ software upgrade via USB and Ethernet.
Basic_Settings_Control:
Mini Switches, USB and Ethernet via free software utility
Power_Consumption:
16 Watts
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Optional_Front_Panel_Control:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Supply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Relative_Humidity:
0% to 90% non-condensing
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Auto Switching Automatically selects between SD, HD, 3G, 6G and 12G‑SDI. SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. SDI Color Space REC 601, REC 709
Digital_Audio_Inputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
Internal_Software_Upgrade:
Via included updater application.
Power_Over_Ethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Embedded_Audio_Support:
16 channels.
Optical_Audioinput:
S/PDIF Signal with TOSLINKÂ Connector.
Sdi_Auto_Switching:
Automatically selects between SD, HD, 3G, 6G and 12G‑SDI.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-audio-to-sdi-12g-sm.jpg?_v=1539836844
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-audio-to-sdi-12g-md.jpg?_v=1539836844
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-audio-to-sdi-12g-xl.jpg?_v=1539836844
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-audio-to-sdi-12g-sm.jpg?_v=1539836844
Teranex Mini HDMI to Optical 12G
Add to Compare
View Details
Teranex Mini HDMI to Optical 12G
Price:
HK$4,400
Description:
Now you can convert from HDMI to SDI and SMPTE optical fiber! Simply insert the SMPTE optical fiber module of your choice to send video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, an up converter for viewing SD and HD sources on Ultra HD displays plus ethernet for remote admin control. Optical fiber SFP module sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!
Sdi_Videoinputs:
Optional 3G/6G/12G Optical SFPÂ input.
Sdi_Videooutputs:
1 x 12G‑SDI.
Embedded_Audiosupport:
16 channels.
Multi_Ratesupport:
Automatic switching between SD/HD/2K and 4K.
Updates_Andconfiguration:
USB and Ethernet.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 297M for Optical Fiber SDI, SMPTE 372M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Colorspace:
REC 601, RECÂ 709
Hdmi_Colorspace:
REC 601, RECÂ 709
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Basic_Settingscontrol:
Mini Switches, USB and Ethernet via free software utility.
Optional_Front_Panelcontrol:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Powersupply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Powerconsumption:
16 Watts
Operational_Voltagerange:
100 - 240VÂ AC
Connections:
SDI Video Inputs Optional 3G/6G/12G Optical SFP input. SDI Video Outputs 1 x 12G‑SDI. HDMI Video Inputs 1 x HDMI 2.0 type A connector with support for 2160p60. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. Optical Fiber Connection (optional) Optional 3G/6G/12G optical SFP output. Optical Fiber Video Outputs Automatically matches the SD, HD and 12G-SDI HDMI video input. Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input. Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input. Embedded Audio Support 16 channels. Multi Rate Support Automatic switching between SD/HD/2K and 4K. Updates and Configuration USB and Ethernet. Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB or Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Teranex Mini HDMI to Optical 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Hdmi_Videoinputs:
1 x HDMI 2.0 type A connector with support for 2160p60.
Digital_Audioinputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
Sdi_Video_Rates:
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
Sdi_Video_Sampling:
4:2:2 and 4:4:4.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Precision:
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software_Control:
Mac™ and Windows™ software upgrade via USB or Ethernet.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Hdmi_Input_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI HDMI Color Space REC 601, REC 709 HDMI Color Precision Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Relative_Humidity:
0% to 90% non-condensing
Power_Over_Ethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Optical_Fiber_Connectionoptional:
Optional 3G/6G/12G optical SFPÂ output.
Optical_Fiber_Videooutputs:
Automatically matches the SD, HD and 12G-SDI HDMI video input.
Analog_Audioinputs:
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
Optical_Output_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 297M for Optical Fiber SDI, SMPTE 372M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. SDI Color Space REC 601, REC 709
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-optical-12g-sm.jpg?_v=1539836844
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-optical-12g-md.jpg?_v=1539836844
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-optical-12g-xl.jpg?_v=1539836844
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-optical-12g-sm.jpg?_v=1539836844

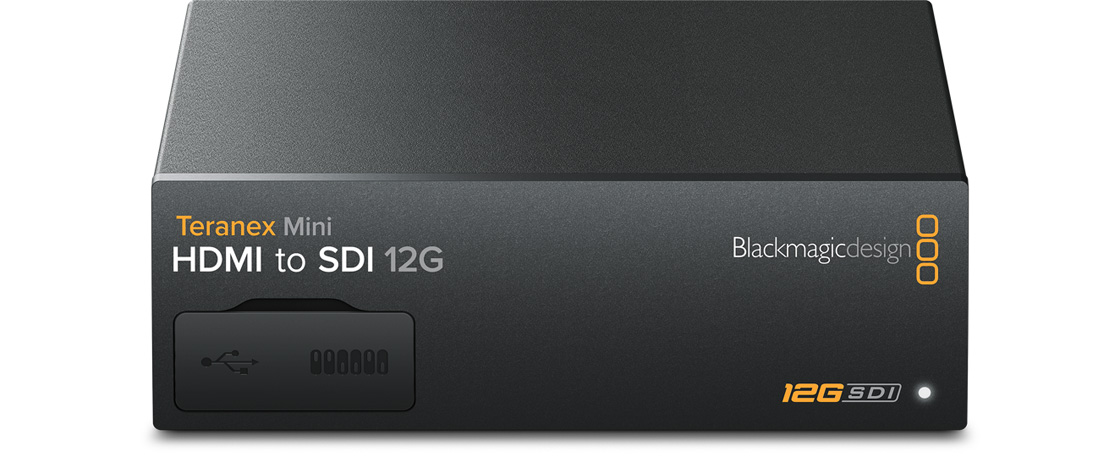

Teranex Mini HDMI to SDI 12G
Add to Compare
View Details
Teranex Mini HDMI to SDI 12G
Price:
HK$4,500
Description:
Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMIÂ connections.
Sdi_Videooutputs:
2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input.
Embedded_Audiosupport:
16Â channels.
Multi_Ratesupport:
Automatic switching between SD/HD/2K and 4K.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98Â DCI, 4Kp24Â DCI, 4Kp25Â DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Hdmi_Colorspace:
REC 601, RECÂ 709
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Optional_Front_Panelcontrol:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Powersupply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Power_Overethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Operational_Voltagerange:
100 - 240V AC
Relativehumidity:
0% to 90% non‑condensing
Connections:
SDI Video Outputs 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. HDMI Video Inputs 1 x HDMI 2.0 type A. Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input. Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input. Embedded Audio Support 16 channels. Multi Rate Support Automatic switching between SD/HD/2K and 4K. Updates and Configuration USB or Ethernet. Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini HDMI to SDI 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Hdmi_Videoinputs:
1 x HDMI 2.0 type A.
Analog_Audio_Inputs:
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
Digital_Audioinputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
Updates_And_Configuration:
USB or Ethernet.
Sdi_Video_Rates:
SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI.
Sdi_Video_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Hdmi_Color_Precision:
YUV 4:2:2 in HD, 2K and 4K.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software_Control:
Mac™ and Windows™ software upgrade via USB and Ethernet.
Basic_Settings_Control:
Mini Switches, USB and Ethernet via free software utility.
Power_Consumption:
16 Watts
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Sdi_Output_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision 4:2:2 SDI Color Space YUV
Hdmi_Input_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI HDMI Color Space REC 601, REC 709 HDMI Color Precision YUV 4:2:2 in HD, 2K and 4K. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Format_Conversion:
HD up and down conversion
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-sdi-12g-sm.jpg?_v=1539836845
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-sdi-12g-md.jpg?_v=1539836845
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-sdi-12g-xl.jpg?_v=1539836845
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-hdmi-to-sdi-12g-sm.jpg?_v=1539836845

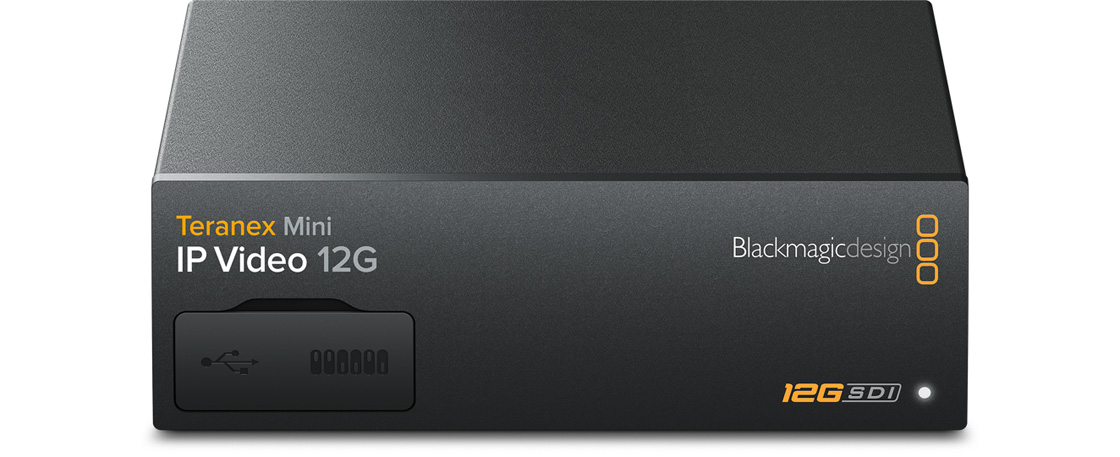

Teranex Mini IP Video 12G
Add to Compare
View Details
Teranex Mini IP Video 12G
Price:
HK$4,500
Description:
Now you can convert video to IP and route it over your existing ethernet network, or you can convert IP video back to SDI. Teranex Mini IP Video 12G uses standard Blackmagic Videohub software and hardware control panels to configure and switch IP video over ethernet as easily as SDI signals! You get 12G-SDI and the low latency broadcast quality TICO codec so you can route HD over the built in gigabit ethernet connection or Ultra HD over 10G ethernet with an optional 10G SFP!
Sdi_Videoinputs:
1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI
Sdi_Videooutputs:
2 x 10-bit HD-SDI, 6G-SDI and 12G‑SDI
Reclocking:
On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Videorates:
SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G‑SDI.
Sdi_Videosampling:
4:2:2 plus 4:4:4 up to 4K DCI 30p
Sdi_Audiosampling:
Television standard sample rate of 48 kHz and 24‑bit.
Sdi_Colorprecision:
10-bit 4:2:2 and 4:4:4
Sdi_Colorspace:
YUV or RGB for inputs, YUV for SDIÂ outputs.
Na:
Windows 10, 64-bit.
Powerconsumption:
16 Watts
Connections:
SDI Video Inputs 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI SDI Video Outputs 2 x 10-bit HD-SDI, 6G-SDI and 12G‑SDI Ethernet Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding. Multi Rate Support Auto detection of HD-SDI, 6G-SDI or 12G‑SDI. Updates USB 2.0 high speed (480Mb/s) interface or via Ethernet. Configuration Ethernet or USB 2.0 for firmware updates and IP address setting. Reclocking On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video.
Software:
Software Control Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Control Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.
Power_Requirements:
Power Supply IEC power cable required. 100 - 240V AC input. Power Fail Protection Settings preserved and restored instantly at power on. Power over Ethernet Can be powered via 48V DC using PoE+ (power over Ethernet). Power Consumption 16 Watts
Environmental_Specifications:
Operating Temperature YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility. Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini IP Video 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Software_Control:
Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac.
Operating_Temperature:
YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Power_Supply:
IEC power cable required. 100 - 240V AC input.
Relative_Humidity:
0% to 90% non‑condensing
Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G‑SDI. SDI Video Sampling 4:2:2 plus 4:4:4 up to 4K DCI 30p SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. SDI Color Precision 10-bit 4:2:2 and 4:4:4 SDI Color Space YUV or RGB for inputs, YUV for SDI outputs. SDI Auto Switching Automatically selects between HD-SDI, 6G-SDI and 12G‑SDI. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Multi_Rate_Support:
Auto detection of HD-SDI, 6G-SDI or 12G‑SDI.
Internal_Software_Upgrade:
Via included updater application.
Ethernet:
Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICOÂ encoding/decoding.
Updates:
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Configuration:
Ethernet or USB 2.0 for firmware updates and IP address setting.
Sdicompliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Autoswitching:
Automatically selects between HD-SDI, 6G-SDI and 12G‑SDI.
Sdi_Metadatasupport:
Video payload identification ancillary data as per SMPTEÂ 352M.
Control:
Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.
Power_Fail_Protection:
Settings preserved and restored instantly at power on.
Power_Overethernet.1:
Can be powered via 48V DC using PoE+ (power over Ethernet).
Display:
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-ip-video-12g-sm.jpg?_v=1539836845
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-ip-video-12g-md.jpg?_v=1539836845
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-ip-video-12g-xl.jpg?_v=1539836845
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-ip-video-12g-sm.jpg?_v=1539836845
Teranex Mini Optical to HDMI 12G
Add to Compare
View Details
Teranex Mini Optical to HDMI 12G
Price:
HK$4,400
Description:
Now you can convert from SDI and SMPTE optical fiber to HDMI! Simply insert the SMPTE optical fiber module of your choice to get video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, a down converter for viewing Ultra HD sources on HD displays plus ethernet for remote admin control. The optical fiber SFP module is sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP module to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!
Digital_Audiooutputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
Multi_Ratesupport:
Auto detection of SD, HD or 12G-SDI.
Updates_Andconfiguration:
USB and Ethernet.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Videorates:
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
Sdi_Videosampling:
4:2:2 and 4:4:4.
Sdi_Colorprecision:
4:2:2 and 4:4:4.
Sdi_Colorspace:
YUV and RGB.
Hdmi_Colorspace:
REC 601, RECÂ 709
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Basic_Settingscontrol:
Mini Switches, USB and Ethernet via free software utility.
Powersupply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Powerconsumption:
16Â Watts
Operational_Voltagerange:
100 - 240VÂ AC
Operatingtemperature:
0° to 40°C (32° to 104°F)
Storagetemperature:
-20° to 60°C (-4° to 140°F)
Relativehumidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. Optical Fiber Connection (optional) Optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector. Optical Fiber Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. Optical Fiber Video Loop Through 1 x 12G-SDI loop output. HDMI Video Outputs 1 x HDMI 2.0 type A connector with support for 2160p60. Analog Audio Outputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output. Digital Audio Outputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output. Embedded Audio Support 8 channels. Multi Rate Support Auto detection of SD, HD or 12G-SDI. Updates and Configuration USB and Ethernet. Reclocking Yes
Hdmi_Output_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p HDMI Color Space REC 601, REC 709 HDMI Color Precision YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Software:
Software Control Mac™ and Windows™ software upgrade via USB or Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini Optical to HDMI 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Hdmi_Color_Precision:
YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Software_Control:
Mac™ and Windows™ software upgrade via USB or Ethernet.
Sdi_Video_Inputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Optional_Front_Panel_Control:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Over_Ethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Embedded_Audio_Support:
8 channels.
Optical_Fiber_Connection_Optional:
Optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector.
Optical_Fiber_Video_Inputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Optical_Fiber_Video_Loopthrough:
1 x 12G-SDI loop output.
Hdmi_Video_Outputs:
1 x HDMI 2.0 type A connector with support for 2160p60.
Analog_Audio_Outputs:
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
Optical_Input_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision 4:2:2 and 4:4:4. SDI Color Space YUV and RGB.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-optical-to-hdmi-12g-sm.jpg?_v=1539836846
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-optical-to-hdmi-12g-md.jpg?_v=1539836846
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-optical-to-hdmi-12g-xl.jpg?_v=1539836846
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-optical-to-hdmi-12g-sm.jpg?_v=1539836846

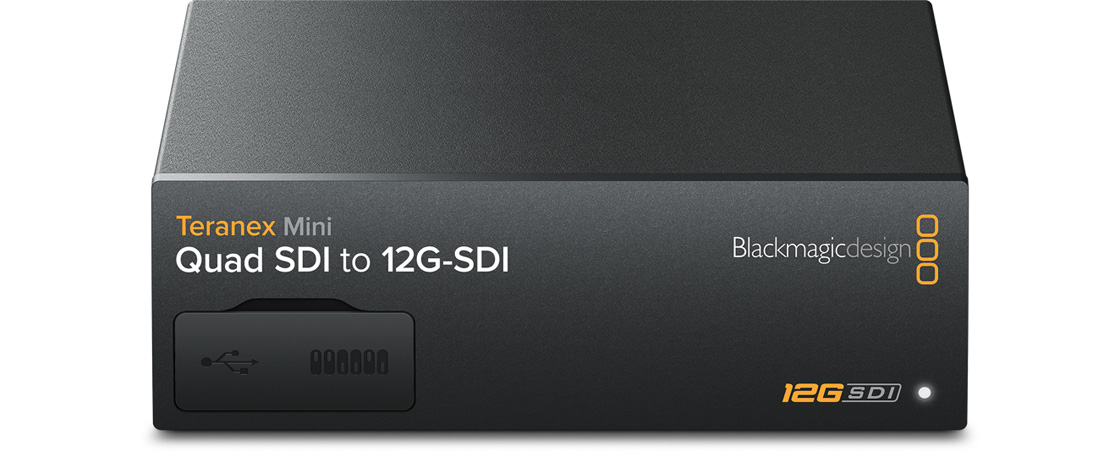

Teranex Mini Quad SDI to 12G‑SDI
Add to Compare
View Details
Teranex Mini Quad SDI to 12G‑SDI
Price:
HK$4,500
Description:
Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDIÂ equipment.
Sdi_Videooutputs:
2 x 12G‑SDI.
Embedded_Audiosupport:
16Â channels.
Multi_Ratesupport:
Automatic switching between SD/HD/2K and 4K
Updates_Andconfiguration:
USB or Ethernet
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Na:
Windows 10, 64-bit.
Power_Overethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Powerconsumption:
16 Watts
Operational_Voltagerange:
100 - 240VÂ AC
Operatingtemperature:
0° to 40°C (32° to 104°F)
Storagetemperature:
-20° to 60°C (-4° to 140°F)
Relativehumidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 4 x 12G-SDI SD/HD/2K/4K auto switching. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 2 x 12G‑SDI. Multi Rate Support Automatic switching between SD/HD/2K and 4K Embedded Audio Support 16 channels. Updates and Configuration USB or Ethernet Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Requirements:
Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini Quad SDI to 12G‑SDI Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Sdi_Video_Rates:
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
Sdi_Video_Sampling:
4:2:2 and 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Space:
YUV & RGB
Software_Control:
Mac™ and Windows™ software upgrade via USB and Ethernet.
Basic_Settings_Control:
Mini Switches, USB and Ethernet via free software utility.
Sdi_Video_Inputs:
4 x 12G-SDI SD/HD/2K/4K auto switching.
Optional_Front_Panel_Control:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Supply:
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Space YUV & RGB
Internal_Software_Upgrade:
Via included updater application.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-quad-sdi-to-12g-sdi-sm.jpg?_v=1543470033
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-quad-sdi-to-12g-sdi-md.jpg?_v=1543470033
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-quad-sdi-to-12g-sdi-xl.jpg?_v=1543470033
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-quad-sdi-to-12g-sdi-sm.jpg?_v=1543470033

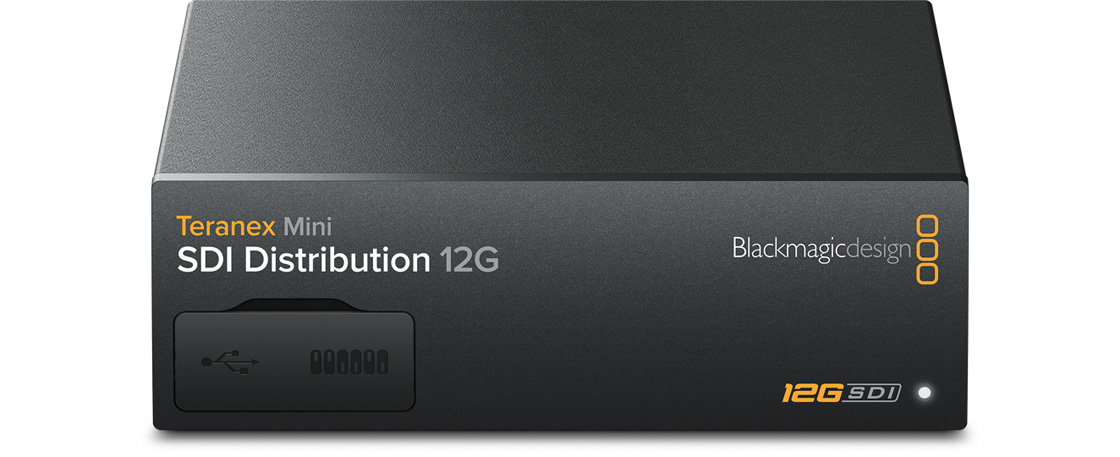

Teranex Mini SDI Distribution 12G
Add to Compare
View Details
Teranex Mini SDI Distribution 12G
Price:
HK$4,500
Description:
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.
Embedded_Audiosupport:
16Â channels.
Updates_Andconfiguration:
USB or Ethernet
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Videosampling:
4:2:2 and 4:4:4
Sdi_Audiosampling:
Television standard sample rate of 48 kHz and 24‑bit.
Sdi_Colorspace:
YUV & RGB
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Optional_Front_Panelcontrol:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Overethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Operational_Voltagerange:
100 - 240V AC
Operatingtemperature:
0° to 40°C (32° to 104°F)
Connections:
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input Embedded Audio Support 16 channels. Multi Rate Support Automatic switching between SD/HD/2K and 4K Updates and Configuration USB or Ethernet Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini SDI Distribution 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Sdi_Video_Rates:
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
Software_Control:
Mac™ and Windows™ software upgrade via USB and Ethernet.
Basic_Settings_Control:
Mini Switches, USB and Ethernet via free software utility.
Power_Consumption:
16Â Watts
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Sdi_Video_Inputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Sdi_Video_Outputs:
8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDIÂ input
Power_Supply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Relative_Humidity:
0% to 90% non‑condensing
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. SDI Color Space YUV & RGB
Multi_Rate_Support:
Automatic switching between SD/HD/2K and 4K
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-distribution-12g-sm.jpg?_v=1539836847
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-distribution-12g-md.jpg?_v=1539836847
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-distribution-12g-xl.jpg?_v=1539836847
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-distribution-12g-sm.jpg?_v=1539836847
Teranex Mini SDI to Analog 12G
Add to Compare
View Details
Teranex Mini SDI to Analog 12G
Price:
HK$4,500
Description:
Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.
Analog_Audiooutputs:
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.
Digital_Audiooutputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
Embedded_Audiosupport:
16 channels.
Multi_Ratesupport:
Automatic switching between SD/HD/2K and 4K.
Updates_Andconfiguration:
USB or Ethernet.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Videosampling:
4:2:2 and 4:4:4
Sdi_Colorprecision:
4:2:2 and 4:4:4
Sdi_Colorspace:
YUV
Softwarecontrol:
Mac™ and Windows™ software upgrade via USB and Ethernet.
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Basic_Settingscontrol:
Mini Switches, USB and Ethernet via free software utility.
Power_Overethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Powerconsumption:
16Â Watts
Operational_Voltagerange:
100 - 240VÂ AC
Storagetemperature:
-20° to 60°C (-4° to 140°F)
Connections:
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. SDI Video Outputs 1 x 12G-SDI loop output. Analog Video Outputs Composite, Y/C or Component. Analog Audio Outputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output. Digital Audio Outputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output. Embedded Audio Support 16 channels. Multi Rate Support Automatic switching between SD/HD/2K and 4K. Updates and Configuration USB or Ethernet. Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Requirements:
Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini SDI to Analog 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Sdi_Video_Rates:
SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Format_Conversion:
HD down conversion
Sdi_Video_Inputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Sdi_Video_Outputs:
1 x 12G-SDI loop output.
Analog_Video_Outputs:
Composite, Y/C or Component.
Analog_Videostandards:
525i59.94 NTSC, 625i50Â PAL
Analog_Colorspace:
REC 601, RECÂ 709
Analog_Colorprecision:
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Optional_Front_Panel_Control:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Supply:
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V ACÂ Input.
Relative_Humidity:
0% to 90% non‑condensing
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV Analog Video Standards 525i59.94 NTSC, 625i50 PAL Analog Color Space REC 601, REC 709 Analog Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-analog-12g-sm.jpg?_v=1539836971
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-analog-12g-md.jpg?_v=1539836971
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-analog-12g-xl.jpg?_v=1539836971
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-analog-12g-sm.jpg?_v=1539836971
Teranex Mini SDI to Audio 12G
Add to Compare
View Details
Teranex Mini SDI to Audio 12G
Price:
HK$4,500
Description:
De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.
Sdi_Videoinputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Sdi_Videooutputs:
1 x 12G-SDI loop output.
Analog_Audiooutputs:
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output.
Digital_Audiooutputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
Embedded_Audiosupport:
16Â channels.
Multi_Ratesupport:
Automatic switching between SD/HD/2K and 4K.
Updates_Andconfiguration:
USB or Ethernet.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Videosampling:
4:2:2 and 4:4:4.
Sdi_Audiosampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Colorprecision:
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Sdi_Colorspace:
REC 601, RECÂ 709
Softwarecontrol:
Mac™ and Windows™ software upgrade via USB and Ethernet.
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Basic_Settingscontrol:
Mini Switches, USB and Ethernet via free software utility
Optional_Front_Panelcontrol:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Powerconsumption:
16Â Watts
Operational_Voltagerange:
100 - 240VÂ AC
Operatingtemperature:
0° to 40°C (32° to 104°F)
Relativehumidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 1 x 12G-SDI loop output. Analog Audio Outputs 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output. Digital Audio Outputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output. Embedded Audio Support 16 channels. Optical Audio Output S/PDIF Signal with TOSLINK Connector. Multi Rate Support Automatic switching between SD/HD/2K and 4K. Updates and Configuration USB or Ethernet. Reclocking Yes
Software:
Software Control Mac™ and Windows™ software upgrade via USB and Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power_Requirements:
Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini SDI to Audio 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Sdi_Video_Rates:
SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Power_Supply:
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V ACÂ Input.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. SDI Color Space REC 601, REC 709
Power_Over_Ethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Optical_Audiooutput:
S/PDIF Signal with TOSLINKÂ Connector.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-audio-12g-sm.jpg?_v=1543957634
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-audio-12g-md.jpg?_v=1543957633
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-audio-12g-xl.jpg?_v=1543957633
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-audio-12g-sm.jpg?_v=1543957634
Teranex Mini SDI to HDMI 12G
Add to Compare
View Details
Teranex Mini SDI to HDMI 12G
Price:
HK$4,500
Description:
Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.
Sdi_Videoinputs:
1 x 12G-SDI SD/HD/2K/4K auto switching.
Sdi_Videooutputs:
1 x 12G-SDI loop output.
Hdmi_Videooutputs:
1 x HDMI 2.0 type A connector with support for 2160p60.
Analog_Audiooutputs:
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
Digital_Audiooutputs:
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
Embedded_Audiosupport:
8Â channels.
Multi_Ratesupport:
270MB, 1.5G, 3G, 6G and 12G.
Updates_Andconfiguration:
USB or Ethernet.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Videorates:
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
Sdi_Videosampling:
4:2:2 and 4:4:4
Sdi_Audiosampling:
Television standard sample rate of 48Â kHz and 24-bit.
Sdi_Colorprecision:
4:2:2 and 4:4:4
Sdi_Colorspace:
YUV and RGB. 33 point LUTs can be loaded via Teranex Utility.
Hdmi_Colorspace:
REC 601, RECÂ 709
Hdmi_Colorprecision:
YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Softwarecontrol:
Mac™ and Windows™ software upgrade via USB or Ethernet.
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Basic_Settingscontrol:
Mini Switches, USB and Ethernet via free software utility.
Optional_Front_Panelcontrol:
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Powersupply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Power_Overethernet:
Can be powered via 48V DC using PoE+ (power over ethernet).
Powerconsumption:
16Â Watts
Operational_Voltagerange:
100 - 240VÂ AC
Operatingtemperature:
0° to 40°C (32° to 104°F)
Storagetemperature:
-20° to 60°C (-4° to 140°F)
Relativehumidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 1 x 12G-SDI loop output. HDMI Video Outputs 1 x HDMI 2.0 type A connector with support for 2160p60. Analog Audio Outputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output. Digital Audio Outputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output. Embedded Audio Support 8 channels. Multi Rate Support 270MB, 1.5G, 3G, 6G and 12G. Updates and Configuration USB or Ethernet. Reclocking Yes
Sdi_Input_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB. 33 point LUTs can be loaded via Teranex Utility.
Hdmi_Output_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p HDMI Color Space REC 601, REC 709 HDMI Color Precision YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Software:
Software Control Mac™ and Windows™ software upgrade via USB or Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Basic Settings Control Mini Switches, USB and Ethernet via free software utility. Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet). Power Consumption 16 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini SDI to HDMI 12G Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-hdmi-12g-sm.jpg?_v=1539836848
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-hdmi-12g-md.jpg?_v=1539836848
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-hdmi-12g-xl.jpg?_v=1539836848
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini/techspecs/hero/teranex-mini-sdi-to-hdmi-12g-sm.jpg?_v=1539836848
Teranex Mini SDI to DisplayPort 8K HDR
Add to Compare
View Details
Teranex Mini SDI to DisplayPort 8K HDR
Price:
HK$11,600
Description:
Advanced 8K DisplayPort monitoring solution for converting SDI sources to DisplayPort in all HD, Ultra HD and 8K formats up to 4320p60. Includes 2 full size DisplayPort and 1 USB‑C DisplayPort output connections, built in down converter, HDR formats, 33 point 10‑bit RGB LUTs, built in waveform, parade, vector and histogram scopes, monitor calibration for compatible monitors, and more.
Sdi_Video_Inputs:
4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G-SDI for 8K only.
Sdi_Video_Outputs:
4 x 12G-SDI loop output.
Analog_Audio_Outputs:
2 channels analog audio via RCA connectors.
Embedded_Audio_Support:
16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs.
Multi_Rate_Support:
1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI.
Updates_And_Configuration:
Front USB-C or Ethernet.
Reclocking:
Yes
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60Â DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60Â DCI
Col_8k_Video_Standards:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
Col_8k_Dci_Video_Standards:
8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Video_Rates:
SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
Sdi_Video_Sampling:
4:2:2 and 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Sdi_Color_Precision:
4:2:2 and 4:4:4
Sdi_Color_Space:
YUV and RGB.
Scopes:
Scopes Waveform, RGB/YUV Parade, Vector, Histogram Viewing Modes Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDRÂ graticules.
Viewing_Modes:
Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDRÂ graticules.
Software_Control:
Mac OS X™ and Windows™ software upgrade via USB‑C or Ethernet.
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Settings_Control:
Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display.
Powersupply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V ACÂ Input.
Power_Consumption:
35 Watts
Operational_Voltagerange:
100 - 240V AC
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relativehumidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G-SDI for 8K only. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 4 x 12G-SDI loop output. DisplayPort Video Outputs 2 x full size DisplayPort connectors Single used for 4K video and both used for uncompressed 8K video. 1 x USB-C DisplayPort connector Compatible with certified passive DisplayPort over USB-C cables. Active generic USB-C cables or active Thunderbolt cables are not compatible. Analog Audio Outputs 2 channels analog audio via RCA connectors. Embedded Audio Support 16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs. Multi Rate Support 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI. Updates and Configuration Front USB-C or Ethernet. Reclocking Yes
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division 8K DCI Video Standards 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB.
Software:
Software Control Mac OS X™ and Windows™ software upgrade via USB‑C or Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 35 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini SDI to DisplayPort 8K HDR Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Displayport_Video_Outputs:
2 x full size DisplayPort connectors Single used for 4K video and both used for uncompressed 8K video.
Col_5k_And_6k_Display_Standards:
Based on the EDID of the DisplayPort Monitor.
Displayport_Color_Space:
REC 709, REC 2020
Displayport_Color_Precision:
YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
Conversion:
Output can be set to SDR, HLG or PQ
Displayport_Output_Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 5K and 6K Display Standards Based on the EDID of the DisplayPort Monitor. 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 DisplayPort Color Space REC 709, REC 2020 DisplayPort Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
Hdr:
Conversion Output can be set to SDR, HLG or PQ
Src:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-displayport-8k-hdr-sm.jpg?_v=1579562841
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-displayport-8k-hdr-md.jpg?_v=1579562840
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-displayport-8k-hdr-xl.jpg?_v=1579562840
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-displayport-8k-hdr-sm.jpg?_v=1579562841
Teranex Mini SDI to HDMI 8K HDR
Add to Compare
View Details
Teranex Mini SDI to HDMI 8K HDR
Price:
HK$11,450
Description:
Advanced 8K HDMI monitoring solution for converting SDI sources to HDMI in all HD, Ultra HD and 8K formats up to 4320p60. Includes 4 HDMI 2.0 output connections, built in down converter, HDR formats, 33 point 10‑bit RGB LUTs, built in waveform, parade, vector and histogram scopes, monitor calibration and more.
Sdi_Video_Inputs:
4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G‑SDI for 8K only.
Sdi_Video_Outputs:
4 x 12G-SDI loop output.
Hdmi_Video_Outputs:
4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link.
Analog_Audio_Outputs:
2 channels analog audio via RCA connectors.
Embedded_Audio_Support:
16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMIÂ outputs.
Multi_Rate_Support:
1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI.
Updates_And_Configuration:
USB-C or Ethernet.
Reclocking:
Yes
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60Â DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30Â DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60Â DCI
Col_8k_Video_Standards:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
Col_8k_Dci_Video_Standards:
8Kp23.98 DCI , 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Video_Rates:
SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
Sdi_Video_Sampling:
4:2:2 and 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Sdi_Color_Precision:
4:2:2 and 4:4:4
Sdi_Color_Space:
YUV and RGB.
Hdmi_Color_Space:
REC 709 , REC 2020
Hdmi_Color_Precision:
YUV 4:2:2 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
Scopes:
Scopes Waveform, RGB/YUV Parade, Vector, Histogram Viewing Modes Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDRÂ graticules.
Viewing_Modes:
Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDRÂ graticules.
Software_Control:
Mac OS X™ and Windows™ software upgrade via USB‑C or Ethernet.
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Settings_Control:
Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display.
Powersupply:
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V ACÂ Input.
Power_Consumption:
25 Watts
Operational_Voltagerange:
100 - 240V AC
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relativehumidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G‑SDI for 8K only. Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products. SDI Video Outputs 4 x 12G-SDI loop output. HDMI Video Outputs 4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link. Analog Audio Outputs 2 channels analog audio via RCA connectors. Embedded Audio Support 16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs. Multi Rate Support 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI. Updates and Configuration USB-C or Ethernet. Reclocking Yes
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division 8K DCI Video Standards 8Kp23.98 DCI , 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB.
Hdmi_Output_Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 HDMI Color Space REC 709 , REC 2020 HDMI Color Precision YUV 4:2:2 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
Software:
Software Control Mac OS X™ and Windows™ software upgrade via USB‑C or Ethernet. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 25 Watts Operational Voltage Range 100 - 240V AC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-hdmi-8k-hdr-sm.jpg?_v=1579562966
Col_1120w:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-hdmi-8k-hdr-md.jpg?_v=1579562966
Col_1324w:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-hdmi-8k-hdr-xl.jpg?_v=1579562965
Col_662w:
https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-hdmi-8k-hdr-sm.jpg?_v=1579562966
×
