🧩 Blackmagic Products - Final Version
ENG / ä¸ć–‡
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
ATEM Production Switchers

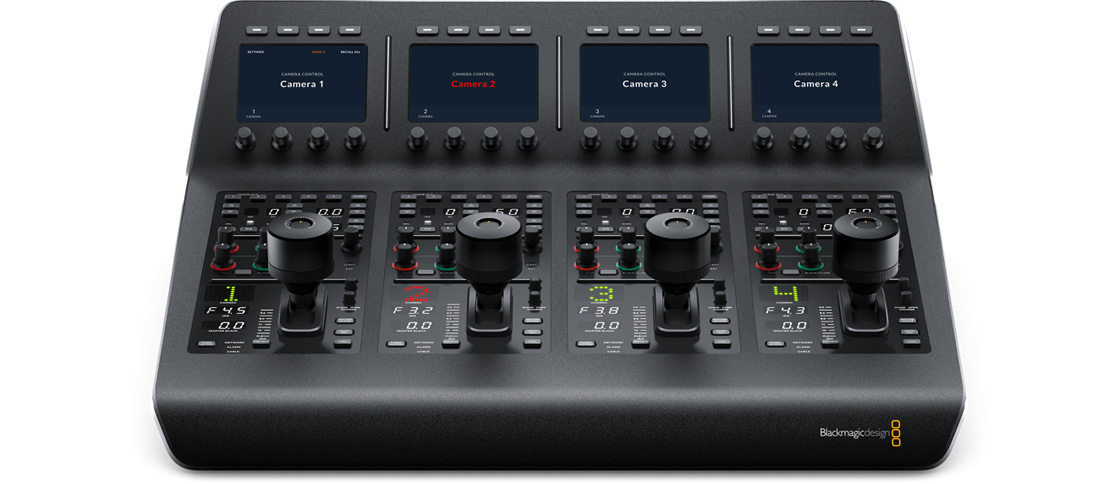

ATEM Camera Control Panel
Add to Compare
View Details
ATEM Camera Control Panel
Price:
HK$24,550
Description:
The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Software_Updates:
1 x USB-C for firmware updates.
Lcd_Menu_Displays:
4
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup.
Col_3_Axis_Joystick:
4
Preview_Button:
4
Iris_Control:
Auto Iris On, Coarse control.
Panel_Active:
Protects settings.
Software_Applications:
ATEM Software Control Panel.
Na:
1 Year Limited Manufacturer’s Warranty.
Input_Voltage:
1 x Internal 100 - 240VÂ AC.
Dc_Power:
12-30V 3A.
Redundant_Power:
Yes
Power_Usage:
30W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
LCD Menu Displays 4 Camera Number Display Green off air, red on air. Setup White and black balance setup. 3 Axis Joystick 4 Preview Button 4 Iris Control Auto Iris On, Coarse control. Panel Active Protects settings.
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240VÂ AC. DC Power 12-30V 3A. Redundant Power Yes Power Usage 30W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM Camera Control Panel
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-md.jpg?_v=1528776866
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-xl.jpg?_v=1528776866
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866

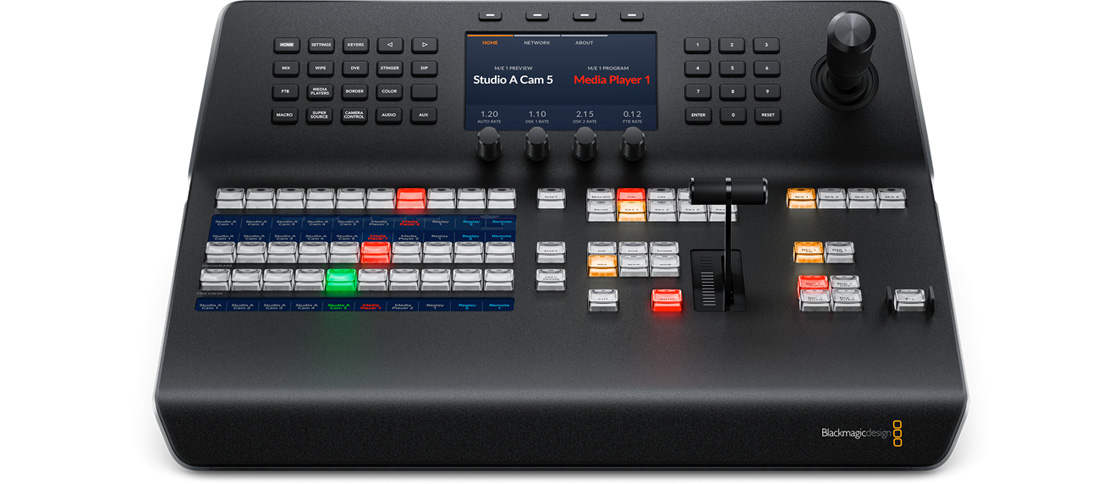

ATEM 1 M/E Advanced Panel 10
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 10
Price:
HK$24,550
Description:
The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.
Software_Updates:
1 x USB-C for firmware updates
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
45W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers Software Updates 1 x USB-C for firmware updates
Product_Specifics:
Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 3 rows 24 character LCD On-Air indicator 4 Power Status Indicators None DSK Transition Selectors Auto, Cut, Tie/Preview. Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 20 buttons Dedicated Macro Buttons 10 Multi Control Buttons None Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 45W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 1 M/E Advanced Panel 10
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers
Shifted_Cross_Points:
20.0
Menu_Control:
20 buttons
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
1 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Direct_Crosspoints:
10.0
Crosspoint_Buttontype:
Tri-Color LED
Crosspointlabel:
3 rows 24 character LCD
Onairindicator:
4.0
Dsk_Transitionselectors:
Auto, Cut, Tie/Preview.
Previewtransition:
1.0
Transition_Ratedisplays:
Via main menu
Lcd_Menudisplays:
3.0
Dedicated_Macrobuttons:
10.0
Destinationbus:
1.0
Source_Selectbus:
1.0
Faderbar:
1.0
Col_3_Axisjoystick:
1.0
Numerickeypad:
1.0
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-md.jpg?_v=1515554623
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-xl.jpg?_v=1515554623
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623

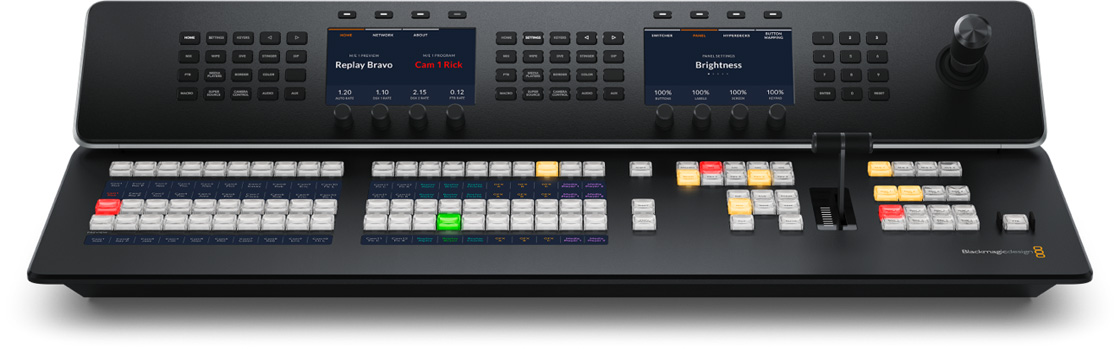

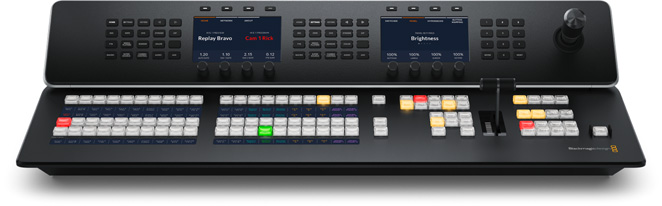

ATEM 1 M/E Advanced Panel 20
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 20
Price:
HK$31,100
Description:
The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
75W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 95% non-condensing
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 20 Shifted Cross Points 40 Crosspoint Button Type Tri-Color LED Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 2 Menu Control 2 x 20 buttons Dedicated Macro Buttons 1 x 20 Transport Control Buttons 8 Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 75W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 95% non-condensing
Whats_Included:
ATEM 1 M/E Advanced Panel 20 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
20.0
Shifted_Cross_Points:
40.0
Crosspoint_Button_Type:
Tri-Color LED
Preview_Transition:
1.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
2.0
Menu_Control:
2 x 20 buttons
Dedicated_Macro_Buttons:
1 x 20
Transport_Control_Buttons:
8.0
Destination_Bus:
1.0
Source_Select_Bus:
1.0
Fader_Bar:
1.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-sm.jpg?_v=1694134671
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-md.jpg?_v=1694134671
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-xl.jpg?_v=1694134670
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-sm.jpg?_v=1694134671

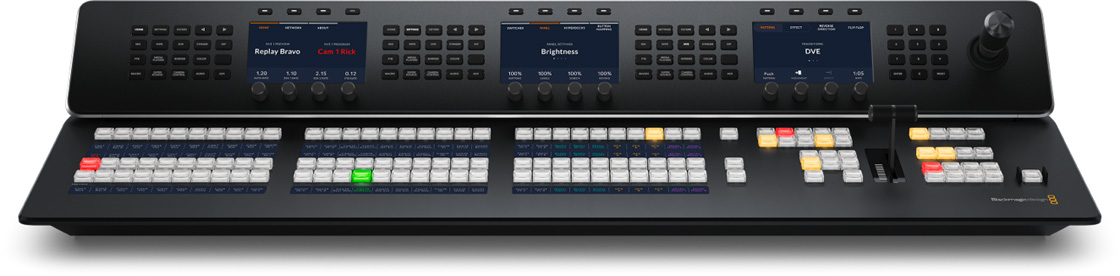

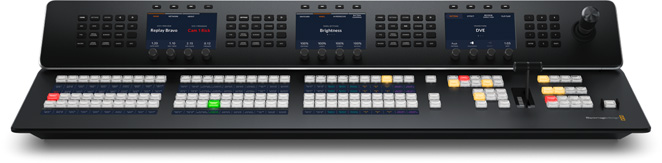

ATEM 1 M/E Advanced Panel 30
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 30
Price:
HK$45,050
Description:
The ATEM 1 M/E Advanced Panel 30 features a single M/E row, 30 input button design that is ideal for switching big productions from desk surfaces that are not deep enough for a bigger panel. It has 3 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and it also includes an independent select bus! Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
80W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 95% non-condensing
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 30 Shifted Cross Points 60 Crosspoint Button Type Tri-Color LED Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 3 x 20 buttons Dedicated Macro Buttons 1 x 30 Transport Control Buttons 8 Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 80W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 95% non-condensing
Whats_Included:
ATEM 1 M/E Advanced Panel 30 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
30.0
Shifted_Cross_Points:
60.0
Crosspoint_Button_Type:
Tri-Color LED
Preview_Transition:
1.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
3.0
Menu_Control:
3 x 20 buttons
Dedicated_Macro_Buttons:
1 x 30
Transport_Control_Buttons:
8.0
Destination_Bus:
1.0
Source_Select_Bus:
1.0
Fader_Bar:
1.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-sm.jpg?_v=1694134671
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-md.jpg?_v=1694134671
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-xl.jpg?_v=1694134671
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-sm.jpg?_v=1694134671

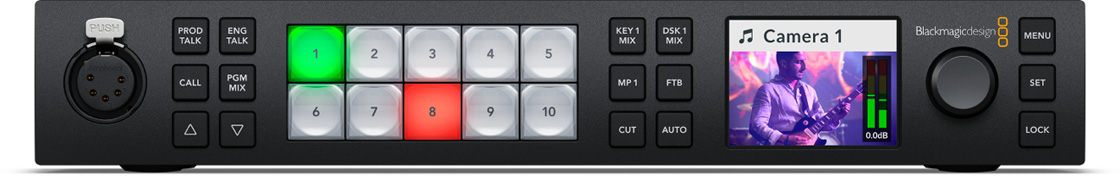

ATEM 1 M/E Constellation 4K
Add to Compare
View Details
ATEM 1 M/E Constellation 4K
Price:
HK$14,750
Description:
ATEM 1 M/E Constellation 4K is a powerful 1 M/E Ultra HD live production switcher. It features 10 standards converted 12G-SDI inputs, 6 12G-SDI aux outputs, DVE, 4 ATEM Advanced Keyers, a 16 way multiview, media players and USB webcam output. You even get built in talkback and a professional 28 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs:
10.0
Total_Video_Outputs:
6.0
Sdi_Rates:
1.5G, 3G, 6G, 12G
Total_Audio_Inputs:
2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
1 x 5 pin XLR Talkback.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 10 inputs.
Frame_Rate_And_Format_Converters:
On all 10 inputs.
Sdi_Audio_Inputs:
8 Ch embedded audio on all SDIÂ inputs.
Sdi_Audio_Outputs:
16 Ch embedded audio on all SDIÂ outputs.
Sdi_Program_Outputs:
Any of the 6 SDI outputs.
Sdi_Preview_Outputs:
Any of the 6 SDI outputs.
Webcam_Output:
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:

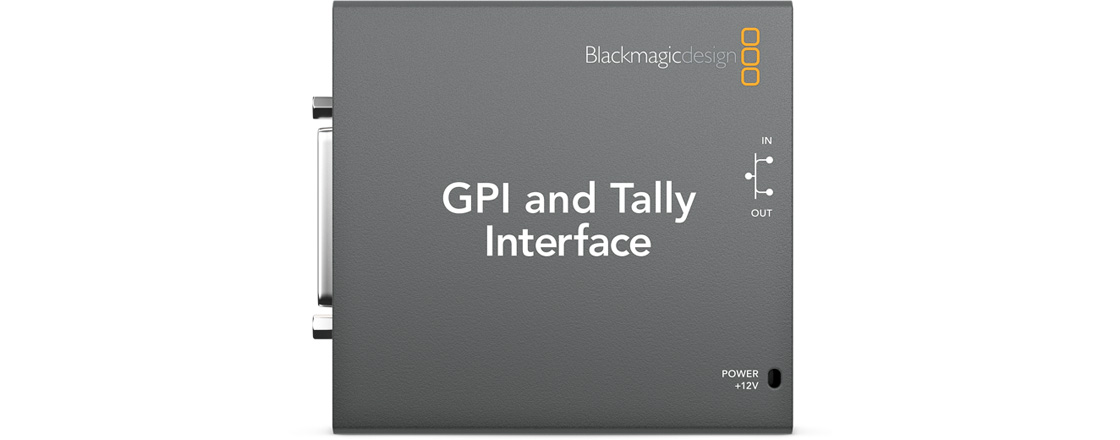

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface:
1 x USB-C supports USB 2.0
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709, REC 2020
Sdi_Auto_Switching:
Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers:
4.0
Downstream_Keyers:
1.0
Advanced_Chroma_Keyers:
4.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
5.0
Transition_Keyer_Stingerdve:
1 Stinger, 1 DVE.
Total_Number_Of_Layers:
7.0
Pattern_Generators:
5.0
Color_Generators:
2.0
Dves:
1.0
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
16.0
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 1 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters. Multi View Video Standard HD or Ultra HD
Multi_View_Video_Standard:
HD or Ultra HD
Media_Players:
2.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
20.0
Media_Pool_Clip_Capacity:
2 x up to 2160p60.
Media_Player_Clip_Length_In_720hd:
1600 frames.
Media_Player_Clip_Length_In_1080hd:
800 frames.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format:
TGA Sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Front_Panel:
Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 10 lines.
Audio_Mixer:
28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion:
1 x selectable HD down converted output
Control_Panel_Included:
ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240Â AC.
Power_Usage:
90 W
Physical_Installation:
Physical Installation 2/3 rack unit width, 1Â rack unit height. Optional Accessories Teranex Mini Rack Shelf
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Total Video Inputs 10 Total Video Outputs 6 SDI Rates 1.5G, 3G, 6G, 12G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 10 inputs. Frame Rate and Format Converters On all 10 inputs. SDI Aux Outputs Any of the 6 SDI outputs. SDI Preview Outputs Any of the 6 SDI outputs. SDI Program Outputs Any of the 6 SDI outputs. Down Converted SDI Program Output 1 Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 12G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709, REC 2020 SDI Auto Switching Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics:
Upstream Keyers 4 Downstream Keyers 1 Advanced Chroma Keyers 4 DVEs 1 Linear/Luma Keyers 5 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 7 Pattern Generators 5 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Media_Player:
Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Clip Capacity 2 x up to 2160p60. Media Player Clip Length in 720 HD 1600 frames. Media Player Clip Length in 1080 HD 800 frames. Media Player Clip Length in 2160 UHD 200 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Front panel Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 10 lines. Audio Mixer 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output
Software:
Control Panel Included ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240Â AC. Power Usage 90 W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM 1 M/E Constellation 4K Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Down_Converted_Sdi_Program_Output:
1.0
Sdi_Aux_Outputs:
Any of the 6 SDI outputs.
Total_Multi_Views:
1 x 12G-SDI
Ethernet:
Supports 10/100/1000 BASE-T.
Media_Player_Clip_Length_In_2160_Uhd:
200 frames.
Optional_Accessories:
Teranex Mini Rack Shelf
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-4k-sm.jpg?_v=1712577151
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-4k-md.jpg?_v=1712577151
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-4k-xl.jpg?_v=1712577151
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-4k-sm.jpg?_v=1712577151

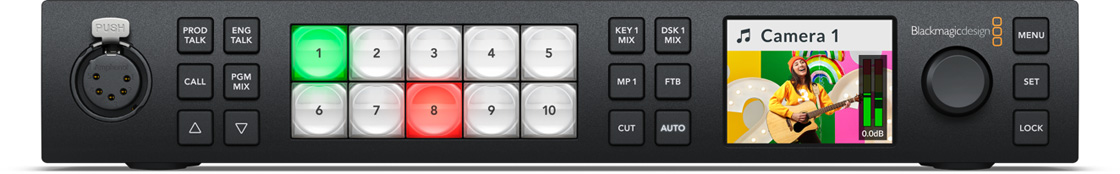

ATEM 1 M/E Constellation HD
Add to Compare
View Details
ATEM 1 M/E Constellation HD
Price:
HK$8,150
Description:
ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!
Total_Video_Inputs:
10.0
Total_Video_Outputs:
6.0
Sdi_Rates:
1.5G, 3G
Total_Audio_Inputs:
2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
1 x 5 pin XLR Talkback.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 10 inputs.
Frame_Rate_And_Format_Converters:
On all 10 inputs.
Sdi_Audio_Inputs:
8 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs:
16 Ch embedded audio on all SDI outputs.
Sdi_Program_Outputs:
Any of the 6 SDI outputs.
Sdi_Preview_Outputs:
Any of the 6 SDI outputs.
Webcam_Output:
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface:
1 x USB-C supports USB 2.0
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Upstream_Keyers:
4.0
Downstream_Keyers:
1.0
Advanced_Chroma_Keyers:
4.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
5.0
Transition_Keyer_Stingerdve:
1 Stinger, 1 DVE.
Total_Number_Of_Layers:
7.0
Pattern_Generators:
5.0
Color_Generators:
2.0
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
16.0
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 1 x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard:
HD
Media_Players:
2.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
20.0
Media_Pool_Clip_Capacity:
2 x up to 1080p60.
Media_Player_Clip_Length_In_720hd:
400 frames.
Media_Player_Clip_Length_In_1080hd:
200 frames.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Front_Panel:
Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 10 lines.
Audio_Mixer:
28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240Â AC.
Power_Usage:
36W
Physical_Installation:
Physical Installation 2/3 rack unit width, 1 rack unit height. Optional Accessories Teranex Mini Rack Shelf
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 10 Total Video Outputs 6 SDI Rates 1.5G, 3G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 10 inputs. Frame Rate and Format Converters On all 10 inputs. SDI Aux Outputs Any of the 6 SDI outputs. SDI Preview Outputs Any of the 6 SDI outputs. SDI Program Outputs Any of the 6 SDI outputs. Down Converted SDI Program Output None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics:
Upstream Keyers 4 Downstream Keyers 1 Advanced Chroma Keyers 4 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 5 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 7 Pattern Generators 5 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 16 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player:
Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 400 frames. Media Player Clip Length in 1080 HD 200 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Front panel Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 10 lines. Audio Mixer 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240Â AC. Power Usage 36W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM 1 M/E Constellation HD Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Aux_Outputs:
Any of the 6 SDI outputs.
Total_Multi_Views:
1 x 3G-SDI
Ethernet:
Supports 10/100/1000 BASE-T.
Optional_Accessories:
Teranex Mini Rack Shelf
Display_Minimum_Resolution:
1366 x 768
Media_Pool_Video_Fileformat:
TGA Sequence.
Media_Pool_Audio_Fileformat:
WAV, MP3 and AIFF.
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-hd-sm.jpg?_v=1649631791
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-hd-md.jpg?_v=1649631791
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-hd-xl.jpg?_v=1649631791
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-1me-constellation-hd-sm.jpg?_v=1649631791

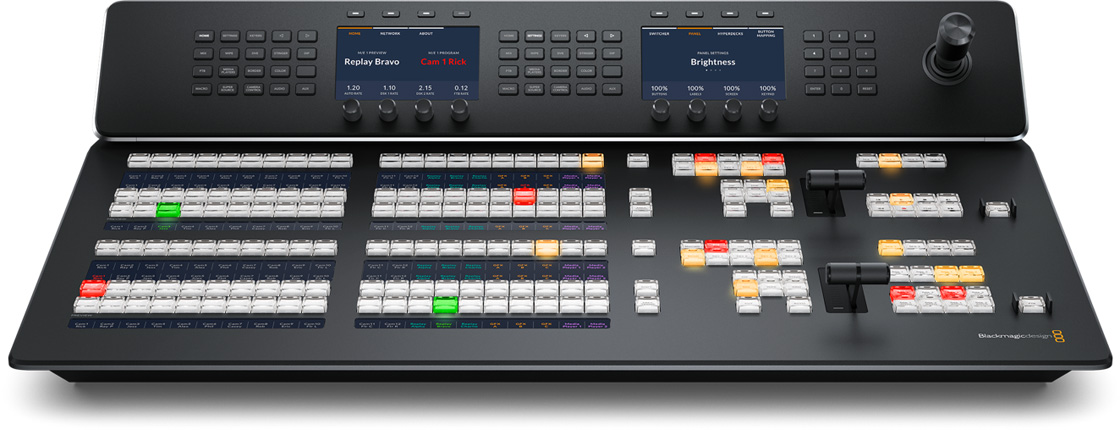

ATEM 2 M/E Advanced Panel 20
Add to Compare
View Details
ATEM 2 M/E Advanced Panel 20
Price:
HK$49,100
Description:
The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
100W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 2 Direct Cross Points 20 Shifted Cross Points 40 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 8 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 2 Menu Control 2 x 20 buttons Dedicated Macro Buttons 2 x 20 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 100W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 2 M/E Advanced Panel 20
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
2.0
Direct_Cross_Points:
20.0
Shifted_Cross_Points:
40.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Onair_Indicator:
8.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
2.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
2.0
Menu_Control:
2 x 20 buttons
Dedicated_Macro_Buttons:
2 x 20
Transport_Control_Buttons:
8.0
Destination_Bus:
2.0
Source_Select_Bus:
2.0
Fader_Bar:
2.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-sm.jpg?_v=1589946755
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-md.jpg?_v=1589946754
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-xl.jpg?_v=1589946754
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-sm.jpg?_v=1589946755

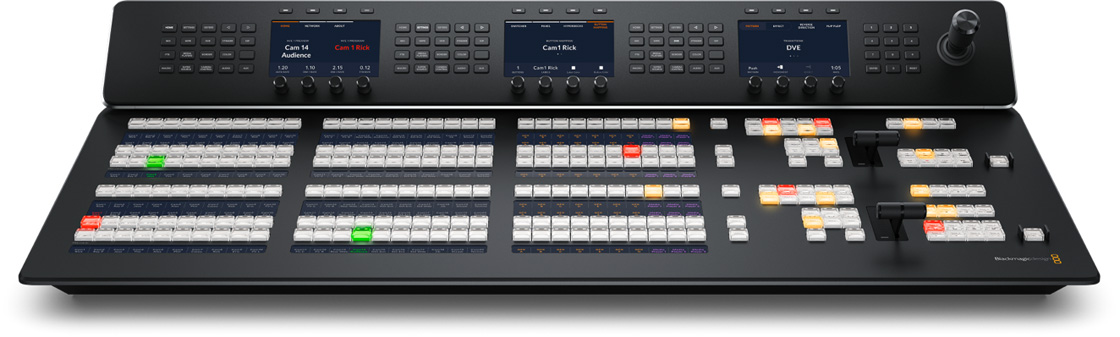

ATEM 2 M/E Advanced Panel 30
Add to Compare
View Details
ATEM 2 M/E Advanced Panel 30
Price:
HK$63,050
Description:
The 2 M/E model features 2 M/E rows with 30 input buttons and 3 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
120W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 2 Direct Cross Points 30 Shifted Cross Points 60 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 12 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 3 x 20 buttons Dedicated Macro Buttons 2 x 30 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 120W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 2 M/E Advanced Panel 30 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
2.0
Direct_Cross_Points:
30.0
Shifted_Cross_Points:
60.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Onair_Indicator:
12.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
2.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
3.0
Menu_Control:
3 x 20 buttons
Dedicated_Macro_Buttons:
2 x 30
Transport_Control_Buttons:
8.0
Destination_Bus:
2.0
Source_Select_Bus:
2.0
Fader_Bar:
2.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-sm.jpg?_v=1653873428
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-md.jpg?_v=1653873427
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-xl.jpg?_v=1653873426
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-sm.jpg?_v=1653873428

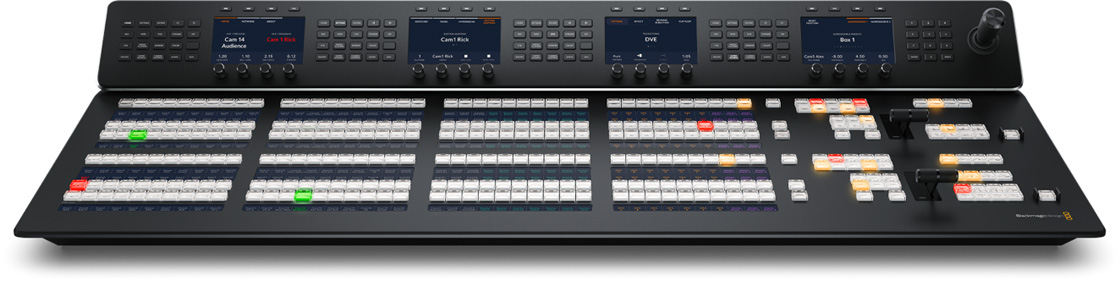

ATEM 2 M/E Advanced Panel 40
Add to Compare
View Details
ATEM 2 M/E Advanced Panel 40
Price:
HK$80,250
Description:
The 2 M/E model features 2 M/E rows with 40 input buttons and 4 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 2 Direct Cross Points 40 Shifted Cross Points 80 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 12 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 4 Menu Control 4 x 20 buttons Dedicated Macro Buttons 2 x 40 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 160W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 2 M/E Advanced Panel 40 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
2.0
Direct_Cross_Points:
40.0
Shifted_Cross_Points:
80.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Onair_Indicator:
12.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
2.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
4.0
Menu_Control:
4 x 20 buttons
Dedicated_Macro_Buttons:
2 x 40
Transport_Control_Buttons:
8.0
Destination_Bus:
2.0
Source_Select_Bus:
2.0
Fader_Bar:
2.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-sm.jpg?_v=1679011694
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-md.jpg?_v=1679011693
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-xl.jpg?_v=1679011693
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-sm.jpg?_v=1679011694

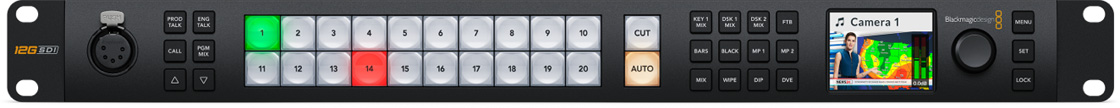

ATEM 2 M/E Constellation 4K
Add to Compare
View Details
ATEM 2 M/E Constellation 4K
Price:
HK$31,100
Description:
ATEM 2 M/E Constellation 4K is a powerful 2 M/E Ultra HD live production switcher. It features 20 standards converted 12G-SDI inputs, 12 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, media players, USB webcam output and a SuperSource for a total of 6 DVEs. You even get built in talkback and a professional 48 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs:
20.0
Total_Video_Outputs:
12.0
Sdi_Rates:
1.5G, 3G, 6G, 12G
Total_Audio_Inputs:
2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
1 x 5 pin XLR Talkback.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 20 inputs.
Frame_Rate_And_Format_Converters:
On all 20 inputs.
Sdi_Audio_Inputs:
8 Ch embedded audio on all SDIÂ inputs.
Sdi_Audio_Outputs:
16 Ch embedded audio on all SDIÂ outputs.
Sdi_Preview_Outputs:
Any of the 12 SDI outputs.
Webcam_Output:
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface:
1 x USB-C supports USB 2.0
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709, REC 2020
Sdi_Auto_Switching:
Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers:
8.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
8.0
Supersource:
1.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
11.0
Transition_Keyer_Stingerdve:
2 Stinger, 2 DVE.
Total_Number_Of_Layers:
15.0
Pattern_Generators:
11.0
Color_Generators:
2.0
Dves:
2.0
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
32.0
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 2 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters. Multi View Video Standard HD or Ultra HD
Multi_View_Video_Standard:
HD or Ultra HD
Media_Players:
2.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
40.0
Media_Pool_Clip_Capacity:
2 x up to 2160p60.
Media_Player_Clip_Length_In_720hd:
3200 frames.
Media_Player_Clip_Length_In_1080hd:
1600 frames.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format:
TGA Sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Front_Panel:
Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 10 lines.
Audio_Mixer:
48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion:
1 x selectable HD down converted output
Control_Panel_Included:
ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240Â AC.
Power_Usage:
140 W
Physical_Installation:
Physical Installation 1 Rack Unit Size.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Total Video Inputs 20 Total Video Outputs 12 SDI Rates 1.5G, 3G, 6G, 12G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 20 inputs. Frame Rate and Format Converters On all 20 inputs. SDI Aux Outputs Any of the 12 SDI outputs. SDI Preview Outputs Any of the 12 SDI outputs. SDI Preview Outputs Any of the 12 SDI outputs. Down Converted SDI Program Output 1 Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 2 x 12G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709, REC 2020 SDI Auto Switching Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics:
Upstream Keyers 8 Downstream Keyers 2 Advanced Chroma Keyers 8 SuperSource 1 DVEs 2 Linear/Luma Keyers 11 Transition Keyer (Stinger/DVE) 2 Stinger, 2 DVE. Total Number of Layers 15 Pattern Generators 11 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 32 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Media_Player:
Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 40 Media Pool Clip Capacity 2 x up to 2160p60. Media Player Clip Length in 720 HD 3200 frames. Media Player Clip Length in 1080 HD 1600 frames. Media Player Clip Length in 2160 UHD 400 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Front panel Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 10 lines. Audio Mixer 48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output
Software:
Control Panel Included ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240Â AC. Power Usage 140 W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM 2 M/E Constellation 4K Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Down_Converted_Sdi_Program_Output:
1.0
Sdi_Aux_Outputs:
Any of the 12 SDI outputs.
Total_Multi_Views:
2 x 12G-SDI
Ethernet:
Supports 10/100/1000 BASE-T.
Media_Player_Clip_Length_In_2160_Uhd:
400 frames.
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-4k-sm.jpg?_v=1712577105
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-4k-md.jpg?_v=1712577105
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-4k-xl.jpg?_v=1712577105
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-4k-sm.jpg?_v=1712577105
ATEM 2 M/E Constellation HD
Add to Compare
View Details
ATEM 2 M/E Constellation HD
Price:
HK$13,900
Description:
ATEM 2 M/E Constellation HD is a high definition live production switcher packed with advanced features! The 2 M/E design includes 20 standards converted 3G‑SDI inputs and 12 independent 3G‑SDI aux outputs! It also includes a USB webcam output, SuperSource processor, DVEs, chroma keyers, media players, multiviews and more! You even get built in talkback and a professional built in Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs:
20.0
Total_Video_Outputs:
12.0
Sdi_Rates:
1.5G, 3G
Total_Audio_Inputs:
2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
1 x 5 pin XLR Talkback.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 20 inputs.
Frame_Rate_And_Format_Converters:
On all 20 inputs.
Sdi_Audio_Inputs:
8 Ch embedded audio on all SDIÂ inputs.
Sdi_Audio_Outputs:
16 Ch embedded audio on all SDIÂ outputs.
Sdi_Program_Outputs:
Any of the 12 SDI outputs.
Sdi_Preview_Outputs:
Any of the 12 SDI outputs.
Webcam_Output:
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface:
1 x USB-C supports USB 2.0
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Upstream_Keyers:
8.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
8.0
Supersource:
1.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
11.0
Transition_Keyer_Stingerdve:
2 Stinger, 2Â DVE.
Total_Number_Of_Layers:
15.0
Pattern_Generators:
11.0
Color_Generators:
2.0
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
32.0
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 2 x multi views each configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, M/Es, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard:
HD
Media_Players:
2.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
40.0
Media_Pool_Clip_Capacity:
2 x up to 1080p60.
Media_Player_Clip_Length_In_720hd:
800 frames.
Media_Player_Clip_Length_In_1080hd:
400 frames.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Front_Panel:
Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 10 lines.
Audio_Mixer:
48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240Â AC.
Power_Usage:
52W
Physical_Installation:
Physical Installation 1 Rack Unit Size.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 20 Total Video Outputs 12 SDI Rates 1.5G, 3G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 20 inputs. Frame Rate and Format Converters On all 20 inputs. SDI Aux Outputs Any of the 12 SDI outputs. SDI Preview Outputs Any of the 12 SDI outputs. SDI Program Outputs Any of the 12 SDI outputs. Down Converted SDI Program Output None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 2 x 3G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics:
Upstream Keyers 8 Downstream Keyers 2 Advanced Chroma Keyers 8 SuperSource 1 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 11 Transition Keyer (Stinger/DVE) 2 Stinger, 2 DVE. Total Number of Layers 15 Pattern Generators 11 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 32 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player:
Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 40 Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720 HD 800 frames. Media Player Clip Length in 1080 HD 400 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Front panel Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 10 lines. Audio Mixer 48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240Â AC. Power Usage 52W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM 2 M/E Constellation HD Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Aux_Outputs:
Any of the 12 SDI outputs.
Total_Multi_Views:
2 x 3G-SDI
Ethernet:
Supports 10/100/1000 BASE-T.
Display_Minimum_Resolution:
1366 x 768
Media_Pool_Video_Fileformat:
TGA Sequence.
Media_Pool_Audio_Fileformat:
WAV, MP3 and AIFF.
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-hd-sm.jpg?_v=1649466942
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-hd-md.jpg?_v=1649466942
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-hd-xl.jpg?_v=1649466942
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-2me-constellation-hd-sm.jpg?_v=1649466942

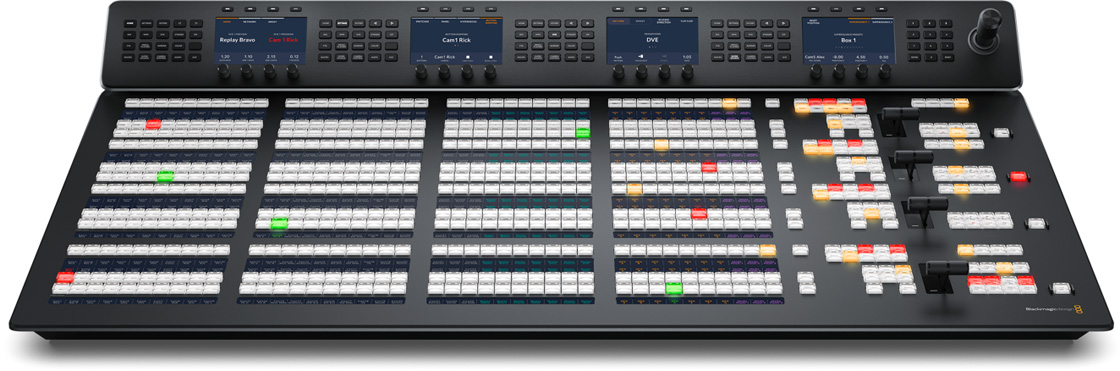

ATEM 4 M/E Advanced Panel 40
Add to Compare
View Details
ATEM 4 M/E Advanced Panel 40
Price:
HK$147,400
Description:
This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
250W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 4 Direct Cross Points 40 Shifted Cross Points 80 Crosspoint Button Type Tri-Color LED Crosspoint Label 10 rows 24 character LCD On-Air indicator 20 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 4 Transition Rate Displays Via main menu LCD Menu Displays 4 Menu Control 4 x 20 buttons Dedicated Macro Buttons 4 x 40 Transport Control Buttons 24 Destination Bus 4 Source Select Bus 4 Fader Bar 4 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 250W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 4 M/E Advanced Panel 40
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
4.0
Direct_Cross_Points:
40.0
Shifted_Cross_Points:
80.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
10 rows 24 character LCD
Onair_Indicator:
20.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
4.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
4.0
Menu_Control:
4 x 20 buttons
Dedicated_Macro_Buttons:
4 x 40
Transport_Control_Buttons:
24.0
Destination_Bus:
4.0
Source_Select_Bus:
4.0
Fader_Bar:
4.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-sm.jpg?_v=1590446412
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-md.jpg?_v=1590446412
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-xl.jpg?_v=1590446411
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-sm.jpg?_v=1590446412
ATEM 4 M/E Constellation 4K
Add to Compare
View Details
ATEM 4 M/E Constellation 4K
Price:
HK$73,700
Description:
ATEM 4 M/E Constellation 4K is a massive 4 M/E Ultra HD live production switcher. It features 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multiviews, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs:
40.0
Total_Video_Outputs:
28.0
Total_Aux_Outputs:
24.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Total_Audio_Inputs:
2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADIÂ in, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADIÂ out, 1 x 5 pin XLR Talkback.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 40 inputs.
Frame_Rate_And_Format_Converters:
On all 40 inputs.
Sdi_Video_Inputs:
40 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Inputs:
8 Ch embedded audio on all SDI inputs.
Extra_Audio_Inputs:
1 x 5 pin XLR Talkback.
Sdi_Video_Outputs:
28 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Outputs:
16 Ch embedded into SDI output on all outputs.
Extra_Audio_Outputs:
1 x 5 pin XLR Talkback.
Sdi_Program_Outputs:
Any of the 24 SDI outputs.
Sdi_Preview_Outputs:
Any of the 24 SDI outputs.
Sdi_Multi_View_Outputs:
4
Webcam_Output:
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Remote:
RJ12 supports RS-422.
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface:
1 x USB-C port.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709, REC 2020.
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers:
16.0
Downstream_Keyers:
4.0
Advanced_Chroma_Keyers:
16.0
Supersource:
2.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
21.0
Transition_Keyer_Stingerdve:
4 Stinger, 4Â DVE.
Total_Number_Of_Layers:
28.0
Pattern_Generators:
21.0
Color_Generators:
2.0
Dves:
4.0
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
64.0
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 4 x 16 Multi View pattern options for up to 64 total views. Multi View Video Standard Select HD or Ultra HD.
Multi_View_Video_Standard:
Select HD or Ultra HD.
Media_Players:
4.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
64.0
Media_Pool_Clip_Capacity:
4
Media_Player_Clip_Length_In_720hd:
3200 frames.
Media_Player_Clip_Length_In_1080hd:
1600 frames.
Media_Player_Clip_Length_In_Ultrahd:
400 frames.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format:
TGA Sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Interface:
Minimum monitor resolution of 1366 x 768.
Front_Panel:
Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 10 lines.
Audio_Mixer:
156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion:
1 x selectable HD down converted output
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later and Windows 10 and 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Na:
Windows 10 and 11.
Power_Supply:
2 x Internal 100 - 240 ACÂ 50/60Hz.
Power_Usage:
255 W
Physical_Installation:
Physical Installation 2 rack units height.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 40 Total Video Outputs 28 Total Aux Outputs 24 SDI Rates 1.5G, 3G, 6G, 12G. Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in, 1 x 5 pin XLR Talkback. Total Audio Outputs 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out, 1 x 5 pin XLR Talkback. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 40 inputs. Frame Rate and Format Converters On all 40 inputs. SDI Video Inputs 40 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. Extra Audio Inputs 1 x 5 pin XLR Talkback. SDI Video Outputs 28 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Outputs 16 Ch embedded into SDI output on all outputs. Extra Audio Outputs 1 x 5 pin XLR Talkback. SDI Program Outputs Any of the 24 SDI outputs. Down Converted SDI Program Output 1 SDI Preview Outputs Any of the 24 SDI outputs. SDI Multi View Outputs 4 HDMI Multi View Outputs None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Remote RJ12 supports RS-422. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Computer Interface 1 x USB-C port.
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709, REC 2020. SDI Auto Switching Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics:
Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 21 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 DVEs 4 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player:
Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 64 Media Pool Clip Capacity 4 Media Player Clip Length in 720 HD 3200 frames. Media Player Clip Length in 1080 HD 1600 frames. Media Player Clip Length in Ultra HD 400 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 10 lines. Audio Mixer 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later and Windows 10 and 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 2 x Internal 100 - 240 ACÂ 50/60Hz. Power Usage 255 W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM 4 M/E Constellation 4K Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Down_Converted_Sdi_Program_Output:
1.0
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-sm.jpg?_v=1680667100
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-md.jpg?_v=1680667100
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-xl.jpg?_v=1680667100
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-sm.jpg?_v=1680667100
ATEM 4 M/E Constellation 4K Plus
Add to Compare
View Details
ATEM 4 M/E Constellation 4K Plus
Price:
HK$106,450
Description:
ATEM 4 M/E Constellation 4K Plus is a massive 4 M/E Ultra HD live production switcher. It features 80 standards converted 12G-SDI inputs, 48 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi-views, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs:
80.0
Total_Video_Outputs:
52.0
Total_Aux_Outputs:
48.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Total_Audio_Inputs:
2 x balanced 1/4 inch jack, 2 x 64 channel BNC MADIÂ in, 1 x 5-pin XLR Talkback.
Total_Audio_Outputs:
2 x balanced 1/4 inch jack, 4 x 64 channel BNC MADIÂ out, 1 x 5-pin XLR Talkback.
Timecode_Connections:
1 x 3-pin XLR Timecode In, 1 x 3-pin XLR Timecode Out.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 80 inputs.
Frame_Rate_And_Format_Converters:
On all 80 inputs.
Sdi_Video_Inputs:
80 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Inputs:
8 Ch embedded audio on all SDI inputs.
Extra_Audio_Inputs:
1 x 5 pin XLR Talkback.
Sdi_Video_Outputs:
52 x 10-bit 720p, 1080i, 1080p, 2160p.
Sdi_Audio_Outputs:
16 Ch embedded into SDI output on all outputs.
Extra_Audio_Outputs:
1 x 5 pin XLR Talkback.
Sdi_Program_Outputs:
Any of the 48 SDI outputs.
Down_Converted_Sdi_Program_Outputs:
8.0
Sdi_Preview_Outputs:
Any of the 48 SDI outputs
Sdi_Multi_View_Outputs:
4 x dedicated outputs, Up to an extra 48 routable outputs.
Webcam_Output:
1 x USB-C supporting 720p or 1080p at program frame rate.
Remote:
RJ12 supports RS-422.
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). On any of the 48 SDI Outputs.
Computer_Interface:
1 x USB-C port.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709, REC 2020.
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Upstream_Keyers:
16.0
Downstream_Keyers:
4.0
Advanced_Chroma_Keyers:
16.0
Supersource:
2.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
20.0
Transition_Keyer_Stingerdve:
4 Stinger, 4Â DVE.
Total_Number_Of_Layers:
28.0
Pattern_Generators:
21.0
Color_Generators:
2.0
Dves:
4.0
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
64.0
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 4 x 16 Multiview pattern options for up to 64 total views. Multi View Video Standard Select HD or Ultra HD.
Multi_View_Video_Standard:
Select HD or Ultra HD.
Media_Players:
4.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
64.0
Media_Pool_Clip_Capacity:
4
Media_Player_Clip_Length_In_720hd:
3200 frames
Media_Player_Clip_Length_In_1080hd:
1600 frames
Media_Player_Clip_Length_In_Ultrahd:
400 frames
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format:
TGA Sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Interface:
Minimum monitor resolution of 1366 x 768.
Front_Panel:
Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 10 lines.
Audio_Mixer:
298 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down_Conversion:
1 x selectable HD down converted output.
Control_Panel_Included:
ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Na:
Windows 10 and 11. Windows 11 for ARM
Power_Supply:
2 x Internal 100 - 240 AC 50/60Hz.
Power_Usage:
400 W max.
Physical_Installation:
Physical Installation 4 rack units height.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 80 Total Video Outputs 52 Total Aux Outputs 48 SDI Rates 1.5G, 3G, 6G, 12G. Total Audio Inputs 2 x balanced 1/4 inch jack, 2 x 64 channel BNC MADI in, 1 x 5-pin XLR Talkback. Total Audio Outputs 2 x balanced 1/4 inch jack, 4 x 64 channel BNC MADI out, 1 x 5-pin XLR Talkback. Timecode Connections 1 x 3-pin XLR Timecode In, 1 x 3-pin XLR Timecode Out. Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 80 inputs. Frame Rate and Format Converters On all 80 inputs. SDI Video Inputs 80 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. Extra Audio Inputs 1 x 5 pin XLR Talkback. SDI Video Outputs 52 x 10-bit 720p, 1080i, 1080p, 2160p. SDI Audio Outputs 16 Ch embedded into SDI output on all outputs. Extra Audio Outputs 1 x 5 pin XLR Talkback. SDI Program Outputs Any of the 48 SDI outputs. Down Converted SDI Program Outputs 8 SDI Preview Outputs Any of the 48 SDI outputs SDI Multi View Outputs 4 x dedicated outputs, Up to an extra 48 routable outputs. HDMI Multi View Outputs None Webcam Output 1 x USB-C supporting 720p or 1080p at program frame rate. Remote RJ12 supports RS-422. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). On any of the 48 SDI Outputs. Computer Interface 1 x USB-C port.
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709, REC 2020. SDI Auto Switching Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product_Specifics:
Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 20 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 DVEs 4 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player:
Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 64 Media Pool Clip Capacity 4 Media Player Clip Length in 720 HD 3200 frames Media Player Clip Length in 1080 HD 1600 frames Media Player Clip Length in Ultra HD 400 frames Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 10 lines. Audio Mixer 298 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion 1 x selectable HD down converted output.
Software:
Control Panel Included ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements:
Power Supply 2 x Internal 100 - 240 AC 50/60Hz. Power Usage 400 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM 4 M/E Constellation 4K Plus Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-plus-sm.jpg?_v=1741303010
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-plus-md.jpg?_v=1741303010
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-plus-xl.jpg?_v=1741303009
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-4k-plus-sm.jpg?_v=1741303010
ATEM 4 M/E Constellation HD
Add to Compare
View Details
ATEM 4 M/E Constellation HD
Price:
HK$30,300
Description:
The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12 x DVEs in total.
Total_Video_Inputs:
40.0
Total_Video_Outputs:
24.0
Sdi_Rates:
1.5G, 3G
Total_Audio_Inputs:
2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADIÂ in. 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADIÂ out. 1 x 5 pin XLR Talkback.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 40 inputs.
Frame_Rate_And_Format_Converters:
On all 40 inputs.
Sdi_Audio_Inputs:
8 Ch embedded audio on all SDIÂ inputs.
Sdi_Audio_Outputs:
16 Ch embedded audio on all SDIÂ outputs.
Sdi_Program_Outputs:
Any of the 24 SDI outputs.
Sdi_Preview_Outputs:
Any of the 24 SDI outputs.
Webcam_Output:
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Remote:
RJ12 supports RS-422
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface:
1 x USB-C supports USB 2.0
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Upstream_Keyers:
16.0
Downstream_Keyers:
4.0
Advanced_Chroma_Keyers:
16.0
Supersource:
2.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
21.0
Transition_Keyer_Stingerdve:
4 Stinger, 4Â DVE.
Total_Number_Of_Layers:
28.0
Pattern_Generators:
21.0
Color_Generators:
2.0
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
64.0
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 4 x multi views each configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, M/Es, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard:
HD
Media_Players:
4.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
60.0
Media_Pool_Clip_Capacity:
4 x up to 1080p60.
Media_Player_Clip_Length_In_720hd:
1200 frames.
Media_Player_Clip_Length_In_1080hd:
600 frames.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Front_Panel:
Built in 5 inch HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 10 lines.
Audio_Mixer:
156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
2 x Internal 100 - 240Â AC.
Power_Usage:
147W estimated.
Physical_Installation:
Physical Installation 2 Rack Unit Size.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 40 Total Video Outputs 24 SDI Rates 1.5G, 3G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in. 1 x 5 pin XLR Talkback. Total Audio Outputs 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out. 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 40 inputs. Frame Rate and Format Converters On all 40 inputs. SDI Aux Outputs Any of the 24 SDI outputs. SDI Preview Outputs Any of the 24 SDI outputs. SDI Program Outputs Any of the 24 SDI outputs. Down Converted SDI Program Output None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 4 x 3G-SDI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics:
Upstream Keyers 16 Downstream Keyers 4 Advanced Chroma Keyers 16 SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 21 Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE. Total Number of Layers 28 Pattern Generators 21 Color Generators 2 Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player:
Media Players 4 Channels Fill and key for each media player. Media Pool Still Image Capacity 60 Media Pool Clip Capacity 4 x up to 1080p60. Media Player Clip Length in 720 HD 1200 frames. Media Player Clip Length in 1080 HD 600 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Front panel Built in 5 inch HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 10 lines. Audio Mixer 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 2 x Internal 100 - 240Â AC. Power Usage 147W estimated.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM 4 M/E Constellation HD Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Aux_Outputs:
Any of the 24 SDI outputs.
Total_Multi_Views:
4 x 3G-SDI
Ethernet:
Supports 10/100/1000 BASE-T.
Display_Minimum_Resolution:
1366 x 768
Media_Pool_Video_Fileformat:
TGA Sequence.
Media_Pool_Audio_Fileformat:
WAV, MP3 and AIFF.
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-hd-sm.jpg?_v=1649466943
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-hd-md.jpg?_v=1649466943
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-hd-xl.jpg?_v=1649466943
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation/techspecs/hero/atem-4me-constellation-hd-sm.jpg?_v=1649466943
ATEM Camera Control Panel
Add to Compare
View Details
ATEM Camera Control Panel
Price:
HK$24,550
Description:
The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
30W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
LCD Menu Displays 4 Camera Number Display Green off air, red on air. Setup White and black balance setup. 3 Axis Joystick 4 Preview Button 4 Iris Control Auto Iris On, Coarse control. Panel Active Protects settings.
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240VÂ AC. DC Power 12-30V 3A. Redundant Power Yes Power Usage 30W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM Camera Control Panel
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Lcd_Menu_Displays:
4.0
Col_3_Axis_Joystick:
4.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
1 x Internal 100 - 240VÂ AC.
Redundant_Power:
Yes
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup.
Preview_Button:
4.0
Iris_Control:
Auto Iris On, Coarse control.
Panel_Active:
Protects settings.
Dc_Power:
12-30V 3A.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-md.jpg?_v=1528776866
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-xl.jpg?_v=1528776866
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866
ATEM Micro Camera Panel
Add to Compare
View Details
ATEM Micro Camera Panel
Price:
HK$4,900
Description:
ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Computer_Interface:
USB Type‑C.
Software_Updates:
1 x USB‑C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
4 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE Software Updates 1 x USB‑C for firmware updates.
Product_Specifics:
Camera Selection buttons 8 x NKK buttons. Assignable via setup utility. Camera Number Display Green off air, red on air. Setup White and black balance setup. Flare via modifier key. 3 Axis Joystick 1 Preview Button 1 Iris Control Auto Iris On, Coarse control. Iris Range CLS f32 to f1.2 Gain Range -12dB to +32dB ND Filters 0, 2, 4, 6. Shutter Range 1/24 to 1/2000 White Balance Range 2500K to 10,000K Recallable Scenes 5 per camera. Panel Active Protects settings.
Software:
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 4 W max. Battery Life Minimum 3 hours. (under normal use)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Micro Camera Panel Welcome wallet with QR code for software download 1 x USB‑C cable
Warranty:
1 Year Limited Manufacturer’s Warranty.
Col_3_Axis_Joystick:
1.0
Software_Applications:
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup. Flare via modifier key.
Preview_Button:
1.0
Iris_Control:
Auto Iris On, Coarse control.
Panel_Active:
Protects settings.
Bluetooth:
Bluetooth 5.1Â LE
Camera_Selection_Buttons:
8 x NKKÂ buttons. Assignable via setup utility.
Iris_Range:
CLS f32 to f1.2
Gain_Range:
-12dB to +32dB
Nd_Filters:
0, 2, 4, 6.
Shutter_Range:
1/24 to 1/2000
White_Balance_Range:
2500K to 10,000K
Recallable_Scenes:
5 per camera.
Battery_Life:
Minimum 3 hours. (under normal use)
Src:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-md.jpg?_v=1746147752
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-xl.jpg?_v=1746147752
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
ATEM Micro Panel
Add to Compare
View Details
ATEM Micro Panel
Price:
HK$5,550
Description:
The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!
Computer_Interface:
USB Type‑C.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
3 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Preview Transition 1 Switching Type Buttons CUT and AUTO Transition Type Buttons DIP, DVE, STINGER, MIX, WIPE. M/E Select Buttons 4 Upstream Key Buttons 4 with ON/OFF Downstream Key Buttons 2 with ON/OFF Transition Slider 1
Software:
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 3 W max. Battery Life Minimum 6 hours. (under normal use)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Micro Panel Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
10.0
Shifted_Cross_Points:
20.0
Crosspoint_Button_Type:
Tri-Color LED
Preview_Transition:
1.0
Software_Applications:
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Bluetooth:
Bluetooth 5.1Â LE
Battery_Life:
Minimum 6 hours. (under normal use)
Switching_Type_Buttons:
CUT and AUTO
Transition_Type_Buttons:
DIP, DVE, STINGER, MIX, WIPE.
Me_Select_Buttons:
4.0
Upstream_Key_Buttons:
4 with ON/OFF
Downstream_Key_Buttons:
2 with ON/OFF
Transition_Slider:
1.0
Src:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-sm.jpg?_v=1712619334
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-md.jpg?_v=1712619334
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-xl.jpg?_v=1712619333
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-sm.jpg?_v=1712619334
GPI and Tally Interface
Add to Compare
View Details
GPI and Tally Interface
Price:
HK$4,100
Description:
Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.
Computer_Interface:
1 x USB 2.0 high speed interface for configuration and firmware updates.
Na:
Windows 10 and 11.
Power_Supply:
12V power supply included with international socket adaptors for all countries.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20 - 60 degrees celsius
Relative_Humidity:
Up to 95%
Connections:
Contact Closure 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs. Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates. Inputs Optical isolators triggered by connection to ground. Max 5V at 14mA. Outputs Mechanical relay contact closure to ground. Max 30V at 1A. Ethernet 10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
Software:
Software Included Configured via ATEM Switcher Utility. Internal Software Upgrade Firmware built into software driver. Loaded at system startup or via updater software.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 12V power supply included with international socket adaptors for all countries.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20 - 60 degrees celsius Relative Humidity Up to 95%
Whats_Included:
GPI and Tally Interface Software CD Power Supply
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
Contact_Closure:
25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
Inputs:
Optical isolators triggered by connection to ground. Max 5V at 14mA.
Outputs:
Mechanical relay contact closure to ground. Max 30V at 1A.
Software_Included:
Configured via ATEM Switcher Utility.
Internal_Software_Upgrade:
Firmware built into software driver. Loaded at system startup or via updater software.
Src:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-sm.jpg?_v=1515554625
Col_1120w:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-md.jpg?_v=1515554625
Col_1324w:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-xl.jpg?_v=1515554625
Col_662w:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-sm.jpg?_v=1515554625
ATEM 1 M/E Advanced Panel 10
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 10
Price:
HK$24,550
Description:
The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.
Software_Updates:
1 x USB-C for firmware updates
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
45W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers Software Updates 1 x USB-C for firmware updates
Product_Specifics:
Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 3 rows 24 character LCD On-Air indicator 4 Power Status Indicators None DSK Transition Selectors Auto, Cut, Tie/Preview. Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 20 buttons Dedicated Macro Buttons 10 Multi Control Buttons None Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 45W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 1 M/E Advanced Panel 10
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers
Shifted_Cross_Points:
20.0
Menu_Control:
20 buttons
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
1 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Direct_Crosspoints:
10.0
Crosspoint_Buttontype:
Tri-Color LED
Crosspointlabel:
3 rows 24 character LCD
Onairindicator:
4.0
Dsk_Transitionselectors:
Auto, Cut, Tie/Preview.
Previewtransition:
1.0
Transition_Ratedisplays:
Via main menu
Lcd_Menudisplays:
3.0
Dedicated_Macrobuttons:
10.0
Destinationbus:
1.0
Source_Selectbus:
1.0
Faderbar:
1.0
Col_3_Axisjoystick:
1.0
Numerickeypad:
1.0
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-md.jpg?_v=1515554623
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-xl.jpg?_v=1515554623
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623
ATEM 1 M/E Advanced Panel 20
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 20
Price:
HK$31,100
Description:
The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
75W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 95% non-condensing
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 20 Shifted Cross Points 40 Crosspoint Button Type Tri-Color LED Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 2 Menu Control 2 x 20 buttons Dedicated Macro Buttons 1 x 20 Transport Control Buttons 8 Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 75W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 95% non-condensing
Whats_Included:
ATEM 1 M/E Advanced Panel 20 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
20.0
Shifted_Cross_Points:
40.0
Crosspoint_Button_Type:
Tri-Color LED
Preview_Transition:
1.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
2.0
Menu_Control:
2 x 20 buttons
Dedicated_Macro_Buttons:
1 x 20
Transport_Control_Buttons:
8.0
Destination_Bus:
1.0
Source_Select_Bus:
1.0
Fader_Bar:
1.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-sm.jpg?_v=1694134671
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-md.jpg?_v=1694134671
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-xl.jpg?_v=1694134670
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-20-sm.jpg?_v=1694134671
ATEM 1 M/E Advanced Panel 30
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 30
Price:
HK$45,050
Description:
The ATEM 1 M/E Advanced Panel 30 features a single M/E row, 30 input button design that is ideal for switching big productions from desk surfaces that are not deep enough for a bigger panel. It has 3 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and it also includes an independent select bus! Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
80W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 95% non-condensing
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 30 Shifted Cross Points 60 Crosspoint Button Type Tri-Color LED Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 3 x 20 buttons Dedicated Macro Buttons 1 x 30 Transport Control Buttons 8 Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 80W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 95% non-condensing
Whats_Included:
ATEM 1 M/E Advanced Panel 30 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
30.0
Shifted_Cross_Points:
60.0
Crosspoint_Button_Type:
Tri-Color LED
Preview_Transition:
1.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
3.0
Menu_Control:
3 x 20 buttons
Dedicated_Macro_Buttons:
1 x 30
Transport_Control_Buttons:
8.0
Destination_Bus:
1.0
Source_Select_Bus:
1.0
Fader_Bar:
1.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-sm.jpg?_v=1694134671
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-md.jpg?_v=1694134671
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-xl.jpg?_v=1694134671
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-30-sm.jpg?_v=1694134671
ATEM 2 M/E Advanced Panel 20
Add to Compare
View Details
ATEM 2 M/E Advanced Panel 20
Price:
HK$49,100
Description:
The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
100W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 2 Direct Cross Points 20 Shifted Cross Points 40 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 8 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 2 Menu Control 2 x 20 buttons Dedicated Macro Buttons 2 x 20 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 100W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 2 M/E Advanced Panel 20
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
2.0
Direct_Cross_Points:
20.0
Shifted_Cross_Points:
40.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Onair_Indicator:
8.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
2.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
2.0
Menu_Control:
2 x 20 buttons
Dedicated_Macro_Buttons:
2 x 20
Transport_Control_Buttons:
8.0
Destination_Bus:
2.0
Source_Select_Bus:
2.0
Fader_Bar:
2.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-sm.jpg?_v=1589946755
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-md.jpg?_v=1589946754
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-xl.jpg?_v=1589946754
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-20-sm.jpg?_v=1589946755
ATEM 2 M/E Advanced Panel 30
Add to Compare
View Details
ATEM 2 M/E Advanced Panel 30
Price:
HK$63,050
Description:
The 2 M/E model features 2 M/E rows with 30 input buttons and 3 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
120W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 2 Direct Cross Points 30 Shifted Cross Points 60 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 12 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 3 x 20 buttons Dedicated Macro Buttons 2 x 30 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 120W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 2 M/E Advanced Panel 30 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
2.0
Direct_Cross_Points:
30.0
Shifted_Cross_Points:
60.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Onair_Indicator:
12.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
2.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
3.0
Menu_Control:
3 x 20 buttons
Dedicated_Macro_Buttons:
2 x 30
Transport_Control_Buttons:
8.0
Destination_Bus:
2.0
Source_Select_Bus:
2.0
Fader_Bar:
2.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-sm.jpg?_v=1653873428
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-md.jpg?_v=1653873427
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-xl.jpg?_v=1653873426
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-30-sm.jpg?_v=1653873428
ATEM 2 M/E Advanced Panel 40
Add to Compare
View Details
ATEM 2 M/E Advanced Panel 40
Price:
HK$80,250
Description:
The 2 M/E model features 2 M/E rows with 40 input buttons and 4 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 2 Direct Cross Points 40 Shifted Cross Points 80 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD On-Air indicator 12 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 2 Transition Rate Displays Via main menu LCD Menu Displays 4 Menu Control 4 x 20 buttons Dedicated Macro Buttons 2 x 40 Transport Control Buttons 8 Destination Bus 2 Source Select Bus 2 Fader Bar 2 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 160W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 2 M/E Advanced Panel 40 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
2.0
Direct_Cross_Points:
40.0
Shifted_Cross_Points:
80.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Onair_Indicator:
12.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
2.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
4.0
Menu_Control:
4 x 20 buttons
Dedicated_Macro_Buttons:
2 x 40
Transport_Control_Buttons:
8.0
Destination_Bus:
2.0
Source_Select_Bus:
2.0
Fader_Bar:
2.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-sm.jpg?_v=1679011694
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-md.jpg?_v=1679011693
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-xl.jpg?_v=1679011693
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-2me-advanced-panel-40-sm.jpg?_v=1679011694
ATEM 4 M/E Advanced Panel 40
Add to Compare
View Details
ATEM 4 M/E Advanced Panel 40
Price:
HK$147,400
Description:
This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
250W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 4 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
Number of Mix Effects Rows 4 Direct Cross Points 40 Shifted Cross Points 80 Crosspoint Button Type Tri-Color LED Crosspoint Label 10 rows 24 character LCD On-Air indicator 20 Power Status Indicators None DSK Transition Selectors 4 x Auto, Cut, Tie/Preview Preview Transition 4 Transition Rate Displays Via main menu LCD Menu Displays 4 Menu Control 4 x 20 buttons Dedicated Macro Buttons 4 x 40 Transport Control Buttons 24 Destination Bus 4 Source Select Bus 4 Fader Bar 4 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 2 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 250W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 4 M/E Advanced Panel 40
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Number_Of_Mix_Effects_Rows:
4.0
Direct_Cross_Points:
40.0
Shifted_Cross_Points:
80.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
10 rows 24 character LCD
Onair_Indicator:
20.0
Dsk_Transition_Selectors:
4 x Auto, Cut, Tie/Preview
Preview_Transition:
4.0
Transition_Rate_Displays:
Via main menu
Lcd_Menu_Displays:
4.0
Menu_Control:
4 x 20 buttons
Dedicated_Macro_Buttons:
4 x 40
Transport_Control_Buttons:
24.0
Destination_Bus:
4.0
Source_Select_Bus:
4.0
Fader_Bar:
4.0
Col_3_Axis_Joystick:
1.0
Numeric_Keypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
2 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-sm.jpg?_v=1590446412
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-md.jpg?_v=1590446412
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-xl.jpg?_v=1590446411
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-4me-advanced-panel-sm.jpg?_v=1590446412
ATEM Camera Control Panel
Add to Compare
View Details
ATEM Camera Control Panel
Price:
HK$24,550
Description:
The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.
Software_Updates:
1 x USB-C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
30W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Product_Specifics:
LCD Menu Displays 4 Camera Number Display Green off air, red on air. Setup White and black balance setup. 3 Axis Joystick 4 Preview Button 4 Iris Control Auto Iris On, Coarse control. Panel Active Protects settings.
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240VÂ AC. DC Power 12-30V 3A. Redundant Power Yes Power Usage 30W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM Camera Control Panel
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Lcd_Menu_Displays:
4.0
Col_3_Axis_Joystick:
4.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
1 x Internal 100 - 240VÂ AC.
Redundant_Power:
Yes
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup.
Preview_Button:
4.0
Iris_Control:
Auto Iris On, Coarse control.
Panel_Active:
Protects settings.
Dc_Power:
12-30V 3A.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-md.jpg?_v=1528776866
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-xl.jpg?_v=1528776866
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866
ATEM Constellation 8K
Add to Compare
View Details
ATEM Constellation 8K
Price:
HK$92,100
Description:
Ultra HD live production switcher with so many features, you can combine them all to make an incredibly powerful 8K switcher! This massive 4 M/E switcher features 40 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multiviews, 2 SuperSource processors and even standards conversion on all inputs! When switched to work in 8K, all of these features combine to make a powerful native 8K switcher! You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Total_Video_Inputs:
40 x up to Ultra HD / 10 x in 8K
Total_Video_Outputs:
28 x up to Ultra HD / 7 x in 8K
Total_Aux_Outputs:
24 x up to Ultra HD / 6 x in 8K
Sdi_Rates:
1.5G, 3G, 6G, 12G
Total_Audio_Inputs:
2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADIÂ in.
Total_Audio_Outputs:
2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADIÂ out.
Reference_Input:
Tri-Sync or Black Burst.
Video_Input_Resync:
On all 40 inputs.
Frame_Rate_And_Format_Converters:
On all 40 inputs.
Sdi_Video_Inputs:
40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable.
Extra_Audio_Outputs:
1 x 5 pin XLRÂ Talkback.
Sdi_Audio_Outputs:
16 Ch embedded into SDI output on all outputs.
Extra_Audio_Inputs:
1 x 5 pin XLR Talkback.
Sdi_Program_Outputs:
Any of the 24 SDI outputs.
Sdi_Preview_Outputs:
Any of the 24 SDI outputs.
Total_Multi_Views:
4 x up to Ultra HD / 1 x in 8K
Sdi_Multi_View_Outputs:
4.0
Remote:
RJ12 supports RS-422
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer_Interface:
1 x USB 2.0 port.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94, 2160p59.94, 2160p60
Col_8k_Video_Standards:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94, 4320p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
REC 709, REC 2020.
Sdi_Auto_Switching:
Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode.
Upstream_Keyers:
16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key.
Downstream_Keyers:
4 x up to Ultra HD / 2 x in 8K.
Advanced_Chroma_Keyers:
16 x up to Ultra HD / 4 x in 8K.
Supersource:
2.0
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Linearluma_Keyers:
21 x up to Ultra HD / 7 x in 8K
Transition_Keyer_Stingerdve:
4 Stinger, 4Â DVE .
Total_Number_Of_Layers:
28 x up to Ultra HD / 7 x in 8K
Pattern_Generators:
21 x up to Ultra HD / 9 x in 8K
Color_Generators:
2.0
Dve_With_3d_Borders_Drop_Shadow:
4 x up to Ultra HD / 1 x in 8K
Control_Panel:
Front fascia emergency switching, software or optional hardware panel.
Routable_Windows:
64 x up to Ultra HD / 16 x in 8K
Tally:
Red for program and green for preview indication.
Windows_Source_Labels:
Yes
Multi_View_Monitoring:
Multi View Monitoring 4 x 16 Multi View pattern options for up to 64 total views. Multi View Video Standard Select HD, Ultra HD or 8K.
Multi_View_Video_Standard:
Select HD, Ultra HD or 8K.
Media_Players:
4 x up to Ultra HD / 1 x in 8K
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
64 x up to Ultra HD / 24 x in 8K with fill and key.
Media_Pool_Clip_Capacity:
4 x up to Ultra HD / 2 x in 8K with fill and key.
Media_Player_Clip_Length_In_720hd:
3200 frames.
Media_Player_Clip_Length_In_1080hd:
1600 frames.
Media_Player_Clip_Length_In_Ultrahd:
400 frames.
Media_Player_Clip_Length_In_8k:
100 frames.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format:
TGA Sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Interface:
Minimum monitor resolution of 1366 x 768.
Front_Panel:
Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing_Delay:
< 7 lines in up to Ultra HD / in 10 lines in 8K
Audio_Mixer:
156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
2 x Internal 100 - 240Â AC.
Power_Usage:
300W
Physical_Installation:
Physical Installation 2 Rack Unit Size.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 40 x up to Ultra HD / 10 x in 8K Total Video Outputs 28 x up to Ultra HD / 7 x in 8K Total Aux Outputs 24 x up to Ultra HD / 6 x in 8K SDI Rates 1.5G, 3G, 6G, 12G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in. Total Audio Outputs 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 40 inputs. Frame Rate and Format Converters On all 40 inputs. SDI Video Inputs 40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable. Extra Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Outputs 16 Ch embedded into SDI output on all outputs. Extra Audio Inputs 1 x 5 pin XLR Talkback. SDI Program Outputs Any of the 24 SDI outputs. Down Converted SDI Program Output None SDI Preview Outputs Any of the 24 SDI outputs. Total Multi Views 4 x up to Ultra HD / 1 x in 8K SDI Multi View Outputs 4 HDMI Multi View Outputs None Remote RJ12 supports RS-422 Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Computer Interface 1 x USB 2.0 port.
Standards:
SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94, 2160p59.94, 2160p60 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94, 4320p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12. Video Sampling 4:2:2 Color Precision 10-bit. Color Space REC 709, REC 2020. SDI Auto Switching Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode.
Product_Specifics:
Upstream Keyers 16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key. Downstream Keyers 4 x up to Ultra HD / 2 x in 8K. Advanced Chroma Keyers 16 x up to Ultra HD / 4 x in 8K. SuperSource 2 Talkback Support Yes Mix Minus Support Yes Linear/Luma Keyers 21 x up to Ultra HD / 7 x in 8K Transition Keyer (Stinger/DVE) 4 Stinger, 4 DVE . Total Number of Layers 28 x up to Ultra HD / 7 x in 8K Pattern Generators 21 x up to Ultra HD / 9 x in 8K Color Generators 2 DVE with 3D Borders & Drop Shadow 4 x up to Ultra HD / 1 x in 8K Control Panel Front fascia emergency switching, software or optional hardware panel. Routable Windows 64 x up to Ultra HD / 16 x in 8K Tally Red for program and green for preview indication. Windows Source Labels Yes
Media_Player:
Media Players 4 x up to Ultra HD / 1 x in 8K Channels Fill and key for each media player. Media Pool Still Image Capacity 64 x up to Ultra HD / 24 x in 8K with fill and key. Media Pool Clip Capacity 4 x up to Ultra HD / 2 x in 8K with fill and key. Media Player Clip Length in 720 HD 3200 frames. Media Player Clip Length in 1080 HD 1600 frames. Media Player Clip Length in Ultra HD 400 frames. Media Player Clip Length in 8K 100 frames. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Display:
Interface Minimum monitor resolution of 1366 x 768. Front panel Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing:
Processing Delay < 7 lines in up to Ultra HD / in 10 lines in 8K Audio Mixer 156 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Down Conversion None
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 2 x Internal 100 - 240Â AC. Power Usage 300W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Constellation 8K Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemconstellation8k/techspecs/hero/atem-constellation-8k-sm.jpg?_v=1556767297
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemconstellation8k/techspecs/hero/atem-constellation-8k-md.jpg?_v=1556767296
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemconstellation8k/techspecs/hero/atem-constellation-8k-xl.jpg?_v=1556767296
Col_662w:
https://images.blackmagicdesign.com/images/products/atemconstellation8k/techspecs/hero/atem-constellation-8k-sm.jpg?_v=1556767297
ATEM Micro Camera Panel
Add to Compare
View Details
ATEM Micro Camera Panel
Price:
HK$4,900
Description:
ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Computer_Interface:
USB Type‑C.
Software_Updates:
1 x USB‑C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
4 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE Software Updates 1 x USB‑C for firmware updates.
Product_Specifics:
Camera Selection buttons 8 x NKK buttons. Assignable via setup utility. Camera Number Display Green off air, red on air. Setup White and black balance setup. Flare via modifier key. 3 Axis Joystick 1 Preview Button 1 Iris Control Auto Iris On, Coarse control. Iris Range CLS f32 to f1.2 Gain Range -12dB to +32dB ND Filters 0, 2, 4, 6. Shutter Range 1/24 to 1/2000 White Balance Range 2500K to 10,000K Recallable Scenes 5 per camera. Panel Active Protects settings.
Software:
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 4 W max. Battery Life Minimum 3 hours. (under normal use)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Micro Camera Panel Welcome wallet with QR code for software download 1 x USB‑C cable
Warranty:
1 Year Limited Manufacturer’s Warranty.
Col_3_Axis_Joystick:
1.0
Software_Applications:
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup. Flare via modifier key.
Preview_Button:
1.0
Iris_Control:
Auto Iris On, Coarse control.
Panel_Active:
Protects settings.
Bluetooth:
Bluetooth 5.1Â LE
Camera_Selection_Buttons:
8 x NKKÂ buttons. Assignable via setup utility.
Iris_Range:
CLS f32 to f1.2
Gain_Range:
-12dB to +32dB
Nd_Filters:
0, 2, 4, 6.
Shutter_Range:
1/24 to 1/2000
White_Balance_Range:
2500K to 10,000K
Recallable_Scenes:
5 per camera.
Battery_Life:
Minimum 3 hours. (under normal use)
Src:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-md.jpg?_v=1746147752
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-xl.jpg?_v=1746147752
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
GPI and Tally Interface
Add to Compare
View Details
GPI and Tally Interface
Price:
HK$4,100
Description:
Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.
Computer_Interface:
1 x USB 2.0 high speed interface for configuration and firmware updates.
Na:
Windows 10 and 11.
Power_Supply:
12V power supply included with international socket adaptors for all countries.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20 - 60 degrees celsius
Relative_Humidity:
Up to 95%
Connections:
Contact Closure 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs. Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates. Inputs Optical isolators triggered by connection to ground. Max 5V at 14mA. Outputs Mechanical relay contact closure to ground. Max 30V at 1A. Ethernet 10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
Software:
Software Included Configured via ATEM Switcher Utility. Internal Software Upgrade Firmware built into software driver. Loaded at system startup or via updater software.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 12V power supply included with international socket adaptors for all countries.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20 - 60 degrees celsius Relative Humidity Up to 95%
Whats_Included:
GPI and Tally Interface Software CD Power Supply
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ethernet:
10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
Contact_Closure:
25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
Inputs:
Optical isolators triggered by connection to ground. Max 5V at 14mA.
Outputs:
Mechanical relay contact closure to ground. Max 30V at 1A.
Software_Included:
Configured via ATEM Switcher Utility.
Internal_Software_Upgrade:
Firmware built into software driver. Loaded at system startup or via updater software.
Src:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-sm.jpg?_v=1515554625
Col_1120w:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-md.jpg?_v=1515554625
Col_1324w:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-xl.jpg?_v=1515554625
Col_662w:
https://images.blackmagicdesign.com/images/products/production-accessories/techspecs/hero/gpi-and-tally-interface-sm.jpg?_v=1515554625
ATEM 1 M/E Advanced Panel 10
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 10
Price:
HK$24,550
Description:
The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers
Software_Updates:
1 x USB-C for firmware updates
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
45W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers Software Updates 1 x USB-C for firmware updates
Product_Specifics:
Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 3 rows 24 character LCD On-Air indicator 4 Power Status Indicators None DSK Transition Selectors Auto, Cut, Tie/Preview. Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 20 buttons Dedicated Macro Buttons 10 Multi Control Buttons None Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 45W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 1 M/E Advanced Panel 10
Warranty:
1 Year Limited Manufacturer’s Warranty.
Direct_Crosspoints:
10.0
Shifted_Cross_Points:
20.0
Crosspoint_Buttontype:
Tri-Color LED
Crosspointlabel:
3 rows 24 character LCD
Onairindicator:
4.0
Dsk_Transitionselectors:
Auto, Cut, Tie/Preview.
Previewtransition:
1.0
Transition_Ratedisplays:
Via main menu
Lcd_Menudisplays:
3.0
Menu_Control:
20 buttons
Dedicated_Macrobuttons:
10.0
Destinationbus:
1.0
Source_Selectbus:
1.0
Faderbar:
1.0
Col_3_Axisjoystick:
1.0
Numerickeypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
1 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-md.jpg?_v=1515554623
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-xl.jpg?_v=1515554623
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623
ATEM Micro Camera Panel
Add to Compare
View Details
ATEM Micro Camera Panel
Price:
HK$4,900
Description:
ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Computer_Interface:
USB Type‑C.
Software_Updates:
1 x USB‑C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
4 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE Software Updates 1 x USB‑C for firmware updates.
Product_Specifics:
Camera Selection buttons 8 x NKK buttons. Assignable via setup utility. Camera Number Display Green off air, red on air. Setup White and black balance setup. Flare via modifier key. 3 Axis Joystick 1 Preview Button 1 Iris Control Auto Iris On, Coarse control. Iris Range CLS f32 to f1.2 Gain Range -12dB to +32dB ND Filters 0, 2, 4, 6. Shutter Range 1/24 to 1/2000 White Balance Range 2500K to 10,000K Recallable Scenes 5 per camera. Panel Active Protects settings.
Software:
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 4 W max. Battery Life Minimum 3 hours. (under normal use)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Micro Camera Panel Welcome wallet with QR code for software download 1 x USB‑C cable
Warranty:
1 Year Limited Manufacturer’s Warranty.
Software_Applications:
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Bluetooth:
Bluetooth 5.1Â LE
Camera_Selection_Buttons:
8 x NKKÂ buttons. Assignable via setup utility.
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup. Flare via modifier key.
Col_3_Axis_Joystick:
1.0
Preview_Button:
1.0
Iris_Control:
Auto Iris On, Coarse control.
Iris_Range:
CLS f32 to f1.2
Gain_Range:
-12dB to +32dB
Nd_Filters:
0, 2, 4, 6.
Shutter_Range:
1/24 to 1/2000
White_Balance_Range:
2500K to 10,000K
Recallable_Scenes:
5 per camera.
Panel_Active:
Protects settings.
Battery_Life:
Minimum 3 hours. (under normal use)
Src:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-md.jpg?_v=1746147752
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-xl.jpg?_v=1746147752
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
ATEM Micro Panel
Add to Compare
View Details
ATEM Micro Panel
Price:
HK$5,550
Description:
The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!
Computer_Interface:
USB Type‑C.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
10.0
Crosspoint_Button_Type:
Tri-Color LED
Preview_Transition:
1.0
Transition_Type_Buttons:
DIP, DVE, STINGER, MIX, WIPE.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
3 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Preview Transition 1 Switching Type Buttons CUT and AUTO Transition Type Buttons DIP, DVE, STINGER, MIX, WIPE. M/E Select Buttons 4 Upstream Key Buttons 4 with ON/OFF Downstream Key Buttons 2 with ON/OFF Transition Slider 1
Software:
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 3 W max. Battery Life Minimum 6 hours. (under normal use)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Micro Panel Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Shifted_Cross_Points:
20.0
Software_Applications:
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Bluetooth:
Bluetooth 5.1Â LE
Battery_Life:
Minimum 6 hours. (under normal use)
Switching_Type_Buttons:
CUT and AUTO
Me_Select_Buttons:
4.0
Upstream_Key_Buttons:
4 with ON/OFF
Downstream_Key_Buttons:
2 with ON/OFF
Transition_Slider:
1.0
Src:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-sm.jpg?_v=1712619334
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-md.jpg?_v=1712619334
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-xl.jpg?_v=1712619333
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-sm.jpg?_v=1712619334
ATEM Mini Extreme
Add to Compare
View Details
ATEM Mini Extreme
Price:
HK$8,150
Description:
ATEM Mini Extreme is an advanced switcher for true professionals! You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players, and a multiview with up to 16Â views!
Total_Video_Inputs:
8.0
Total_Outputs:
4.0
Total_Aux_Outputs:
2.0
Hdmi_Video_Inputs:
8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Program_Outputs:
2.0
Total_Audio_Inputs:
2 x 3.5mm stereo mini jack.
Total_Audio_Outputs:
1 x 3.5mm stereo mini jack.
Video_Input_Resync:
On all 8 HDMI inputs.
Frame_Rate_And_Format_Converters:
On all 8 HDMI inputs.
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Ethernet:
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface:
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
Rec 709
Hdmi_Input_Resolutions_From_Computers:
1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace_Conversion:
Hardware based real time.
Upstream_Keyers:
4.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
Up to 4
Linearluma_Keyers:
Up to 4
Color_Generators:
2.0
Control_Panel:
Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Audio_Mixer:
11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input:
Unbalanced stereo
Analog_Input_Delay:
Up to 8Â frames
Mic_Plug_In_Power:
Available on both 3.5mm mini jack connections.
Direct_Streaming:
ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording:
1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AACÂ audio.
Media_Format:
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring:
Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard:
HD
Media_Players:
2.0
Channels:
Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity:
20 with fill and key.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel_Compatibility:
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x External 12V power supply.
Power_Usage:
36W
Operating_Temperature:
5° C to 40° C (41° - 104° F)
Storage_Temperature:
-10° to 60° C (14° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 8 Total Outputs 4 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs 1 x 3.5mm stereo mini jack. Timecode Connection None HDMI Video Inputs 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 8 HDMI inputs. Frame Rate and Format Converters On all 8 HDMI inputs. HDMI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product_Specifics:
Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers Up to 4 Linear/Luma Keyers Up to 4 Transition Keyer DVE only. Total Number of Layers 9 Pattern Generators 5 Color Generators 2 DVE With Borders and Drop Shadow 2 Interface Minimum monitor resolution of 1366 x 768.
Audio:
Audio Mixer 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming:
Direct Streaming ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording:
Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 2 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control:
Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software:
Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications:
Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Mini Extreme External 12V DC power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Transition_Keyer:
DVE only.
Pattern_Generators:
5.0
Interface:
Minimum monitor resolution of 1366 x 768.
Input_Impedance:
1.8k
Total_Number_Of_Layers:
9.0
Dve_With_Borders_And_Drop_Shadow:
2.0
Max_Input_Level:
+6dBV
Src:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-sm.jpg?_v=1610674761
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-md.jpg?_v=1610674761
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-xl.jpg?_v=1610674761
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-sm.jpg?_v=1610674761
ATEM Mini Extreme ISO G2
Add to Compare
View Details
ATEM Mini Extreme ISO G2
Price:
HK$16,350
Description:
ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.
Total_Video_Inputs:
9.0
Total_Outputs:
4.0
Total_Aux_Outputs:
4.0
Sdi_Rates:
1.5G, 3G
Hdmi_Video_Inputs:
8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Video_Outputs:
3.0
Hdmi_Program_Outputs:
3.0
Total_Audio_Inputs:
2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio.
Total_Audio_Outputs:
1 x 6.35mm headphone jack
Video_Input_Resync:
On all 8 HDMI inputs and remote sources
Frame_Rate_And_Format_Converters:
On all 8 HDMI inputs and remote sources
Webcam_Output:
2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views:
1 x HDMI 1 x Webcam
Control_Panel_Connection:
Ethernet supports 10/100/1000/10G BaseT. Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Internal_Timecode_Generator:
Yes
Tally_Output:
On Blackmagic HDMI and remote cameras.
Ethernet:
1 x 1G Ethernet for simple streaming, control panels and internet connection, 1 x 10G Ethernet connection for recording.
Computer_Interface:
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
Rec 709
Hdmi_Input_Resolutions_From_Computers:
1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace_Conversion:
Hardware based real time.
Sdi_Auto_Switching:
-
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
10.0
Crosspoint_Button_Type:
NKK Buttons
Preview_Transition:
1.0
Source_Select_Bus:
Set using Multi Function Controls and Fairlight Audio Status Output.
Dedicated_Macro_Buttons:
6.0
Transition_Type_Buttons:
Set using Multi Function Controls and Fairlight Audio Status Output.
Transition_Rate:
Set using Multi Function Controls and Fairlight Audio Status Output.
Key_Buttons:
8.0
Aux_Buttons:
6.0
Fader_Bar:
1.0
Record_Buttons:
2.0
Stream_Buttons:
2.0
Dsk_Transition_Selectors:
6.0
Fade_To_Black_Buttons:
1 NKK button
Upstream_Keyers:
4.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
Up to 4
Supersource:
1.0
Dves:
2.0
Linearluma_Keyers:
Up to 4
Transition_Keyer_Stingerdve:
DVE only
Color_Generators:
2.0
Control_Panel:
Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Routable_Windows:
16.0
Tally:
Red for program and green for preview indication.
Audio_Mixer:
58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Analog_Input:
Balanced stereo XLR combo connectors
Analog_Input_Delay:
Up to 8Â frames
Mic_Plug_In_Power:
+48V phantom power on XLR combo inputs
Total_Streaming_Sources:
Up to 8
Streaming_Source_Format:
RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates.
Streaming_Source_Setup:
Mapped to inputs in ATEM Software Control Settings.
Direct_Streaming:
Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
CFExpress slot for recording Network Recording USB-C Recording
Video_Recording:
8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AACÂ audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AACÂ audio.
Audio_Recording:
26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels.
Switching:
Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format:
Supports media formatted ExFAT (Windows/Mac). APFS or HFS+Â (Mac).
Multi_View_Monitoring:
Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard:
HD
Media_Players:
2.0
Channels:
Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity:
20 with fill and key.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Video_File_Format:
TGA Sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Control_Panel_Compatibility:
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Camera_Control:
When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Control_Panel_Included:
ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Na:
Windows 10 and 11. Windows 11 for ARM
Power_Supply:
1 x External 12V power supply.
Power_Usage:
120 W max.
Operating_Temperature:
5° C to 40° C (41° - 104° F)
Storage_Temperature:
-10° to 60° C (14° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 9 Total Outputs 4 Total Aux Outputs 4 SDI Rates 1.5G, 3G HDMI Video Inputs 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. HDMI Video Outputs 3 HDMI Program Outputs 3 Total Audio Inputs 2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio. Total Audio Outputs 1 x 6.35mm headphone jack Timecode Connection None Reference Input None Video Input Re-Sync On all 8 HDMI inputs and remote sources Frame Rate and Format Converters On all 8 HDMI inputs and remote sources Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x HDMI 1 x Webcam Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Tally Output On Blackmagic HDMI and remote cameras. Ethernet 1 x 1G Ethernet for simple streaming, control panels and internet connection, 1 x 10G Ethernet connection for recording. Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time. SDI Auto Switching -
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 10 Crosspoint Button Type NKK Buttons Preview Transition 1 Source Select Bus Set using Multi Function Controls and Fairlight Audio Status Output. Dedicated Macro Buttons 6 Transition Type Buttons Set using Multi Function Controls and Fairlight Audio Status Output. Transition Rate Set using Multi Function Controls and Fairlight Audio Status Output. Key Buttons 8 AUX Buttons 6 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 NKK button Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers Up to 4 SuperSource 1 DVEs 2 Linear/Luma Keyers Up to 4 Transition Keyer (Stinger/DVE) DVE only Color Generators 2 Control Panel Set using Multi Function Controls and Fairlight Audio Status Output. Routable Windows 16 Tally Red for program and green for preview indication.
Audio:
Audio Mixer 26 input x 2 channel mixer. (8 HDMI+16MADI+XLR+Thunderbolt) Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Balanced stereo XLR combo connectors Analog Input Delay Up to 8 frames Mic Plug In Power +48V phantom power on XLR combo inputs
Streaming_Sources:
Total Streaming Sources Up to 8 Streaming Source Format RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates. Streaming Source Setup Mapped to inputs in ATEM Software Control Settings.
Streaming:
Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Recording:
Direct Recording Video and Audio CFExpress slot for recording Network Recording USB-C Recording Video Recording 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 2 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format 200 frames in 1080 HD. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format TGA Sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Control:
Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000/10G BaseT. Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Processing:
Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Software:
Control Panel Included ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements:
Power Supply 1 x External 12V power supply. Power Usage 120 W max.
Environmental_Specifications:
Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Mini Extreme ISO G2 External 12VÂ DC power supply
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-iso-g2-sm.jpg?_v=1741748433
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-iso-g2-md.jpg?_v=1741748432
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-iso-g2-xl.jpg?_v=1741748432
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-extreme-iso-g2-sm.jpg?_v=1741748433
ATEM Mini Pro
Add to Compare
View Details
ATEM Mini Pro
Price:
HK$2,450
Description:
ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
Total_Video_Inputs:
4.0
Total_Outputs:
2.0
Total_Aux_Outputs:
1.0
Hdmi_Video_Inputs:
4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Program_Outputs:
1.0
Total_Audio_Inputs:
2 x 3.5mm stereo mini jack.
Total_Audio_Outputs:
None, embedded audio only.
Video_Input_Resync:
On all 4 HDMI inputs.
Frame_Rate_And_Format_Converters:
On all 4 HDMI inputs.
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Ethernet:
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface:
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
Rec 709
Colorspace_Conversion:
Hardware based real time.
Upstream_Keyers:
1.0
Downstream_Keyers:
1.0
Advanced_Chroma_Keyers:
1
Linearluma_Keyers:
2
Color_Generators:
2.0
Control_Panel:
Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Audio_Mixer:
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input:
Unbalanced stereo
Direct_Streaming:
ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Media_Format:
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring:
Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard:
HD
Media_Players:
1.0
Channels:
Fill and key for each Media Player.
Control_Panel_Compatibility:
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x External 12V power supply.
Power_Usage:
30W
Operating_Temperature:
5° C to 40° C (41° - 104° F)
Storage_Temperature:
-10° to 60° C (14° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 4 Total Outputs 2 Total Aux Outputs 1 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None HDMI Video Inputs 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 HDMI inputs. Frame Rate and Format Converters On all 4 HDMI inputs. HDMI Program Outputs 1 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product_Specifics:
Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE with Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio:
Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming:
Direct Streaming ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording:
Direct Recording 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control:
Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Software:
Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. Power Usage 30W
Environmental_Specifications:
Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Mini Pro External 12V DC power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Input_Resolutions_Fromcomputers:
1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Transition_Keyer:
DVE only.
Total_Number_Oflayers:
5.0
Pattern_Generators:
1.0
Dve_With_Borders_And_Dropshadow:
1.0
Interface:
Minimum monitor resolution of 1366 x 768.
Analog_Inputdelay:
Up to 8Â frames
Input_Impedance:
1.8k
Max_Inputlevel:
+6dBV
Mic_Plug_Inpower:
Available on both 3.5mm mini jack connections.
Media_Pool_Still_Imagecapacity:
20 with fill and key.
Media_Pool_Still_Imageformat:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Direct_Recording:
1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Src:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-sm.jpg?_v=1581466703
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-md.jpg?_v=1581466703
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-xl.jpg?_v=1581466703
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-sm.jpg?_v=1581466703
ATEM Mini Pro ISO
Add to Compare
View Details
ATEM Mini Pro ISO
Price:
HK$4,100
Description:
Affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor. Plus with the ATEM Mini Pro ISO model you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.
Total_Video_Inputs:
4.0
Total_Outputs:
2.0
Total_Aux_Outputs:
1.0
Hdmi_Video_Inputs:
4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Hdmi_Program_Outputs:
1.0
Total_Audio_Inputs:
2 x 3.5mm stereo mini jack.
Total_Audio_Outputs:
None, embedded audio only.
Video_Input_Resync:
On all 4 HDMI inputs.
Frame_Rate_And_Format_Converters:
On all 4 HDMI inputs.
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Ethernet:
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface:
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
Rec 709
Colorspace_Conversion:
Hardware based real time.
Upstream_Keyers:
1.0
Downstream_Keyers:
1.0
Advanced_Chroma_Keyers:
1
Linearluma_Keyers:
2
Color_Generators:
2.0
Control_Panel:
Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Audio_Mixer:
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input:
Unbalanced stereo
Direct_Streaming:
ATEM Mini Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording:
4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AACÂ audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AACÂ audio.
Audio_Recording:
6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.
Switching:
Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format:
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring:
Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard:
HD
Media_Players:
1.0
Channels:
Fill and key for each Media Player.
Control_Panel_Compatibility:
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x External 12V power supply.
Power_Usage:
36W
Operating_Temperature:
5° C to 40° C (41° - 104° F)
Storage_Temperature:
-10° to 60° C (14° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 4 Total Outputs 2 Total Aux Outputs 1 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None HDMI Video Inputs 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 HDMI inputs. Frame Rate and Format Converters On all 4 HDMI inputs. HDMI Program Outputs 1 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product_Specifics:
Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE with Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio:
Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming:
Direct Streaming ATEM Mini Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording:
Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control:
Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software:
Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications:
Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Mini Pro ISO External 12V DC power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Input_Resolutions_Fromcomputers:
1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Transition_Keyer:
DVE only.
Total_Number_Oflayers:
5.0
Pattern_Generators:
1.0
Dve_With_Borders_And_Dropshadow:
1.0
Interface:
Minimum monitor resolution of 1366 x 768.
Analog_Inputdelay:
Up to 8Â frames
Input_Impedance:
1.8k
Max_Inputlevel:
+6dBV
Mic_Plug_Inpower:
Available on both 3.5mm mini jack connections.
Media_Pool_Still_Imagecapacity:
20 with fill and key.
Media_Pool_Still_Imageformat:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Src:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-iso-sm.jpg?_v=1595554012
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-iso-md.jpg?_v=1595554012
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-iso-xl.jpg?_v=1595554011
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmini/techspecs/hero/atem-mini-pro-iso-sm.jpg?_v=1595554012
ATEM Streaming Bridge
Add to Compare
View Details
ATEM Streaming Bridge
Price:
HK$2,150
Description:
The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!
Sdi_Rates:
1.5G, 3G.
Reference_Input:
Black burst and Tri‑Sync.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Na:
Mini Switches or setup utility software when connected by USB.
Power_Supply:
EMC, FCC, CE and KCC.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Reference Inputs 1 x 3G-SDI SDI Video Outputs 2 x 3G-SDI SDI Audio Outputs 2 Channels embedded in HD-SDI. HDMI Video Output HDMI type A out. HDMI Audio Outputs 2 Channels embedded in HDMI. SDI Rates 1.5G, 3G. Reference Input Black burst and Tri‑Sync. Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB Type-C for software configuration and software updates.
Standards:
SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 10-bit SDI Color Space YUV
Streaming:
Streaming Input ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models. Protocols RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Software:
Internal software upgrade via updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for all countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Streaming Bridge 12V universal power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Reference_Inputs:
1 x 3G-SDI
Sdi_Video_Outputs:
2 x 3G-SDI
Sdi_Audio_Outputs:
2 Channels embedded in HD-SDI.
Hdmi_Video_Output:
HDMI type A out.
Hdmi_Audio_Outputs:
2 Channels embedded in HDMI.
Updates_And_Configuration:
1 x USB Type-C for software configuration and software updates.
Sdi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Sdi_Video_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48Â kHz and 24 bit.
Sdi_Color_Precision:
10-bit
Sdi_Color_Space:
YUV
Streaming_Input:
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDIÂ models.
Protocols:
RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Power_Consumption:
6W max.
Operational_Voltage_Range:
6 - 30VÂ DC.
Settings_Control:
Mini Switches or setup utility software when connected by USB.
Emc_Certifications:
Power Supply EMC, FCC, CE and KCC.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-md.jpg?_v=1593494035
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-xl.jpg?_v=1593494035
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
ATEM 1 M/E Advanced Panel 10
Add to Compare
View Details
ATEM 1 M/E Advanced Panel 10
Price:
HK$24,550
Description:
The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers
Software_Updates:
1 x USB-C for firmware updates
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Usage:
45W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers Software Updates 1 x USB-C for firmware updates
Product_Specifics:
Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 3 rows 24 character LCD On-Air indicator 4 Power Status Indicators None DSK Transition Selectors Auto, Cut, Tie/Preview. Preview Transition 1 Transition Rate Displays Via main menu LCD Menu Displays 3 Menu Control 20 buttons Dedicated Macro Buttons 10 Multi Control Buttons None Destination Bus 1 Source Select Bus 1 Fader Bar 1 3 Axis Joystick 1 Numeric Keypad 1
Software:
Software Applications ATEM Software Control Panel.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240V AC. Redundant Power Yes Power Usage 45W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Whats_Included:
ATEM 1 M/E Advanced Panel 10
Warranty:
1 Year Limited Manufacturer’s Warranty.
Direct_Crosspoints:
10.0
Shifted_Cross_Points:
20.0
Crosspoint_Buttontype:
Tri-Color LED
Crosspointlabel:
3 rows 24 character LCD
Onairindicator:
4.0
Dsk_Transitionselectors:
Auto, Cut, Tie/Preview.
Previewtransition:
1.0
Transition_Ratedisplays:
Via main menu
Lcd_Menudisplays:
3.0
Menu_Control:
20 buttons
Dedicated_Macrobuttons:
10.0
Destinationbus:
1.0
Source_Selectbus:
1.0
Faderbar:
1.0
Col_3_Axisjoystick:
1.0
Numerickeypad:
1.0
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
1 x Internal 100 - 240V AC.
Redundant_Power:
Yes
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-md.jpg?_v=1515554623
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-xl.jpg?_v=1515554623
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-1me-advanced-panel-10-sm.jpg?_v=1515554623
ATEM Micro Camera Panel
Add to Compare
View Details
ATEM Micro Camera Panel
Price:
HK$4,900
Description:
ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Computer_Interface:
USB Type‑C.
Software_Updates:
1 x USB‑C for firmware updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
4 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE Software Updates 1 x USB‑C for firmware updates.
Product_Specifics:
Camera Selection buttons 8 x NKK buttons. Assignable via setup utility. Camera Number Display Green off air, red on air. Setup White and black balance setup. Flare via modifier key. 3 Axis Joystick 1 Preview Button 1 Iris Control Auto Iris On, Coarse control. Iris Range CLS f32 to f1.2 Gain Range -12dB to +32dB ND Filters 0, 2, 4, 6. Shutter Range 1/24 to 1/2000 White Balance Range 2500K to 10,000K Recallable Scenes 5 per camera. Panel Active Protects settings.
Software:
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. Windows 11 for ARM
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 4 W max. Battery Life Minimum 3 hours. (under normal use)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Micro Camera Panel Welcome wallet with QR code for software download 1 x USB‑C cable
Warranty:
1 Year Limited Manufacturer’s Warranty.
Software_Applications:
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Bluetooth:
Bluetooth 5.1Â LE
Battery_Life:
Minimum 3 hours. (under normal use)
Camera_Selection_Buttons:
8 x NKKÂ buttons. Assignable via setup utility.
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup. Flare via modifier key.
Col_3_Axis_Joystick:
1.0
Preview_Button:
1.0
Iris_Control:
Auto Iris On, Coarse control.
Iris_Range:
CLS f32 to f1.2
Gain_Range:
-12dB to +32dB
Nd_Filters:
0, 2, 4, 6.
Shutter_Range:
1/24 to 1/2000
White_Balance_Range:
2500K to 10,000K
Recallable_Scenes:
5 per camera.
Panel_Active:
Protects settings.
Src:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-md.jpg?_v=1746147752
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-xl.jpg?_v=1746147752
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-camera-panel-sm.jpg?_v=1746147752
ATEM Micro Panel
Add to Compare
View Details
ATEM Micro Panel
Price:
HK$5,550
Description:
The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!
Computer_Interface:
USB Type‑C.
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
3 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Computer Interface USB Type‑C. Bluetooth Bluetooth 5.1 LE
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Preview Transition 1 Switching Type Buttons CUT and AUTO Transition Type Buttons DIP, DVE, STINGER, MIX, WIPE. M/E Select Buttons 4 Upstream Key Buttons 4 with ON/OFF Downstream Key Buttons 2 with ON/OFF Transition Slider 1
Software:
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 3 W max. Battery Life Minimum 6 hours. (under normal use)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Micro Panel Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Shifted_Cross_Points:
20.0
Software_Applications:
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Bluetooth:
Bluetooth 5.1Â LE
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
10.0
Crosspoint_Button_Type:
Tri-Color LED
Preview_Transition:
1.0
Switching_Type_Buttons:
CUT and AUTO
Transition_Type_Buttons:
DIP, DVE, STINGER, MIX, WIPE.
Me_Select_Buttons:
4.0
Upstream_Key_Buttons:
4 with ON/OFF
Downstream_Key_Buttons:
2 with ON/OFF
Transition_Slider:
1.0
Battery_Life:
Minimum 6 hours. (under normal use)
Src:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-sm.jpg?_v=1712619334
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-md.jpg?_v=1712619334
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-xl.jpg?_v=1712619333
Col_662w:
https://images.blackmagicdesign.com/images/products/atemmicropanel/techspecs/hero/atem-micro-panel-sm.jpg?_v=1712619334
ATEM SDI
Add to Compare
View Details
ATEM SDI
Price:
HK$2,850
Description:
ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.
Total_Video_Inputs:
4.0
Total_Outputs:
3.0
Total_Aux_Outputs:
2.0
Total_Audio_Inputs:
2 x 3.5mm stereo mini jack.
Total_Audio_Outputs:
None, embedded audio only.
Sdi_Video_Inputs:
4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio.
Video_Input_Resync:
On all 4 SDI inputs.
Frame_Rate_And_Format_Converters:
On all 4 SDI inputs.
Sdi_Program_Outputs:
2.0
Ethernet:
Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
Computer_Interface:
1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
Rec 709
Colorspace_Conversion:
Hardware based real time.
Upstream_Keyers:
1.0
Downstream_Keyers:
1.0
Advanced_Chroma_Keyers:
1
Linearluma_Keyers:
2
Transition_Keyer:
DVE only.
Total_Number_Of_Layers:
5.0
Pattern_Generators:
1.0
Color_Generators:
2.0
Dve_With_Borders_And_Drop_Shadow:
1.0
Interface:
Minimum monitor resolution of 1366 x 768.
Audio_Mixer:
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input:
Unbalanced stereo
Analog_Input_Delay:
Up to 8 frames
Input_Impedance:
1.8k
Max_Input_Level:
+6dBV
Mic_Plug_In_Power:
Available on both 3.5mm mini jack connections.
Media_Players:
1.0
Channels:
Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity:
20 with fill and key.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel:
Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Control_Panel_Compatibility:
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Connection:
Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x External 12V power supply.
Power_Usage:
18W
Operating_Temperature:
5° C to 40° C (41° - 104° F)
Storage_Temperature:
-10° to 60° C (14° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 4 Total Outputs 3 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None SDI Video Inputs 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 SDI inputs. Frame Rate and Format Converters On all 4 SDI inputs. SDI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 Colorspace Conversion Hardware based real time.
Product_Specifics:
Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE With Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio:
Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Media_Player:
Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control:
Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
Software:
Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. Power Usage 18W
Environmental_Specifications:
Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM SDI External 12V DC power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-sm.jpg?_v=1657595683
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-md.jpg?_v=1657595683
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-xl.jpg?_v=1657595682
Col_662w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-sm.jpg?_v=1657595683
ATEM SDI Extreme ISO
Add to Compare
View Details
ATEM SDI Extreme ISO
Price:
HK$12,250
Description:
This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.
Total_Video_Inputs:
8.0
Total_Outputs:
6.0
Total_Aux_Outputs:
4.0
Total_Audio_Inputs:
2 x 3.5mm stereo mini jack.
Total_Audio_Outputs:
1 x 3.5mm stereo mini jack.
Sdi_Video_Inputs:
8 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio.
Video_Input_Resync:
On all 8 SDI inputs.
Frame_Rate_And_Format_Converters:
On all 8 SDI inputs.
Sdi_Program_Outputs:
4.0
Ethernet:
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface:
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
Rec 709
Colorspace_Conversion:
Hardware based real time.
Upstream_Keyers:
4.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
Up to 4
Linearluma_Keyers:
Up to 4
Transition_Keyer:
DVE only.
Total_Number_Of_Layers:
9.0
Pattern_Generators:
5.0
Color_Generators:
2.0
Dve_With_Borders_And_Drop_Shadow:
2.0
Interface:
Minimum monitor resolution of 1366 x 768.
Audio_Mixer:
11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input:
Unbalanced stereo
Analog_Input_Delay:
Up to 8 frames
Input_Impedance:
1.8k
Max_Input_Level:
+6dBV
Mic_Plug_In_Power:
Available on both 3.5mm mini jack connections.
Direct_Streaming:
ATEM SDI Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording:
8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio_Recording:
10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs.
Switching:
Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format:
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring:
Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 SDI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard:
HD
Media_Players:
2.0
Channels:
Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity:
20 with fill and key.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel:
Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Control_Panel_Compatibility:
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x External 12V power supply.
Power_Usage:
36W
Operating_Temperature:
5° C to 40° C (41° - 104° F)
Storage_Temperature:
-10° to 60° C (14° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 8 Total Outputs 6 Total Aux Outputs 4 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs 1 x 3.5mm stereo mini jack. Timecode Connection None SDI Video Inputs 8 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 8 SDI inputs. Frame Rate and Format Converters On all 8 SDI inputs. SDI Program Outputs 4 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 Colorspace Conversion Hardware based real time.
Product_Specifics:
Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers Up to 4 Linear/Luma Keyers Up to 4 Transition Keyer DVE only. Total Number of Layers 9 Pattern Generators 5 Color Generators 2 DVE With Borders and Drop Shadow 2 Interface Minimum monitor resolution of 1366 x 768.
Audio:
Audio Mixer 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming:
Direct Streaming ATEM SDI Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording:
Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 2 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control:
Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software:
Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications:
Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM SDI Extreme ISO External 12V DC power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-extreme-iso-sm.jpg?_v=1657601136
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-extreme-iso-md.jpg?_v=1657601136
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-extreme-iso-xl.jpg?_v=1657601135
Col_662w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-extreme-iso-sm.jpg?_v=1657601136
ATEM SDI Pro ISO
Add to Compare
View Details
ATEM SDI Pro ISO
Price:
HK$6,550
Description:
This model includes the features of ATEM SDI plus it adds built in streaming and recording to 5 video streams in real time! That's a clean feed of all inputs for multi‑cam editing! A DaVinci Resolve project is saved so you can open your live production to edit, remix audio and add color correction!
Total_Video_Inputs:
4.0
Total_Outputs:
3.0
Total_Aux_Outputs:
2.0
Total_Audio_Inputs:
2 x 3.5mm stereo mini jack.
Total_Audio_Outputs:
None, embedded audio only.
Sdi_Video_Inputs:
4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio.
Video_Input_Resync:
On all 4 SDI inputs.
Frame_Rate_And_Format_Converters:
On all 4 SDI inputs.
Sdi_Program_Outputs:
2.0
Ethernet:
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer_Interface:
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hd_Video_Output_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
Rec 709
Colorspace_Conversion:
Hardware based real time.
Upstream_Keyers:
1.0
Downstream_Keyers:
1.0
Advanced_Chroma_Keyers:
1
Linearluma_Keyers:
2
Transition_Keyer:
DVE only.
Total_Number_Of_Layers:
5.0
Pattern_Generators:
1.0
Color_Generators:
2.0
Dve_With_Borders_And_Drop_Shadow:
1.0
Interface:
Minimum monitor resolution of 1366 x 768.
Audio_Mixer:
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog_Input:
Unbalanced stereo
Analog_Input_Delay:
Up to 8 frames
Input_Impedance:
1.8k
Max_Input_Level:
+6dBV
Mic_Plug_In_Power:
Available on both 3.5mm mini jack connections.
Direct_Streaming:
ATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
USB-C 3.1 Gen 1 expansion port can record directly to external media.
Video_Recording:
4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio_Recording:
6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs.
Switching:
Program switching recorded as a DaVinci Resolve project .drp file.
Media_Format:
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi_View_Monitoring:
Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 SDI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Multi_View_Video_Standard:
HD
Media_Players:
1.0
Channels:
Fill and key for each Media Player.
Media_Pool_Still_Image_Capacity:
20 with fill and key.
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Control_Panel:
Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Control_Panel_Compatibility:
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control_Panel_Connection:
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration:
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Na:
Windows 10 and 11.
Power_Supply:
1 x External 12V power supply.
Power_Usage:
36W
Operating_Temperature:
5° C to 40° C (41° - 104° F)
Storage_Temperature:
-10° to 60° C (14° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Total Video Inputs 4 Total Outputs 3 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None SDI Video Inputs 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 SDI inputs. Frame Rate and Format Converters On all 4 SDI inputs. SDI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards None Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 Colorspace Conversion Hardware based real time.
Product_Specifics:
Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE With Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768.
Audio:
Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming:
Direct Streaming ATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording:
Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control:
Control Panel Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. Control Panel Compatibility Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Software:
Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility. Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. Power Usage 36W
Environmental_Specifications:
Operating Temperature 5° C to 40° C (41° - 104° F) Storage Temperature -10° to 60° C (14° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM SDI Pro ISO External 12V DC power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-pro-iso-sm.jpg?_v=1657595686
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-pro-iso-md.jpg?_v=1657595686
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-pro-iso-xl.jpg?_v=1657595686
Col_662w:
https://images.blackmagicdesign.com/images/products/atemsdi/techspecs/hero/atem-sdi-pro-iso-sm.jpg?_v=1657595686
ATEM Streaming Bridge
Add to Compare
View Details
ATEM Streaming Bridge
Price:
HK$2,150
Description:
The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Na:
Mini Switches or setup utility software when connected by USB.
Power_Supply:
EMC, FCC, CE and KCC.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Reference Inputs 1 x 3G-SDI SDI Video Outputs 2 x 3G-SDI SDI Audio Outputs 2 Channels embedded in HD-SDI. HDMI Video Output HDMI type A out. HDMI Audio Outputs 2 Channels embedded in HDMI. SDI Rates 1.5G, 3G. Reference Input Black burst and Tri‑Sync. Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB Type-C for software configuration and software updates.
Standards:
SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 10-bit SDI Color Space YUV
Streaming:
Streaming Input ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models. Protocols RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Software:
Internal software upgrade via updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for all countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Streaming Bridge 12V universal power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Reference_Inputs:
1 x 3G-SDI
Sdi_Video_Outputs:
2 x 3G-SDI
Sdi_Audio_Outputs:
2 Channels embedded in HD-SDI.
Hdmi_Video_Output:
HDMI type A out.
Hdmi_Audio_Outputs:
2 Channels embedded in HDMI.
Sdi_Rates:
1.5G, 3G.
Reference_Input:
Black burst and Tri‑Sync.
Updates_And_Configuration:
1 x USB Type-C for software configuration and software updates.
Sdi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Sdi_Video_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48Â kHz and 24 bit.
Sdi_Color_Precision:
10-bit
Sdi_Color_Space:
YUV
Streaming_Input:
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDIÂ models.
Protocols:
RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Power_Consumption:
6W max.
Operational_Voltage_Range:
6 - 30VÂ DC.
Settings_Control:
Mini Switches or setup utility software when connected by USB.
Emc_Certifications:
Power Supply EMC, FCC, CE and KCC.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-md.jpg?_v=1593494035
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-xl.jpg?_v=1593494035
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
ATEM Microphone Converter
Add to Compare
View Details
ATEM Microphone Converter
Price:
HK$3,250
Description:
Now it’s easy to expand the MADI input on the ATEM Television Studio switchers to add multiple microphones or external audio mixer sources. The ATEM Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no complex setup required and additional units can even be daisy chained for more sources. Each converter has 4 analog inputs that are mic/line selectable and have phantom power. The design features amazing audio quality with an extremely low noise floor, a wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each separate input that work together to extend dynamic range! There is also an HDMI monitoring output with scrolling audio waveforms.
Hdmi_Video_Outputs:
1 x monitor out.
Ethernet:
Supports 10/100/1000 BASE‑T.
Computer_Interface:
1 x USB-C with locking screw
Na:
Windows 10 and 11.
Power_Supply:
1 x External 12V power supply with locking connector.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (‑4° to 140°F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Analog Audio Inputs 4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phantom power. MADI Inputs 1 x BNC supports 64 channel MADI digital audio MADI Outputs 1 x BNC supports 64 channel MADI digital audio HDMI Video Outputs 1 x monitor out. Computer Interface 1 x USB-C with locking screw Ethernet Supports 10/100/1000 BASE‑T.
Software:
Software Control Mac™ and Windows™ software upgrade via USB or Ethernet. Internal Software Upgrade Via downloadable utility application.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply with locking connector. Power Consumption 12W max. Operational Voltage Range 12V to 17.5V DC
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Microphone Converter External 12V DC power supply with locking connector and international socket adapters for most countries. Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Analog_Audio_Inputs:
4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phantom power.
Madi_Inputs:
1 x BNC supports 64 channel MADI digital audio
Madi_Outputs:
1 x BNC supports 64 channel MADI digital audio
Hd_Video_Standards:
1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
Hdmi_Monitoring:
Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
Adcs_Per_Input:
8.0
Digital_Preamp:
32-bit
Dynamic_Range:
131dB(A)
Noise_Floor:
-129dBV
Total_Harmonic_Distortion_At_Fullscale:
0.002%
Output_Sample_Depth:
24-bit
Output_Sampling_Rate:
48KHz
Madi_Compliance:
AES10-2020
Software_Control:
Mac™ and Windows™ software upgrade via USB or Ethernet.
Internal_Software_Upgrade:
Via downloadable utility application.
Software_Settings_Control:
USB and Ethernet via free software utility.
Hardware_Switches:
Mini switches for selecting mic or line level and setting +48V phantom power on/off.
Power_Consumption:
12W max.
Operational_Voltage_Range:
12V to 17.5V DC
Hdmi_Output_Standards:
HD Video Standards 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60 HDMI Monitoring Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
Audio:
ADCs Per Input 8 Digital Preamp 32-bit Dynamic Range 131dB(A) Noise Floor -129dBV Total Harmonic Distortion at full scale 0.002% Output Sample Depth 24-bit Output Sampling Rate 48KHz MADI Compliance AES10-2020
Settings_Control:
Software Settings Control USB and Ethernet via free software utility. Hardware Switches Mini switches for selecting mic or line level and setting +48V phantom power on/off.
Src:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-microphone-converter-sm.jpg?_v=1674622941
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-microphone-converter-md.jpg?_v=1674622941
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-microphone-converter-xl.jpg?_v=1674622941
Col_662w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-microphone-converter-sm.jpg?_v=1674622941
ATEM Television Studio 4K8
Add to Compare
View Details
ATEM Television Studio 4K8
Price:
HK$48,950
Description:
ATEM Television Studio 4K8 is a powerful Ultra HD live production switcher with a built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch, built in streaming, master recorder, multiview, USB webcam support, 2 DVEs, SuperSource, 4 ATEM Advanced Chroma Keyers, 2 media players, talkback and more!
Sdi_Video_Inputs:
8.0
Sdi_Video_Outputs:
12.0
Sdi_Rates:
1.5G, 3G, 6G, 12G
Hdmi_Video_Outputs:
1
Total_Audio_Inputs:
2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs:
4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs:
16 assignable channels.
Timecode_Connections:
1 x BNC In, 1 x BNC Out.
Reference_Input:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Resync:
On all 8 inputs.
Frame_Rate_And_Format_Converters:
On all 8 inputs.
Sdi_Aux_Outputs:
10.0
Sdi_Program_Outputs:
1.0
Webcam_Output:
2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views:
1 x 12G-SDI 1 x HDMI 2.0
Remote:
RJ12 supports RS-422
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet:
4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T.
Computer_Interface:
2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Input_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
Rec 709
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
10.0
Shifted_Cross_Points:
20.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Preview_Transition:
1.0
Source_Select_Bus:
1.0
Dedicated_Macro_Buttons:
10 plus shift 10
Transition_Type_Buttons:
5.0
Transition_Rate:
Set via system LCD menu display
Key_Buttons:
8.0
Aux_Buttons:
12.0
Fader_Bar:
1.0
Record_Buttons:
2.0
Stream_Buttons:
2.0
Dsk_Transition_Selectors:
6.0
Fade_To_Black_Buttons:
1.0
System_Lcd_Displays:
1.0
Numeric_Keypad:
1.0
Col_3_Axis_Joystick:
1.0
Upstream_Keyers:
4.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
4.0
Supersource:
1.0
Dves:
2.0
Linearluma_Keyers:
7.0
Transition_Keyer_Stingerdve:
1Â Stinger, 1Â DVE.
Total_Number_Of_Layers:
8.0
Pattern_Generators:
7.0
Color_Generators:
2.0
Control_Panel:
Integrated panel with full control of switching and settings.
Routable_Windows:
16.0
Windows_Source_Labels:
Yes
Tally:
Red for program and green for preview indication.
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Direct_Streaming:
Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
Direct recording to optional internal M.2 flash memory or to external media via USB-C expansion ports.
Video_Recording:
HD programs recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video HD standard with AAC audio. Ultra HD programs recorded as a H.265 HEVC file at the streaming quality setting and at the ATEM video Ultra HD standard with AAC audio.
Media_Format:
Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring:
Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD or Ultra HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard:
HD or Ultra HD
Display_Minimum_Resolution:
1366 x 768
Media_Players:
2.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
20.0
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity:
2 x up to 2160p60.
Media_Player_Clip_Length_In_720hd:
720 frames.
Media_Player_Clip_Length_In_1080hd:
360 frames.
Media_Player_Clip_Length_In_2160_Uhd:
90 frames.
Media_Pool_Video_File_Format:
TGA sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Processing_Delay:
< 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer:
58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control:
When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Down_Conversion:
1 x multi view
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage:
120 W
Physical_Installation:
Desktop or in-desk mount.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G, 6G, 12G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 assignable channels. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 10 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 12G-SDI 1 x HDMI 2.0 Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards:
SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Input Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Streaming:
Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Recording:
Direct Recording Video and Audio Direct recording to optional internal M.2 flash memory or to external media via USB-C expansion ports. Video Recording HD programs recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video HD standard with AAC audio. Ultra HD programs recorded as a H.265 HEVC file at the streaming quality setting and at the ATEM video Ultra HD standard with AAC audio. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 2160p60. Media Player Clip Length in 720Â HD 720 frames. Media Player Clip Length in 1080Â HD 360 frames. Media Player Clip Length in 2160 UHD 90 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing:
Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion 1 x multi view
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 120 W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Television Studio 4K8 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-4k8-sm.jpg?_v=1680665203
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-4k8-md.jpg?_v=1680665203
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-4k8-xl.jpg?_v=1680665202
Col_662w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-4k8-sm.jpg?_v=1680665203
ATEM Television Studio HD8
Add to Compare
View Details
ATEM Television Studio HD8
Price:
HK$26,450
Description:
ATEM Television Studio HD8 is a compact live production switcher with built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 standards converted 3G-SDI inputs, built in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4 way Ethernet switch and optional internal cloud media storage.
Sdi_Video_Inputs:
8.0
Sdi_Video_Outputs:
12.0
Sdi_Rates:
1.5G, 3G
Hdmi_Video_Outputs:
1
Total_Audio_Inputs:
2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs:
4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs:
2 Ch embedded audio on all SDI outputs.
Timecode_Connections:
1 x BNC In, 1 x BNC Out.
Reference_Input:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Resync:
On all 8 inputs.
Frame_Rate_And_Format_Converters:
On all 8 inputs.
Sdi_Aux_Outputs:
2.0
Sdi_Program_Outputs:
1.0
Webcam_Output:
2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views:
1 x 3G-SDI 1 x HDMI
Remote:
RJ12 supports RS-422
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet:
4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
Computer_Interface:
2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
Rec 709
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
10.0
Shifted_Cross_Points:
20.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Preview_Transition:
1.0
Source_Select_Bus:
1.0
Dedicated_Macro_Buttons:
10 plus shift 10
Transition_Type_Buttons:
5.0
Transition_Rate:
Set via system LCD menu display
Key_Buttons:
8.0
Aux_Buttons:
12.0
Fader_Bar:
1.0
Record_Buttons:
2.0
Stream_Buttons:
2.0
Dsk_Transition_Selectors:
6.0
Fade_To_Black_Buttons:
1.0
System_Lcd_Displays:
1.0
Numeric_Keypad:
1.0
Col_3_Axis_Joystick:
1.0
Upstream_Keyers:
4.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
4.0
Supersource:
1.0
Dves:
2.0
Linearluma_Keyers:
7.0
Transition_Keyer_Stingerdve:
1Â Stinger, 1Â DVE.
Total_Number_Of_Layers:
8.0
Pattern_Generators:
7.0
Color_Generators:
2.0
Control_Panel:
Integrated panel with full control of switching and settings.
Routable_Windows:
16.0
Windows_Source_Labels:
Yes
Tally:
Red for program and green for preview indication.
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Direct_Streaming:
Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
USB-C expansion port can record directly to external media.
Video_Recording:
Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AACÂ audio.
Media_Format:
Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi_View_Monitoring:
Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard:
HD
Display_Minimum_Resolution:
1366 x 768
Media_Players:
2.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
20.0
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity:
2 x up to 1080p60.
Media_Player_Clip_Length_In_720hd:
400 frames.
Media_Player_Clip_Length_In_1080hd:
200 frames.
Media_Pool_Video_File_Format:
TGA sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Processing_Delay:
< 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer:
58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control:
When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage:
100 W max.
Physical_Installation:
Desktop or in-desk mount.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 2 Ch embedded audio on all SDI outputs. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 2 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI 1 x HDMI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards:
SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Streaming:
Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Recording:
Direct Recording Video and Audio USB-C expansion port can record directly to external media. Video Recording Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720Â HD 400 frames. Media Player Clip Length in 1080Â HD 200 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing:
Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion None
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Television Studio HD8 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-sm.jpg?_v=1675056260
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-md.jpg?_v=1675056260
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-xl.jpg?_v=1675056259
Col_662w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-sm.jpg?_v=1675056260
ATEM Television Studio HD8 ISO
Add to Compare
View Details
ATEM Television Studio HD8 ISO
Price:
HK$32,850
Description:
ATEM Television Studio HD8 ISO includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!
Sdi_Video_Inputs:
8.0
Sdi_Video_Outputs:
12.0
Sdi_Rates:
1.5G, 3G
Hdmi_Video_Outputs:
1
Total_Audio_Inputs:
2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback.
Total_Audio_Outputs:
4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback.
Sdi_Audio_Inputs:
4 Ch embedded audio on all SDI inputs.
Sdi_Audio_Outputs:
2 Ch embedded audio on all SDI outputs.
Timecode_Connections:
1 x BNC In, 1 x BNC Out.
Reference_Input:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Video_Input_Resync:
On all 8 inputs.
Frame_Rate_And_Format_Converters:
On all 8 inputs.
Sdi_Aux_Outputs:
2.0
Sdi_Program_Outputs:
1.0
Webcam_Output:
2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total_Multi_Views:
1 x 3G-SDI 1 x HDMI
Remote:
RJ12 supports RS-422
Control_Panel_Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal_Timecode_Generator:
Yes
Talkback:
RJ45 for 3rd party talkback systems.
Tally_Output:
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet:
4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.
Computer_Interface:
2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling:
4:2:2
Color_Precision:
10-bit.
Color_Space:
Rec 709
Sdi_Auto_Switching:
Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Number_Of_Mix_Effects_Rows:
1.0
Direct_Cross_Points:
10.0
Shifted_Cross_Points:
20.0
Crosspoint_Button_Type:
Tri-Color LED
Crosspoint_Label:
6 rows 24 character LCD
Preview_Transition:
1.0
Source_Select_Bus:
1.0
Dedicated_Macro_Buttons:
10 plus shift 10
Transition_Type_Buttons:
5.0
Transition_Rate:
Set via system LCD menu display
Key_Buttons:
8.0
Aux_Buttons:
12.0
Fader_Bar:
1.0
Record_Buttons:
2.0
Stream_Buttons:
2.0
Dsk_Transition_Selectors:
6.0
Fade_To_Black_Buttons:
1.0
System_Lcd_Displays:
1.0
Numeric_Keypad:
1.0
Col_3_Axis_Joystick:
1.0
Upstream_Keyers:
4.0
Downstream_Keyers:
2.0
Advanced_Chroma_Keyers:
4.0
Supersource:
1.0
Dves:
2.0
Linearluma_Keyers:
7.0
Transition_Keyer_Stingerdve:
1Â Stinger, 1Â DVE.
Total_Number_Of_Layers:
8.0
Pattern_Generators:
7.0
Color_Generators:
2.0
Control_Panel:
Integrated panel with full control of switching and settings.
Routable_Windows:
16.0
Windows_Source_Labels:
Yes
Tally:
Red for program and green for preview indication.
Talkback_Support:
Yes
Mix_Minus_Support:
Yes
Direct_Streaming:
Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Direct_Recording_Video_And_Audio:
USB-C expansion port can record directly to external media.
Video_Recording:
Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
Media_Format:
Supports media formatted ExFAT (Windows/Mac). APFS or HFS+Â (Mac).
Multi_View_Monitoring:
Multi View Monitoring 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. Multi View Video Standard HD Display Minimum Resolution 1366 x 768
Multi_View_Video_Standard:
HD
Display_Minimum_Resolution:
1366 x 768
Media_Players:
2.0
Channels:
Fill and key for each media player.
Media_Pool_Still_Image_Capacity:
20.0
Media_Pool_Still_Image_Format:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media_Pool_Clip_Capacity:
2 x up to 1080p60.
Media_Player_Clip_Length_In_720hd:
400 frames.
Media_Player_Clip_Length_In_1080hd:
200 frames.
Media_Pool_Video_File_Format:
TGA sequence.
Media_Pool_Audio_File_Format:
WAV, MP3 and AIFF.
Processing_Delay:
< 10 lines when genlocked and in the same format as the switcher.
Audio_Mixer:
58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera_Control:
When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Control_Panel_Included:
ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11.
Software_Updates:
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage:
100 W max.
Physical_Installation:
Desktop or in-desk mount.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 8 SDI Video Outputs 12 SDI Rates 1.5G, 3G HDMI Video Outputs 1 Total Audio Inputs 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. Total Audio Outputs 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback. SDI Audio Inputs 4 Ch embedded audio on all SDI inputs. SDI Audio Outputs 2 Ch embedded audio on all SDI outputs. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Input 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Video Input Re-Sync On all 8 inputs. Frame Rate and Format Converters On all 8 inputs. SDI Aux Outputs 2 SDI Program Outputs 1 Webcam Output 2 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI 1 x HDMI Remote RJ12 supports RS-422 Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. Computer Interface 2 x USB-C supports USB 3.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Standards:
SD Video Standards None HD Video Input Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit. Color Space Rec 709 SDI Auto Switching Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.
Product_Specifics:
Number of Mix Effects Rows 1 Direct Cross Points 10 Shifted Cross Points 20 Crosspoint Button Type Tri-Color LED Crosspoint Label 6 rows 24 character LCD Preview Transition 1 Source Select Bus 1 Dedicated Macro Buttons 10 plus shift 10 Transition Type Buttons 5 Transition Rate Set via system LCD menu display Key Buttons 8 AUX Buttons 12 Fader Bar 1 Record Buttons 2 Stream Buttons 2 DSK Transition Selectors 6 Fade to Black Buttons 1 System LCD Displays 1 Numeric Keypad 1 3 Axis Joystick 1 Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers 4 SuperSource 1 DVEs 2 Linear/Luma Keyers 7 Transition Keyer (Stinger/DVE) 1 Stinger, 1 DVE. Total Number of Layers 8 Pattern Generators 7 Color Generators 2 Control Panel Integrated panel with full control of switching and settings. Routable Windows 16 Windows Source Labels Yes Tally Red for program and green for preview indication. Talkback Support Yes Mix Minus Support Yes
Streaming:
Direct Streaming Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C.
Recording:
Direct Recording Video and Audio USB-C expansion port can record directly to external media. Video Recording Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. Audio Recording Audio inputs recorded as separate 24‑bit 48KHz .wav files. Includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media All media pool stills and clips saved to a separate media folder. Media Format Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Cloud_Synchronization:
Learn More
Media_Player:
Media Players 2 Channels Fill and key for each media player. Media Pool Still Image Capacity 20 Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Clip Capacity 2 x up to 1080p60. Media Player Clip Length in 720Â HD 400 frames. Media Player Clip Length in 1080Â HD 200 frames. Media Pool Video File Format TGA sequence. Media Pool Audio File Format WAV, MP3 and AIFF.
Processing:
Processing Delay < 10 lines when genlocked and in the same format as the switcher. Audio Mixer 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. Down Conversion None
Software:
Control Panel Included ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11. Software Updates Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
ATEM Television Studio HD8 ISO Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Total_Streaming_Sources:
Up to 8
Streaming_Source_Format:
RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates.
Streaming_Source_Setup:
Mapped to inputs in ATEM Software Control Settings.
Audio_Recording:
Audio inputs recorded as separate 24‑bit 48KHz .wav files. Includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio.
Switching:
Program switching recorded as a DaVinci Resolve project .drp file.
Media:
All media pool stills and clips saved to a separate media folder.
Streaming_Sources:
Total Streaming Sources Up to 8 Streaming Source Format RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates. Streaming Source Setup Mapped to inputs in ATEM Software Control Settings.
Src:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-iso-sm.jpg?_v=1675056261
Col_1120w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-iso-md.jpg?_v=1675056260
Col_1324w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-iso-xl.jpg?_v=1675056260
Col_662w:
https://images.blackmagicdesign.com/images/products/atemtelevisionstudio/techspecs/hero/atem-television-studio-hd8-iso-sm.jpg?_v=1675056261
ATEM Streaming Bridge
Add to Compare
View Details
ATEM Streaming Bridge
Price:
HK$2,150
Description:
The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!
Sdi_Rates:
1.5G, 3G.
Sdi_Audio_Outputs:
2 Channels embedded in HD-SDI.
Hdmi_Audio_Outputs:
2 Channels embedded in HDMI.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Na:
Mini Switches or setup utility software when connected by USB.
Power_Supply:
EMC, FCC, CE and KCC.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Reference Inputs 1 x 3G-SDI SDI Video Outputs 2 x 3G-SDI SDI Audio Outputs 2 Channels embedded in HD-SDI. HDMI Video Output HDMI type A out. HDMI Audio Outputs 2 Channels embedded in HDMI. SDI Rates 1.5G, 3G. Reference Input Black burst and Tri‑Sync. Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB Type-C for software configuration and software updates.
Standards:
SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 10-bit SDI Color Space YUV
Streaming:
Streaming Input ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models. Protocols RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Software:
Internal software upgrade via updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for all countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Streaming Bridge 12V universal power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Reference_Inputs:
1 x 3G-SDI
Sdi_Video_Outputs:
2 x 3G-SDI
Hdmi_Video_Output:
HDMI type A out.
Reference_Input:
Black burst and Tri‑Sync.
Updates_And_Configuration:
1 x USB Type-C for software configuration and software updates.
Sdi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Video_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48Â kHz and 24 bit.
Sdi_Color_Precision:
10-bit
Sdi_Color_Space:
YUV
Streaming_Input:
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDIÂ models.
Protocols:
RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Power_Consumption:
6W max.
Operational_Voltage_Range:
6 - 30VÂ DC.
Settings_Control:
Mini Switches or setup utility software when connected by USB.
Emc_Certifications:
Power Supply EMC, FCC, CE and KCC.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-md.jpg?_v=1593494035
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-xl.jpg?_v=1593494035
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
ATEM Streaming Bridge
Add to Compare
View Details
ATEM Streaming Bridge
Price:
HK$2,150
Description:
The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!
Sdi_Video_Outputs:
2 x 3G-SDI
Sdi_Rates:
1.5G, 3G.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Sdi_Audio_Sampling:
Television standard sample rate of 48Â kHz and 24 bit.
Na:
Mini Switches or setup utility software when connected by USB.
Power_Supply:
EMC, FCC, CE and KCC.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Reference Inputs 1 x 3G-SDI SDI Video Outputs 2 x 3G-SDI SDI Audio Outputs 2 Channels embedded in HD-SDI. HDMI Video Output HDMI type A out. HDMI Audio Outputs 2 Channels embedded in HDMI. SDI Rates 1.5G, 3G. Reference Input Black burst and Tri‑Sync. Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB Type-C for software configuration and software updates.
Streaming:
Streaming Input ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models. Protocols RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Standards:
SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 10-bit SDI Color Space YUV
Software:
Internal software upgrade via updater application.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
ATEM Streaming Bridge 12V universal power supply with international socket adapters
Warranty:
1 Year Limited Manufacturer’s Warranty.
Reference_Input:
Black burst and Tri‑Sync.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for all countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Sdi_Reference_Inputs:
1 x 3G-SDI
Sdi_Audio_Outputs:
2 Channels embedded in HD-SDI.
Hdmi_Video_Output:
HDMI type A out.
Hdmi_Audio_Outputs:
2 Channels embedded in HDMI.
Updates_And_Configuration:
1 x USB Type-C for software configuration and software updates.
Sdi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Video_Sampling:
4:2:2
Sdi_Color_Precision:
10-bit
Sdi_Color_Space:
YUV
Streaming_Input:
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDIÂ models.
Protocols:
RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Power_Consumption:
6W max.
Operational_Voltage_Range:
6 - 30VÂ DC.
Settings_Control:
Mini Switches or setup utility software when connected by USB.
Emc_Certifications:
Power Supply EMC, FCC, CE and KCC.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-md.jpg?_v=1593494035
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-xl.jpg?_v=1593494035
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
ATEM Camera Control Panel
Add to Compare
View Details
ATEM Camera Control Panel
Price:
HK$24,550
Description:
The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.
Iris_Control:
Auto Iris On, Coarse control.
Na:
1 Year Limited Manufacturer’s Warranty.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
Up to 95%
Connections:
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers. Software Updates 1 x USB-C for firmware updates.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity Up to 95%
Warranty:
1 Year Limited Manufacturer’s Warranty.
Power_Requirements:
Input Voltage 1 x Internal 100 - 240VÂ AC. DC Power 12-30V 3A. Redundant Power Yes Power Usage 30W
Whats_Included:
ATEM Camera Control Panel
Software:
Software Applications ATEM Software Control Panel.
Ethernet:
2 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Software_Updates:
1 x USB-C for firmware updates.
Lcd_Menu_Displays:
4.0
Camera_Number_Display:
Green off air, red on air.
Setup:
White and black balance setup.
Col_3_Axis_Joystick:
4.0
Preview_Button:
4.0
Panel_Active:
Protects settings.
Software_Applications:
ATEM Software Control Panel.
Input_Voltage:
1 x Internal 100 - 240VÂ AC.
Dc_Power:
12-30V 3A.
Redundant_Power:
Yes
Power_Usage:
30W
Product_Specifics:
LCD Menu Displays 4 Camera Number Display Green off air, red on air. Setup White and black balance setup. 3 Axis Joystick 4 Preview Button 4 Iris Control Auto Iris On, Coarse control. Panel Active Protects settings.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-md.jpg?_v=1528776866
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-xl.jpg?_v=1528776866
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-camera-control-panel-en-sm.jpg?_v=1528776866
ATEM Streaming Bridge
Add to Compare
View Details
ATEM Streaming Bridge
Price:
HK$2,150
Description:
The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!
Sdi_Video_Outputs:
2 x 3G-SDI
Sdi_Rates:
1.5G, 3G.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
Sdi_Audio_Sampling:
Television standard sample rate of 48Â kHz and 24 bit.
Na:
Mini Switches or setup utility software when connected by USB.
Power_Supply:
EMC, FCC, CE and KCC.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Reference Inputs 1 x 3G-SDI SDI Video Outputs 2 x 3G-SDI SDI Audio Outputs 2 Channels embedded in HD-SDI. HDMI Video Output HDMI type A out. HDMI Audio Outputs 2 Channels embedded in HDMI. SDI Rates 1.5G, 3G. Reference Input Black burst and Tri‑Sync. Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB Type-C for software configuration and software updates.
Streaming:
Streaming Input ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models. Protocols RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Standards:
SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 10-bit SDI Color Space YUV
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for all countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Whats_Included:
ATEM Streaming Bridge 12V universal power supply with international socket adapters
Sdi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Software:
Internal software upgrade via updater application.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Sdi_Reference_Inputs:
1 x 3G-SDI
Sdi_Audio_Outputs:
2 Channels embedded in HD-SDI.
Hdmi_Video_Output:
HDMI type A out.
Hdmi_Audio_Outputs:
2 Channels embedded in HDMI.
Reference_Input:
Black burst and Tri‑Sync.
Updates_And_Configuration:
1 x USB Type-C for software configuration and software updates.
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Video_Sampling:
4:2:2
Sdi_Color_Precision:
10-bit
Sdi_Color_Space:
YUV
Streaming_Input:
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDIÂ models.
Protocols:
RTMP (Web Presenter, ATEM Mini, ATEM SDI) SRT (Web Presenter)
Power_Consumption:
6W max.
Operational_Voltage_Range:
6 - 30VÂ DC.
Settings_Control:
Mini Switches or setup utility software when connected by USB.
Emc_Certifications:
Power Supply EMC, FCC, CE and KCC.
Src:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
Col_1120w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-md.jpg?_v=1593494035
Col_1324w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-xl.jpg?_v=1593494035
Col_662w:
https://images.blackmagicdesign.com/images/products/atem/techspecs/hero/atem-streaming-bridge-sm.jpg?_v=1593494035
×
