🧩 Blackmagic Products - Final Version
ENG / ä¸ć–‡
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
MultiView
Blackmagic MultiView 16
Add to Compare
View Details

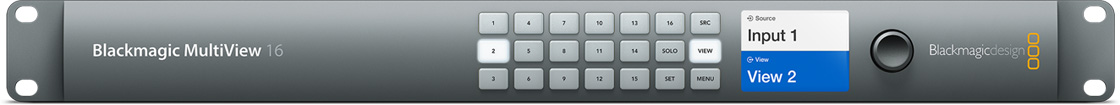

Blackmagic MultiView 16
Price:
HK$12,900
Description:
Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view! Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order! Features full frame re-sync on each input.
Sdi_Videoinputs:
16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
Sdi_Videooutputs:
16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G.
Sdivideo_Multi_Viewoutputs:
2 x 10-bit HD-SDI, 2 x 10 bit 6G‑SDI.
Hdmi_Video_Multi_Viewoutputs:
1 x HDMI type A connector. Output supports EDID of the monitor.
Sdi_Reclocking:
On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.
Reference_Input:
Black Burst and Tri-Sync for SD, HD and 4K.
Multi_Ratesupport:
Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.
Updates:
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Configuration:
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Sd_Video_Standards:
525i59.94Â NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4Kp24Â DCI
Sdi_And_Hdmi_Hd_Video_Outputstandards:
1080i50, 1080i59.94 1080p25, 1080p29.97
Sdi_And_Hdmi_Ultra_Hd_Video_Outputstandards:
2160p25, 2160p29.97
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Audio_Meters:
Each view, VU standard.
Source_Routing:
Yes
Sdi_Videosampling:
4:2:2
Sdi_Audiosampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Color_Precision:
10-bit 4:2:2
Sdi_Colorspace:
YUV
Sdi_Auto_Switching:
Automatically selects between SD-SDI, HD-SDI, and 6G‑SDI on each input so that each input can be running a different television standard.
Sdi_Metadatasupport:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Controlpanel:
16 buttons for local control of source routing with 5 buttons and scroll wheel for menu control. 2.2 inch color display.
External_Controlpanel:
Includes Blackmagic Videohub software control panel for Mac OS and Windows for routing sources to views. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Rs422_Control:
RJ9 for external control.
Software_Control:
MultiView software included free for Windows™ and Mac™
Internal_Softwareupgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Power_Supply:
IEC power cable required, 100 - 240V ACÂ input.
Power_Fail_Protection:
MultiView 16 settings preserved and restored instantly at power on.
Power_Consumption:
45Â Watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI. SDI Video Outputs 16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI. SDI Rates 270Mb, 1.5G, 3G, 6G. SDI Video Multi View Outputs 2 x 10-bit HD-SDI, 2 x 10 bit 6G‑SDI. HDMI Video Multi View Outputs 1 x HDMI type A connector. Output supports EDID of the monitor. SDI Reclocking On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video. Reference Input Black Burst and Tri-Sync for SD, HD and 4K. Multi Rate Support Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video. Updates USB 2.0 high speed (480Mb/s) interface or via Ethernet. Configuration Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4Kp24 DCI SDI and HDMI HD Video Output Standards 1080i50, 1080i59.94 1080p25, 1080p29.97 SDI and HDMI Ultra HD Video Output Standards 2160p25, 2160p29.97 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601. Audio Meters Each view, VU standard. Source Routing Yes SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Color Precision 10-bit 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically selects between SD-SDI, HD-SDI, and 6G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel 16 buttons for local control of source routing with 5 buttons and scroll wheel for menu control. 2.2 inch color display. External Control Panel Includes Blackmagic Videohub software control panel for Mac OS and Windows for routing sources to views. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. RS-422 Control RJ9 for external control.
Display:
Built in 1.5Â inch LCD for menu settings.
Software:
Software Control MultiView software included free for Windows™ and Mac™ Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Physical_Installation:
1Â rack unit size. Less than 6Â inch deep.
Power_Requirements:
Power Supply IEC power cable required, 100 - 240V AC input. Power Fail Protection MultiView 16 settings preserved and restored instantly at power on. Power Consumption 45 Watts
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic MultiView 16 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-16-sm.jpg?_v=1519258994
Col_1120w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-16-md.jpg?_v=1519258993
Col_1324w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-16-xl.jpg?_v=1519258993
Col_662w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-16-sm.jpg?_v=1519258994
Blackmagic MultiView 4
Add to Compare
View Details

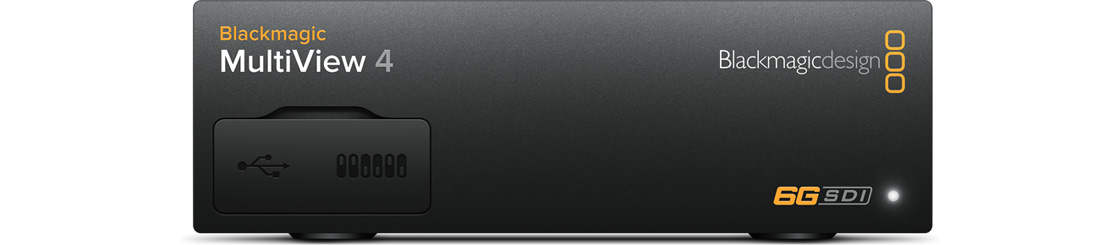

Blackmagic MultiView 4
Price:
HK$4,500
Description:
Blackmagic MultiView 4 is a multi viewer that lets you monitor 4 completely independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels and more in each view!
Sdi_Rates:
270Mb, 1.5G, 3G, 6G.
Sdi_Reclocking:
On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.
Updates:
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Configuration:
RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Sd_Video_Standards:
525i59.94Â NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI, 2KPsF23.98Â DCI, 2KPsF24Â DCI, 2KPsF25Â DCI
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4Kp24 DCI
Sdi_And_Hdmi_Hd_Video_Outputstandards:
1080i50, 1080i59.94
Sdi_And_Hdmi_Ultra_Hd_Video_Outputstandards:
2160p25, 2160p29.97
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Audio_Meters:
Each view, VU standard.
Sdi_Videosampling:
4:2:2
Sdi_Color_Precision:
10-bit 4:2:2
Sdi_Auto_Switching:
Automatically selects between SD‑SDI, HD‑SDI, and 6G‑SDI on each input so that each input can be running a different television standard.
Software_Control:
MultiView software included free for Windows™ and Mac™.
Na:
Windows 10, 64-bit.
Power_Supply:
IEC power cable required, 100 ‑ 240V AC input.
Power_Fail_Protection:
MultiView 4 settings preserved and restored instantly at power on.
Power_Consumption:
16Â Watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI. SDI Video Outputs 4 loop, 1 HD/Ultra HD. SDI Rates 270Mb, 1.5G, 3G, 6G. SDI Video Multi View Outputs 1 x 10-bit HD-SDI and 10 bit 6G‑SDI HDMI Video Multi View Outputs 1 x HDMI type A connector. Output supports EDID of the monitor. SDI Reclocking On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video. Reference Input None Multi Rate Support Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video. Updates USB 2.0 high speed (480Mb/s) interface or via Ethernet. Configuration RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4Kp24 DCI SDI and HDMI HD Video Output Standards 1080i50, 1080i59.94 SDI and HDMI Ultra HD Video Output Standards 2160p25, 2160p29.97 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601. Audio Meters Each view, VU standard. Source Routing None SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48kHz and 24‑bit. SDI Color Precision 10-bit 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically selects between SD‑SDI, HD‑SDI, and 6G‑SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display. External Control Panel None
Display:
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
Software:
Software Control MultiView software included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply IEC power cable required, 100 ‑ 240V AC input. Power Fail Protection MultiView 4 settings preserved and restored instantly at power on. Power over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet) Power Consumption 16 Watts
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic MultiView 4 Welcome wallet with QR code for software download
Sdivideo_Inputs:
4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
Sdivideo_Outputs:
4 loop, 1 HD/Ultra HD.
Sdivideo_Multi_View_Outputs:
1 x 10-bit HD-SDI and 10 bit 6G‑SDI
Hdmi_Video_Multi_View_Outputs:
1 x HDMI type A connector. Output supports EDID of the monitor.
Multi_Rate_Support:
Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24‑bit.
Sdi_Color_Space:
YUV
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Built_In_Control_Panel:
None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.
Internal_Software_Upgrade:
Via included updater application.
Power_Over_Ethernet:
Can be powered via 48V DC using PoE+ (power over ethernet)
Src:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-sm.jpg?_v=1519258995
Col_1120w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-md.jpg?_v=1519258995
Col_1324w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-xl.jpg?_v=1519258995
Col_662w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-sm.jpg?_v=1519258995
Blackmagic MultiView 4 HD
Add to Compare
View Details

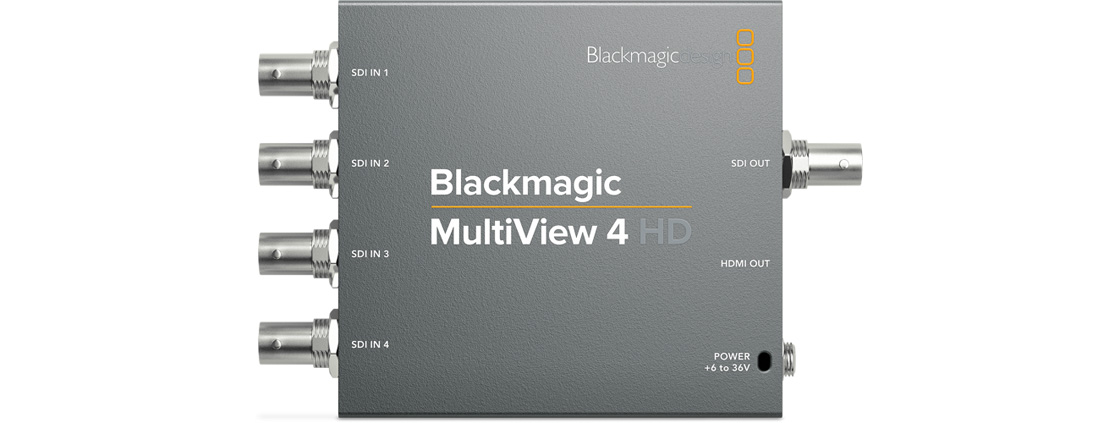

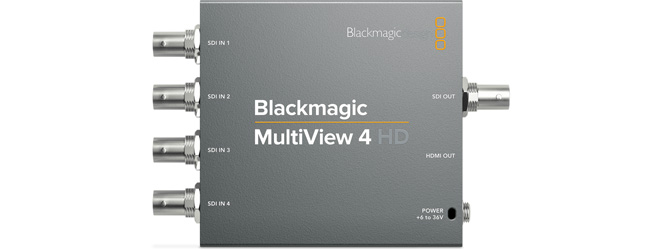

Blackmagic MultiView 4 HD
Price:
HK$1,650
Description:
Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custom labels, audio meters and more. MultiView 4 HD has both SDI and HDMI outputs for monitoring on professional SDI displays, projectors or even big screen televisions!
Sdi_Rates:
270Mb, 1.5G, 3G.
Sdi_Reclocking:
On all SDI outputs, auto switching between standard definition or high definition.
Updates:
USBÂ 2.0 high speed (480Mb/s) interface.
Configuration:
USBÂ 2.0
Sd_Video_Standards:
525i59.94Â NTSC, 625i50Â PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Col_2k_Video_Standards:
2Kp23.98Â DCI, 2Kp24Â DCI, 2Kp25Â DCI
Sdi_And_Hdmi_Hd_Video_Outputstandards:
1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Audio_Meters:
Each view, VU standard.
Sdi_Videosampling:
4:2:2
Sdi_Color_Precision:
10-bit 4:2:2
Sdi_Auto_Switching:
Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
Software_Control:
MultiView software included free for Windows™ and Mac™.
Na:
Windows 10, 64-bit.
Power_Supply:
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power_Fail_Protection:
MultiView 4 HD settings preserved and restored instantly at power on.
Power_Consumption:
5.5Â Watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 4 x 10-bit SD-SDI and HD-SDI. SDI Video Outputs 1 x HD-SDI. SDI Rates 270Mb, 1.5G, 3G. SDI Video Multi View Outputs 1 x 10-bit HD-SDI. HDMI Video Multi View Outputs 1 x HDMI type A connector. Output supports EDID of the monitor. SDI Reclocking On all SDI outputs, auto switching between standard definition or high definition. Reference Input None Multi Rate Support Auto detection of SD or HD. Updates USB 2.0 high speed (480Mb/s) interface. Configuration USB 2.0
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI SDI and HDMI HD Video Output Standards 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601. Audio Meters Each view, VU standard. Source Routing None SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit. SDI Color Precision 10-bit 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard. SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control:
Built in Control Panel None External Control Panel None
Software:
Software Control MultiView software included free for Windows™ and Mac™. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point. Power Fail Protection MultiView 4 HD settings preserved and restored instantly at power on. Power Consumption 5.5 Watts Operational Voltage Range 6 to 36V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Sdivideo_Inputs:
4 x 10-bit SD-SDI and HD-SDI.
Sdivideo_Outputs:
1 x HD-SDI.
Sdivideo_Multi_View_Outputs:
1 x 10-bit HD-SDI.
Hdmi_Video_Multi_View_Outputs:
1 x HDMI type A connector. Output supports EDID of the monitor.
Multi_Rate_Support:
Auto detection of SD or HD.
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24-bit.
Sdi_Color_Space:
YUV
Sdi_Metadata_Support:
Video payload identification ancillary data as per SMPTEÂ 352M.
Internal_Software_Upgrade:
Via included updater application.
Operational_Voltage_Range:
6 to 36V DC
Src:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-hd-sm.jpg?_v=1519258994
Col_1120w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-hd-md.jpg?_v=1519258994
Col_1324w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-hd-xl.jpg?_v=1519258994
Col_662w:
https://images.blackmagicdesign.com/images/products/multiview/techspecs/hero/blackmagic-multiview-4-hd-sm.jpg?_v=1519258994
×
