🧩 Blackmagic Products - Final Version
ENG / 中文
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
Disk Recorders

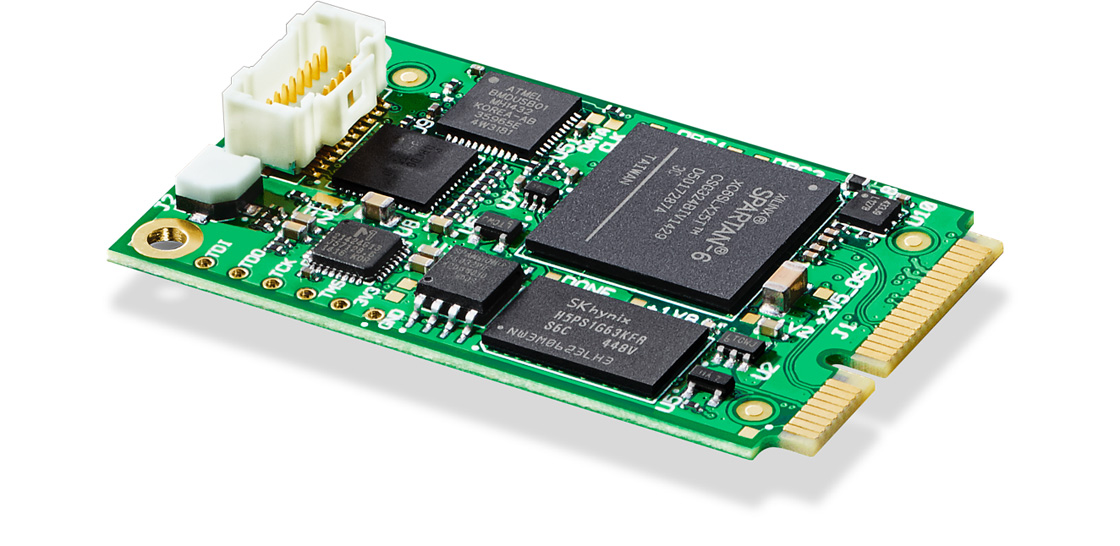

DeckLink Micro Recorder
Add to Compare
View Details
DeckLink Micro Recorder
Price:
HK$1,200
Description:
The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built in Hirose® and Molex® connectors.
Na:
Linux
Power_Consumption:
3 W max
Connections:
PCIx1 Gen 1 PCI Express® Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements:
Power Consumption 3 W max
Environmental_Specifications:
Operating Temperature -25°C to 55°C (-13°F to 131°F) Storage Temperature -40°C to 75°C (-40°F to 167°F) Relative Humidity 0% to 90% non-condensing
Operating_Temperature.1:
-25°C to 55°C (-13°F to 131°F)
Storage_Temperature.1:
-40°C to 75°C (-40°F to 167°F)
Relative_Humidity.1:
0% to 90% non-condensing
Standards:
SD Format Support 525i/59.94 NTSC, 625i/50 PAL. HD Format Support 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30. Video Sampling 4:2:2. Color Precision 8, 10-bit YUV 4:2:2. Compliance SMPTE 259M, 292M, 296M, and HDMI.
Color_Precision:
8, 10-bit YUV 4:2:2.
Video_Sampling:
4:2:2.
Pcix1_Gen_1:
PCI Express® Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.
Sd_Format_Support:
525i/59.94 NTSC, 625i/50 PAL.
Hd_Format_Support:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
Compliance:
SMPTE 259M, 292M, 296M, and HDMI.
Part_Numbers:
DeckLink Micro Recorder, order code: BDLKMICROREC HDMI Cable, order code: CABLE-BDLKMIR/HDMI SDI Cable, order code: CABLE-BDLKMIR/SDI
Available_Accessories:
Part Numbers DeckLink Micro Recorder, order code: BDLKMICROREC HDMI Cable, order code: CABLE-BDLKMIR/HDMI SDI Cable, order code: CABLE-BDLKMIR/SDI
Src:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-micro-recorder-sm.jpg?_v=1526537474
Col_1120w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-micro-recorder-md.jpg?_v=1526537473
Col_1324w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-micro-recorder-xl.jpg?_v=1526537473
Col_662w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-micro-recorder-sm.jpg?_v=1526537474

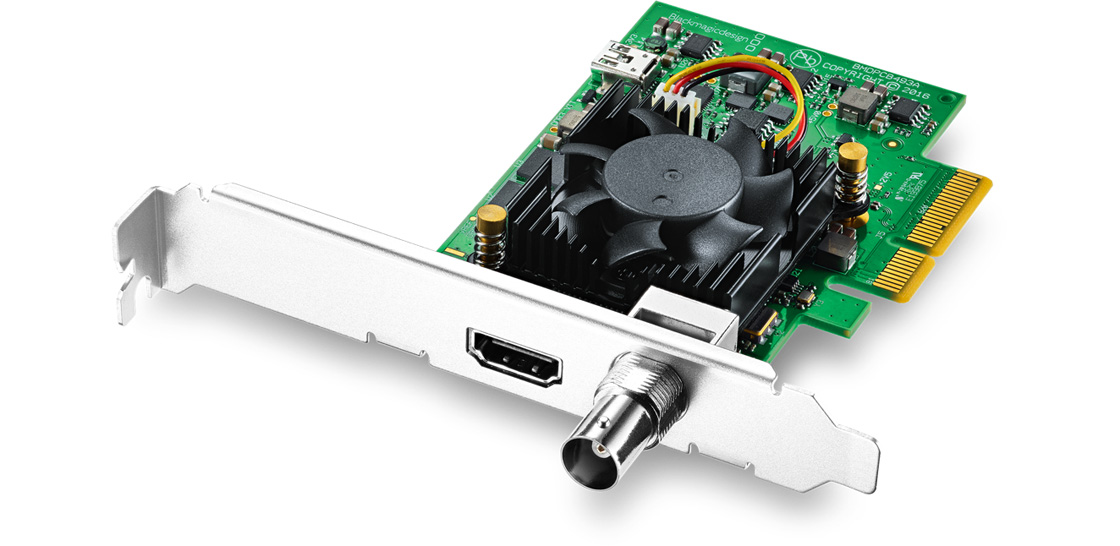

DeckLink Mini Recorder 4K
Add to Compare
View Details
DeckLink Mini Recorder 4K
Price:
HK$1,600
Description:
DeckLink Mini Recorder 4K is a low profile PCI Express capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer! The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI. The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more! You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.
Sdi_Video_Inputs:
1 x 10-bit SD/HD/Ultra HD switchable.
Sdi_Audio_Inputs:
16 channels embedded in SD, HD, Ultra HD.
Hdmi_Video_Inputs:
1 x HDMI 2.0a connector.
Hdmi_Audio_Inputs:
8 Channels embedded in SD, HD, Ultra HD.
Computer_Interface:
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Software_Included:
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade:
Firmware built into software driver. Loaded at system start or via updater software.
Na:
Linux
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
Sdi_Metadata_Support:
RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Video_Sampling:
4:4:4 & 4:2:2
Sdi_Color_Precision:
8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space:
REC 601, REC 709, REC 2020.
Multiple_Rate_Support:
HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
Hdmi_Video_Sampling:
4:4:4, 4:2:2 & 4:2:0
Hdmi_Color_Precision:
Up to 12-bit (Deep Color)
Hdmi_Configuration:
HDMI 2.0a supports Deep Color and HDR.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace_Conversion:
Hardware based real time.
Power_Consumption:
8 W
Connections:
SDI Video Inputs 1 x 10-bit SD/HD/Ultra HD switchable. SDI Audio Inputs 16 channels embedded in SD, HD, Ultra HD. HDMI Video Inputs 1 x HDMI 2.0a connector. HDMI Audio Inputs 8 Channels embedded in SD, HD, Ultra HD. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported_Codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software:
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Processing:
Colorspace Conversion Hardware based real time. HD to SD Down Conversion Software based down conversion during video capture. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements:
Power Consumption 8 W
Environmental_Specifications:
Operating temperature 5° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DeckLink Mini Recorder 4K Low profile slot bracket
Warranty:
3 Year Limited Manufacturer’s Warranty.
Relative_Humidity.1:
0% to 90% non-condensing
Physical_Installation:
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards (SDI ONLY) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K DCI Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Video Sampling 4:4:4 & 4:2:2 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020. SDI HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. HDMI Video Sampling 4:4:4, 4:2:2 & 4:2:0 HDMI Configuration HDMI 2.0a supports Deep Color and HDR. HDMI Color Precision Up to 12-bit (Deep Color) HDMI HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hd_To_Sd_Down_Conversion:
Software based down conversion during video capture.
Hd_Up_Conversion:
Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
Operating_Temperature.2:
5° to 40° C (32° to 104° F)
Storage_Temperature.2:
-20° to 45° C (-4° to 113° F)
Col_2k_Video_Standards_Sdi_Only.2:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
Col_4k_Dci_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
Sdi_Hdr_Support:
HDR static metadata packing, HLG and PQ transfer characteristics.
Hdmi_Hdr_Support:
HDR static metadata packing, HLG and PQ transfer characteristics.
Src:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-4k-sm.jpg?_v=1549597534
Col_1120w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-4k-md.jpg?_v=1549597534
Col_1324w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-4k-xl.jpg?_v=1549597533
Col_662w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-4k-sm.jpg?_v=1549597534

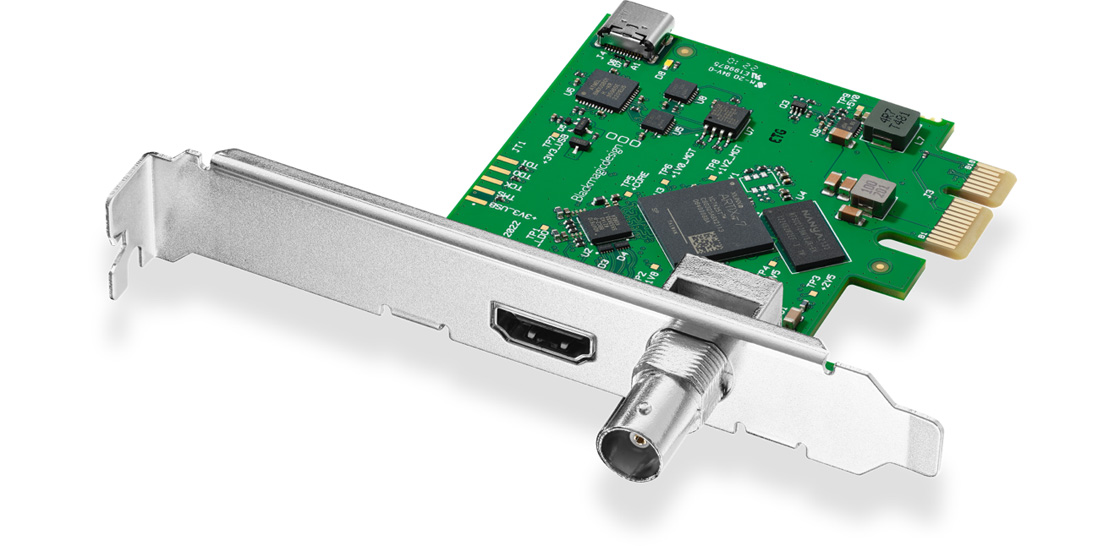

DeckLink Mini Recorder HD
Add to Compare
View Details
DeckLink Mini Recorder HD
Price:
HK$1,100
Description:
Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI! You get a broadcast quality capture card that’s compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more!
Computer_Interface:
PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.
Software_Included:
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade:
Firmware built into software driver. Loaded at system start or via updater software.
Na:
Linux
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
Sdi_Metadata_Support:
RP 188/SMPTE 12M-2 and closed captioning.
Sdi_Video_Sampling:
4:2:2, 4:4:4
Sdi_Color_Precision:
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
Multiple_Rate_Support:
HDMI video connection is switchable between SD and HD.
Hdmi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Hdmi_Video_Sampling:
4:2:2 and 4:4:4
Hdmi_Color_Precision:
8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.
Hdmi_Color_Space:
REC 601, REC 709 and REC 2020
Hdmi_Configuration:
HDMI 2.0 supports Deep Color.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace_Conversion:
Hardware based real time.
Power_Consumption:
3 W
Connections:
SDI Video Input 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G SDI Audio Input 16 channels embedded in SD/HD HDMI Video Input 1 x HDMI 2.0 type A connector HDMI Audio Input 8 channels embedded in SD/HD Computer Interface PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.
Supported_Codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software:
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Sdi_Video_Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support SDI video connection is switchable between SD and HD.
Processing:
Colorspace Conversion Hardware based real time.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements:
Power Consumption 3 W
Environmental_Specifications:
Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Operating_Temperature.1:
5° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Relative_Humidity.1:
0% to 90% non-condensing
Physical_Installation:
PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Sdi_Video_Input:
1 x 10-bit SD/HD switchable
Sdi_Rates:
270Mb, 1.5G, 3G
Sdi_Audio_Input:
16 channels embedded in SD/HD
Hdmi_Video_Input:
1 x HDMI 2.0 type A connector
Hdmi_Audio_Input:
8 channels embedded in SD/HD
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Space:
REC 601, REC 709 and REC 2020
Hdmi_Video_Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0 supports Deep Color. HDMI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support HDMI video connection is switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hardware_Frame_Buffer:
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
Src:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-hd-sm.jpg?_v=1655254169
Col_1120w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-hd-md.jpg?_v=1655254169
Col_1324w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-hd-xl.jpg?_v=1655254169
Col_662w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-mini-recorder-hd-sm.jpg?_v=1655254169

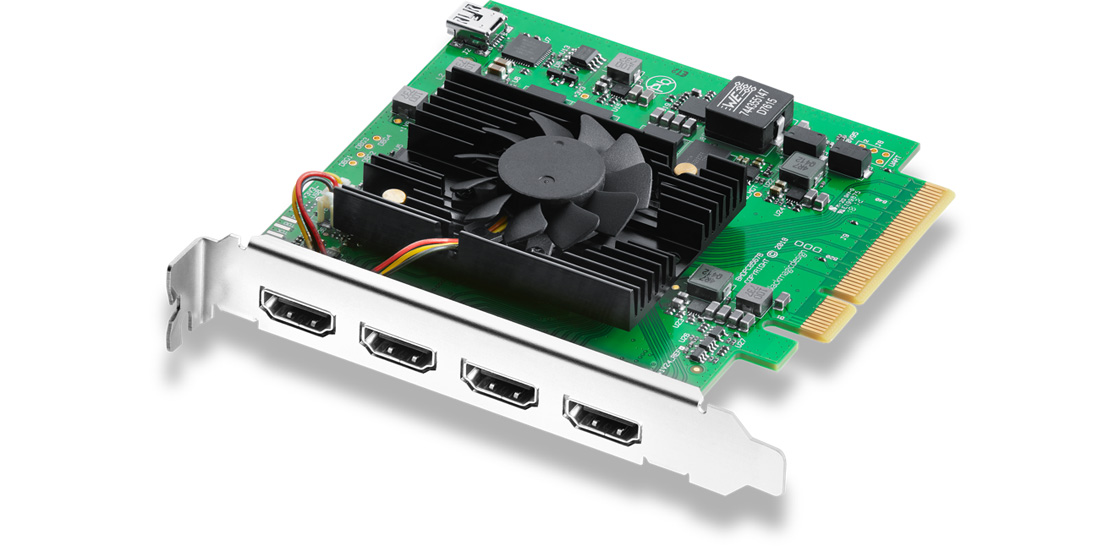

DeckLink Quad HDMI Recorder
Add to Compare
View Details
DeckLink Quad HDMI Recorder
Price:
HK$4,500
Description:
DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!
Hdmi_Audio_Inputs:
8 Channels embedded in SD/HD/UHD/4K.
Computer_Interface:
PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Software_Included:
Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade:
Firmware built into software driver. Loaded at system start or via updater software.
Na:
Linux
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Color_Space:
REC 601, REC 709, REC 2020
Multiple_Rate_Support:
HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes.
Hdmi_Video_Sampling:
4:4:4, 4:2:2 and 4:2:0
Hdmi_Color_Precision:
8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8‑bit RGB 4:4:4 in all DVI modes.
Hdmi_Configuration:
HDMI 2.0b supports Deep Color and HDR.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Power_Consumption:
23 W
Connections:
HDMI 2.0b Video Inputs 4 HDMI Audio Inputs 8 Channels embedded in SD/HD/UHD/4K. Computer Interface PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Supported_Codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.
Software:
Software Included Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11. Linux
Power_Requirements:
Power Consumption 23 W
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DeckLink Quad HDMI Recorder
Warranty:
3 Year Limited Manufacturer’s Warranty.
Operating_Temperature.1:
5° to 40° C (41° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Relative_Humidity.1:
0% to 90% non-condensing
Physical_Installation:
PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI Digital Video Interface (DVI) Standards 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8‑bit RGB 4:4:4 in all DVI modes. Color Space REC 601, REC 709, REC 2020 HDMI Video Sampling 4:4:4, 4:2:2 and 4:2:0 HDMI Configuration HDMI 2.0b supports Deep Color and HDR. Multiple Rate Support HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hdmi_20b_Video_Inputs:
4.0
Digital_Video_Interface_Dvi_Standards:
640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
Src:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-quad-hdmi-recorder-sm.jpg?_v=1549504854
Col_1120w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-quad-hdmi-recorder-md.jpg?_v=1549504854
Col_1324w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-quad-hdmi-recorder-xl.jpg?_v=1549504854
Col_662w:
https://images.blackmagicdesign.com/images/products/decklink/techspecs/hero/decklink-quad-hdmi-recorder-sm.jpg?_v=1549504854

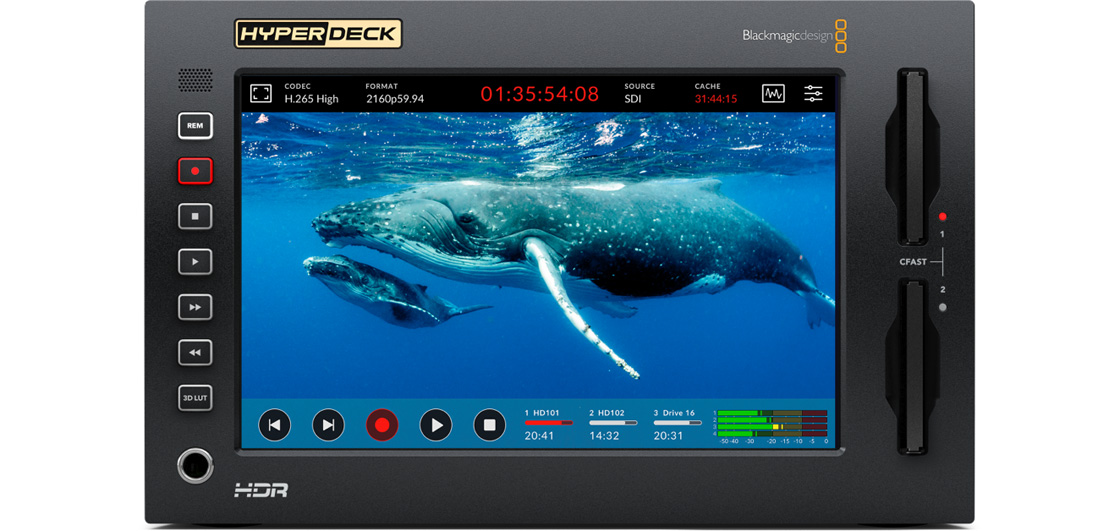

HyperDeck Extreme 4K HDR
Add to Compare
View Details
HyperDeck Extreme 4K HDR
Price:
HK$24,550
Description:
HyperDeck Extreme 4K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 4K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings.
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
3 (12G-SDI A and B plus 3G-SDI Monitor Out)
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Analog_Video_Inputs:
1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
Analog_Audio_Inputs:
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Built_In_Speaker:
Mono
Screen:
7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
Timecode_Connections:
1 x XLR in and 1 x XLR out.
Reference_Input:
Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
64 channels embedded audio.
Sdi_Audio_Outputs:
64 channels embedded audio.
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In, 1 x RS-422 Out.
Recorder_Configuration:
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
10Gb/s
External_Recording:
1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
Computer_Interface:
1 x USB-C for software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Video_Standards:
2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
Sdi_Metadata_Support:
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
Audio_Sampling:
Television standard 24-bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
Multi_Rate_Support:
Auto detection of SD, HD, 6G‑SDI, and 12G-SDI.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Cache_Recording:
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
Media:
Cache Recording Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported. Media 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, and Ultra HD. Media Type CFast card and external USB-C flash drives. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
CFast card and external USB-C flash drives.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Video_Codecs:
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Audio_Codecs:
AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.
Scopes:
Scopes Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit . Viewing Modes Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Viewing_Modes:
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Na:
1 Year Limited Manufacturer’s Warranty.
Built_In_Control_Panel:
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External_Control:
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
Software_Included:
Blackmagic OS Blackmagic HyperDeck Setup
Internal_Software_Upgrade:
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Power_Supply:
1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
Power_Usage:
190W max.
Optional_Accessories:

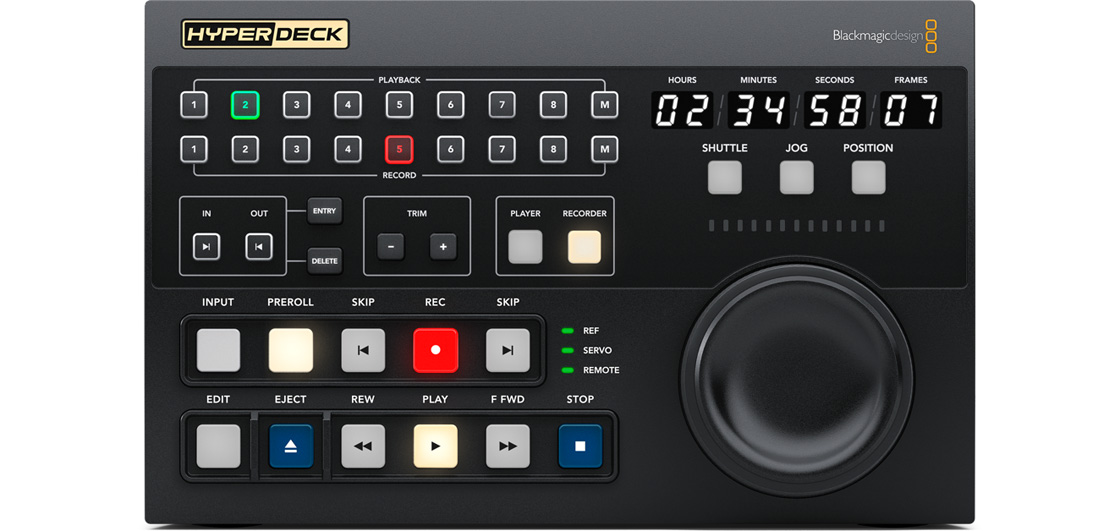

HyperDeck Extreme Control HyperDeck Extreme Rack Kit
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 3 (12G-SDI A and B plus 3G-SDI Monitor Out) SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 Analog Video Inputs 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC. Analog Video Outputs None Analog Audio Inputs 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors. Built in Speaker Mono Screen 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD Timecode Connections 1 x XLR in and 1 x XLR out. Reference Input Tri-Sync or Black Burst. SDI Audio Inputs 64 channels embedded audio. SDI Audio Outputs 64 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In, 1 x RS-422 Out. Recorder Configuration Via user interface or Blackmagic HyperDeck Ethernet Protocol. Ethernet 10Gb/s External Recording 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording. Computer Interface 1 x USB-C for software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084. SDI Metadata Support HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI. Audio Sampling Television standard 24-bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab. Multi Rate Support Auto detection of SD, HD, 6G‑SDI, and 12G-SDI. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Control:
Built in Control Panel Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
Software:
Software Included Blackmagic OS Blackmagic HyperDeck Setup Internal Software Upgrade Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Displays:
Built in LCD for video, audio and timecode monitoring and menu settings.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use. Power Usage 190W max.
Accessories:
Optional Accessories HyperDeck Extreme Control HyperDeck Extreme Rack Kit
Physical_Installation:
3 rack units height, half rack width.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
HyperDeck Extreme 4K HDR Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-4k-hdr-sm.jpg?_v=1648606792
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-4k-hdr-md.jpg?_v=1648606792
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-4k-hdr-xl.jpg?_v=1648606791
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-4k-hdr-sm.jpg?_v=1648606792

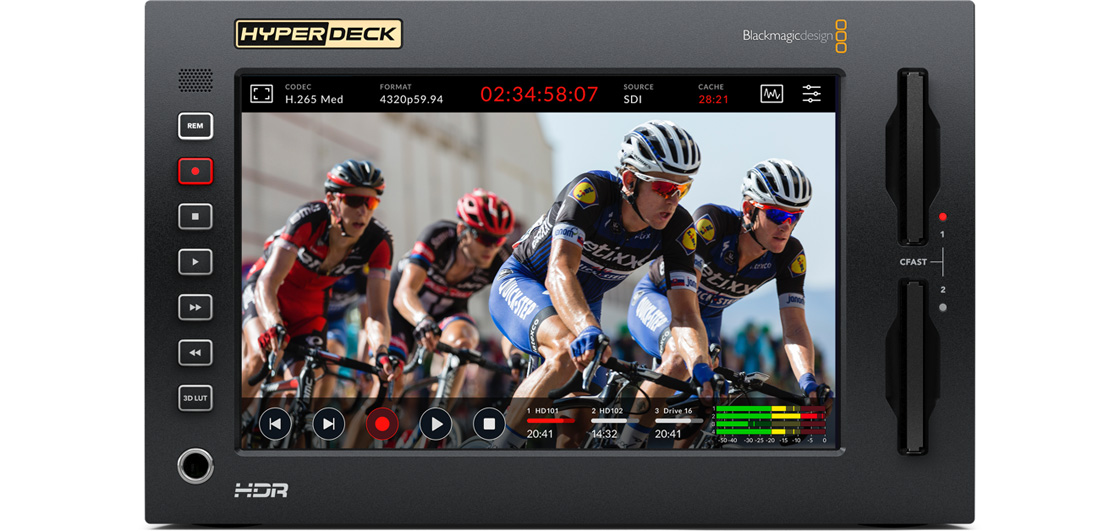

HyperDeck Extreme 8K HDR
Add to Compare
View Details
HyperDeck Extreme 8K HDR
Price:
HK$40,950
Description:
8K broadcast deck with the trusted reliability of HyperDeck combined with advanced H.265 recording, internal cache, 3D LUTs, native 8K and HDR support. Large touch screen to view your recording with dedicated buttons for play, stop and record, plus a mini timeline for scrolling through your recordings. You can even image swipe to jog! The LCD includes a heads up display of timecode, video standard, media status and audio meters and more!
Sdi_Video_Inputs:
4.0
Sdi_Video_Outputs:
5 (12G-SDI A, B, C, D and 3G-SDI Monitor Out)
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Analog_Video_Inputs:
1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
Analog_Audio_Inputs:
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Built_In_Speaker:
Mono
Screen:
7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
Timecode_Connections:
1 x XLR in and 1 x XLR out.
Reference_Input:
Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
64 channels embedded audio.
Sdi_Audio_Outputs:
64 channels embedded audio.
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In, 1 x RS-422 Out.
Recorder_Configuration:
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
10Gb/s
External_Recording:
1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
Computer_Interface:
1 x USB-C for software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Video_Standards:
2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
Col_8k_Video_Standards:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
Col_8k_Dci_Video_Standards:
4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
Sdi_Metadata_Support:
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
Audio_Sampling:
Television standard 24-bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10-bit
Color_Space:
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
Multi_Rate_Support:
Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G-SDI.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Cache_Recording:
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
Media:
Cache Recording Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported. Media 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K. Please click here for a summary of compatible media. Media Type CFast card and external USB-C flash drives. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
CFast card and external USB-C flash drives.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Source:
Input options include SDI, 4 x SDI (simultaneously records 4 SDI inputs up to 2160p60 as separate files), HDMI, Component, Composite.
Video_Codecs:
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 4320p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Audio_Codecs:
AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.
Scopes:
Scopes Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit . Viewing Modes Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Viewing_Modes:
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Na:
1 Year Limited Manufacturer’s Warranty.
Built_In_Control_Panel:
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External_Control:
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
Software_Included:
Blackmagic OS Blackmagic HyperDeck Setup
Internal_Software_Upgrade:
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Power_Supply:
1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
Power_Usage:
190W max.
Optional_Accessories:
HyperDeck Extreme Control HyperDeck Extreme Rack Kit
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 4 SDI Video Outputs 5 (12G-SDI A, B, C, D and 3G-SDI Monitor Out) SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 Analog Video Inputs 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC. Analog Video Outputs None Analog Audio Inputs 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors. Built in Speaker Mono Screen 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD Timecode Connections 1 x XLR in and 1 x XLR out. Reference Input Tri-Sync or Black Burst. SDI Audio Inputs 64 channels embedded audio. SDI Audio Outputs 64 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In, 1 x RS-422 Out. Recorder Configuration Via user interface or Blackmagic HyperDeck Ethernet Protocol. Ethernet 10Gb/s External Recording 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording. Computer Interface 1 x USB-C for software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60 8K DCI Video Standards 4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084. SDI Metadata Support HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI. Audio Sampling Television standard 24-bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab. Multi Rate Support Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G-SDI. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Control:
Built in Control Panel Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
Software:
Software Included Blackmagic OS Blackmagic HyperDeck Setup Internal Software Upgrade Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Displays:
Built in LCD for video, audio and timecode monitoring and menu settings.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use. Power Usage 190W max.
Accessories:
Optional Accessories HyperDeck Extreme Control HyperDeck Extreme Rack Kit
Physical_Installation:
3 rack units height, half rack width.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
HyperDeck Extreme 8K HDR Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-8k-hdr-sm.jpg?_v=1556767413
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-8k-hdr-md.jpg?_v=1556767413
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-8k-hdr-xl.jpg?_v=1556767413
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-8k-hdr-sm.jpg?_v=1556767413
HyperDeck Extreme Control
Add to Compare
View Details
HyperDeck Extreme Control
Price:
HK$10,650
Description:
HyperDeck Extreme Control adds traditional broadcast deck controls to HyperDeck Extreme 8K. It works like a traditional broadcast deck with a familiar layout. Control up to 8 decks via industry standardRS-422 control.
Reference_Input:
Tri-Sync or Black Burst.
Ethernet:
1Gb/s
Computer_Interface:
1 x USB-C for software updates.
Na:
1 Year Limited Manufacturer’s Warranty.
Internal_Software_Upgrade:
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Power_Supply:
1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
Power_Usage:
20W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Deck Control Outputs 8 x RS-422 Reference Input Tri-Sync or Black Burst. Reference Output Follows reference input. Ethernet 1Gb/s Computer Interface 1 x USB-C for software updates.
Software:
Internal Software Upgrade Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Displays:
8 digit, 7 segment LED timecode display.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use. Power Usage 20W max.
Physical_Installation:
3 rack units height, half rack width.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
HyperDeck Extreme Control Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Deck_Control_Outputs:
8 x RS-422
Reference_Output:
Follows reference input.
Control_Protocols:
Sony
Supported_Protocols:
Control Protocols Sony
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-control-sm.jpg?_v=1554420456
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-control-md.jpg?_v=1554420455
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-control-xl.jpg?_v=1554420455
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckextreme/techspecs/hero/hyperdeck-extreme-control-sm.jpg?_v=1554420456

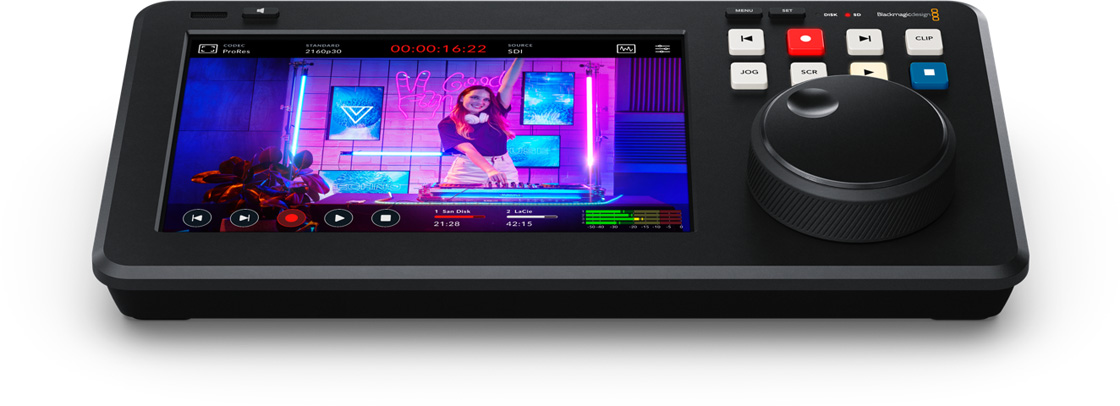

HyperDeck Shuttle 4K Pro
Add to Compare
View Details
HyperDeck Shuttle 4K Pro
Price:
HK$12,250
Description:
HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.
Sdi_Video_Inputs:
1.0
Sdi_Loop_Outputs:
1.0
Sdi_Video_Outputs:
2.0
Sdi_Monitor_Outputs:
1.0
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Hdmi_Monitor_Outputs:
1.0
Built_In_Speaker:
Mono
Audio_Output:
1 x 6.35 mm headphone jack
Screen:
7 inch LCD.
Reference_Input:
1 x BNC In, Tri-Sync/Black Burst and Timecode.
Reference_Output:
1 x BNC Out. Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
64 channels embedded audio.
Sdi_Audio_Outputs:
64 channels embedded audio.
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In.
Recorder_Configuration:
Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
External_Recording:
1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
Computer_Interface:
1 x USB-C for software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Sdi_Metadata_Support:
Television standard 24‑bit, 48 kHz sample rate.
Supported_Hdmi_Formats:
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio_Sampling:
Television standard 24‑bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
Hdr_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Multi_Rate_Support:
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Cache_Recording:
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. Slot supports 60mm 80mm and 110mm cards.
Media:
Cache Recording Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. Slot supports 60mm 80mm and 110mm cards. Media 1 x SD card slot 1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. Please click here for a summary of compatible media. Media Type UHS-I and UHS-II SD cards. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
UHS-I and UHS-II SD cards.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Video_Codecs:
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Audio_Codecs:
AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.
Scopes:
Scopes Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit . Viewing Modes Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Viewing_Modes:
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Built_In_Control_Panel:
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
External_Control:
11 buttons for transport and device control with search dial.
Supported_File_Formats:
Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Software_Included:
Blackmagic OS Blackmagic HyperDeck Setup
Internal_Software_Upgrade:
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Na:
HyperDeck Shuttle 4K Pro 12V universal power supply with international socket adapters
Power_Supply:
1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
Power_Usage:
60 W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Loop Outputs 1 SDI Video Outputs 2 SDI Monitor Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 HDMI Monitor Outputs 1 Built in Speaker Mono Audio Output 1 x 6.35 mm headphone jack Screen 7 inch LCD. Reference Input 1 x BNC In, Tri-Sync/Black Burst and Timecode. Reference Output 1 x BNC Out. Tri-Sync or Black Burst. SDI Audio Inputs 64 channels embedded audio. SDI Audio Outputs 64 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In. Recorder Configuration Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T. External Recording 1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording. Computer Interface 1 x USB-C for software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. SDI Metadata Support Television standard 24‑bit, 48 kHz sample rate. Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI Audio Sampling Television standard 24‑bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out. HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084. Multi Rate Support Auto detection of SD, HD, 6G‑SDI and 12G‑SDI. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Supported_Codecs:
Video Codecs ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60. Audio Codecs AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.
Software:
Software Included Blackmagic OS Blackmagic HyperDeck Setup Internal Software Upgrade Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use. Power Usage 60 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-sm.jpg?_v=1741833648
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-md.jpg?_v=1741833648
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-xl.jpg?_v=1741833648
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-sm.jpg?_v=1741833648
HyperDeck Shuttle 4K Pro 2TB
Add to Compare
View Details
HyperDeck Shuttle 4K Pro 2TB
Price:
HK$15,550
Description:
HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.
Sdi_Video_Inputs:
1.0
Sdi_Loop_Outputs:
1.0
Sdi_Video_Outputs:
2.0
Sdi_Monitor_Outputs:
1.0
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Hdmi_Monitor_Outputs:
1.0
Built_In_Speaker:
Mono
Audio_Output:
1 x 6.35 mm headphone jack
Screen:
7 inch LCD.
Reference_Input:
1 x BNC In, Tri-Sync/Black Burst and Timecode.
Reference_Output:
1 x BNC Out. Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
64 channels embedded audio.
Sdi_Audio_Outputs:
64 channels embedded audio.
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In.
Recorder_Configuration:
Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
External_Recording:
1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
Computer_Interface:
1 x USB-C for software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Sdi_Metadata_Support:
Television standard 24‑bit, 48 kHz sample rate.
Supported_Hdmi_Formats:
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio_Sampling:
Television standard 24‑bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
Hdr_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Multi_Rate_Support:
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Cache_Recording:
2TB M.2 PCIe NVMe card for cache recording up to 16Gb/s included. Slot supports 60mm 80mm and 110mm cards.
Media:
Cache Recording 2TB M.2 PCIe NVMe card for cache recording up to 16Gb/s included. Slot supports 60mm 80mm and 110mm cards. Media 1 x SD card slot 1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. Please click here for a summary of compatible media. Media Type UHS-I and UHS-II SD cards. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
UHS-I and UHS-II SD cards.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Video_Codecs:
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Audio_Codecs:
AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.
Scopes:
Scopes Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit . Viewing Modes Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Viewing_Modes:
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Built_In_Control_Panel:
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
External_Control:
11 buttons for transport and device control with search dial.
Supported_File_Formats:
Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Software_Included:
Blackmagic OS Blackmagic HyperDeck Setup
Internal_Software_Upgrade:
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Na:
HyperDeck Shuttle 4K Pro 2TB 2TB M.2 PCIe NVMe cache recording storage 12V universal power supply with international socket adapters
Power_Supply:
1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
Power_Usage:
60 W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Loop Outputs 1 SDI Video Outputs 2 SDI Monitor Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 HDMI Monitor Outputs 1 Built in Speaker Mono Audio Output 1 x 6.35 mm headphone jack Screen 7 inch LCD. Reference Input 1 x BNC In, Tri-Sync/Black Burst and Timecode. Reference Output 1 x BNC Out. Tri-Sync or Black Burst. SDI Audio Inputs 64 channels embedded audio. SDI Audio Outputs 64 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In. Recorder Configuration Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T. External Recording 1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording. Computer Interface 1 x USB-C for software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. SDI Metadata Support Television standard 24‑bit, 48 kHz sample rate. Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI Audio Sampling Television standard 24‑bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out. HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084. Multi Rate Support Auto detection of SD, HD, 6G‑SDI and 12G‑SDI. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Supported_Codecs:
Video Codecs ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60. Audio Codecs AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.
Software:
Software Included Blackmagic OS Blackmagic HyperDeck Setup Internal Software Upgrade Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use. Power Usage 60 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-2tb-sm.jpg?_v=1741833648
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-2tb-md.jpg?_v=1741833648
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-2tb-xl.jpg?_v=1741833648
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-4k-pro-2tb-sm.jpg?_v=1741833648

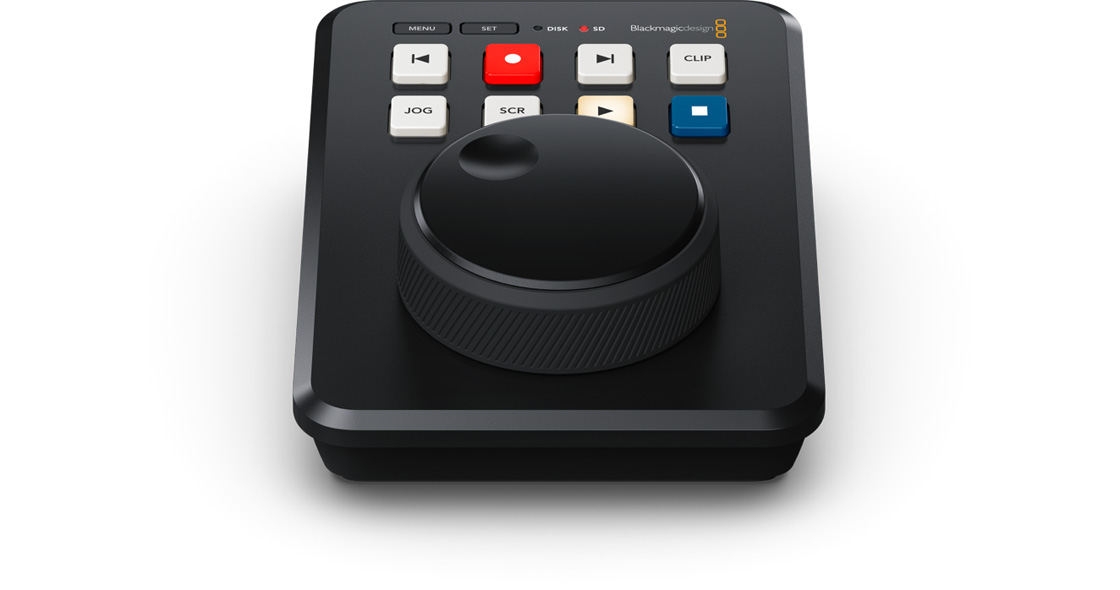

HyperDeck Shuttle HD
Add to Compare
View Details
HyperDeck Shuttle HD
Price:
HK$4,100
Description:
HyperDeck Shuttle HD is a recorder and player that’s designed to be used on the desktop! That means it’s more than a master recorder as it can also be used as a clip player. The large search dial is perfect for scrolling through lots of media to find the clip you want to play. The HDMI connections allow connection to switchers, cameras and monitors. It even has a built in teleprompter!
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Recorder_Configuration:
Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
1Gb/s
Computer_Interface:
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, software configuration and updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Col_2k_Dci_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Audio_Sampling:
Television standard 24‑bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10‑bit
Multi_Rate_Support:
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
Media:
Media 1 x SD card slot 1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI. Please click here for a summary of compatible media. Media Type UHS-I and UHS-II SD cards. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
UHS-I and UHS-II SD cards.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Built_In_Control_Panel:
10 buttons for transport and device control plus metal search dial.
External_Control:
HDMI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Supported_File_Formats:
Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Na:
HyperDeck Shuttle HD 12V universal power supply with international socket adapters
Power_Supply:
1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
Power_Usage:
20 W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
HDMI Video Inputs 1 HDMI Video Outputs 1 HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Recorder Configuration Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol. Ethernet 1Gb/s Computer Interface 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, software configuration and updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI Audio Sampling Television standard 24‑bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision 10‑bit Color Space REC 601, REC 709. Multi Rate Support Auto detection of SD and HD.
Supported_Codecs:
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use. Power Usage 20 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Video_Inputs:
1.0
Hdmi_Video_Outputs:
1.0
Color_Space:
REC 601, REC 709.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-hd-sm.jpg?_v=1647477445
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-hd-md.jpg?_v=1647477444
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-hd-xl.jpg?_v=1647477443
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckshuttle/techspecs/hero/hyperdeck-shuttle-hd-sm.jpg?_v=1647477445

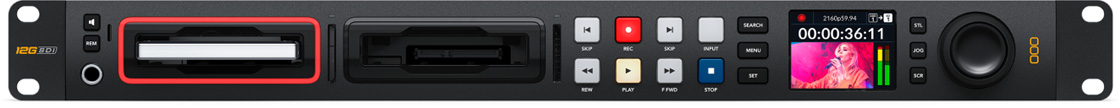

HyperDeck Studio 4K Pro
Add to Compare
View Details
HyperDeck Studio 4K Pro
Price:
HK$13,100
Description:
For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. This model’s SDI has been upgraded to full 12G-SDI with a loop 12G-SDI output. The two SDI outputs are both 12G-SDI so you can play ProRes 4444 files for true Ultra HD fill and key out. The HDMI connections and the ProRes and DNx file formats all switch between SD, HD and Ultra HD television standards. Like the other models, H.264 is included for SD and HD, but then switches to H.265 when recording in Ultra HD. Even the networking has been upgraded to 10G Ethernet for incredible speed! You also get 2 redundant AC power supplies!
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
2.0
Sdi_Monitor_Outputs:
1.0
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Built_In_Speaker:
Mono
Audio_Output:
1 x 6.35 mm headphone jack.
Screen:
2.2 inch LCD.
Timecode_Connections:
1 x XLR In, 1 x XLR Out.
Reference_Connections:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
16 channels embedded audio.
Sdi_Audio_Outputs:
16 channels embedded audio.
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In, 1 x RS-422 Out.
Recorder_Configuration:
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
10Gb/s
Computer_Interface:
1 x USB Type-C 3.1 Gen 2 (up to 10Gb/s) for external drive recording, webcam out, software configuration and updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Sdi_Metadata_Support:
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
Supported_Hdmi_Formats:
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio_Sampling:
Television standard 24‑bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10‑bit
Color_Space:
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
Hdr_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Multi_Rate_Support:
Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media:
Media 2 x 2.5 inch disc slots 2 x SD card slots 1 x USB‑C 3.1 Gen 2 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. Please click here for a summary of compatible media. Media Type SATA-II or SATA-III 2.5 inch solid state media. UHS-I and UHS-II SD cards. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
SATA-II or SATA-III 2.5 inch solid state media. UHS-I and UHS-II SD cards.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Built_In_Control_Panel:
16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
External_Control:
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Na:
HyperDeck Studio 4K Pro
Power_Supply:
2 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage:
100 W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 2 SDI Monitor Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 Built in Speaker Mono Audio Output 1 x 6.35 mm headphone jack. Screen 2.2 inch LCD. Timecode Connections 1 x XLR In, 1 x XLR Out. Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In, 1 x RS-422 Out. Recorder Configuration Via user interface or Blackmagic HyperDeck Ethernet Protocol. Ethernet 10Gb/s Computer Interface 1 x USB Type-C 3.1 Gen 2 (up to 10Gb/s) for external drive recording, webcam out, software configuration and updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. SDI Metadata Support HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI. Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI Audio Sampling Television standard 24‑bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision 10‑bit Color Space REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out. HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084. Multi Rate Support Auto detection of SD, HD, 6G‑SDI and 12G‑SDI. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Control:
Built in Control Panel 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display. External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 2 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
HyperDeck Studio 4K Pro
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-4k-pro-sm.jpg?_v=1627276729
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-4k-pro-md.jpg?_v=1627276729
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-4k-pro-xl.jpg?_v=1627276729
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-4k-pro-sm.jpg?_v=1627276729

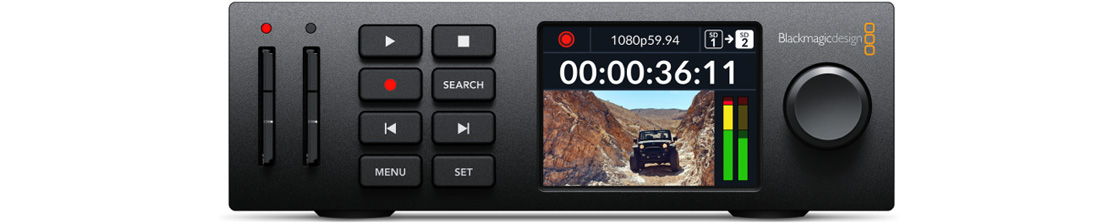

HyperDeck Studio HD Mini
Add to Compare
View Details
HyperDeck Studio HD Mini
Price:
HK$4,100
Description:
The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
1.0
Sdi_Rates:
270Mb, 1.5G, 3G.
Screen:
2.2 inch LCD
Timecode_Connections:
1 x BNC In, 1 x BNC Out.
Reference_Connections:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
16 channels embedded audio.
Sdi_Audio_Outputs:
16 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In.
Recorder_Configuration:
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
1Gb/s
Computer_Interface:
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108‑1.
Sdi_Metadata_Support:
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
Supported_Hdmi_Formats:
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Audio_Sampling:
Television standard 24‑bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10‑bit
Color_Space:
REC 601, REC 709, REC 2020.
Hdr_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi_Rate_Support:
Auto detection of SD and HD.
Media:
Media 2 x SD card slots 1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI. Please click here for a summary of compatible media. Media Type UHS-I and UHS-II SD cards. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
UHS-I and UHS-II SD cards.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Built_In_Control_Panel:
8 buttons for transport and device control with search dial and 2.2 inch color display.
External_Control:
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Na:
HyperDeck Studio HD Mini
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
Power_Usage:
50 W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 270Mb, 1.5G, 3G. HDMI Video Outputs 1 Screen 2.2 inch LCD Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In. Recorder Configuration Via user interface or Blackmagic HyperDeck Ethernet Protocol. Ethernet 1Gb/s Computer Interface 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108‑1. SDI Metadata Support HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI. Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI Audio Sampling Television standard 24‑bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision 10‑bit Color Space REC 601, REC 709, REC 2020. HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 Multi Rate Support Auto detection of SD and HD.
Control:
Built in Control Panel 8 buttons for transport and device control with search dial and 2.2 inch color display. External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use. Power Usage 50 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
HyperDeck Studio HD Mini
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Video_Outputs:
1.0
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-mini-sm.jpg?_v=1624592788
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-mini-md.jpg?_v=1624592788
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-mini-xl.jpg?_v=1624592786
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-mini-sm.jpg?_v=1624592788
HyperDeck Studio HD Plus
Add to Compare
View Details
HyperDeck Studio HD Plus
Price:
HK$5,700
Description:
HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and built in speaker.
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
2.0
Sdi_Monitor_Outputs:
1.0
Sdi_Rates:
270Mb, 1.5G, 3G, 6G.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Built_In_Speaker:
Mono
Audio_Output:
1 x 6.35 mm headphone jack.
Screen:
2.2 inch LCD.
Timecode_Connections:
1 x BNC In, 1 x BNC Out.
Reference_Connections:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
16 channels embedded audio.
Sdi_Audio_Outputs:
16 channels embedded audio.
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In, 1 x RS-422 Out.
Recorder_Configuration:
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
1Gb/s
Computer_Interface:
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Dci_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2084 and SMPTE 2108‑1.
Sdi_Metadata_Support:
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
Supported_Hdmi_Formats:
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio_Sampling:
Television standard 24‑bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10‑bit
Color_Space:
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
Hdr_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi_Rate_Support:
Auto detection of SD, HD and 6G‑SDI.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media:
Media 2 x SD card slots 1 x USB-C 3.0 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. Please click here for a summary of compatible media. Media Type UHS-I and UHS-II SD cards. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
UHS-I and UHS-II SD cards.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Built_In_Control_Panel:
13 buttons for transport and device control with search dial and 2.2 inch color display.
External_Control:
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Na:
HyperDeck Studio HD Plus
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage:
100 W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 2 SDI Monitor Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 Built in Speaker Mono Audio Output 1 x 6.35 mm headphone jack. Screen 2.2 inch LCD. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In, 1 x RS-422 Out. Recorder Configuration Via user interface or Blackmagic HyperDeck Ethernet Protocol. Ethernet 1Gb/s Computer Interface 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2084 and SMPTE 2108‑1. SDI Metadata Support HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI. Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI Audio Sampling Television standard 24‑bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision 10‑bit Color Space REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out. HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 Multi Rate Support Auto detection of SD, HD and 6G‑SDI. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Control:
Built in Control Panel 13 buttons for transport and device control with search dial and 2.2 inch color display. External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
HyperDeck Studio HD Plus
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-plus-sm.jpg?_v=1624593097
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-plus-md.jpg?_v=1624593097
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-plus-xl.jpg?_v=1624593097
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-plus-sm.jpg?_v=1624593097
HyperDeck Studio HD Pro
Add to Compare
View Details
HyperDeck Studio HD Pro
Price:
HK$8,150
Description:
The HyperDeck Studio HD Pro includes all the features of the Plus model but at a full rack width size, there's space for more features! The larger model has space for two SSD slots but still includes the two SD card slots of the smaller models. This means you can instantly move media cards between different models of HyperDeck Studio. You get the nice transport control buttons as well as a machined metal search dial with electronic clutch for limiting rotation when in shuttle mode. There are also dedicated buttons for jog, shuttle and scroll search dial modes. The rear panel has extra space so the timecode connections have been upgraded to XLR connectors.
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
2.0
Sdi_Monitor_Outputs:
1.0
Sdi_Rates:
270Mb, 1.5G, 3G, 6G.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Built_In_Speaker:
Mono
Audio_Output:
1 x 6.35 mm headphone jack.
Screen:
2.2 inch LCD.
Timecode_Connections:
1 x XLR In, 1 x XLR Out.
Reference_Connections:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Sdi_Audio_Inputs:
16 channels embedded audio.
Sdi_Audio_Outputs:
16 channels embedded audio.
Hdmi_Audio_Inputs:
8 channels embedded audio.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Remote_Control:
1 x RS-422 In, 1 x RS-422 Out.
Recorder_Configuration:
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet:
1Gb/s
Computer_Interface:
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_2k_Dci_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Dci_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2084 and SMPTE 2108‑1.
Sdi_Metadata_Support:
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
Supported_Hdmi_Formats:
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio_Sampling:
Television standard 24‑bit, 48 kHz sample rate.
Video_Sampling:
4:2:2 YUV
Color_Precision:
10‑bit
Color_Space:
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
Hdr_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Multi_Rate_Support:
Auto detection of SD, HD and 6G‑SDI.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media:
Media 2 x 2.5 inch disc slots 2 x SD card slots 1 x USB-C 3.0 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. Please click here for a summary of compatible media. Media Type SATA-II or SATA-III 2.5 inch solid state media. UHS-I and UHS-II SD cards. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Type:
SATA-II or SATA-III 2.5 inch solid state media. UHS-I and UHS-II SD cards.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Built_In_Control_Panel:
16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
External_Control:
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Na:
HyperDeck Studio HD Pro
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power_Usage:
100 W max.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 2 SDI Monitor Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 Built in Speaker Mono Audio Output 1 x 6.35 mm headphone jack. Screen 2.2 inch LCD. Timecode Connections 1 x XLR In, 1 x XLR Out. Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Remote Control 1 x RS-422 In, 1 x RS-422 Out. Recorder Configuration Via user interface or Blackmagic HyperDeck Ethernet Protocol. Ethernet 1Gb/s Computer Interface 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2084 and SMPTE 2108‑1. SDI Metadata Support HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI. Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI Audio Sampling Television standard 24‑bit, 48 kHz sample rate. Video Sampling 4:2:2 YUV Color Precision 10‑bit Color Space REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out. HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084. Multi Rate Support Auto detection of SD, HD and 6G‑SDI. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Control:
Built in Control Panel 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display. External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use. Power Usage 100 W max.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
HyperDeck Studio HD Pro
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-pro-sm.jpg?_v=1624592429
Col_1120w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-pro-md.jpg?_v=1624592429
Col_1324w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-pro-xl.jpg?_v=1624592428
Col_662w:
https://images.blackmagicdesign.com/images/products/hyperdeckstudio/techspecs/hero/hyperdeck-studio-hd-pro-sm.jpg?_v=1624592429
UltraStudio Recorder 3G
Add to Compare
View Details
UltraStudio Recorder 3G
Price:
HK$1,050
Description:
Get the world’s smallest pocket sized SDI and HDMI video capturefor yourThunderbolt 3 laptop or desktop computer! UltraStudio Recorder 3G features the highest quality 10 bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more!
Sdi_Video_Inputs:
1 x 10-bit SD/HD switchable
Sdi_Rates:
270Mb, 1.5G, 3G
Sdi_Audio_Inputs:
16 Channels embedded in SD/HD
Hdmi_Video_Inputs:
1 x HDMI 2.0 type A connector
Hdmi_Audio_Inputs:
8 Channels embedded in SD/HD
Computer_Interface:
Thunderbolt™ 3 (Mac OS, Windows and Linux)
Na:
1 Year Limited Manufacturer’s Warranty.
Software_Included:
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal_Software_Upgrade:
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Other_Supported_Applications_Include:
Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom. These are third party applications and support may vary, check with your software vendor.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
Sdi_Metadata_Support:
RP 188/SMPTE 12M-2 and closed captioning.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Video_Sampling:
4:2:2, 4:4:4
Sdi_Color_Space:
REC 601, REC 709 and REC 2020
Hdmi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Hdmi_Video_Sampling:
4:2:2 and 4:4:4
Hdmi_Color_Space:
REC 601, REC 709 and REC 2020
Hdmi_Configuration:
HDMI 2.0 supports Deep Color.
Multiple_Rate_Support:
HDMI video connection is switchable between SD and HD.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace_Conversion:
Hardware based real time.
Physical_Installation:
Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.
Operating_Temperature:
5° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G SDI Audio Inputs 16 Channels embedded in SD/HD HDMI Video Inputs 1 x HDMI 2.0 type A connector HDMI Audio Inputs 8 Channels embedded in SD/HD Computer Interface Thunderbolt™ 3 (Mac OS, Windows and Linux)
Software:
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Sdi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support SDI video connection is switchable between SD and HD.
Hdmi_Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0 supports Deep Color. HDMI Color Space REC 601, REC 709 and REC 2020 Multiple Rate Support HDMI video connection is switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing:
Colorspace Conversion Hardware based real time. Physical Installation Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11. Linux
Environmental_Specifications:
Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Sdi_Color_Precision:
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
Hdmi_Color_Precision:
8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.
Hardware_Frame_Buffer:
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
Src:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-recorder-3g-sm.jpg?_v=1589176281
Col_1120w:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-recorder-3g-md.jpg?_v=1589176280
Col_1324w:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-recorder-3g-xl.jpg?_v=1589176280
Col_662w:
https://images.blackmagicdesign.com/images/products/ultrastudio/techspecs/hero/ultrastudio-recorder-3g-sm.jpg?_v=1589176281
×
