🧩 Blackmagic Products - Final Version
ENG / 中文
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
Professional Cameras

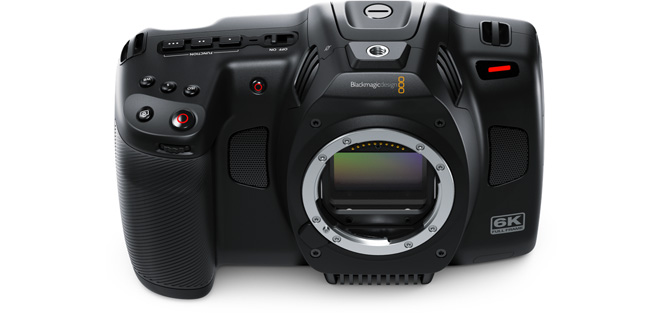

Blackmagic Cinema Camera 6K
Add to Compare
View Details
Blackmagic Cinema Camera 6K
Price:
HK$21,300
Description:
The Blackmagic Cinema Camera 6K is a next generation, handheld 6K digital film camera with 6048 x 4032 full frame high resolution HDR sensor, dual native ISO, L‑Mount, CFexpress recording and direct recording to USB-C disks! Blackmagic Cinema Camera 6K features an OLPF for better detail handling, records stunning 12-bit Blackmagic RAW for cinematic images as well as real time H.264 proxies!
Effective_Sensor_Size:
36mm x 24mm (Full Frame)
Lens_Mount:
Active L-Mount.
Lens_Control:
Iris and focus on supported lenses.
Dynamic_Range:
13 Stops.
Dual_Native_Iso:
400 and 3200
Shooting_Resolutions:
6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps
Frame_Rates:
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.
Focus:
Auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen_Dimensions:
5” 1920 x 1080.
Screen_Brightness:
1500 nits
Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls:
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
1 x HDMI up to 1080p60
Analog_Audio_Inputs:
2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack.
Computer_Interface:
USB Type-C for external drive recording, PTP camera control and software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Media:
Media 1 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording. Please click here for a summary of compatible media. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External_Control:
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Na:
Windows 10 and 11.
Storage_Type:
1 x CFexpress Type B 1 x high speed USB-C expansion port for external media.
Recording_Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.
Storage_Rates:
Storage rates based on 30 frames per second.
Power_Supply:
1 x External 12V power supply.
External_Power_Input:
1 x 2‑pin locking connector.
Battery_Type:
NP-F570
Battery_Life:
Approximately 60 minutes (recording 6K RAW at 24 fps to CFexpress with screen brightness at 50%)
Power:
12V-20V.
Optional_Accessories:

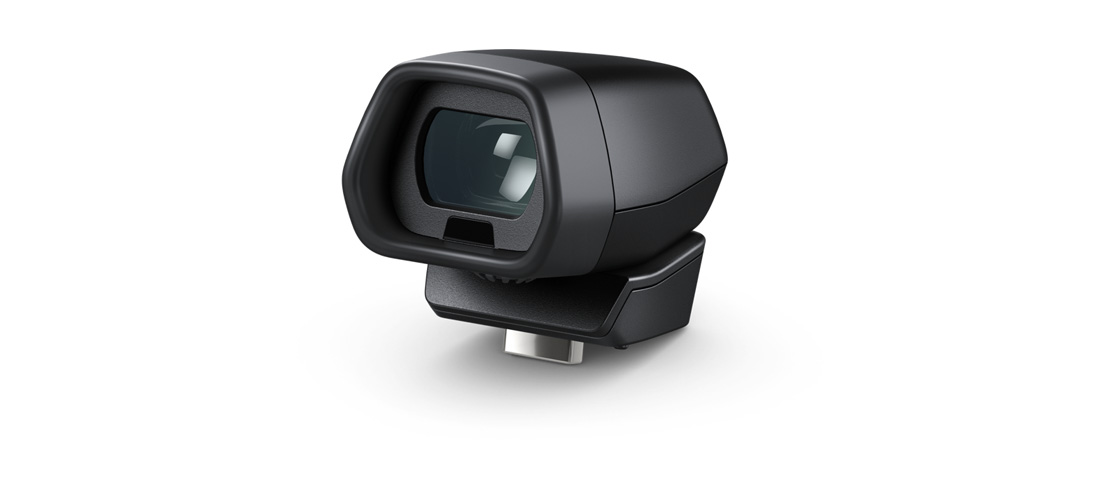

Blackmagic Pocket Cinema Camera Pro EVF Blackmagic Pocket Camera Battery Pro Grip
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Camera_Features:
Effective Sensor Size 36mm x 24mm (Full Frame) Lens Mount Active L-Mount. Lens Control Iris and focus on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 400 and 3200 Shooting Resolutions 6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD. Focus Auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. Screen Dimensions 5” 1920 x 1080. Screen Brightness 1500 nits Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. Controls Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Inputs None Total Video Outputs 1 x HDMI up to 1080p60 Analog Audio Inputs 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input. Analog Audio Outputs 1 x 3.5mm headphone jack. Computer Interface USB Type-C for external drive recording, PTP camera control and software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Control:
External Control Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman.
Cloud_Synchronization:
Learn More
Storage_Features:
6048 x 4032 (6K Open Gate 3:2) Blackmagic RAW 3:1 - 370 MB/s Blackmagic RAW 5:1 - 223 MB/s Blackmagic RAW 8:1 - 140 MB/s Blackmagic RAW 12:1 - 94 MB/s Blackmagic RAW Q0 - 278 to 555 MB/s Blackmagic RAW Q1 - 186 to 444 MB/s Blackmagic RAW Q3 - 124 to 318 MB/s Blackmagic RAW Q5 - 75 to 186 MB/s 4832 x 4032 (Anamorphic 6:5) Blackmagic RAW 3:1 - 297 MB/s Blackmagic RAW 5:1 - 179 MB/s Blackmagic RAW 8:1 - 112 MB/s Blackmagic RAW 12:1 - 75 MB/s Blackmagic RAW Q0 - 223 to 445 MB/s Blackmagic RAW Q1 - 149 to 356 MB/s Blackmagic RAW Q3 - 100 to 255 MB/s Blackmagic RAW Q5 - 60 to 149 MB/s 6048 x 3200 (6K DCI 17:9) Blackmagic RAW 3:1 - 295 MB/s Blackmagic RAW 5:1 - 177 MB/s Blackmagic RAW 8:1 - 111 MB/s Blackmagic RAW 12:1 - 75 MB/s Blackmagic RAW Q0 - 221 to 441 MB/s Blackmagic RAW Q1 - 148 to 353 MB/s Blackmagic RAW Q3 - 99 to 253 MB/s Blackmagic RAW Q5 - 60 to 148 MB/s 6048 x 2520 (6K 2.4:1) Blackmagic RAW 3:1 - 233 MB/s Blackmagic RAW 5:1 - 140 MB/s Blackmagic RAW 8:1 - 88 MB/s Blackmagic RAW 12:1 - 59 MB/s Blackmagic RAW Q0 - 175 to 348 MB/s Blackmagic RAW Q1 - 117 to 279 MB/s Blackmagic RAW Q3 - 78 to 199 MB/s Blackmagic RAW Q5 - 47 to 117 MB/s 4096 x 3072 (Super 35 4:3) Blackmagic RAW 3:1 - 192 MB/s Blackmagic RAW 5:1 - 116 MB/s Blackmagic RAW 8:1 - 73 MB/s Blackmagic RAW 12:1 - 49 MB/s Blackmagic RAW Q0 - 145 to 288 MB/s Blackmagic RAW Q1 - 97 to 231 MB/s Blackmagic RAW Q3 - 65 to 165 MB/s Blackmagic RAW Q5 - 39 to 97 MB/s 4096 x 2160 (4K DCI 17:9) Blackmagic RAW 3:1 - 136 MB/s Blackmagic RAW 5:1 - 82 MB/s Blackmagic RAW 8:1 - 52 MB/s Blackmagic RAW 12:1 - 35 MB/s Blackmagic RAW Q0 - 102 to 203 MB/s Blackmagic RAW Q1 - 69 to 163 MB/s Blackmagic RAW Q3 - 46 to 117 MB/s Blackmagic RAW Q5 - 28 to 69 MB/s 2112 x 1184 (Super 16 16:9) Blackmagic RAW 3:1 - 40 MB/s Blackmagic RAW 5:1 - 24 MB/s Blackmagic RAW 8:1 - 16 MB/s Blackmagic RAW 12:1 - 11 MB/s Blackmagic RAW Q0 - 30 to 59 MB/s Blackmagic RAW Q1 - 21 to 48 MB/s Blackmagic RAW Q3 - 14 to 34 MB/s Blackmagic RAW Q5 - 9 to 21 MB/s 1920 x 1080 Blackmagic RAW 3:1 - 33 MB/s Blackmagic RAW 5:1 - 20 MB/s Blackmagic RAW 8:1 - 13 MB/s Blackmagic RAW 12:1 - 9 MB/s Blackmagic RAW Q0 - 25 to 49 MB/s Blackmagic RAW Q1 - 17 to 40 MB/s Blackmagic RAW Q3 - 12 to 29 MB/s Blackmagic RAW Q5 - 8 to 17 MB/s
Software:
Software Included
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. External Power Input 1 x 2‑pin locking connector. Battery Type NP-F570 Battery Life Approximately 60 minutes (recording 6K RAW at 24 fps to CFexpress with screen brightness at 50%) Power 12V-20V.
Accessories:
Optional Accessories Blackmagic Pocket Cinema Camera Pro EVF Blackmagic Pocket Camera Battery Pro Grip
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Cinema Camera 6K Lens turret dust cap Camera strap 30W power supply with locking connector and international adapters NP-F570 battery NP-F series battery USB charger Welcome booklet DaVinci Resolve Studio activation key
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagiccinemacamera/techspecs/hero/blackmagic-cinema-camera-6k-sm.jpg?_v=1694495628
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagiccinemacamera/techspecs/hero/blackmagic-cinema-camera-6k-md.jpg?_v=1694495627
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagiccinemacamera/techspecs/hero/blackmagic-cinema-camera-6k-xl.jpg?_v=1694495627
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagiccinemacamera/techspecs/hero/blackmagic-cinema-camera-6k-sm.jpg?_v=1694495628

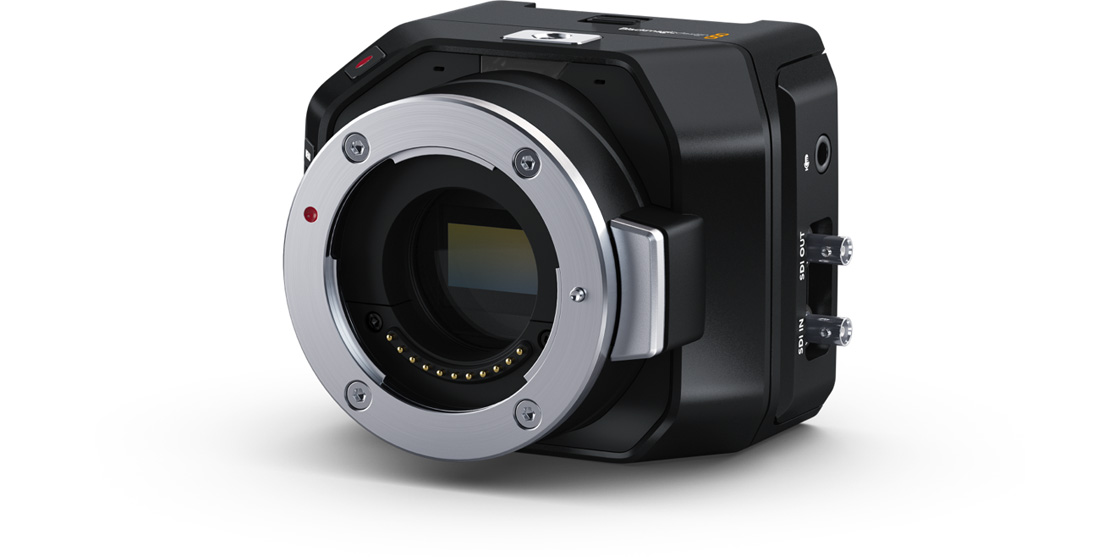

Blackmagic Micro Studio Camera 4K G2
Add to Compare
View Details
Blackmagic Micro Studio Camera 4K G2
Price:
HK$8,150
Description:
Blackmagic Micro Studio Camera 4K G2 is an amazing, broadcast quality live production camera in a tiny body. The Four Thirds sensor has 13 stops of dynamic range, incredible low light performance and produces stunning Ultra HD images in all lighting conditions. 12G-SDI Micro BNC connectors support 10-bit uncompressed video up to 2160p60 and 2 channel audio on the output. The input supports tally, camera control, control of the built-in color corrector plus lens control, from an ATEM switcher. Or when using an ATEM Mini switcher, the HDMI connector will output 1080 and support all control features. Plus it's even a Hollywood quality cinema camera because it can record Blackmagic RAW to external USB-C drives. With multiple mounting points, place Blackmagic Micro Studio Camera 4K G2 where no other camera will go!
Effective_Sensor_Size:
17.78mm x 10mm (Four Thirds)
Lens_Mount:
Active MFT Mount.
Lens_Control:
Iris, focus, zoom on supported lenses.
Dynamic_Range:
13 Stops.
Dual_Native_Iso:
0dB and 18dB gain.
Sensitivity_At_0db_Gain:
f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance.
Signal_To_Noise_Ratio:
63dB for 2160p.
Shooting_Resolutions:
3840 x 2160 (Ultra HD) up to 60 fps.
Frame_Rates:
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD.
Focus:
Auto focus available using compatible lenses.
Metadata_Support:
Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Mounting_Options:
1 x 1/4 inch (top), 3 x 1/4 inch (bottom).
Sdi_Video_Inputs:
1 x 12G‑SDI Micro BNC
Sdi_Video_Outputs:
1 x 12G‑SDI Micro BNC
Sdi_Rates:
3G, 6G, 12G
Hdmi_20_Video_Outputs:
1
Hdmi_Video_Outputs:
1 x HDMI Type A output. HDMI output is always HD, up to 1080p60.
Analog_Audio_Input:
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Reference_Inputs:
Program SDI Input on camera.
Sdi_Audio_Output:
2 channels of program audio embedded in 3G/6G/12G-SDI.
Hdmi_Audio_Outputs:
2 channels 48 kHz and 24‑bit.
Remote_Control:
Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port.
Microphone:
Integrated stereo microphone.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Media:
Media 1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Storage_Type:
1 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording_Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage_Rates:
Storage rates based on 30 frames per second.
Na:
Windows 10 and 11.
Control:
5 control buttons including Set, Up, Down, Menu, and Power.
External_Control:
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Ftp:
Download files from any drive attached to your camera using FTP.
Smb:
File sharing using SMB.
Live_Tallyindicator:
1 x front facing for talent.
Software_Included:
Blackmagic Camera Setup for Mac and Windows.
Power_Supply:
1 x External 12V DC 36W power supply.
Power_Inputs:
1 x 12V DC locking 5.5 mm barrel connector.
Power_Usage:
18 ‑ 25 W.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 17.78mm x 10mm (Four Thirds) Lens Mount Active MFT Mount. Lens Control Iris, focus, zoom on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 0dB and 18dB gain. Sensitivity at 0dB Gain f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance. Signal to Noise Ratio 63dB for 2160p. Shooting Resolutions 3840 x 2160 (Ultra HD) up to 60 fps. Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. Focus Auto focus available using compatible lenses. Metadata Support Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. Mounting Options 1 x 1/4 inch (top), 3 x 1/4 inch (bottom).
Connections:
SDI Video Inputs 1 x 12G‑SDI Micro BNC SDI Video Outputs 1 x 12G‑SDI Micro BNC SDI Rates 3G, 6G, 12G HDMI 2.0 Video Outputs 1 HDMI Video Outputs 1 x HDMI Type A output. HDMI output is always HD, up to 1080p60. Analog Audio Input 1 x 3.5mm Stereo Input. Can also be used for Timecode input. Reference Inputs Program SDI Input on camera. SDI Audio Output 2 channels of program audio embedded in 3G/6G/12G-SDI. HDMI Audio Outputs 2 channels 48 kHz and 24‑bit. Remote Control Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter. Computer Interface 1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port.
Audio:
Microphone Integrated stereo microphone. Built in Speaker None
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit.
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. FTP Download files from any drive attached to your camera using FTP. SMB File sharing using SMB.
Color_Corrector:
DaVinci YRGB
Tally:
Live Tally Indicator 1 x front facing for talent.
Software:
Software Included Blackmagic Camera Setup for Mac and Windows.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Optional_Accessories:

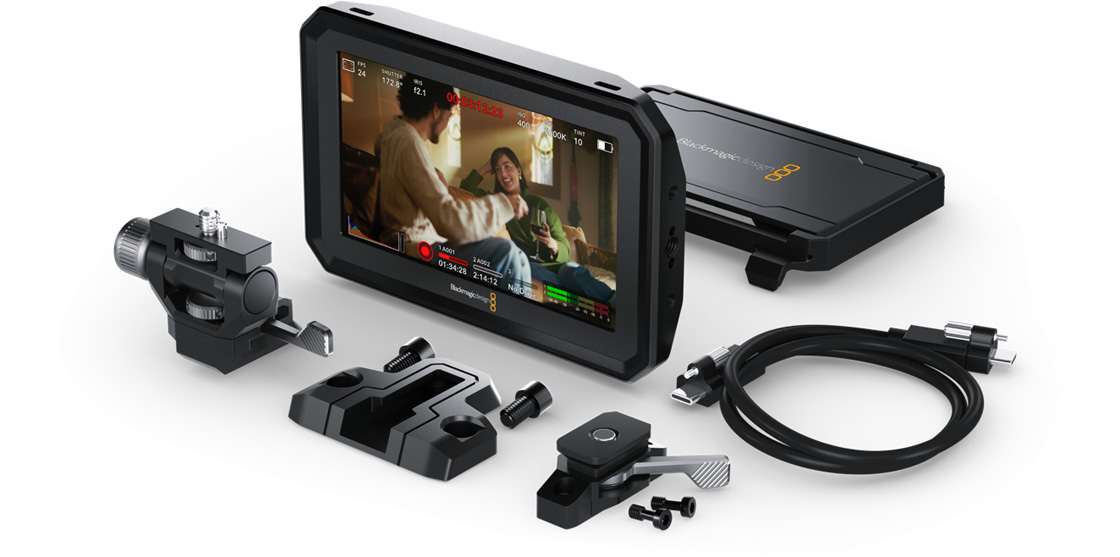

Blackmagic PYXIS Monitor Blackmagic Focus Demand Blackmagic Zoom Demand ATEM Mini switchers ATEM SDI switchers ATEM Television Studio switchers ATEM Constellation switchers Blackmagic Video Assist LP-E6 Battery Micro BNC Cables
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Micro Studio Camera 4K G2 Turret dust cap External 12V DC power supply with locking connector and international socket adapters for most countries. Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicmicrostudiocamera/techspecs/hero/blackmagic-micro-studio-camera-4k-g2-sm.jpg?_v=1693895731
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicmicrostudiocamera/techspecs/hero/blackmagic-micro-studio-camera-4k-g2-md.jpg?_v=1693895731
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicmicrostudiocamera/techspecs/hero/blackmagic-micro-studio-camera-4k-g2-xl.jpg?_v=1693895731
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicmicrostudiocamera/techspecs/hero/blackmagic-micro-studio-camera-4k-g2-sm.jpg?_v=1693895731

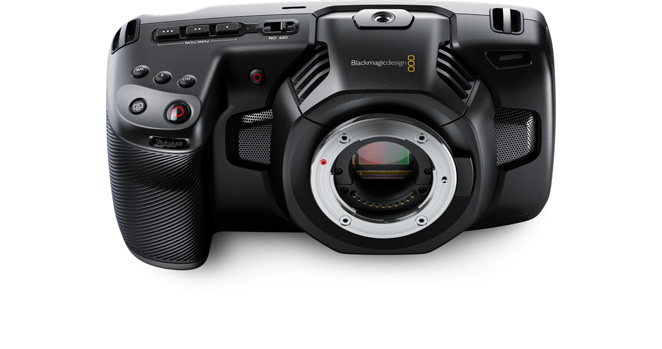

Blackmagic Pocket Cinema Camera 4K
Add to Compare
View Details
Blackmagic Pocket Cinema Camera 4K
Price:
HK$8,150
Description:
The Blackmagic Pocket Cinema Camera 4K features a 4/3 size sensor, 13 stops of dynamic range and dual native ISO up to 25,600 for HDR images and incredible low light performance. External controls give quick access to essential functions, while the large 5 inch touchscreen makes it easy to frame shots, focus accurately and change camera settings. Features include built in SD/UHS-II or CFast 2.0 recorders for Blackmagic RAW or ProRes recording as well as a USB-C expansion port for recording externally to disks, plus MFT lens mount, built-in microphones, XLR input, full sized HDMI, 3D LUT support, Bluetooth and more.
Effective_Sensor_Size:
18.96mm x 10mm (Four Thirds)
Lens_Mount:
Active MFT mount.
Lens_Control:
Iris, focus and zoom on supported lenses.
Dynamic_Range:
13 Stops.
Shooting_Resolutions:
4096 x 2160 (4K DCI) up to 60 fps 4096 x 1720 (4K 2.4:1) up to 75 fps 3840 x 2160 (Ultra HD) up to 60 fps 2880 x 2160 (2.8K anamorphic) up to 80 fps 2688 x 1512 (2.6K 16:9) up to 120 fps 1920 x 1080 (HD) up to 120 fps
Frame_Rates:
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in 2.6K 16:9 and HD windowed.
Focus:
Auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen_Dimensions:
5” 1920 x 1080.
Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls:
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Total_Video_Inputs:
None.
Total_Video_Outputs:
1 x HDMI up to 1080p60
Analog_Audio_Inputs:
1 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack.
Computer_Interface:
USB Type-C for external drive recording, PTP camera control and software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Sd_Video_Standards:
None.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Col_4k_Dci_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Media:
Media 1 x CFast card slot, 1 x SD UHS-II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording. Please click here for a summary of compatible media. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q5 ProRes 422 HQ QuickTime ProRes 422 QuickTime ProRes 422 LT QuickTime ProRes 422 Proxy QuickTime
External_Control:
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
Na:
Windows 10 and 11.
Color_Corrector:
Color Corrector DaVinci YRGB.
Storage_Type:
1 x CFast 2.0. 1 x SD UHS-II card. 1 x high speed USB-C expansion port for external media.
Storage_Rates:
Storage rates based on 30 frames per second.
Power_Supply:
1 x External 12V power supply.
External_Power_Input:
1 x 2-pin locking connector.
Battery_Type:
Canon LP-E6.
Battery_Life:
Approximately 60 minutes (recording at 24 fps without any external USB-C device connected)
Power:
12V-20V
Optional_Accessories:
Blackmagic Pocket Camera Battery Grip.
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Camera_Features:
Effective Sensor Size 18.96mm x 10mm (Four Thirds) Lens Mount Active MFT mount. Lens Control Iris, focus and zoom on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 400 and 3200 Shooting Resolutions 4096 x 2160 (4K DCI) up to 60 fps 4096 x 1720 (4K 2.4:1) up to 75 fps 3840 x 2160 (Ultra HD) up to 60 fps 2880 x 2160 (2.8K anamorphic) up to 80 fps 2688 x 1512 (2.6K 16:9) up to 120 fps 1920 x 1080 (HD) up to 120 fps Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in 2.6K 16:9 and HD windowed. Focus Auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. Screen Dimensions 5” 1920 x 1080. Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. Controls Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Connections:
Total Video Inputs None. Total Video Outputs 1 x HDMI up to 1080p60 Analog Audio Inputs 1 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input. Analog Audio Outputs 1 x 3.5mm headphone jack. Computer Interface USB Type-C for external drive recording, PTP camera control and software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None. HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. 4K DCI Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q5 ProRes 422 HQ QuickTime ProRes 422 QuickTime ProRes 422 LT QuickTime ProRes 422 Proxy QuickTime
Control:
External Control iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
Cloud_Synchronization:
Learn More
Storage_Features:
4096 x 2160 Blackmagic RAW 3:1 - 136 MB/s Blackmagic RAW 5:1 - 82 MB/s Blackmagic RAW 8:1 - 51 MB/s Blackmagic RAW 12:1 - 35 MB/s Blackmagic RAW Q0 - 102 to 203 MB/s Blackmagic RAW Q1 - 68 to 163 MB/s Blackmagic RAW Q3 - 46 to 116 MB/s Blackmagic RAW Q5 - 28 to 68 MB/s Apple ProRes 422 HQ - 117.88 MB/s Apple ProRes 422 - 78.63 MB/s Apple ProRes 422 LT - 54.63 MB/s Apple ProRes Proxy - 24.25 MB/s 4096 x 1720 Blackmagic RAW 3:1 - 108 MB/s Blackmagic RAW 5:1 - 65 MB/s Blackmagic RAW 8:1 - 41 MB/s Blackmagic RAW 12:1 - 28 MB/s Blackmagic RAW Q0 - 81 to 162 MB/s Blackmagic RAW Q1 - 55 to 130 MB/s Blackmagic RAW Q3 - 37 to 93 MB/s Blackmagic RAW Q5 - 22 to 55 MB/s 3840 x 2160 Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s Apple ProRes 422 HQ - 110 MB/s Apple ProRes 422 - 73.6 MB/s Apple ProRes 422 LT - 51 MB/s Apple ProRes Proxy - 22.4 MB/s 2880 x 2160 Blackmagic RAW 3:1 - 96 MB/s Blackmagic RAW 5:1 - 58 MB/s Blackmagic RAW 8:1 - 36 MB/s Blackmagic RAW 12:1 - 25 MB/s Blackmagic RAW Q0 - 72 to 143 MB/s Blackmagic RAW Q1 - 48 to 115 MB/s Blackmagic RAW Q3 - 32 to 82 MB/s Blackmagic RAW Q5 - 20 to 48 MB/s 2688 x 1512 Blackmagic RAW 3:1 - 63 MB/s Blackmagic RAW 5:1 - 38 MB/s Blackmagic RAW 8:1 - 24 MB/s Blackmagic RAW 12:1 - 16 MB/s Blackmagic RAW Q0 - 48 to 94 MB/s Blackmagic RAW Q1 - 32 to 76 MB/s Blackmagic RAW Q3 - 22 to 54 MB/s Blackmagic RAW Q5 - 13 to 32 MB/s 1920 x 1080 Blackmagic RAW 3:1 - 33 MB/s Blackmagic RAW 5:1 - 20 MB/s Blackmagic RAW 8:1 - 13 MB/s Blackmagic RAW 12:1 - 8.4 MB/s Blackmagic RAW Q0 - 25 to 49 MB/s Blackmagic RAW Q1 - 17 to 39 MB/s Blackmagic RAW Q3 - 11 to 28 MB/s Blackmagic RAW Q5 - 7 to 17 MB/s Apple ProRes 422 HQ - 27.5 MB/s Apple ProRes 422 - 18.4 MB/s Apple ProRes 422 LT - 12.75 MB/s Apple ProRes Proxy - 5.6 MB/s
Software:
Software Included
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. External Power Input 1 x 2-pin locking connector. Battery Type Canon LP-E6. Battery Life Approximately 60 minutes (recording at 24 fps without any external USB-C device connected) Power 12V-20V
Accessories:
Optional Accessories Blackmagic Pocket Camera Battery Grip.
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Pocket Cinema Camera 4K Lens turret dust cap 30W power supply with locking connector and international adapters LP‑E6 battery Welcome wallet with QR code for software download Welcome card DaVinci Resolve Studio with activation key
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Dual_Nativeiso:
400 and 3200
Recordingformats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 4096 x 2160, 4096 x 1720, 3840 x 2160, 2880 x 2160, 2688 x 1512 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata. ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and ProRes.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-4k-sm.jpg?_v=1612396883
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-4k-md.jpg?_v=1612396883
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-4k-xl.jpg?_v=1612396883
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-4k-sm.jpg?_v=1612396883
Blackmagic Pocket Cinema Camera 6K G2
Add to Compare
View Details
Blackmagic Pocket Cinema Camera 6K G2
Price:
HK$16,350
Description:
The Blackmagic Pocket Cinema Camera 6K G2 is an advanced technology, handheld 6K digital film camera with 6144 x 3456 Super 35 high resolution HDR sensor, dual native ISO, EF lens mount and direct recording to USB-C disks! This powerful model adds an adjustable touchscreen, and a larger battery for longer run time. You can even add an optional OLED viewfinder!
Effective_Sensor_Size:
23.10mm x 12.99mm (Super 35)
Lens_Mount:
Active EF mount.
Lens_Control:
Iris, focus and zoom on supported lenses.
Dynamic_Range:
13 Stops.
Dual_Native_Iso:
400 and 3200
Shooting_Resolutions:
6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5744 x 3024 (5.7K 17:9) up to 60 fps 4096 x 2160 (4K DCI) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps 2880 x 1512 (2.8K 17:9) up to 120 fps 1920 x 1080 (HD) up to 120 fps
Frame_Rates:
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.
Focus:
Auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen_Dimensions:
5” 1920 x 1080.
Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls:
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
1 x HDMI up to 1080p60
Analog_Audio_Inputs:
2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack.
Computer_Interface:
USB Type-C for external drive recording, PTP camera control and software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Media:
Media 1 x CFast card slot, 1 x SD UHS‑II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording. Please click here for a summary of compatible media. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 ProRes 422 HQ QuickTime ProRes 422 QuickTime ProRes 422 LT QuickTime ProRes 422 Proxy QuickTime
External_Control:
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Na:
Windows 10 and 11.
Color_Corrector:
Color Corrector DaVinci YRGB.
Storage_Type:
1 x CFast 2.0. 1 x SD UHS-II card. 1 x high speed USB-C expansion port for external media.
Recording_Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6144 x 3456, 6144 x 2560, 5744 x 3024, 4096 x 2160, 3728 x 3104 and 2880 x 1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and ProRes.
Storage_Rates:
Storage rates based on 30 frames per second.
Power_Supply:
1 x External 12V power supply.
External_Power_Input:
1 x 2‑pin locking connector.
Battery_Type:
NP-F570
Battery_Life:
Approximately 60 minutes (recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)
Power:
12V-20V.
Optional_Accessories:
Blackmagic Pocket Cinema Camera Pro EVF Blackmagic Pocket Camera Battery Pro Grip
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Camera_Features:
Effective Sensor Size 23.10mm x 12.99mm (Super 35) Lens Mount Active EF mount. Lens Control Iris, focus and zoom on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 400 and 3200 Shooting Resolutions 6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5744 x 3024 (5.7K 17:9) up to 60 fps 4096 x 2160 (4K DCI) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps 2880 x 1512 (2.8K 17:9) up to 120 fps 1920 x 1080 (HD) up to 120 fps Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD. Built in ND Filters None Focus Auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. Screen Dimensions 5” 1920 x 1080. Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. Controls Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Inputs None Total Video Outputs 1 x HDMI up to 1080p60 Analog Audio Inputs 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input. Analog Audio Outputs 1 x 3.5mm headphone jack. Computer Interface USB Type-C for external drive recording, PTP camera control and software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 ProRes 422 HQ QuickTime ProRes 422 QuickTime ProRes 422 LT QuickTime ProRes 422 Proxy QuickTime
Control:
External Control Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
Cloud_Synchronization:
Learn More
Storage_Features:
6144 x 3456 (6K) Blackmagic RAW 3:1 - 323 MB/s Blackmagic RAW 5:1 - 194 MB/s Blackmagic RAW 8:1 - 121 MB/s Blackmagic RAW 12:1 - 81 MB/s Blackmagic RAW Q0 - 242 to 483 MB/s Blackmagic RAW Q1 - 162 to 387 MB/s Blackmagic RAW Q3 - 108 to 277 MB/s Blackmagic RAW Q5 - 65 to 162 MB/s 6144 x 2560 (6K 2.4:1) Blackmagic RAW 3:1 - 240 MB/s Blackmagic RAW 5:1 - 144 MB/s Blackmagic RAW 8:1 - 90 MB/s Blackmagic RAW 12:1 - 60 MB/s Blackmagic RAW Q0 - 180 to 359 MB/s Blackmagic RAW Q1 - 120 to 287 MB/s Blackmagic RAW Q3 - 80 to 205 MB/s Blackmagic RAW Q5 - 49 to 120 MB/s 5744 x 3024 (5.7K 17:9) Blackmagic RAW 3:1 - 264 MB/s Blackmagic RAW 5:1 - 159 MB/s Blackmagic RAW 8:1 - 100 MB/s Blackmagic RAW 12:1 - 67 MB/s Blackmagic RAW Q0 - 198 to 396 MB/s Blackmagic RAW Q1 - 133 to 317 MB/s Blackmagic RAW Q3 - 89 to 227 MB/s Blackmagic RAW Q5 - 54 to 133 MB/s 4096 x 2160 (4K DCI) Blackmagic RAW 3:1 - 136 MB/s Blackmagic RAW 5:1 - 82 MB/s Blackmagic RAW 8:1 - 51 MB/s Blackmagic RAW 12:1 - 35 MB/s Blackmagic RAW Q0 - 102 to 203 MB/s Blackmagic RAW Q1 - 68 to 163 MB/s Blackmagic RAW Q3 - 46 to 116 MB/s Blackmagic RAW Q5 - 28 to 68 MB/s Apple ProRes 422 HQ - 117.88 MB/s Apple ProRes 422 - 78.63 MB/s Apple ProRes 422 LT - 54.63 MB/s Apple ProRes Proxy - 24.25 MB/s 3840 x 2160 (Ultra HD) Apple ProRes 422 HQ - 110 MB/s Apple ProRes 422 - 73.6 MB/s Apple ProRes 422 LT - 51 MB/s Apple ProRes Proxy - 22.4 MB/s 3728 x 3104 (3.7K 6:5 anamorphic) Blackmagic RAW 3:1 - 177 MB/s Blackmagic RAW 5:1 - 106 MB/s Blackmagic RAW 8:1 - 67 MB/s Blackmagic RAW 12:1 - 45 MB/s Blackmagic RAW Q0 - 133 to 265 MB/s Blackmagic RAW Q1 - 89 to 212 MB/s Blackmagic RAW Q3 - 60 to 152 MB/s Blackmagic RAW Q5 - 36 to 89 MB/s 2880 x 1512 (2.8K 17:9) Blackmagic RAW 3:1 - 67 MB/s Blackmagic RAW 5:1 - 41 MB/s Blackmagic RAW 8:1 - 26 MB/s Blackmagic RAW 12:1 - 17 MB/s Blackmagic RAW Q0 - 51 to 101 MB/s Blackmagic RAW Q1 - 34 to 81 MB/s Blackmagic RAW Q3 - 23 to 58 MB/s Blackmagic RAW Q5 - 14 to 34 MB/s 1920 x 1080 Apple ProRes 422 HQ - 27.5 MB/s Apple ProRes 422 - 18.4 MB/s Apple ProRes 422 LT - 12.75 MB/s Apple ProRes Proxy - 5.6 MB/s
Software:
Software Included
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. External Power Input 1 x 2‑pin locking connector. Battery Type NP-F570 Battery Life Approximately 60 minutes (recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%) Power 12V-20V.
Accessories:
Optional Accessories Blackmagic Pocket Cinema Camera Pro EVF Blackmagic Pocket Camera Battery Pro Grip
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Pocket Cinema Camera 6K G2 Lens turret dust cap Camera strap 30W power supply with locking connector and international adapters NP-F570 battery NP-F series battery USB charger Welcome booklet DaVinci Resolve Studio activation key
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-g2-sm.jpg?_v=1655700782
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-g2-md.jpg?_v=1655700782
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-g2-xl.jpg?_v=1655700780
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-g2-sm.jpg?_v=1655700782

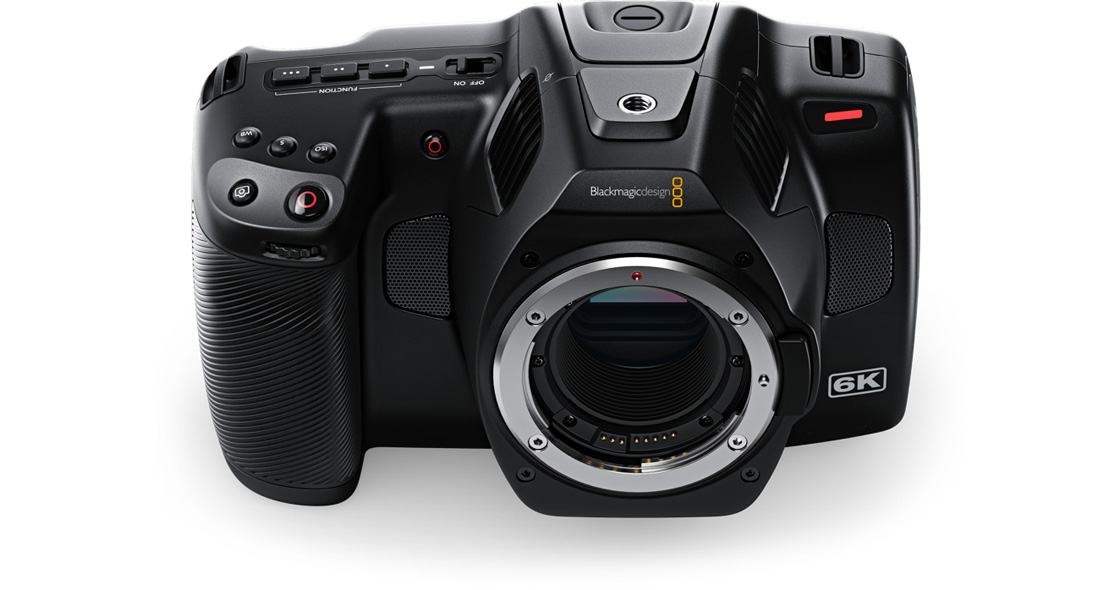

Blackmagic Pocket Cinema Camera 6K Pro
Add to Compare
View Details
Blackmagic Pocket Cinema Camera 6K Pro
Price:
HK$20,800
Description:
The Blackmagic Pocket Cinema Camera 6K Pro is an advanced technology, handheld 6K digital film camera with 6144 x 3456 Super 35 high resolution HDR sensor, dual native ISO, EF lens mount and direct recording to USB‑C disks! This powerful model adds an adjustable HDR touchscreen, built in ND filters, and a larger battery for longer run time. You can even add an optional OLED viewfinder!
Effective_Sensor_Size:
23.10mm x 12.99mm (Super 35)
Lens_Mount:
Active EF mount.
Lens_Control:
Iris, focus and zoom on supported lenses.
Dynamic_Range:
13 Stops.
Dual_Native_Iso:
400 and 3200
Shooting_Resolutions:
6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5744 x 3024 (5.7K 17:9) up to 60 fps 4096 x 2160 (4K DCI) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps 2880 x 1512 (2.8K 17:9) up to 120 fps 1920 x 1080 (HD) up to 120 fps
Frame_Rates:
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.
Built_In_Nd_Filters:
Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters.
Focus:
Auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen_Dimensions:
5” 1920 x 1080.
Screen_Brightness:
1500nits
Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls:
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 2 x ND filter button, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
1 x HDMI up to 1080p60
Analog_Audio_Inputs:
2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack.
Computer_Interface:
USB Type-C for external drive recording, PTP camera control and software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Dci_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Media:
Media 1 x CFast card slot, 1 x SD UHS‑II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording. Please click here for a summary of compatible media. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 ProRes 422 HQ QuickTime ProRes 422 QuickTime ProRes 422 LT QuickTime ProRes 422 Proxy QuickTime
External_Control:
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Na:
Windows 10 and 11.
Color_Corrector:
Color Corrector DaVinci YRGB.
Storage_Type:
1 x CFast 2.0. 1 x SD UHS-II card. 1 x high speed USB-C expansion port for external media.
Recording_Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6144 x 3456, 6144 x 2560, 5744 x 3024, 4096 x 2160, 3728 x 3104 and 2880 x 1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and ProRes.
Storage_Rates:
Storage rates based on 30 frames per second.
Power_Supply:
1 x External 12V power supply.
External_Power_Input:
1 x 2‑pin locking connector.
Battery_Type:
NP-F570
Battery_Life:
Approximately 60 minutes (recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)
Power:
12V-20V.
Optional_Accessories:
Blackmagic Pocket Cinema Camera Pro EVF Blackmagic Pocket Camera Battery Pro Grip
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Camera_Features:
Effective Sensor Size 23.10mm x 12.99mm (Super 35) Lens Mount Active EF mount. Lens Control Iris, focus and zoom on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 400 and 3200 Shooting Resolutions 6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5744 x 3024 (5.7K 17:9) up to 60 fps 4096 x 2160 (4K DCI) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps 2880 x 1512 (2.8K 17:9) up to 120 fps 1920 x 1080 (HD) up to 120 fps Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD. Built in ND Filters Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters. Focus Auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. Screen Dimensions 5” 1920 x 1080. Screen Brightness 1500nits Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. Controls Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 2 x ND filter button, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Inputs None Total Video Outputs 1 x HDMI up to 1080p60 Analog Audio Inputs 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input. Analog Audio Outputs 1 x 3.5mm headphone jack. Computer Interface USB Type-C for external drive recording, PTP camera control and software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 ProRes 422 HQ QuickTime ProRes 422 QuickTime ProRes 422 LT QuickTime ProRes 422 Proxy QuickTime
Control:
External Control Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
Cloud_Synchronization:
Learn More
Storage_Features:
6144 x 3456 (6K) Blackmagic RAW 3:1 - 323 MB/s Blackmagic RAW 5:1 - 194 MB/s Blackmagic RAW 8:1 - 121 MB/s Blackmagic RAW 12:1 - 81 MB/s Blackmagic RAW Q0 - 242 to 483 MB/s Blackmagic RAW Q1 - 162 to 387 MB/s Blackmagic RAW Q3 - 108 to 277 MB/s Blackmagic RAW Q5 - 65 to 162 MB/s 6144 x 2560 (6K 2.4:1) Blackmagic RAW 3:1 - 240 MB/s Blackmagic RAW 5:1 - 144 MB/s Blackmagic RAW 8:1 - 90 MB/s Blackmagic RAW 12:1 - 60 MB/s Blackmagic RAW Q0 - 180 to 359 MB/s Blackmagic RAW Q1 - 120 to 287 MB/s Blackmagic RAW Q3 - 80 to 205 MB/s Blackmagic RAW Q5 - 49 to 120 MB/s 5744 x 3024 (5.7K 17:9) Blackmagic RAW 3:1 - 264 MB/s Blackmagic RAW 5:1 - 159 MB/s Blackmagic RAW 8:1 - 100 MB/s Blackmagic RAW 12:1 - 67 MB/s Blackmagic RAW Q0 - 198 to 396 MB/s Blackmagic RAW Q1 - 133 to 317 MB/s Blackmagic RAW Q3 - 89 to 227 MB/s Blackmagic RAW Q5 - 54 to 133 MB/s 4096 x 2160 (4K DCI) Blackmagic RAW 3:1 - 136 MB/s Blackmagic RAW 5:1 - 82 MB/s Blackmagic RAW 8:1 - 51 MB/s Blackmagic RAW 12:1 - 35 MB/s Blackmagic RAW Q0 - 102 to 203 MB/s Blackmagic RAW Q1 - 68 to 163 MB/s Blackmagic RAW Q3 - 46 to 116 MB/s Blackmagic RAW Q5 - 28 to 68 MB/s Apple ProRes 422 HQ - 117.88 MB/s Apple ProRes 422 - 78.63 MB/s Apple ProRes 422 LT - 54.63 MB/s Apple ProRes Proxy - 24.25 MB/s 3840 x 2160 (Ultra HD) Apple ProRes 422 HQ - 110 MB/s Apple ProRes 422 - 73.6 MB/s Apple ProRes 422 LT - 51 MB/s Apple ProRes Proxy - 22.4 MB/s 3728 x 3104 (3.7K 6:5 anamorphic) Blackmagic RAW 3:1 - 177 MB/s Blackmagic RAW 5:1 - 106 MB/s Blackmagic RAW 8:1 - 67 MB/s Blackmagic RAW 12:1 - 45 MB/s Blackmagic RAW Q0 - 133 to 265 MB/s Blackmagic RAW Q1 - 89 to 212 MB/s Blackmagic RAW Q3 - 60 to 152 MB/s Blackmagic RAW Q5 - 36 to 89 MB/s 2880 x 1512 (2.8K 17:9) Blackmagic RAW 3:1 - 67 MB/s Blackmagic RAW 5:1 - 41 MB/s Blackmagic RAW 8:1 - 26 MB/s Blackmagic RAW 12:1 - 17 MB/s Blackmagic RAW Q0 - 51 to 101 MB/s Blackmagic RAW Q1 - 34 to 81 MB/s Blackmagic RAW Q3 - 23 to 58 MB/s Blackmagic RAW Q5 - 14 to 34 MB/s 1920 x 1080 Apple ProRes 422 HQ - 27.5 MB/s Apple ProRes 422 - 18.4 MB/s Apple ProRes 422 LT - 12.75 MB/s Apple ProRes Proxy - 5.6 MB/s
Software:
Software Included
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. External Power Input 1 x 2‑pin locking connector. Battery Type NP-F570 Battery Life Approximately 60 minutes (recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%) Power 12V-20V.
Accessories:
Optional Accessories Blackmagic Pocket Cinema Camera Pro EVF Blackmagic Pocket Camera Battery Pro Grip
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Pocket Cinema Camera 6K Pro Lens turret dust cap Camera strap 30W power supply with locking connector and international adapters NP-F570 battery NP-F series battery USB charger Welcome booklet DaVinci Resolve Studio activation key
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-pro-sm.jpg?_v=1655700782
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-pro-md.jpg?_v=1655700782
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-pro-xl.jpg?_v=1655700782
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-6k-pro-sm.jpg?_v=1655700782
Blackmagic Pocket Cinema Camera Pro EVF
Add to Compare
View Details
Blackmagic Pocket Cinema Camera Pro EVF
Price:
HK$4,100
Description:
The Blackmagic Pocket Cinema Camera Pro EVF is the perfect accessory to make outdoors and handheld shooting easy! You get a high quality viewfinder with built in proximity sensor, 4 element glass diopter with an incredible -4 to +4 adjustment, built in status information, and a digital focus chart. The Pocket Cinema Camera Pro EVF connects quickly to the Blackmagic Pocket Cinema Camera 6K Pro via a single connector. The viewfinder has up to 70 degree swivel, and comes with a set of 4 eyecups including left and right eye.
Frame_Rates:
Up to 60 fps
Focus:
4 element diopter.
Metadata_Support:
Supports camera information from Pocket Cinema Camera 6K Pro.
Controls:
Viewfinder display configuration set via Monitor Page in camera menu settings.
Power:
Auto ON/OFF controlled by inbuilt proximity sensor.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Video and Power Inputs Via Pocket Cinema Camera 6K Pro EVF connector Fixing Integrated M4 x 3.3 (0.7 pitch) locking screw
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Pocket Cinema Camera Pro EVF Small Eye Cup Medium Eye Cup Left Eye Cup Right Eye Cup
Warranty:
1 Year Limited Manufacturer’s Warranty.
Video_And_Power_Inputs:
Via Pocket Cinema Camera 6K Pro EVF connector
Fixing:
Integrated M4 x 3.3 (0.7 pitch) locking screw
Display_Resolution:
1280 x 960
Display_Pixels:
3.68 million dots
Display_Type:
Micro OLED
Color_Precision:
24 bit RGB, 16.7 million colors
Diopter_Range:
-4 to +4
Overlays:
Camera settings, status and meters displayed in top and bottom blank area.
Eyepiece:
Can be tilted +70° vertically.
Eye_Cup:
4 x interchangeable silicone eye cups including small, medium, left eye and right eye.
Mounting_Options:
Compatible with Pocket Cinema Camera 6K Pro.
Features:
Display Resolution 1280 x 960 Display Pixels 3.68 million dots Display Type Micro OLED Frame Rates Up to 60 fps Color Precision 24 bit RGB, 16.7 million colors Focus 4 element diopter. Diopter Range -4 to +4 Power Auto ON/OFF controlled by inbuilt proximity sensor. Controls Viewfinder display configuration set via Monitor Page in camera menu settings. Overlays Camera settings, status and meters displayed in top and bottom blank area. Eyepiece Can be tilted +70° vertically. Eye Cup 4 x interchangeable silicone eye cups including small, medium, left eye and right eye. Mounting Options Compatible with Pocket Cinema Camera 6K Pro. Metadata Support Supports camera information from Pocket Cinema Camera 6K Pro.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-pro-evf-sm.jpg?_v=1611725293
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-pro-evf-md.jpg?_v=1611725293
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-pro-evf-xl.jpg?_v=1611725292
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpocketcinemacamera/techspecs/hero/blackmagic-pocket-cinema-camera-pro-evf-sm.jpg?_v=1611725293

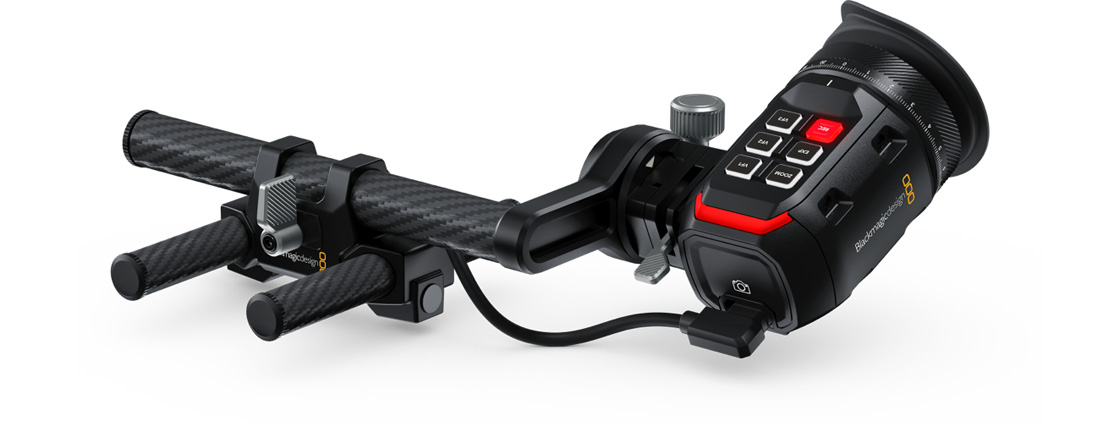

Blackmagic URSA Cine EVF
Add to Compare
View Details
Blackmagic URSA Cine EVF
Price:
HK$13,900
Description:
Blackmagic URSA Cine EVF makes outdoors and handheld shooting with your Blackmagic URSA Cine or Blackmagic PYXIS digital film camera easy! You get a high quality 1920 x 1080 color OLED display with 4 element glass diopter for incredible accuracy with a wide focus adjustment, assignable function buttons and more. URSA Cine EVF is easy to set up with a single USB-C cable connection for video, power and camera control and can be position in multiple different ways. It also includes an extension arm to position it on a dolly or geared head.
Frame_Rates:
Up to 60fps
Focus:
4 Element diopter.
Metadata_Support:
Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
Controls:
Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.
Computer_Interface:
USB-C for software updates.
Na:
Windows 10 and 11.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (‑4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Video Inputs USB-C Power Input USB-C Data Input / Output USB-C Computer Interface USB-C for software updates.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB‑C.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (‑4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Display_Resolution:
Full 1920 x 1080. 6.22 Million dots
Display_Type:
OLED
Tally:
LED tally light.
Features:
Display Resolution Full 1920 x 1080. 6.22 Million dots Display Type OLED Frame Rates Up to 60fps Focus 4 Element diopter. Diopter Range -5 to +5 Controls Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons. Overlays Built in overlay display processor and top mounted buttons. Eyepiece Can be tilted vertically and extended for left or right eye use. Tally LED tally light. Mounting Options Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports. Metadata Support Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
Video_Inputs:
USB-C
Power_Input:
USB-C
Data_Input_Output:
USB-C
Diopter_Range:
-5 to +5
Overlays:
Built in overlay display processor and top mounted buttons.
Eyepiece:
Can be tilted vertically and extended for left or right eye use.
Mounting_Options:
Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-sm.jpg?_v=1712639112
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-md.jpg?_v=1712639112
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-xl.jpg?_v=1712639112
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-sm.jpg?_v=1712639112

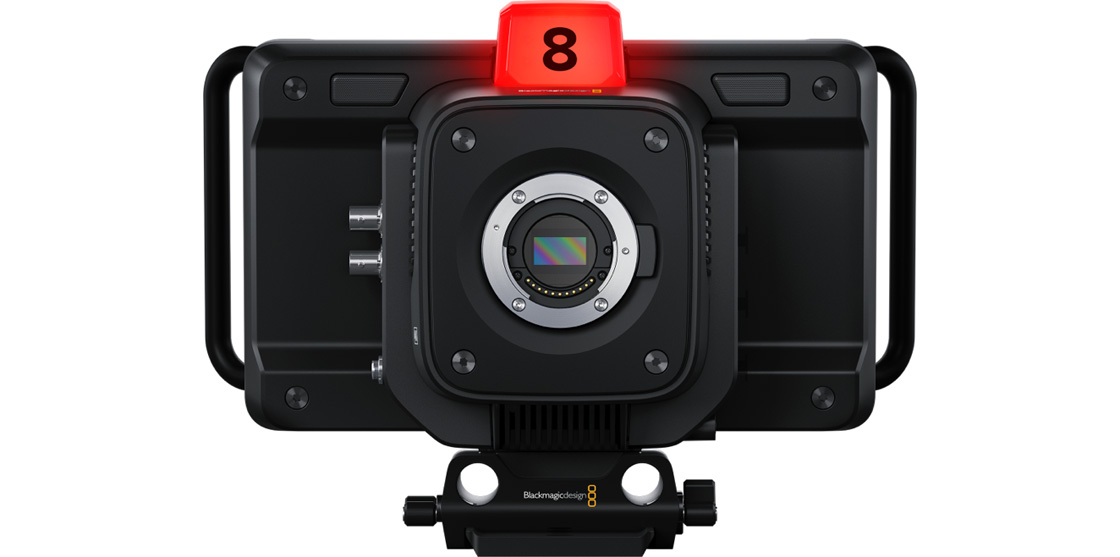

Blackmagic Studio Camera 4K Plus G2
Add to Compare
View Details
Blackmagic Studio Camera 4K Plus G2
Price:
HK$11,050
Description:
The Blackmagic Studio Camera 4K Plus G2 has the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks and much more! You can even add a focus and zoom demand for lens control!
Effective_Sensor_Size:
17.78mm x 10mm (Four Thirds)
Lens_Mount:
Active MFT Mount.
Lens_Control:
Iris, focus, zoom on supported lenses.
Dynamic_Range:
13 Stops.
Dual_Native_Iso:
0dB and 18dB gain.
Sensitivity_At_0db_Gain:
f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance.
Signal_To_Noise_Ratio:
63dB for 2160p.
Frame_Rates:
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD.
Focus:
Auto focus available using compatible lenses.
Screen_Dimensions:
7 inch 1920 x 1200
Screen_Type:
LCD capacitive touchscreen.
Screen_Brightness:
600 nits
Controls:
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
Mounting_Options:
2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
1
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Outputs:
1.0
Analog_Audio_Input:
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog_Audio_Output:
1 x 3.5mm TRRS mini jack for headphones with mic.
Sdi_Audio_Output:
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Remote_Control:
Remote camera control over SDI, HDMI or USB Ethernet.
Computer_Interface:
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Media:
Media 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Storage_Type:
2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording_Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage_Rates:
Storage rates based on 30 frames per second.
Na:
Windows 10 and 11.
External_Control:
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Ftp:
Download files from any drive attached to your camera using FTP.
Smb:
File sharing using SMB
Live_Tallyindicator:
1 x front facing for talent, 1 x rear facing for operator.
Talkback:
SDI Channels 15 and 16.
Software_Included:
Blackmagic Camera Setup for Mac and Windows.
Power_Supply:
1 x External 12V DC 60W power supply.
Power_Inputs:
1 x 12V DC locking 5.5 mm barrel connector.
Power_Usage:
15 ‑ 22 W.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 17.78mm x 10mm (Four Thirds) Lens Mount Active MFT Mount. Lens Control Iris, focus, zoom on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 0dB and 18dB gain. Sensitivity at 0dB Gain f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance. Signal to Noise Ratio 63dB for 2160p. Shooting Resolutions 3840 x 2160 (Ultra HD) up to 60 fps. Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. Focus Auto focus available using compatible lenses. Screen Dimensions 7 inch 1920 x 1200 Screen Type LCD capacitive touchscreen. Screen Brightness 600 nits Controls Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. Mounting Options 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Outputs 1 Analog Audio Input 1 x 3.5mm Stereo Input. Can also be used for Timecode input. Analog Audio Output 1 x 3.5mm TRRS mini jack for headphones with mic. Reference Input Program SDI Input on camera. SDI Audio Output 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16 Remote Control Remote camera control over SDI, HDMI or USB Ethernet. Computer Interface 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. HDMI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit.
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. FTP Download files from any drive attached to your camera using FTP. SMB File sharing using SMB
Color_Corrector:
DaVinci YRGB
Talkback_And_Tally:
Live Tally Indicator 1 x front facing for talent, 1 x rear facing for operator. Talkback SDI Channels 15 and 16.
Software:
Software Included Blackmagic Camera Setup for Mac and Windows.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Optional_Accessories:
Blackmagic Focus Demand Blackmagic Zoom Demand ATEM Mini switchers ATEM Television Studio HD and HD Pro switchers
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Studio Camera 4K Plus G2 Blackmagic Studio Camera Sun Shade Tripod Mount compatible with 15mm lightweight rails Turret Dust Cap External 12V DC power supply with locking connector and international socket adapters for most countries.
Warranty:
1 Year Limited Manufacturer’s Warranty.
Shooting_Resolutions:
3840 x 2160 (Ultra HD) up to 60 fps.
Hdmi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Reference_Input:
Program SDI Input on camera.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-plus-g2-sm.jpg?_v=1693265599
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-plus-g2-md.jpg?_v=1693265598
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-plus-g2-xl.jpg?_v=1693265598
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-plus-g2-sm.jpg?_v=1693265599

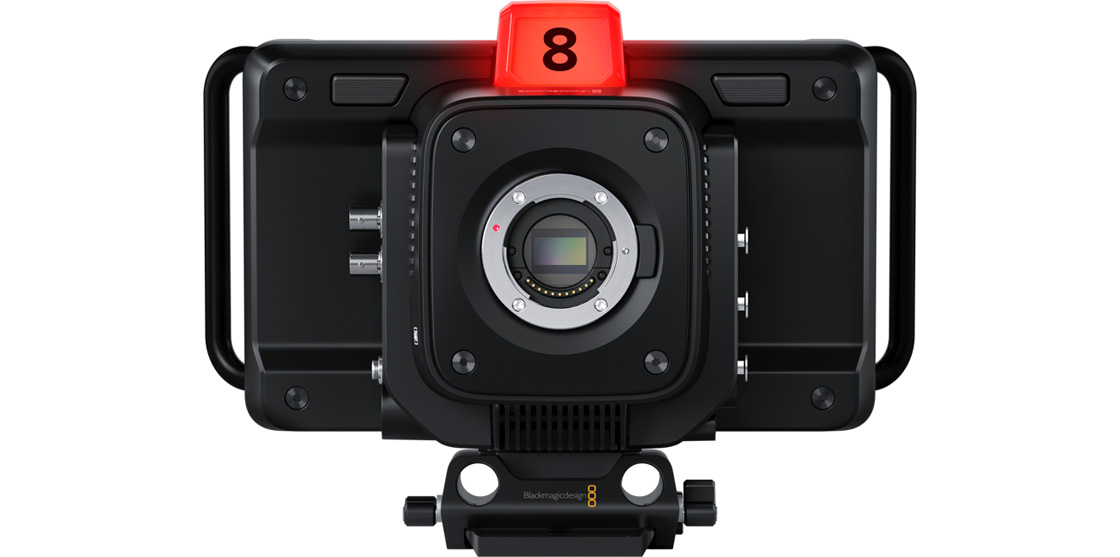

Blackmagic Studio Camera 4K Pro G2
Add to Compare
View Details
Blackmagic Studio Camera 4K Pro G2
Price:
HK$15,300
Description:
Designed for powerful SDI switchers, Blackmagic Studio Camera 4K Pro G2 adds professional 12G-SDI and 10G Ethernet connections. That's perfect when the camera is located a long distance from a switcher. There's a 12G‑SDI output and a 12G‑SDI program return input that includes camera control, talkback and tally. You also get the same powerful HDMI output with control features. Plus the 10G Ethernet connection allows all connections on a single cable for a SMPTE style workflow that's much lower cost.
Effective_Sensor_Size:
17.78mm x 10mm (Four Thirds)
Lens_Mount:
Active MFT Mount.
Lens_Control:
Iris, focus, zoom on supported lenses.
Dynamic_Range:
13 Stops.
Dual_Native_Iso:
0dB and 18dB gain.
Sensitivity_At_0db_Gain:
f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance.
Signal_To_Noise_Ratio:
63dB for 2160p.
Frame_Rates:
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD.
Focus:
Auto focus available using compatible lenses.
Screen_Dimensions:
7 inch 1920 x 1200
Screen_Type:
LCD capacitive touchscreen.
Screen_Brightness:
2000 nits
Controls:
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
Mounting_Options:
2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
1
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Outputs:
1.0
Analog_Audio_Input:
2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog_Audio_Output:
1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic.
Sdi_Audio_Output:
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Reference_Inputs:
Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. Program SDI Input on camera or on Blackmagic Studio Converter.
Remote_Control:
Remote camera control over SDI, HDMI or Ethernet.
Ethernet:
10Gb/s
Computer_Interface:
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Direct_Streaming:
Blackmagic Studio Camera 4K Pro G2 supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Streaming_Platforms:
ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
Hd_Video_Standards:
1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Media:
Media 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Storage_Type:
2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording_Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage_Rates:
Storage rates based on 30 frames per second.
Na:
Windows 10 and 11.
External_Control:
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Ftp:
Download files from any drive attached to your camera using FTP.
Smb:
File sharing using SMB
Live_Tallyindicator:
1 x front facing for talent, 1 x rear facing for operator.
Talkback:
SDI Channels 15 and 16.
Software_Included:
Blackmagic Camera Setup for Mac and Windows.
Power_Supply:
1 x External 12V DC 60W power supply.
Power_Inputs:
1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.
Power_Usage:
26 ‑ 40 W using DC input. 30 ‑ 46 W using PoE input.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 17.78mm x 10mm (Four Thirds) Lens Mount Active MFT Mount. Lens Control Iris, focus, zoom on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 0dB and 18dB gain. Sensitivity at 0dB Gain f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance. Signal to Noise Ratio 63dB for 2160p. Shooting Resolutions 3840 x 2160 (Ultra HD) up to 60 fps. Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. Focus Auto focus available using compatible lenses. Screen Dimensions 7 inch 1920 x 1200 Screen Type LCD capacitive touchscreen. Screen Brightness 2000 nits Controls Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. Mounting Options 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Outputs 1 Analog Audio Input 2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input. Analog Audio Output 1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic. Reference Inputs Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. Program SDI Input on camera or on Blackmagic Studio Converter. SDI Audio Output 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16 Remote Control Remote camera control over SDI, HDMI or Ethernet. Ethernet 10Gb/s Computer Interface 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Streaming:
Direct Streaming Blackmagic Studio Camera 4K Pro G2 supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. Streaming Platforms ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
Standards:
SD Video Standards None HD Video Standards 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. HDMI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit.
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. FTP Download files from any drive attached to your camera using FTP. SMB File sharing using SMB
Color_Corrector:
DaVinci YRGB
Talkback_And_Tally:
Live Tally Indicator 1 x front facing for talent, 1 x rear facing for operator. Talkback SDI Channels 15 and 16.
Software:
Software Included Blackmagic Camera Setup for Mac and Windows.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Optional_Accessories:
Blackmagic Focus Demand Blackmagic Zoom Demand Blackmagic Studio Converter ATEM Mini switchers ATEM Television Studio Pro switchers Blackmagic 3G‑SDI Shield for Arduino
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Studio Camera 4K Pro G2 Blackmagic Studio Camera Sun Shade Tripod Mount compatible with 15mm lightweight rails Turret Dust Cap External 12V DC power supply with locking connector and international sockets adapters for most countries.
Warranty:
1 Year Limited Manufacturer’s Warranty.
Shooting_Resolutions:
3840 x 2160 (Ultra HD) up to 60 fps.
Hdmi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-pro-g2-sm.jpg?_v=1677112016
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-pro-g2-md.jpg?_v=1677112016
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-pro-g2-xl.jpg?_v=1677112016
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-4k-pro-g2-sm.jpg?_v=1677112016

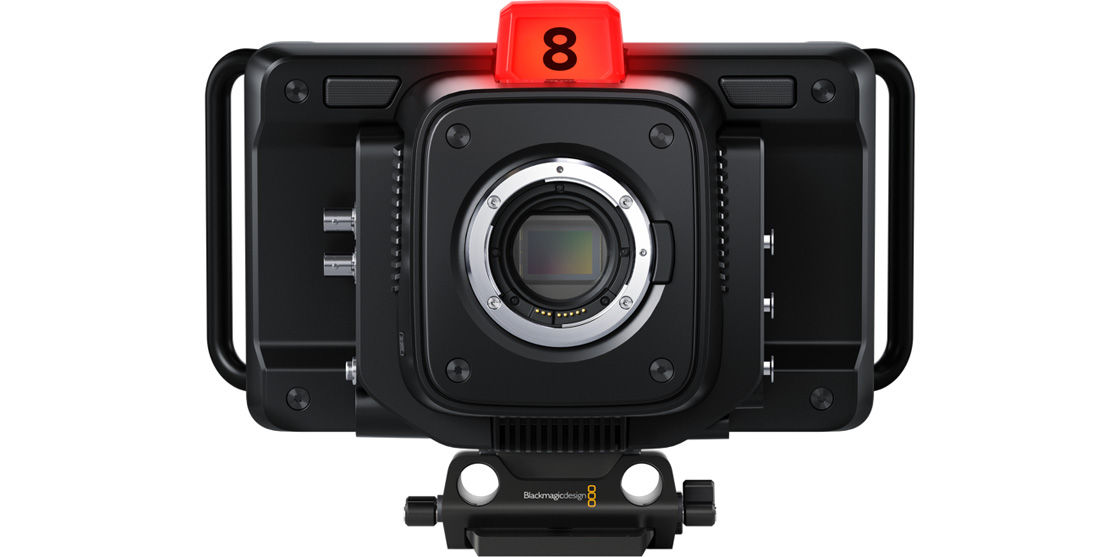

Blackmagic Studio Camera 6K Pro
Add to Compare
View Details
Blackmagic Studio Camera 6K Pro
Price:
HK$20,450
Description:
Designed as the ultimate studio camera, Blackmagic Studio Camera 6K Pro adds a larger 6K Super 35 sensor and EF lens mount for true cinematic images in live production. There are built in ND filters that let you reduce the amount of light entering the camera, allowing you to work in a wider range of situations, including in bright sunlight. Plus stream direct to the internet with built in streaming! You also get 12G‑SDI, HDMI and 10G Ethernet which allows all connections on a single cable for a SMPTE style workflow that's much lower cost.
Effective_Sensor_Size:
23.10mm x 12.99mm (Super 35)
Lens_Mount:
Active EF mount.
Lens_Control:
Iris, focus, zoom on supported lenses.
Dynamic_Range:
13 Stops.
Dual_Native_Iso:
0dB and 18dB gain.
Sensitivity_At_0db_Gain:
f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance.
Signal_To_Noise_Ratio:
64.62dB for 2160p Ultra HD scaled from 5.3K
Recording_Resolutions:
6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps
Video_Output_Standards:
2160p, 1080p, 1080i
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions.
Built_In_Nd_Filters:
Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters.
Focus:
Auto focus available using compatible lenses.
Screen_Dimensions:
7 inch 1920 x 1200
Screen_Type:
LCD capacitive touchscreen.
Screen_Brightness:
2000 nits
Controls:
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
Mounting_Options:
2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
1
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Hdmi_20_Video_Outputs:
1.0
Analog_Audio_Input:
2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog_Audio_Output:
1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic.
Sdi_Audio_Output:
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16.
Reference_Inputs:
Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
Remote_Control:
Remote camera control over SDI, HDMI or Ethernet.
Ethernet:
10Gb/s
Computer_Interface:
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Direct_Streaming:
Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Streaming_Platforms:
ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Media:
Media 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Storage_Type:
2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording_Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate.
Storage_Rates:
Storage rates based on 30 frames per second.
Na:
Windows 10 and 11.
External_Control:
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Ftp:
Download files from any drive attached to your camera using FTP.
Smb:
File sharing using SMB
Live_Tallyindicator:
1 x front facing for talent, 1 x rear facing for operator.
Talkback:
SDI Channels 15 and 16.
Software_Included:
Blackmagic Camera Setup for Mac and Windows.
Power_Supply:
1 x External 12V DC 60W power supply.
Power_Inputs:
1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.
Power_Usage:
32 ‑ 52 W using DC input. 38 ‑ 59 W using Type 4 PoE input.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 23.10mm x 12.99mm (Super 35) Lens Mount Active EF mount. Lens Control Iris, focus, zoom on supported lenses. Dynamic Range 13 Stops. Dual Native ISO 0dB and 18dB gain. Sensitivity at 0dB Gain f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance. Signal to Noise Ratio 64.62dB for 2160p Ultra HD scaled from 5.3K Recording Resolutions 6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps Video Output Standards 2160p, 1080p, 1080i Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions. Built in ND Filters Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters. Focus Auto focus available using compatible lenses. Screen Dimensions 7 inch 1920 x 1200 Screen Type LCD capacitive touchscreen. Screen Brightness 2000 nits Controls Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. Mounting Options 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G. HDMI 2.0 Video Outputs 1 Analog Audio Input 2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input. Analog Audio Output 1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic. SDI Audio Output 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16. Reference Inputs Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. Remote Control Remote camera control over SDI, HDMI or Ethernet. Ethernet 10Gb/s Computer Interface 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Streaming:
Direct Streaming Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. Streaming Platforms ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit.
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. FTP Download files from any drive attached to your camera using FTP. SMB File sharing using SMB
Color_Corrector:
DaVinci YRGB
Talkback_And_Tally:
Live Tally Indicator 1 x front facing for talent, 1 x rear facing for operator. Talkback SDI Channels 15 and 16.
Software:
Software Included Blackmagic Camera Setup for Mac and Windows.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Optional_Accessories:
Blackmagic Focus Demand Blackmagic Zoom Demand Blackmagic Studio Converter ATEM Mini switchers ATEM SDI switchers ATEM Constellation switchers ATEM Television Studio switchers ATEM Streaming Bridge Blackmagic MultiDock 10G HyperDeck Studio HD Plus HyperDeck Studio 4K Pro W-HDL-09 Blackmagic Cloud Pod Blackmagic Cloud Store Blackmagic Cloud Store Mini 8TB Ultimatte 12 HD Mini Ultimatte 12 HD Ultimatte 12 4K Blackmagic 3G SDI Shield for Arduino
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Studio Camera 6K Pro Blackmagic Studio Camera Sun Shade Tripod Mount compatible with 15mm lightweight rails Tripod Mount Plate Turret Dust Cap External 12V DC power supply with locking connector and international sockets adapters for most countries. Welcome wallet with QR code for software download DaVinci Resolve download card Blackmagic Design sticker
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-6k-pro-sm.jpg?_v=1677034410
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-6k-pro-md.jpg?_v=1677034410
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-6k-pro-xl.jpg?_v=1677034410
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicstudiocamera/techspecs/hero/blackmagic-studio-camera-6k-pro-sm.jpg?_v=1677034410

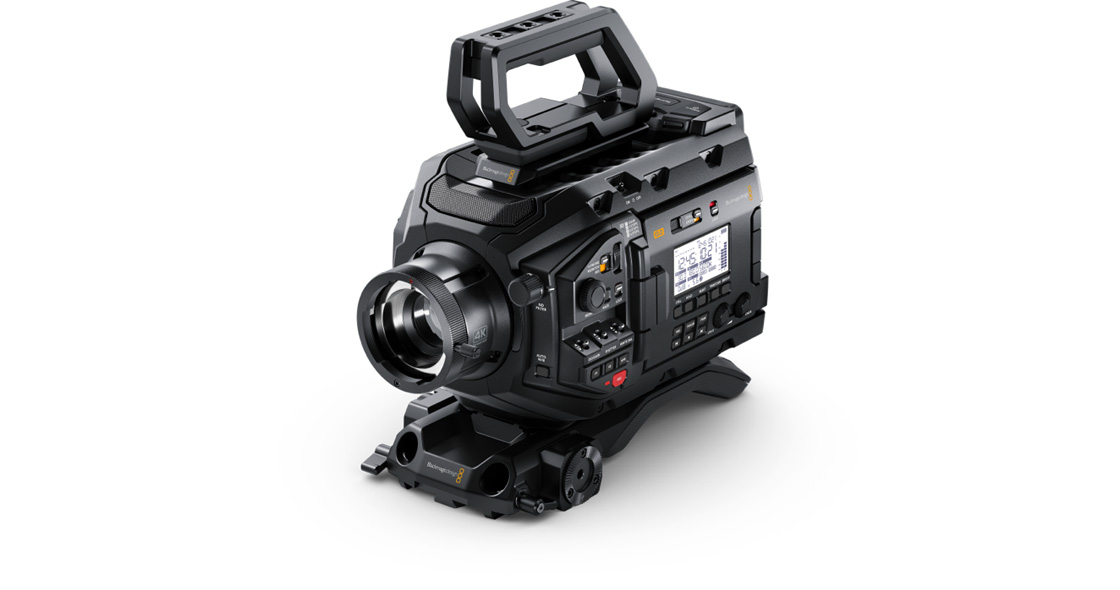

Blackmagic URSA Broadcast G2
Add to Compare
View Details
Blackmagic URSA Broadcast G2
Price:
HK$34,400
Description:
The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. You can even change the lens mount! No other broadcast camera is so flexible!
Effective_Sensor_Size:
2/3 inch sensor size when using 4K B4 mount (Actual sensor size 23.10mm x 12.99mm)
Lens_Mount:
B4 2/3 inch installed Active EF mount also included
Lens_Control:
1 x 12-pin Hirose Broadcast Lens Connector
Lens_Correction:
In-camera correction of color fringing when using compatible broadcast lenses.
Dynamic_Range:
13 Stops
Dual_Native_Iso:
0dB and 18dB gain.
Sensitivity_At_0db_Gain:
f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance. additional 1.1 stop light loss using 4K B4 mount.
Signal_To_Noise_Ratio:
64.62dB for 2160p Ultra HD scaled from 5.3K
Built_In_Nd_Filters:
Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters.
Focus:
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
Screen_Dimensions:
4 inch
Screen_Type:
LCD capacitive touchscreen.
Controls:
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.
Prores_Shooting_Resolutionsand_Framerates:
3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor 3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor 1920 x 1080 (HD) up to 120 fps scaled from 2.7K windowed sensor 1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor 1920 x 1080 (HD) up to 50 fps scaled from full sensor
H265_Shooting_Resolutionsand_Framerates:
3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor 3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor
H264_Shooting_Resolutionsand_Framerates:
1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor 1920 x 1080 (HD) up to 50 fps scaled from full sensor
Blackmagic_Raw_Shooting_Resolutionsand_Framerates:
6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps 1920 x 1080 (HD) up to 150 fps
Project_Framerates:
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps. Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD.
Metadata_Support:
Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
1
Sdi_Monitor_Outputs:
1.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR switchable between mic, line and AES digital audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack, supports iPhone style headset for talkback.
Reference_Inputs:
Tri-Sync/Black Burst/Timecode.
Remote_Control:
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer_Interface:
1 x USB Type‑C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic Focus and Zoom Demand. 1 x USB Type‑C for software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Direct_Streaming:
Blackmagic URSA Broadcast G2 supports direct live streaming using Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) in H.264 using a USB-C connection to a phone sharing mobile data or a USB-C to Ethernet connection to a local network or the internet.
Streaming_Platforms:
YouTube (SRT Beta), ATEM Streaming Bridge, ATEM Television Studio HD8 ISO, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 2 x CFast 2.0 card slots, 2 x SD UHS‑II card slots, 1 x USB‑C 3.1 Gen 2 expansion port with power delivery for recording to external media. Media Format Can format media to ExFAT for Windows and Mac or HFS+ for Mac (file systems).
Media_Format:
Can format media to ExFAT for Windows and Mac or HFS+ for Mac (file systems).
Media_Page:
Blackmagic Camera OS includes a Media Page for professional media management and viewing metadata information. Sort clips by duration, frame rate, resolution, codec, media slot, timecode, scene or upload status, plus search all clips, private storage or just clips within specific projects. Preview clips with duration, timecode and file name displayed and use the scrubber for fluid, precise frame control. Select clips to upload and share, and delete clips with a confirmation warning. You can also select multiple clips to batch upload, batch delete or playback in a custom timeline.
Codecs:
Apple ProRes 422 HQ, Apple ProRes 422, H.265 SDI (10-bit 4:2:2), H.265 High (10-bit 4:2:0), H.265 Medium (10-bit 4:2:0), H.265 Low (10-bit 4:2:0), H.264 SDI (10-bit 4:2:2), H.264 High (8-bit 4:2:0), H.264 Medium (8-bit 4:2:0), H.264 Low (8-bit 4:2:0), Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5
External_Control:
Lens control of compatible lenses using Blackmagic Zoom Demand and Blackmagic Focus Demand, Blackmagic SDI Control Protocol, iPad control via Bluetooth, 1 x 2.5mm LANC for lens and record control.
Color_Corrector:
Color Corrector DaVinci YRGB.
Talkback:
SDI Channels 15/16 and iPhone headset.
Live_Tallyindicator:
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Type:
2 x CFast 2.0 2 x SD UHS‑II cards 1 x high speed USB‑C expansion port for external media. 2.5 inch SSD using optional URSA Mini Recorder
Storage_Rates:
Storage rates based on 30 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Apple ProRes 3840 x 2160 and 1920 x 1080 with film, video or extended video dynamic range or custom 3D LUT. H.265 3840 x 2160 with film, video or extended video dynamic range or custom 3D LUT. H.264 1920 x 1080 with film, video or extended video dynamic range or custom 3D LUT. Blackmagic RAW Q0, Q1, Q3, Q5, 3:1, 5:1, 8:1 and 12:1 at 6144 x 3456, 6144 x 2560, 5376 x 3024, 3728 x 3104, 3840 x 2160, 1920 x 1080 recorded in non-linear 12 bit with film dynamic range and extended video, video or custom 3D LUT embedded in metadata.
Software_Included:
Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test
Compatibility:
Blackmagic Cloud and clip sharing features compatible with and DaVinci Resolve 18.6 or later.
Sharing:
Integrated Login to Blackmagic Cloud for sharing to a DaVinci Resolve project.
Automatic_Media_Sharing:
Captured media automatically uploads to a Blackmagic Cloud DaVinci Resolve project.
Manual_Media_Sharing:
Select recorded clips or files manually share to a Blackmagic Cloud DaVinci Resolve project.
Upload_Clips:
Proxies Only or Originals and Proxies.
Power_Supply:
1 x External 12V DC 100W power supply with 100 - 240V AC 50/60Hz IEC C14 input.
External_Power_Input:
1 x 4-pin XLR port for external mains power supply or battery use. 1 x 12-pin Molex connector under rear battery plate.
Power_Output:
+12V 4-pin XLR regulated output on side of camera +12V D-Tap regulated output on VLock battery plate
Power:
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Optional_Accessories:
Blackmagic URSA Viewfinder Blackmagic URSA Studio Viewfinder Blackmagic Camera Fiber Converter Blackmagic Studio Fiber Converter Blackmagic URSA Mini Pro PL Mount Blackmagic URSA Mini Pro F Mount Blackmagic URSA Mini Mic Mount Blackmagic URSA Mini Recorder Blackmagic URSA Gold Battery Plate
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 2/3 inch sensor size when using 4K B4 mount (Actual sensor size 23.10mm x 12.99mm) Lens Mount B4 2/3 inch installed Active EF mount also included Lens Control Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses. Lens Correction In-camera correction of color fringing when using compatible broadcast lenses. Dynamic Range 13 Stops Dual Native ISO 0dB and 18dB gain. Sensitivity at 0dB Gain f 11 with 2160p59.94. f 12 with 2160p50. at 2,000 lux with 89.9% reflectance. additional 1.1 stop light loss using 4K B4 mount. Signal to Noise Ratio 64.62dB for 2160p Ultra HD scaled from 5.3K Built in ND Filters Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters. Focus Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode. Screen Dimensions 4 inch Screen Type LCD capacitive touchscreen. Controls Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses. ProRes Shooting Resolutions and Frame Rates 3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor 3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor 1920 x 1080 (HD) up to 120 fps scaled from 2.7K windowed sensor 1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor 1920 x 1080 (HD) up to 50 fps scaled from full sensor H.265 Shooting Resolutions and Frame Rates 3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor 3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor H.264 Shooting Resolutions and Frame Rates 1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor 1920 x 1080 (HD) up to 50 fps scaled from full sensor Blackmagic RAW Shooting Resolutions and Frame Rates 6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps 1920 x 1080 (HD) up to 150 fps Project Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps. Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD. Metadata Support Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Monitor Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR switchable between mic, line and AES digital audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack, supports iPhone style headset for talkback. Reference Inputs Tri-Sync/Black Burst/Timecode. Lens Control 1 x 12-pin Hirose Broadcast Lens Connector Remote Control 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. Computer Interface 1 x USB Type‑C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic Focus and Zoom Demand. 1 x USB Type‑C for software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Streaming:
Direct Streaming Blackmagic URSA Broadcast G2 supports direct live streaming using Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) in H.264 using a USB-C connection to a phone sharing mobile data or a USB-C to Ethernet connection to a local network or the internet. Streaming Platforms YouTube (SRT Beta), ATEM Streaming Bridge, ATEM Television Studio HD8 ISO, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Apple ProRes 422 HQ, Apple ProRes 422, H.265 SDI (10-bit 4:2:2), H.265 High (10-bit 4:2:0), H.265 Medium (10-bit 4:2:0), H.265 Low (10-bit 4:2:0), H.264 SDI (10-bit 4:2:2), H.264 High (8-bit 4:2:0), H.264 Medium (8-bit 4:2:0), H.264 Low (8-bit 4:2:0), Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5
Cloud_Synchronization:
Learn More
Talkback_And_Tally:
Talkback SDI Channels 15/16 and iPhone headset. Live Tally Indicator Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Features:
6144 x 3456 (6K) Blackmagic RAW 3:1 - 323 MB/s Blackmagic RAW 5:1 - 194 MB/s Blackmagic RAW 8:1 - 121 MB/s Blackmagic RAW 12:1 - 81 MB/s Blackmagic RAW Q0 - 242 to 483 MB/s Blackmagic RAW Q1 - 162 to 387 MB/s Blackmagic RAW Q3 - 108 to 277 MB/s Blackmagic RAW Q5 - 65 to 162 MB/s 6144 x 2560 (6K 2.4:1) Blackmagic RAW 3:1 - 240 MB/s Blackmagic RAW 5:1 - 144 MB/s Blackmagic RAW 8:1 - 90 MB/s Blackmagic RAW 12:1 - 60 MB/s Blackmagic RAW Q0 - 180 to 359 MB/s Blackmagic RAW Q1 - 120 to 287 MB/s Blackmagic RAW Q3 - 80 to 205 MB/s Blackmagic RAW Q5 - 49 to 120 MB/s 5376 x 3024 (5.3K 16:9) Blackmagic RAW 3:1 - 248 MB/s Blackmagic RAW 5:1 - 149 MB/s Blackmagic RAW 8:1 - 94 MB/s Blackmagic RAW 12:1 - 63 MB/s Blackmagic RAW Q0 - 186 to 371 MB/s Blackmagic RAW Q1 - 125 to 297 MB/s Blackmagic RAW Q3 - 84 to 213 MB/s Blackmagic RAW Q5 - 51 to 125 MB/s 3728 x 3104 (3.7K 6:5 anamorphic) Blackmagic RAW 3:1 - 177 MB/s Blackmagic RAW 5:1 - 106 MB/s Blackmagic RAW 8:1 - 67 MB/s Blackmagic RAW 12:1 - 45 MB/s Blackmagic RAW Q0 - 133 to 265 MB/s Blackmagic RAW Q1 - 89 to 212 MB/s Blackmagic RAW Q3 - 60 to 152 MB/s Blackmagic RAW Q5 - 36 to 89 MB/s 3840 x 2160 (Ultra HD) Apple ProRes 422 HQ - 110 MB/s Apple ProRes 422 - 73.6 MB/s H.265 SDI - 12.3 MB/s H.265 High - 10.8 MB/s H.265 Medium - 7.8 MB/s H.265 Low - 3.2 MB/s Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s 1920 x 1080 Apple ProRes 422 HQ - 27.5 MB/s Apple ProRes 422 - 18.4 MB/s H.264 SDI - 7.0 MB/s H.264 High - 5.6 MB/s H.264 Medium - 3.2 MB/s H.264 Low - 1.8 MB/s Blackmagic RAW 3:1 - 19 MB/s Blackmagic RAW 5:1 - 12 MB/s Blackmagic RAW 8:1 - 7.8 MB/s Blackmagic RAW 12:1 - 5.2 MB/s Blackmagic RAW Q0 - 23 to 47 MB/s Blackmagic RAW Q1 - 16 to 37 MB/s Blackmagic RAW Q3 - 10 to 27 MB/s Blackmagic RAW Q5 - 6 to 16 MB/s
Blackmagic_Cloud:
Compatibility Blackmagic Cloud and clip sharing features compatible with and DaVinci Resolve 18.6 or later. Sharing Integrated Login to Blackmagic Cloud for sharing to a DaVinci Resolve project. Automatic Media Sharing Captured media automatically uploads to a Blackmagic Cloud DaVinci Resolve project. Manual Media Sharing Select recorded clips or files manually share to a Blackmagic Cloud DaVinci Resolve project. Upload Clips Proxies Only or Originals and Proxies.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Accessories:
Optional Accessories Blackmagic URSA Viewfinder Blackmagic URSA Studio Viewfinder Blackmagic Camera Fiber Converter Blackmagic Studio Fiber Converter Blackmagic URSA Mini Pro PL Mount Blackmagic URSA Mini Pro F Mount Blackmagic URSA Mini Mic Mount Blackmagic URSA Mini Recorder Blackmagic URSA Gold Battery Plate
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursabroadcast/techspecs/hero/blackmagic-ursa-broadcast-g2-sm.jpg?_v=1636586297
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursabroadcast/techspecs/hero/blackmagic-ursa-broadcast-g2-md.jpg?_v=1636586297
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursabroadcast/techspecs/hero/blackmagic-ursa-broadcast-g2-xl.jpg?_v=1636586297
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursabroadcast/techspecs/hero/blackmagic-ursa-broadcast-g2-sm.jpg?_v=1636586297
Blackmagic Media Dock
Add to Compare
View Details
Blackmagic Media Dock
Price:
HK$16,350
Description:
Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.
Computer_Interface:
USB-C or Ethernet for shared file access, configuration and software updates.
External_Control:
USB-C or Ethernet for configuration and software updates.
Storage_Type:
Up to 3 Blackmagic Media Modules.
Na:
2 rack units.
Software_Included:
Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Operating_Temperature:
0° to 40° C (32°to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Interface 3 x removable and hot-swappable Blackmagic Media Modules. 10G Ethernet Ports 4 x 10G BASE-T USB-C Port 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB HDMI Monitor Outputs 1 Computer Interface USB-C or Ethernet for shared file access, configuration and software updates.
Cloud_Synchronization:
Learn More Amazon Web Services S3 sync.
Operating_Systems:
Mac 14.3 Sonoma or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 95 W
Environmental_Specifications:
Operating Temperature 0° to 40° C (32°to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Media Dock Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Interface:
3 x removable and hot-swappable Blackmagic Media Modules.
Col_10g_Ethernet_Ports:
4 x 10G BASE-T
Usbc_Port:
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
Hdmi_Monitor_Outputs:
1.0
Protocol:
SMB
Computer_Connections:
50 max.
External_Storage_Format:
Blackmagic (formatted in camera)
Hdmi_Monitor_Out_Standards:
1080p50, 1080p59.94, 1080p60
Monitor_Out_Displays:
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
Status_Indicator:
LED bezel indicator lights around media module bays.
Power_Usage:
95 W
File_Sharing_Protocol:
Protocol SMB Computer Connections 50 max.
Storage:
Storage Type Up to 3 Blackmagic Media Modules. External Storage Format Blackmagic (formatted in camera)
Displays:
HDMI Monitor Out Standards 1080p50, 1080p59.94, 1080p60 Monitor Out Displays Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. Status Indicator LED bezel indicator lights around media module bays.
Physical_Installation:
2 rack units.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-media-dock-sm.jpg?_v=1712901286
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-media-dock-md.jpg?_v=1712901285
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-media-dock-xl.jpg?_v=1712901285
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-media-dock-sm.jpg?_v=1712901286
Blackmagic URSA Cine 12K LF
Add to Compare
View Details
Blackmagic URSA Cine 12K LF
Price:
HK$86,700
Description:
Blackmagic URSA Cine 12K LF is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections. Blackmagic URSA Cine comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Effective_Sensor_Size:
35.64mm x 23.32mm (Large Format)
Pixel_Pitch:
2.9 microns
Lens_Mount:
PL mount. Interchangeable with URSA Cine lockable EF mount included.
Lens_Control:
Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses.
Dynamic_Range:
16 Stops
Shooting_Formats:
12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5)
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High_Speed_Frame_Rates:
12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps
Built_In_Nd_Filters:
Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus:
Focus button turns on peaking, auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens:
2 x Monitoring Screens 1 x Camera Status Screen
Monitoring_Screen_Dimensions:
5 inch.
Monitoring_Screen_Resolution:
1920px x 1080px
Monitoring_Screen_Brightness:
1500 nits.
Monitoring_Screen_Type:
LCD capacitive touchscreen
Metadata_Support:
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
2.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack
Reference_Inputs:
Tri-Sync/Black Burst and Timecode.
Viewfinder:
1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
Usbc_Monitor_Outputs:
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
Accessories:
Optional Accessories Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Computer_Interface:
2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 1 x Blackmagic Media Module. Media Format Blackmagic
Media_Format:
Blackmagic
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External_Control:
Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.
Direct_Streaming:
Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Ftp:
Download files from any drive attached to your camera using FTP.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Smb:
File sharing using SMB
Storage_Type:
1 x Blackmagic Media Module 8TB
Storage_Rates:
Storage rates based on 24 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software_Included:
URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Power_Supply:
+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate.
Power_Input:
1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate.
Power_Output:
1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Optional_Accessories:
Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 35.64mm x 23.32mm (Large Format) Pixel Pitch 2.9 microns Lens Mount PL mount. Interchangeable with URSA Cine lockable EF mount included. Lens Control Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses. Dynamic Range 16 Stops Shooting Formats 12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. High Speed Frame Rates 12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps Built in ND Filters Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters. Focus Focus button turns on peaking, auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screens 2 x Monitoring Screens 1 x Camera Status Screen Monitoring Screen Dimensions 5 inch. Monitoring Screen Resolution 1920px x 1080px Monitoring Screen Brightness 1500 nits. Monitoring Screen Type LCD capacitive touchscreen Metadata Support Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack Reference Inputs Tri-Sync/Black Burst and Timecode. Viewfinder 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. Accessories 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Cloud_Synchronization:
Learn More
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. FTP Download files from any drive attached to your camera using FTP. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. SMB File sharing using SMB
Storage_Features:
Storage Type 1 x Blackmagic Media Module 8TB Storage Rates Storage rates based on 24 frames per second. 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 9K - 17,520 x 8,040 Blackmagic RAW 3:1 - 714 MB/s Blackmagic RAW 8:1 - 268 MB/s Blackmagic RAW 12:1 - 179 MB/s Blackmagic RAW 18:1 - 119 MB/s Blackmagic RAW Q0 - 238 to 857 MB/s Blackmagic RAW Q1 - 195 to 476 MB/s Blackmagic RAW Q3 - 107 to 268 MB/s Blackmagic RAW Q5 - 72 to 214 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s Recording Formats Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software:
Software Included URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate. Power Input 1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate. Power Output 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Cine 12K LF camera with PL lens mount Blackmagic Media Module 8TB Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Top Rod Mount Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic URSA Cine Mount EF and mount screws Blackmagic URSA Cine 24V 250W power supply Blackmagic EF Body Cap Blackmagic PL Body Cap Plastic folding screen hood for 5” LCD DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Blackmagic Sticker Pelican 1510 Case with custom foam
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-sm.jpg?_v=1712921292
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-md.jpg?_v=1712921291
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-xl.jpg?_v=1712921291
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-sm.jpg?_v=1712921292
Blackmagic URSA Cine 12K LF + EVF
Add to Compare
View Details
Blackmagic URSA Cine 12K LF + EVF
Price:
HK$96,300
Description:
Blackmagic URSA Cine 12K LF is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections. Blackmagic URSA Cine comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet, WiFi for fast media upload and syncing to Blackmagic Cloud and URSA Cine EVF!
Effective_Sensor_Size:
35.64mm x 23.32mm (Large Format)
Pixel_Pitch:
2.9 microns
Lens_Mount:
PL mount. Interchangeable with URSA Cine lockable EF mount included.
Lens_Control:
Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses.
Dynamic_Range:
16 Stops
Shooting_Formats:
12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5)
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High_Speed_Frame_Rates:
12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps
Built_In_Nd_Filters:
Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus:
Focus button turns on peaking, auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens:
2 x Monitoring Screens 1 x Camera Status Screen 1 x Electronic Viewfinder
Monitoring_Screen_Dimensions:
5 inch.
Monitoring_Screen_Resolution:
1920px x 1080px
Monitoring_Screen_Brightness:
1500 nits.
Monitoring_Screen_Type:
LCD capacitive touchscreen
Evf_Display_Resolution:
Full 1920 x 1080. 6.22 Million dots
Evf_Display_Type:
OLED
Evf_Diopter_Range:
-5 to +5
Tally:
Live Tally Indicator on LCD, and URSA Cine EVF.
Metadata_Support:
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on URSA Cine EVF.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
2.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack
Reference_Inputs:
Tri-Sync/Black Burst and Timecode.
Viewfinder:
1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
Usbc_Monitor_Outputs:
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
Accessories:
Optional Accessories Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Computer_Interface:
2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 1 x Blackmagic Media Module. Media Format Blackmagic
Media_Format:
Blackmagic
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External_Control:
Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.
Direct_Streaming:
Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Ftp:
Download files from any drive attached to your camera using FTP.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Smb:
File sharing using SMB
Storage_Type:
1 x Blackmagic Media Module 8TB
Storage_Rates:
Storage rates based on 24 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software_Included:
URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Power_Supply:
+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate.
Power_Input:
1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate.
Power_Output:
1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Optional_Accessories:
Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 35.64mm x 23.32mm (Large Format) Pixel Pitch 2.9 microns Lens Mount PL mount. Interchangeable with URSA Cine lockable EF mount included. Lens Control Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses. Dynamic Range 16 Stops Shooting Formats 12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. High Speed Frame Rates 12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps Built in ND Filters Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters. Focus Focus button turns on peaking, auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screens 2 x Monitoring Screens 1 x Camera Status Screen 1 x Electronic Viewfinder Monitoring Screen Dimensions 5 inch. Monitoring Screen Resolution 1920px x 1080px Monitoring Screen Brightness 1500 nits. Monitoring Screen Type LCD capacitive touchscreen EVF Display Resolution Full 1920 x 1080. 6.22 Million dots EVF Display Type OLED EVF Diopter Range -5 to +5 Tally Live Tally Indicator on LCD, and URSA Cine EVF. Metadata Support Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on URSA Cine EVF. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack Reference Inputs Tri-Sync/Black Burst and Timecode. Viewfinder 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. URSA Cine EVF 1 x USB-C with power, data, video and locking connector. Accessories 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Cloud_Synchronization:
Learn More
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. FTP Download files from any drive attached to your camera using FTP. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. SMB File sharing using SMB
Storage_Features:
Storage Type 1 x Blackmagic Media Module 8TB Storage Rates Storage rates based on 24 frames per second. 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 9K - 17,520 x 8,040 Blackmagic RAW 3:1 - 714 MB/s Blackmagic RAW 8:1 - 268 MB/s Blackmagic RAW 12:1 - 179 MB/s Blackmagic RAW 18:1 - 119 MB/s Blackmagic RAW Q0 - 238 to 857 MB/s Blackmagic RAW Q1 - 195 to 476 MB/s Blackmagic RAW Q3 - 107 to 268 MB/s Blackmagic RAW Q5 - 72 to 214 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s Recording Formats Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software:
Software Included URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate. Power Input 1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate. Power Output 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Cine 12K LF camera with PL lens mount Blackmagic Media Module 8TB Blackmagic Media Module Case Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Top Rod Mount Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic URSA Cine Mount EF and mount screws Blackmagic URSA Cine 24V 250W power supply Blackmagic EF Body Cap Blackmagic PL Body Cap Plastic folding screen hood for 5” LCD Blackmagic URSA Cine EVF Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod Blackmagic URSA Cine EVF Bracket rod mount Blackmagic URSA Cine EVF Extension 2 short carbon fibre 15mm rods 1 x long USB viewfinder cable. Right angle to straight 1 x short USB viewfinder cable. Right angle to straight 1 x short USB viewfinder cable. Right angle to right angle Rubber eyecup Fabric eye chamois DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Blackmagic Design Sticker Pelican 1560 Case with custom foam
Warranty:
1 Year Limited Manufacturer’s Warranty.
Ursa_Cineevf:
1 x USB-C with power, data, video and locking connector.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-evf-sm.jpg?_v=1725411615
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-evf-md.jpg?_v=1725411615
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-evf-xl.jpg?_v=1725411614
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-evf-sm.jpg?_v=1725411615
Blackmagic URSA Cine 12K LF Body
Add to Compare
View Details
Blackmagic URSA Cine 12K LF Body
Price:
HK$57,300
Description:
Blackmagic URSA Cine 12K LF is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range. The URSA Cine 12K LF Body model is ideal when you have existing cinema accessories that you want to use to create your own camera rig. It excludes top handle, baseplate, power supply, battery plate and PL lens mount. It does come with an interchangeable EF lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 12K LF Body also includes a CFexpress media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Effective_Sensor_Size:
35.64mm x 23.32mm (Large Format)
Pixel_Pitch:
2.9 microns
Lens_Mount:
URSA Cine lockable EF mount. Interchangeable with optional URSA Cine PL mount.
Lens_Control:
Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses.
Dynamic_Range:
16 Stops
Shooting_Formats:
12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5)
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High_Speed_Frame_Rates:
12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps
Built_In_Nd_Filters:
Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus:
Focus button turns on peaking, auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens:
2 x Monitoring Screens 1 x Camera Status Screen
Monitoring_Screen_Dimensions:
5 inch.
Monitoring_Screen_Resolution:
1920px x 1080px
Monitoring_Screen_Brightness:
1500 nits.
Monitoring_Screen_Type:
LCD capacitive touchscreen
Metadata_Support:
Automatically populated lens data from compatible EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
2.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack
Reference_Inputs:
Tri-Sync/Black Burst and Timecode.
Viewfinder:
1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
Usbc_Monitor_Outputs:
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
Accessories:
Optional Accessories Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Computer_Interface:
2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media Blackmagic Media Module CF includes 2 x slots for CFexpress Type B media. Also compatible with optional Blackmagic Media Module 8TB or 16TB. Media Format Blackmagic
Media_Format:
Blackmagic
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External_Control:
Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.
Direct_Streaming:
Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Ftp:
Download files from any drive attached to your camera using FTP.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Smb:
File sharing using SMB
Storage_Type:
2 x CFexpress Type B
Storage_Rates:
Storage rates based on 24 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software_Included:
URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Power_Input:
1 x 8 pin Lemo compatible socket for +12V to 34V DC external power supply or battery. Molex connector for rear battery plate.
Power_Output:
1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Optional_Accessories:
Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 35.64mm x 23.32mm (Large Format) Pixel Pitch 2.9 microns Lens Mount URSA Cine lockable EF mount. Interchangeable with optional URSA Cine PL mount. Lens Control Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses. Dynamic Range 16 Stops Shooting Formats 12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. High Speed Frame Rates 12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps Built in ND Filters Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters. Focus Focus button turns on peaking, auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screens 2 x Monitoring Screens 1 x Camera Status Screen Monitoring Screen Dimensions 5 inch. Monitoring Screen Resolution 1920px x 1080px Monitoring Screen Brightness 1500 nits. Monitoring Screen Type LCD capacitive touchscreen Metadata Support Automatically populated lens data from compatible EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack Reference Inputs Tri-Sync/Black Burst and Timecode. Viewfinder 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. Accessories 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Cloud_Synchronization:
Learn More
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. FTP Download files from any drive attached to your camera using FTP. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. SMB File sharing using SMB
Storage_Features:
Storage Type 2 x CFexpress Type B Storage Rates Storage rates based on 24 frames per second. 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 9K - 17,520 x 8,040 Blackmagic RAW 3:1 - 714 MB/s Blackmagic RAW 8:1 - 268 MB/s Blackmagic RAW 12:1 - 179 MB/s Blackmagic RAW 18:1 - 119 MB/s Blackmagic RAW Q0 - 238 to 857 MB/s Blackmagic RAW Q1 - 195 to 476 MB/s Blackmagic RAW Q3 - 107 to 268 MB/s Blackmagic RAW Q5 - 72 to 214 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s Recording Formats Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software:
Software Included URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Input 1 x 8 pin Lemo compatible socket for +12V to 34V DC external power supply or battery. Molex connector for rear battery plate. Power Output 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Cine 12K LF camera with EF lens mount Blackmagic Media Module CF Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic EF Body Cap DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-body-sm.jpg?_v=1738212250
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-body-md.jpg?_v=1738212249
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-body-xl.jpg?_v=1738212249
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-12k-lf-body-sm.jpg?_v=1738212250
Blackmagic URSA Cine 17K 65
Add to Compare
View Details
Blackmagic URSA Cine 17K 65
Price:
HK$245,700
Description:
Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Effective_Sensor_Size:
50.81 mm x 23.32 mm (65mm Format)
Pixel_Pitch:
2.9 microns
Lens_Mount:
PL mount. Interchangeable with URSA Cine Mount LPL included.
Lens_Control:
Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.
Dynamic_Range:
16 Stops
Shooting_Formats:
17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1) 12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1)
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High_Speed_Frame_Rates:
17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps
Focus:
Focus button turns on peaking, auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens:
2 x Monitoring Screens 1 x Camera Status Screen
Monitoring_Screen_Dimensions:
5 inch.
Monitoring_Screen_Resolution:
1920px x 1080px
Monitoring_Screen_Brightness:
1500 nits.
Monitoring_Screen_Type:
LCD capacitive touchscreen
Metadata_Support:
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
2.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack
Reference_Inputs:
Tri-Sync/Black Burst and Timecode.
Viewfinder:
1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
Usbc_Monitor_Outputs:
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
Accessories:
Optional Accessories Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount EF (for limited shooting formats) Blackmagic URSA Cine Mount HC Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Computer_Interface:
2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 1 x Blackmagic Media Module. Media Format Blackmagic
Media_Format:
Blackmagic
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External_Control:
Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.
Direct_Streaming:
Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Ftp:
Download files from any drive attached to your camera using FTP.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Smb:
File sharing using SMB
Storage_Type:
1 x Blackmagic Media Module 8TB
Storage_Rates:
Storage rates based on 24 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [11,680 x 5,360], [10,752 x 5,360], [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [5,840 x 2,680], [5,376 x 2,680], [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software_Included:
URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Power_Supply:
+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. Molex connector for rear battery plate.
Power_Input:
1 x 8 pin Lemo compatible socket for external power or battery use. B-Mount battery plate.
Power_Output:
1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Optional_Accessories:
Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount EF (for limited shooting formats) Blackmagic URSA Cine Mount HC Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 50.81 mm x 23.32 mm (65mm Format) Pixel Pitch 2.9 microns Lens Mount PL mount. Interchangeable with URSA Cine Mount LPL included. Lens Control Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses. Dynamic Range 16 Stops Shooting Formats 17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1) 12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. High Speed Frame Rates 17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps Built in ND Filters None Focus Focus button turns on peaking, auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screens 2 x Monitoring Screens 1 x Camera Status Screen Monitoring Screen Dimensions 5 inch. Monitoring Screen Resolution 1920px x 1080px Monitoring Screen Brightness 1500 nits. Monitoring Screen Type LCD capacitive touchscreen Metadata Support Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack Reference Inputs Tri-Sync/Black Burst and Timecode. Viewfinder 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. Accessories 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Cloud_Synchronization:
Learn More
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. FTP Download files from any drive attached to your camera using FTP. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. SMB File sharing using SMB
Storage_Features:
Storage Type 1 x Blackmagic Media Module 8TB Storage Rates Storage rates based on 24 frames per second. 17K - 17,520 x 8,040 Blackmagic RAW 3:1 - 1,700 MB/s Blackmagic RAW 8:1 - 638 MB/s Blackmagic RAW 12:1 - 425 MB/s Blackmagic RAW 18:1 - 284 MB/s Blackmagic RAW Q0 - 567 to 2,040 MB/s Blackmagic RAW Q1 - 464 to 1,134 MB/s Blackmagic RAW Q3 - 255 to 638 MB/s Blackmagic RAW Q5 - 170 to 510 MB/s 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s Recording Formats Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [11,680 x 5,360], [10,752 x 5,360], [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [5,840 x 2,680], [5,376 x 2,680], [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software:
Software Included URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. Molex connector for rear battery plate. Power Input 1 x 8 pin Lemo compatible socket for external power or battery use. B-Mount battery plate. Power Output 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Cine 17K 65 camera with PL lens mount Blackmagic Media Module 8TB Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Top Rod Mount Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic URSA Cine Mount LPL and mount screws Blackmagic URSA Cine 24V 250W power supply Blackmagic PL Body Cap Blackmagic LPL Body Cap Plastic folding screen hood for 5” LCD DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Pelican 1510 Case with custom foam
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-sm.jpg?_v=1733956614
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-md.jpg?_v=1733956613
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-xl.jpg?_v=1733956613
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-sm.jpg?_v=1733956614
Blackmagic URSA Cine 17K 65 + EVF
Add to Compare
View Details
Blackmagic URSA Cine 17K 65 + EVF
Price:
HK$257,950
Description:
Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet, WiFi for fast media upload and syncing to Blackmagic Cloud and URSA Cine EVF!
Effective_Sensor_Size:
50.81 mm x 23.32 mm (65mm Format)
Pixel_Pitch:
2.9 microns
Lens_Mount:
PL mount. Interchangeable with URSA Cine Mount LPL included.
Lens_Control:
Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.
Dynamic_Range:
16 Stops
Shooting_Formats:
17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1) 12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1)
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High_Speed_Frame_Rates:
17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps
Focus:
Focus button turns on peaking, auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens:
2 x Monitoring Screens 1 x Camera Status Screen 1 x Electronic Viewfinder
Monitoring_Screen_Dimensions:
5 inch.
Monitoring_Screen_Resolution:
1920px x 1080px
Monitoring_Screen_Brightness:
1500 nits.
Monitoring_Screen_Type:
LCD capacitive touchscreen
Evf_Display_Resolution:
Full 1920 x 1080. 6.22 Million dots
Evf_Display_Type:
OLED
Evf_Diopter_Range:
-5 to +5
Tally:
Live Tally Indicator on LCD, and URSA Cine EVF.
Metadata_Support:
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on URSA Cine EVF.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
2.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack
Reference_Inputs:
Tri-Sync/Black Burst and Timecode.
Viewfinder:
1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
Usbc_Monitor_Outputs:
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
Ursa_Cine_Evf:
1 x USB-C with power, data, video and locking connector.
Accessories:
Optional Accessories Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount EF (for limited shooting formats) Blackmagic URSA Cine Mount HC Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Computer_Interface:
2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 1 x Blackmagic Media Module. Media Format Blackmagic
Media_Format:
Blackmagic
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External_Control:
Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.
Direct_Streaming:
Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Ftp:
Download files from any drive attached to your camera using FTP.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Smb:
File sharing using SMB
Storage_Type:
1 x Blackmagic Media Module 8TB
Storage_Rates:
Storage rates based on 24 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [11,680 x 5,360], [10,752 x 5,360], [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [5,840 x 2,680], [5,376 x 2,680], [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software_Included:
URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Power_Supply:
+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate.
Power_Input:
1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate.
Power_Output:
1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Optional_Accessories:
Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount EF (for limited shooting formats) Blackmagic URSA Cine Mount HC Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 50.81 mm x 23.32 mm (65mm Format) Pixel Pitch 2.9 microns Lens Mount PL mount. Interchangeable with URSA Cine Mount LPL included. Lens Control Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses. Dynamic Range 16 Stops Shooting Formats 17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1) 12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. High Speed Frame Rates 17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps Built in ND Filters None Focus Focus button turns on peaking, auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screens 2 x Monitoring Screens 1 x Camera Status Screen 1 x Electronic Viewfinder Monitoring Screen Dimensions 5 inch. Monitoring Screen Resolution 1920px x 1080px Monitoring Screen Brightness 1500 nits. Monitoring Screen Type LCD capacitive touchscreen EVF Display Resolution Full 1920 x 1080. 6.22 Million dots EVF Display Type OLED EVF Diopter Range -5 to +5 Tally Live Tally Indicator on LCD, and URSA Cine EVF. Metadata Support Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on URSA Cine EVF. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack Reference Inputs Tri-Sync/Black Burst and Timecode. Viewfinder 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. URSA Cine EVF 1 x USB-C with power, data, video and locking connector. Accessories 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Cloud_Synchronization:
Learn More
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. FTP Download files from any drive attached to your camera using FTP. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. SMB File sharing using SMB
Storage_Features:
Storage Type 1 x Blackmagic Media Module 8TB Storage Rates Storage rates based on 24 frames per second. 17K - 17,520 x 8,040 Blackmagic RAW 3:1 - 1,700 MB/s Blackmagic RAW 8:1 - 638 MB/s Blackmagic RAW 12:1 - 425 MB/s Blackmagic RAW 18:1 - 284 MB/s Blackmagic RAW Q0 - 567 to 2,040 MB/s Blackmagic RAW Q1 - 464 to 1,134 MB/s Blackmagic RAW Q3 - 255 to 638 MB/s Blackmagic RAW Q5 - 170 to 510 MB/s 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s Recording Formats Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [11,680 x 5,360], [10,752 x 5,360], [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [5,840 x 2,680], [5,376 x 2,680], [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software:
Software Included URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate. Power Input 1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate. Power Output 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Cine 17K 65 camera with PL lens mount Blackmagic Media Module 8TB Blackmagic Media Module Case Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Top Rod Mount Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic URSA Cine Mount LPL and mount screws Blackmagic URSA Cine 24V 250W power supply Blackmagic PL Body Cap Blackmagic LPL Body Cap Plastic folding screen hood for 5” LCD Blackmagic URSA Cine EVF Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod Blackmagic URSA Cine EVF Bracket rod mount Blackmagic URSA Cine EVF Extension 2 short carbon fibre 15mm rods 1 x long USB viewfinder cable. Right angle to straight 1 x short USB viewfinder cable. Right angle to straight 1 x short USB viewfinder cable. Right angle to right angle Rubber eyecup Fabric eye chamois DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Blackmagic Sticker Blackmagic Design Sticker Pelican 1560 Case with custom foam
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-evf-sm.jpg?_v=1733956614
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-evf-md.jpg?_v=1733956614
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-evf-xl.jpg?_v=1733956614
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-evf-sm.jpg?_v=1733956614
Blackmagic URSA Cine 17K 65 Body
Add to Compare
View Details
Blackmagic URSA Cine 17K 65 Body
Price:
HK$180,150
Description:
Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. The URSA Cine 17K 65 Body model is ideal when you have existing camera accessories that you want to use to create your own camera rig. It excludes top handle, baseplate, power supply, battery plate and LPL lens mount. It does come with an interchangeable PL lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 Body also includes an 8TB media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Effective_Sensor_Size:
50.81 mm x 23.32 mm (65mm Format)
Pixel_Pitch:
2.9 microns
Lens_Mount:
PL mount. Interchangeable with optional URSA Cine Mounts, LPL, EF and HC.
Lens_Control:
Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.
Dynamic_Range:
16 Stops
Shooting_Formats:
17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1) 12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1)
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High_Speed_Frame_Rates:
17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps
Focus:
Focus button turns on peaking, auto focus available using compatible lenses.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens:
2 x Monitoring Screens 1 x Camera Status Screen
Monitoring_Screen_Dimensions:
5 inch.
Monitoring_Screen_Resolution:
1920px x 1080px
Monitoring_Screen_Brightness:
1500 nits.
Monitoring_Screen_Type:
LCD capacitive touchscreen
Metadata_Support:
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
2.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack
Reference_Inputs:
Tri-Sync/Black Burst and Timecode.
Viewfinder:
1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
Usbc_Monitor_Outputs:
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
Accessories:
Optional Accessories Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount EF (for limited shooting formats) Blackmagic URSA Cine Mount HC Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Computer_Interface:
2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 1 x Blackmagic Media Module. Media Format Blackmagic
Media_Format:
Blackmagic
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
External_Control:
Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.
Direct_Streaming:
Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Ftp:
Download files from any drive attached to your camera using FTP.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Smb:
File sharing using SMB
Storage_Type:
1 x Blackmagic Media Module 8TB
Storage_Rates:
Storage rates based on 24 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [11,680 x 5,360], [10,752 x 5,360], [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [5,840 x 2,680], [5,376 x 2,680], [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software_Included:
URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Power_Supply:
+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. Molex connector for rear battery plate.
Power_Input:
1 x 8 pin Lemo compatible socket for external power or battery use. B-Mount battery plate.
Power_Output:
1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Optional_Accessories:
Blackmagic URSA Cine EVF Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount EF (for limited shooting formats) Blackmagic URSA Cine Mount HC Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 50.81 mm x 23.32 mm (65mm Format) Pixel Pitch 2.9 microns Lens Mount PL mount. Interchangeable with optional URSA Cine Mounts, LPL, EF and HC. Lens Control Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses. Dynamic Range 16 Stops Shooting Formats 17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1) 12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. High Speed Frame Rates 17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps Built in ND Filters None Focus Focus button turns on peaking, auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screens 2 x Monitoring Screens 1 x Camera Status Screen Monitoring Screen Dimensions 5 inch. Monitoring Screen Resolution 1920px x 1080px Monitoring Screen Brightness 1500 nits. Monitoring Screen Type LCD capacitive touchscreen Metadata Support Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack Reference Inputs Tri-Sync/Black Burst and Timecode. Viewfinder 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. Accessories 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Cloud_Synchronization:
Learn More
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. FTP Download files from any drive attached to your camera using FTP. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. SMB File sharing using SMB
Storage_Features:
Storage Type 1 x Blackmagic Media Module 8TB Storage Rates Storage rates based on 24 frames per second. 17K - 17,520 x 8,040 Blackmagic RAW 3:1 - 1,700 MB/s Blackmagic RAW 8:1 - 638 MB/s Blackmagic RAW 12:1 - 425 MB/s Blackmagic RAW 18:1 - 284 MB/s Blackmagic RAW Q0 - 567 to 2,040 MB/s Blackmagic RAW Q1 - 464 to 1,134 MB/s Blackmagic RAW Q3 - 255 to 638 MB/s Blackmagic RAW Q5 - 170 to 510 MB/s 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s Recording Formats Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [17,520 x 8,040], [16,128 x 8,040], [15,360 x 8,040], [14,304 x 8,040] and [17,520 x 7,296] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [11,680 x 5,360], [10,752 x 5,360], [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [5,840 x 2,680], [5,376 x 2,680], [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies.
Software:
Software Included URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. Molex connector for rear battery plate. Power Input 1 x 8 pin Lemo compatible socket for external power or battery use. B-Mount battery plate. Power Output 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Cine 17K 65 camera with PL lens mount Blackmagic Media Module 8TB Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic PL Body Cap DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-body-sm.jpg?_v=1739421324
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-body-md.jpg?_v=1739421324
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-body-xl.jpg?_v=1739421324
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-17k-65-body-sm.jpg?_v=1739421324
Blackmagic URSA Cine EVF
Add to Compare
View Details
Blackmagic URSA Cine EVF
Price:
HK$13,900
Description:
Blackmagic URSA Cine EVF makes outdoors and handheld shooting with your Blackmagic URSA Cine or Blackmagic PYXIS digital film camera easy! You get a high quality 1920 x 1080 color OLED display with 4 element glass diopter for incredible accuracy with a wide focus adjustment, assignable function buttons and more. URSA Cine EVF is easy to set up with a single USB-C cable connection for video, power and camera control and can be position in multiple different ways. It also includes an extension arm to position it on a dolly or geared head.
Frame_Rates:
Up to 60fps
Focus:
4 Element diopter.
Tally:
LED tally light.
Metadata_Support:
Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
Controls:
Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.
Computer_Interface:
USB-C for software updates.
Na:
Windows 10 and 11.
Power_Input:
USB-C
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (‑4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Video Inputs USB-C Power Input USB-C Data Input / Output USB-C Computer Interface USB-C for software updates.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB‑C.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (‑4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Video_Inputs:
USB-C
Data_Input_Output:
USB-C
Display_Resolution:
Full 1920 x 1080. 6.22 Million dots
Display_Type:
OLED
Diopter_Range:
-5 to +5
Overlays:
Built in overlay display processor and top mounted buttons.
Eyepiece:
Can be tilted vertically and extended for left or right eye use.
Mounting_Options:
Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
Features:
Display Resolution Full 1920 x 1080. 6.22 Million dots Display Type OLED Frame Rates Up to 60fps Focus 4 Element diopter. Diopter Range -5 to +5 Controls Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons. Overlays Built in overlay display processor and top mounted buttons. Eyepiece Can be tilted vertically and extended for left or right eye use. Tally LED tally light. Mounting Options Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports. Metadata Support Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-sm.jpg?_v=1712639112
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-md.jpg?_v=1712639112
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-xl.jpg?_v=1712639112
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-evf-sm.jpg?_v=1712639112
Blackmagic URSA Cine Immersive
Add to Compare
View Details
Blackmagic URSA Cine Immersive
Price:
HK$245,700
Description:
Blackmagic URSA Cine Immersive is the world’s first camera system for capturing Apple Immersive Video for Apple Vision Pro. The dual 8K sensors deliver 8160 x 7200 resolution per eye with pixel level synchronization and an incredible 16 stops of dynamic range. The custom lens system is designed exclusively for URSA Cine Immersive’s large format imaging sensor. Blackmagic URSA Cine Immersive comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud!
Effective_Sensor_Size:
23.66 mm x 20.88 mm each.
Pixel_Pitch:
2.9 microns.
Dynamic_Range:
16 Stops.
Shooting_Formats:
8160 x 7200 x 2 (stereo immersive)
Frame_Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported.
High_Speed_Frame_Rates:
8K stereo immersive up to 90 fps.
Built_In_Nd_Filters:
Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters.
Iris_Control:
Fixed iris.
Screens:
2 x Monitoring Screens. 1 x Camera Status Screen.
Monitoring_Screen_Dimensions:
5 inch.
Monitoring_Screen_Resolution:
1920px x 1080px.
Monitoring_Screen_Brightness:
1500 nits.
Monitoring_Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Outputs:
2.0
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack.
Reference_Inputs:
Tri-Sync/Black Burst and Timecode.
Usbc_Monitor_Outputs:
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
Accessories:
Optional Accessories Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine EVF Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Computer_Interface:
2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear.
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit.
Media:
Media 1 x Blackmagic Media Module. Media Format Blackmagic
Media_Format:
Blackmagic
Codecs:
Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
External_Control:
Blackmagic PYXIS Monitor can trigger record plus camera functions assigned to the F1, F2, F3. External Camera Control supported using REST API over Ethernet or WiFi. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand for controlling camera.
Ntp:
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Ftp:
Download files from any drive attached to your camera using FTP.
Web_Media_Manager:
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Smb:
File sharing using SMB.
Storage_Type:
1 x Blackmagic Media Module 8TB.
Storage_Rates:
Storage rates based on 90 frames per second.
Na:
1 Year Limited Manufacturer’s Warranty.
Recording_Formats:
Blackmagic RAW 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 8160 x 7200 resolution for each eye.
Software_Included:
URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Power_Supply:
+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate.
Power_Input:
1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate.
Power_Output:
B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Optional_Accessories:
Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine EVF Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module 8TB ATEM Streaming Bridge
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Sensors 2 x 8K sensors. Left eye and right eye. Effective Sensor Size 23.66 mm x 20.88 mm each. Pixel Pitch 2.9 microns. Lens Fixed focal length, 180°+ field of view, stereo lens pair. Dynamic Range 16 Stops. Shooting Formats 8160 x 7200 x 2 (stereo immersive) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported. High Speed Frame Rates 8K stereo immersive up to 90 fps. Built in ND Filters Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters. Iris Control Fixed iris. Screens 2 x Monitoring Screens. 1 x Camera Status Screen. Monitoring Screen Dimensions 5 inch. Monitoring Screen Resolution 1920px x 1080px. Monitoring Screen Brightness 1500 nits. Monitoring Screen Type LCD capacitive touchscreen. Monitoring Options Left Eye, Right Eye, Punch In. Metadata Support Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Outputs 2 SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack. Reference Inputs Tri-Sync/Black Burst and Timecode. USB-C Monitor Outputs 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. Computer Interface 2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear. Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit.
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Cloud_Synchronization:
Learn More
Network_Management:
NTP Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. FTP Download files from any drive attached to your camera using FTP. Web Media Manager Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. SMB File sharing using SMB.
Software:
Software Included URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11.
Power_Requirements:
Power Supply +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate. Power Input 1 x 8 pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate. Power Output B-Mount battery plate including 2-pin connector with +12V regulated output from camera.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Cine Immersive camera Blackmagic Media Module 8TB Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic URSA Cine 24V 250W power supply Blackmagic Immersive Stereo Lens Cover Plastic folding screen hood for 5” LCD DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Pelican 1560 Case with custom foam
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sensors:
2 x 8K sensors. Left eye and right eye.
Lens:
Fixed focal length, 180°+ field of view, stereo lens pair.
Monitoring_Options:
Left Eye, Right Eye, Punch In.
Col_8k_Stereo_Immersive:
8160 x 7200 x 2 Blackmagic RAW 5:1 - 3,202 MB/s Blackmagic RAW 8:1 - 2,001 MB/s Blackmagic RAW 12:1 - 1,334 MB/s Blackmagic RAW 18:1 - 890 MB/s Blackmagic RAW Q0 - 1,601 to 5,337 MB/s Blackmagic RAW Q1 - 1,334 to 4,574 MB/s Blackmagic RAW Q3 - 801 to 4,003 MB/s Blackmagic RAW Q5 - 534 to 2,287 MB/s Constant Quality Rates are: Q0 10:1 - 3:1, Q1 12:1 - 3.5:1, Q3 20:1 - 4:1, Q5 30:1 - 7:1 Actual storage rates are dependent on image subject matter.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-immersive-sm.jpg?_v=1733971108
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-immersive-md.jpg?_v=1733971108
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-immersive-xl.jpg?_v=1733971107
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursacine/techspecs/hero/blackmagic-ursa-cine-immersive-sm.jpg?_v=1733971108
Blackmagic URSA Mini Pro 12K
Add to Compare
View Details
Blackmagic URSA Mini Pro 12K
Price:
HK$52,300
Description:
URSA Mini Pro 12K is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user changeable lens mount and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording direct to a flash disk or SSD using its built in SuperSpeed USB‑C connection!
Effective_Sensor_Size:
27.03mm x 14.25mm (Super35)
Lens_Mount:
PL mount included. Interchangeable with optional EF and F lens mounts.
Lens_Control:
12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.
Dynamic_Range:
14 Stops
Shooting_Resolutions:
12,288 x 6480 (12K DCI) 11,520 x 6480 (12K 16:9) 12,288 x 5112 (12K 2.4:1) 7680 x 6408 (12K anamorphic) 8192 x 4320 (8K DCI) 7680 x 4320 (8K 16:9) 8192 x 3408 (8K 2.4:1) 5120 x 4272 (8K anamorphic) 6144 x 3240 (6K Super16) 4096 x 2160 (4K Super16) 4096 x 2160 (4K DCI) 3840 x 2160 (4K 16:9) 4096 x 1704 (4K 2.4:1) 2560 x 2136 (4K anamorphic)
Frame_Rates:
Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
High_Speed_Frame_Rates:
12K 17:9 full sensor up to 60 fps 12K 2.4:1 up to 75 fps 8K DCI full sensor up to 120 fps 4K DCI full sensor up to 120 fps 8K 2.4:1 and 4K 2.4:1 up to 160 fps 6K Super 16 up to 120 fps 4K Super 16 up to 240 fps
Built_In_Nd_Filters:
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus:
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screen_Dimensions:
4 inch
Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Inputs:
1 x 12G-SDI
Total_Video_Outputs:
1 x 12G-SDI, 1 x 3G-SDI Monitoring.
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference_Inputs:
Tri-Sync/Black Burst/Timecode.
Remote_Control:
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer_Interface:
1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording. 1 x USB Type-C for software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media. Alternative Media 1 x 2.5” drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder.
Alternative_Media:
1 x 2.5” drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. Please click here for a summary of compatible media.
Codecs:
Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
External_Control:
Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control.
Talkback:
SDI Channels 15/16 and iPhone headset.
Live_Tallyindicator:
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Type:
2 x CFast 2.0 2 x SD UHS-II cards 1 x high speed USB-C expansion port for external media.
Storage_Rates:
12K Full Sensor - 12,288 x 6480 at 24 frames per second. Blackmagic RAW 5:1 - 578 MB/s Blackmagic RAW 8:1 - 361 MB/s Blackmagic RAW 12:1 - 241 MB/s Blackmagic RAW 18:1 - 160 MB/s Blackmagic RAW Q0 - 289 to 1,156 MB/s Blackmagic RAW Q1 - 241 to 963 MB/s Blackmagic RAW Q3 - 145 to 722 MB/s Blackmagic RAW Q5 - 97 to 413 MB/s 8K Full Sensor - 8192 x 4320 at 24 frames per second. Blackmagic RAW 5:1 - 257 MB/s Blackmagic RAW 8:1 - 161 MB/s Blackmagic RAW 12:1 - 107 MB/s Blackmagic RAW 18:1 - 71 MB/s Blackmagic RAW Q0 - 257 to 642 MB/s Blackmagic RAW Q1 - 214 to 428 MB/s Blackmagic RAW Q3 - 107 to 321 MB/s Blackmagic RAW Q5 - 81 to 257 MB/s 6K Super 16 - 6144 x 3240 at 24 frames per second. Blackmagic RAW 5:1 - 146 MB/s Blackmagic RAW 8:1 - 91 MB/s Blackmagic RAW 12:1 - 61 MB/s Blackmagic RAW 18:1 - 40 MB/s Blackmagic RAW Q0 - 73 to 291 MB/s Blackmagic RAW Q1 - 61 to 242 MB/s Blackmagic RAW Q3 - 37 to 182 MB/s Blackmagic RAW Q5 - 25 to 104 MB/s 4K Full Sensor - 4096 x 2160 at 24 frames per second. Blackmagic RAW 5:1 - 161 MB/s Blackmagic RAW 8:1 - 107 MB/s Blackmagic RAW 12:1 - 80 MB/s Blackmagic RAW 18:1 - 53 MB/s Blackmagic RAW Q0 - 161 to 268 MB/s Blackmagic RAW Q1 - 107 to 214 MB/s Blackmagic RAW Q3 - 81 to 179 MB/s Blackmagic RAW Q5 - 54 to 161 MB/s 4K Super 16 - 4096 x 2160 at 240 frames per second. Blackmagic RAW 5:1 - 648 MB/s Blackmagic RAW 8:1 - 405 MB/s Blackmagic RAW 12:1 - 271 MB/s Blackmagic RAW 18:1 - 180 MB/s Blackmagic RAW Q0 - 648 to 1,618 MB/s Blackmagic RAW Q1 - 540 to 1,079 MB/s Blackmagic RAW Q3 - 271 to 810 MB/s Blackmagic RAW Q5 - 203 to 648 MB/s
Recording_Formats:
Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.
Software_Included:
Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
1 x External 12V power supply. 12 pin Molex connector for rear battery plate.
External_Power_Input:
1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera.
Power:
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Optional_Accessories:
URSA Mini Pro PL, EF and F Mounts URSA Mini Pro Shim Kit URSA Mini Shoulder Kit including top handle and extender arm URSA Viewfinder URSA Studio Viewfinder URSA Mini Recorder URSA VLock Battery Plate URSA Gold Battery Plate URSA Mini Mic Mount URSA Mini Top Handle URSA Handgrip Blackmagic Camera Fiber Converter
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 27.03mm x 14.25mm (Super35) Lens Mount PL mount included. Interchangeable with optional EF and F lens mounts. Lens Control 12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount. Dynamic Range 14 Stops Shooting Resolutions 12,288 x 6480 (12K DCI) 11,520 x 6480 (12K 16:9) 12,288 x 5112 (12K 2.4:1) 7680 x 6408 (12K anamorphic) 8192 x 4320 (8K DCI) 7680 x 4320 (8K 16:9) 8192 x 3408 (8K 2.4:1) 5120 x 4272 (8K anamorphic) 6144 x 3240 (6K Super16) 4096 x 2160 (4K Super16) 4096 x 2160 (4K DCI) 3840 x 2160 (4K 16:9) 4096 x 1704 (4K 2.4:1) 2560 x 2136 (4K anamorphic) Frame Rates Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. High Speed Frame Rates 12K 17:9 full sensor up to 60 fps 12K 2.4:1 up to 75 fps 8K DCI full sensor up to 120 fps 4K DCI full sensor up to 120 fps 8K 2.4:1 and 4K 2.4:1 up to 160 fps 6K Super 16 up to 120 fps 4K Super 16 up to 240 fps Built in ND Filters Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters. Focus Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screen Dimensions 4 inch Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Inputs 1 x 12G-SDI Total Video Outputs 1 x 12G-SDI, 1 x 3G-SDI Monitoring. SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack, supports iPhone microphone for talkback. Reference Inputs Tri-Sync/Black Burst/Timecode. Remote Control 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. Computer Interface 1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording. 1 x USB Type-C for software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Talkback_And_Tally:
Talkback SDI Channels 15/16 and iPhone headset. Live Tally Indicator Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Features:
Storage Type 2 x CFast 2.0 2 x SD UHS-II cards 1 x high speed USB-C expansion port for external media. Storage Rates 12K Full Sensor - 12,288 x 6480 at 24 frames per second. Blackmagic RAW 5:1 - 578 MB/s Blackmagic RAW 8:1 - 361 MB/s Blackmagic RAW 12:1 - 241 MB/s Blackmagic RAW 18:1 - 160 MB/s Blackmagic RAW Q0 - 289 to 1,156 MB/s Blackmagic RAW Q1 - 241 to 963 MB/s Blackmagic RAW Q3 - 145 to 722 MB/s Blackmagic RAW Q5 - 97 to 413 MB/s 8K Full Sensor - 8192 x 4320 at 24 frames per second. Blackmagic RAW 5:1 - 257 MB/s Blackmagic RAW 8:1 - 161 MB/s Blackmagic RAW 12:1 - 107 MB/s Blackmagic RAW 18:1 - 71 MB/s Blackmagic RAW Q0 - 257 to 642 MB/s Blackmagic RAW Q1 - 214 to 428 MB/s Blackmagic RAW Q3 - 107 to 321 MB/s Blackmagic RAW Q5 - 81 to 257 MB/s 6K Super 16 - 6144 x 3240 at 24 frames per second. Blackmagic RAW 5:1 - 146 MB/s Blackmagic RAW 8:1 - 91 MB/s Blackmagic RAW 12:1 - 61 MB/s Blackmagic RAW 18:1 - 40 MB/s Blackmagic RAW Q0 - 73 to 291 MB/s Blackmagic RAW Q1 - 61 to 242 MB/s Blackmagic RAW Q3 - 37 to 182 MB/s Blackmagic RAW Q5 - 25 to 104 MB/s 4K Full Sensor - 4096 x 2160 at 24 frames per second. Blackmagic RAW 5:1 - 161 MB/s Blackmagic RAW 8:1 - 107 MB/s Blackmagic RAW 12:1 - 80 MB/s Blackmagic RAW 18:1 - 53 MB/s Blackmagic RAW Q0 - 161 to 268 MB/s Blackmagic RAW Q1 - 107 to 214 MB/s Blackmagic RAW Q3 - 81 to 179 MB/s Blackmagic RAW Q5 - 54 to 161 MB/s 4K Super 16 - 4096 x 2160 at 240 frames per second. Blackmagic RAW 5:1 - 648 MB/s Blackmagic RAW 8:1 - 405 MB/s Blackmagic RAW 12:1 - 271 MB/s Blackmagic RAW 18:1 - 180 MB/s Blackmagic RAW Q0 - 648 to 1,618 MB/s Blackmagic RAW Q1 - 540 to 1,079 MB/s Blackmagic RAW Q3 - 271 to 810 MB/s Blackmagic RAW Q5 - 203 to 648 MB/s Recording Formats Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.
Software:
Software Included Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. 12 pin Molex connector for rear battery plate. External Power Input 1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera. Power Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Accessories:
Optional Accessories URSA Mini Pro PL, EF and F Mounts URSA Mini Pro Shim Kit URSA Mini Shoulder Kit including top handle and extender arm URSA Viewfinder URSA Studio Viewfinder URSA Mini Recorder URSA VLock Battery Plate URSA Gold Battery Plate URSA Mini Mic Mount URSA Mini Top Handle URSA Handgrip Blackmagic Camera Fiber Converter
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Mini Pro 12K Body Turret dust cap PL lens mount Power supply DaVinci Resolve Studio activation key
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-sm.jpg?_v=1594784015
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-md.jpg?_v=1594784015
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-xl.jpg?_v=1594784015
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-sm.jpg?_v=1594784015
Blackmagic URSA Mini Pro 12K OLPF
Add to Compare
View Details
Blackmagic URSA Mini Pro 12K OLPF
Price:
HK$52,300
Description:
URSA Mini Pro 12K OLPF is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user changeable lens mount and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording direct to a flash disk or SSD using its built in SuperSpeed USB‑C connection!
Effective_Sensor_Size:
27.03mm x 14.25mm (Super35)
Lens_Mount:
PL mount included. Interchangeable with optional EF and F lens mounts.
Lens_Control:
12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.
Dynamic_Range:
14 Stops
Shooting_Resolutions:
12,288 x 6480 (12K DCI) 11,520 x 6480 (12K 16:9) 12,288 x 5112 (12K 2.4:1) 7680 x 6408 (12K anamorphic) 8192 x 4320 (8K DCI) 7680 x 4320 (8K 16:9) 8192 x 3408 (8K 2.4:1) 5120 x 4272 (8K anamorphic) 6144 x 3240 (6K Super16) 4096 x 2160 (4K Super16) 4096 x 2160 (4K DCI) 3840 x 2160 (4K 16:9) 4096 x 1704 (4K 2.4:1) 2560 x 2136 (4K anamorphic)
Frame_Rates:
Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
High_Speed_Frame_Rates:
12K 17:9 full sensor up to 60 fps 12K 2.4:1 up to 75 fps 8K DCI full sensor up to 120 fps 4K DCI full sensor up to 120 fps 8K 2.4:1 and 4K 2.4:1 up to 160 fps 6K Super 16 up to 120 fps 4K Super 16 up to 240 fps
Built_In_Nd_Filters:
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus:
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screen_Dimensions:
4 inch
Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Inputs:
1 x 12G-SDI
Total_Video_Outputs:
1 x 12G-SDI, 1 x 3G-SDI Monitoring.
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference_Inputs:
Tri-Sync/Black Burst/Timecode.
Remote_Control:
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer_Interface:
1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording. 1 x USB Type-C for software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media. Alternative Media 1 x 2.5” drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder.
Alternative_Media:
1 x 2.5” drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. Please click here for a summary of compatible media.
Codecs:
Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
External_Control:
Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control.
Talkback:
SDI Channels 15/16 and iPhone headset.
Live_Tallyindicator:
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Type:
2 x CFast 2.0 2 x SD UHS-II cards 1 x high speed USB-C expansion port for external media.
Storage_Rates:
12K Full Sensor - 12,288 x 6480 at 24 frames per second. Blackmagic RAW 5:1 - 578 MB/s Blackmagic RAW 8:1 - 361 MB/s Blackmagic RAW 12:1 - 241 MB/s Blackmagic RAW 18:1 - 160 MB/s Blackmagic RAW Q0 - 289 to 1,156 MB/s Blackmagic RAW Q1 - 241 to 963 MB/s Blackmagic RAW Q3 - 145 to 722 MB/s Blackmagic RAW Q5 - 97 to 413 MB/s 8K Full Sensor - 8192 x 4320 at 24 frames per second. Blackmagic RAW 5:1 - 257 MB/s Blackmagic RAW 8:1 - 161 MB/s Blackmagic RAW 12:1 - 107 MB/s Blackmagic RAW 18:1 - 71 MB/s Blackmagic RAW Q0 - 257 to 642 MB/s Blackmagic RAW Q1 - 214 to 428 MB/s Blackmagic RAW Q3 - 107 to 321 MB/s Blackmagic RAW Q5 - 81 to 257 MB/s 6K Super 16 - 6144 x 3240 at 24 frames per second. Blackmagic RAW 5:1 - 146 MB/s Blackmagic RAW 8:1 - 91 MB/s Blackmagic RAW 12:1 - 61 MB/s Blackmagic RAW 18:1 - 40 MB/s Blackmagic RAW Q0 - 73 to 291 MB/s Blackmagic RAW Q1 - 61 to 242 MB/s Blackmagic RAW Q3 - 37 to 182 MB/s Blackmagic RAW Q5 - 25 to 104 MB/s 4K Full Sensor - 4096 x 2160 at 24 frames per second. Blackmagic RAW 5:1 - 161 MB/s Blackmagic RAW 8:1 - 107 MB/s Blackmagic RAW 12:1 - 80 MB/s Blackmagic RAW 18:1 - 53 MB/s Blackmagic RAW Q0 - 161 to 268 MB/s Blackmagic RAW Q1 - 107 to 214 MB/s Blackmagic RAW Q3 - 81 to 179 MB/s Blackmagic RAW Q5 - 54 to 161 MB/s 4K Super 16 - 4096 x 2160 at 240 frames per second. Blackmagic RAW 5:1 - 648 MB/s Blackmagic RAW 8:1 - 405 MB/s Blackmagic RAW 12:1 - 271 MB/s Blackmagic RAW 18:1 - 180 MB/s Blackmagic RAW Q0 - 648 to 1,618 MB/s Blackmagic RAW Q1 - 540 to 1,079 MB/s Blackmagic RAW Q3 - 271 to 810 MB/s Blackmagic RAW Q5 - 203 to 648 MB/s
Recording_Formats:
Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.
Software_Included:
Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
1 x External 12V power supply. 12 pin Molex connector for rear battery plate.
External_Power_Input:
1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera.
Power:
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Optional_Accessories:
URSA Mini Pro PL, EF and F Mounts URSA Mini Pro Shim Kit URSA Mini Shoulder Kit including top handle and extender arm URSA Viewfinder URSA Studio Viewfinder URSA Mini Recorder URSA VLock Battery Plate URSA Gold Battery Plate URSA Mini Mic Mount URSA Mini Top Handle URSA Handgrip Blackmagic Camera Fiber Converter
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 27.03mm x 14.25mm (Super35) Lens Mount PL mount included. Interchangeable with optional EF and F lens mounts. Lens Control 12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount. Dynamic Range 14 Stops Shooting Resolutions 12,288 x 6480 (12K DCI) 11,520 x 6480 (12K 16:9) 12,288 x 5112 (12K 2.4:1) 7680 x 6408 (12K anamorphic) 8192 x 4320 (8K DCI) 7680 x 4320 (8K 16:9) 8192 x 3408 (8K 2.4:1) 5120 x 4272 (8K anamorphic) 6144 x 3240 (6K Super16) 4096 x 2160 (4K Super16) 4096 x 2160 (4K DCI) 3840 x 2160 (4K 16:9) 4096 x 1704 (4K 2.4:1) 2560 x 2136 (4K anamorphic) Frame Rates Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. High Speed Frame Rates 12K 17:9 full sensor up to 60 fps 12K 2.4:1 up to 75 fps 8K DCI full sensor up to 120 fps 4K DCI full sensor up to 120 fps 8K 2.4:1 and 4K 2.4:1 up to 160 fps 6K Super 16 up to 120 fps 4K Super 16 up to 240 fps Built in ND Filters Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters. Focus Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screen Dimensions 4 inch Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Inputs 1 x 12G-SDI Total Video Outputs 1 x 12G-SDI, 1 x 3G-SDI Monitoring. SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack, supports iPhone microphone for talkback. Reference Inputs Tri-Sync/Black Burst/Timecode. Remote Control 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. Computer Interface 1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording. 1 x USB Type-C for software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Talkback_And_Tally:
Talkback SDI Channels 15/16 and iPhone headset. Live Tally Indicator Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Features:
Storage Type 2 x CFast 2.0 2 x SD UHS-II cards 1 x high speed USB-C expansion port for external media. Storage Rates 12K Full Sensor - 12,288 x 6480 at 24 frames per second. Blackmagic RAW 5:1 - 578 MB/s Blackmagic RAW 8:1 - 361 MB/s Blackmagic RAW 12:1 - 241 MB/s Blackmagic RAW 18:1 - 160 MB/s Blackmagic RAW Q0 - 289 to 1,156 MB/s Blackmagic RAW Q1 - 241 to 963 MB/s Blackmagic RAW Q3 - 145 to 722 MB/s Blackmagic RAW Q5 - 97 to 413 MB/s 8K Full Sensor - 8192 x 4320 at 24 frames per second. Blackmagic RAW 5:1 - 257 MB/s Blackmagic RAW 8:1 - 161 MB/s Blackmagic RAW 12:1 - 107 MB/s Blackmagic RAW 18:1 - 71 MB/s Blackmagic RAW Q0 - 257 to 642 MB/s Blackmagic RAW Q1 - 214 to 428 MB/s Blackmagic RAW Q3 - 107 to 321 MB/s Blackmagic RAW Q5 - 81 to 257 MB/s 6K Super 16 - 6144 x 3240 at 24 frames per second. Blackmagic RAW 5:1 - 146 MB/s Blackmagic RAW 8:1 - 91 MB/s Blackmagic RAW 12:1 - 61 MB/s Blackmagic RAW 18:1 - 40 MB/s Blackmagic RAW Q0 - 73 to 291 MB/s Blackmagic RAW Q1 - 61 to 242 MB/s Blackmagic RAW Q3 - 37 to 182 MB/s Blackmagic RAW Q5 - 25 to 104 MB/s 4K Full Sensor - 4096 x 2160 at 24 frames per second. Blackmagic RAW 5:1 - 161 MB/s Blackmagic RAW 8:1 - 107 MB/s Blackmagic RAW 12:1 - 80 MB/s Blackmagic RAW 18:1 - 53 MB/s Blackmagic RAW Q0 - 161 to 268 MB/s Blackmagic RAW Q1 - 107 to 214 MB/s Blackmagic RAW Q3 - 81 to 179 MB/s Blackmagic RAW Q5 - 54 to 161 MB/s 4K Super 16 - 4096 x 2160 at 240 frames per second. Blackmagic RAW 5:1 - 648 MB/s Blackmagic RAW 8:1 - 405 MB/s Blackmagic RAW 12:1 - 271 MB/s Blackmagic RAW 18:1 - 180 MB/s Blackmagic RAW Q0 - 648 to 1,618 MB/s Blackmagic RAW Q1 - 540 to 1,079 MB/s Blackmagic RAW Q3 - 271 to 810 MB/s Blackmagic RAW Q5 - 203 to 648 MB/s Recording Formats Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.
Software:
Software Included Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. 12 pin Molex connector for rear battery plate. External Power Input 1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera. Power Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Accessories:
Optional Accessories URSA Mini Pro PL, EF and F Mounts URSA Mini Pro Shim Kit URSA Mini Shoulder Kit including top handle and extender arm URSA Viewfinder URSA Studio Viewfinder URSA Mini Recorder URSA VLock Battery Plate URSA Gold Battery Plate URSA Mini Mic Mount URSA Mini Top Handle URSA Handgrip Blackmagic Camera Fiber Converter
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Mini Pro 12K OLPF Body Turret dust cap PL lens mount Power supply DaVinci Resolve Studio activation key
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-olpf-sm.jpg?_v=1594784015
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-olpf-md.jpg?_v=1594784015
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-olpf-xl.jpg?_v=1594784015
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-12k-olpf-sm.jpg?_v=1594784015
Blackmagic URSA Mini Pro 4.6K G2
Add to Compare
View Details
Blackmagic URSA Mini Pro 4.6K G2
Price:
HK$49,100
Description:
URSA Mini Pro 4.6K G2 is a next generation digital film camera with updated electronics and a high performance 4.6K HDR image sensor for shooting at up to 300 frames per second. You get a Super 35mm 4.6K sensor with 15 stops of dynamic range, built in optical ND filters, interchangeable EF lens mount that can be swapped for optional PL, B4 or F mounts, Blackmagic RAW and ProRes recording to dual CFast or dual SD cards, and an innovative USB-C expansion port for recording directly to external disks. In addition, URSA Mini Pro 4.6K G2 features a massive set of external broadcast style controls, backlit status display, foldout touchscreen monitor and more!
Effective_Sensor_Size:
25.34mm x 14.25mm (Super35)
Lens_Mount:
EF mount included. Interchangeable with optional PL, B4 and F lens mounts.
Lens_Control:
Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses
Dynamic_Range:
15 Stops.
Shooting_Resolutions:
4608 x 2592, 4608 x 1920 (4.6K 2.40:1) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K DCI) 3840 x 2160 (Ultra HD) 3072 x 2560 (3K Anamorphic) 2048 x 1152 (2K 16:9) 2048 x 1080 (2K DCI) 1920 x 1080
Frame_Rates:
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
High_Speed_Frame_Rates:
Blackmagic RAW 8:1 4.6K Full - Up to 120 fps UHD Windowed - Up to 150 fps HD Windowed - Up to 300 fps ProRes 422 HQ 4.6K Full - Up to 80 fps UHD Windowed - Up to 120 fps HD Windowed - Up to 240 fps
Built_In_Nd_Filters:
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.
Focus:
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris_Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screen_Dimensions:
4 inch
Screen_Type:
LCD capacitive touchscreen.
Metadata_Support:
Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls:
Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.
Timecode_Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Total_Video_Inputs:
1 x SDI
Total_Video_Outputs:
1 x SDI, 1 x SDI Monitoring.
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog_Audio_Outputs:
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference_Inputs:
Tri-Sync/Black Burst/Timecode.
Remote_Control:
2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer_Interface:
USB Type-C 3.1 Gen 1 for external drive recording and software updates.
Microphone:
Integrated stereo microphone.
Built_In_Speaker:
1 x mono speaker.
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1
Sdi_Audio_Sampling:
48 kHz and 24 bit
Media:
Media 2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3. 1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes recording. Please click here for a summary of compatible media. Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Media_Format:
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs:
Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q5 Apple ProRes XQ QuickTime Apple ProRes 444 QuickTime Apple ProRes 422 HQ QuickTime Apple ProRes 422 QuickTime Apple ProRes 422 HQ QuickTime Apple ProRes 422 LT QuickTime Apple ProRes 422 Proxy QuickTime
External_Control:
Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control.
Talkback:
SDI Channels 15/16 and iPhone headset.
Live_Tallyindicator:
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Type:
2 x CFast 2.0 2 x SD UHS-II cards 1 x high speed USB-C expansion port for external media.
Storage_Rates:
Storage rates based on 30 frames per second. 4608 x 2592 Blackmagic RAW 3:1 - 183 MB/s Blackmagic RAW 5:1 - 110 MB/s Blackmagic RAW 8:1 - 68 MB/s Blackmagic RAW 12:1 - 46 MB/s Blackmagic RAW Q0 - 110 to 274 MB/s * Blackmagic RAW Q5 - 27 to 78 MB/s ** Apple ProRes XQ - 360 MB/s Apple ProRes 444 - 238 MB/s Apple ProRes HQ - 158 MB/s Apple ProRes 422 - 106 MB/s Apple ProRes LT - 73.5 MB/s Apple ProRes Proxy - 32.3 MB/s 3840 x 2160 Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 76 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 76 to 191 MB/s * Blackmagic RAW Q5 - 19 to 55 MB/s ** Apple ProRes XQ - 250 MB/s Apple ProRes 444 - 165 MB/s Apple ProRes HQ - 110 MB/s Apple ProRes 422 - 73.6 MB/s Apple ProRes LT - 51 MB/s Apple ProRes Proxy - 22.4 MB/s 1920 x 1080 Blackmagic RAW 3:1 - 33 MB/s Blackmagic RAW 5:1 - 20 MB/s Blackmagic RAW 8:1 - 12 MB/s Blackmagic RAW 12:1 - 8 MB/s Blackmagic RAW Q0 - 20 to 49 MB/s * Blackmagic RAW Q5 - 5 to 14 MB/s ** Apple ProRes XQ - 62.5 MB/s Apple ProRes 444 - 41.25 MB/s Apple ProRes HQ - 27.5 MB/s Apple ProRes 422 - 18.4 MB/s Apple ProRes LT - 12.75 MB/s Apple ProRes Proxy - 5.6 MB/s
Recording_Formats:
Blackmagic RAW Q0, Q5, 3:1, 5:1, 8:1 and 12:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range. ProRes at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.
Software_Included:
Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Na:
1 Year Limited Manufacturer’s Warranty.
Power_Supply:
1 x External 12V power supply. 12 pin Molex connector for rear battery plate.
External_Power_Input:
1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera.
Power:
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Optional_Accessories:
URSA Mini Pro PL, EF, B4 and F Mounts URSA Mini Pro Shim Kit URSA Mini Shoulder Kit including top handle and extender arm URSA Viewfinder URSA Studio Viewfinder URSA Mini SSD Recorder URSA VLock Battery Plate URSA Gold Battery Plate URSA Mini Mic Mount URSA Mini Top Handle URSA Handgrip Blackmagic Camera Fiber Converter
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 45°C (-4° to 113°F)
Relative_Humidity:
0% to 90% non-condensing
Camera_Features:
Effective Sensor Size 25.34mm x 14.25mm (Super35) Lens Mount EF mount included. Interchangeable with optional PL, B4 and F lens mounts. Lens Control Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses Dynamic Range 15 Stops. Shooting Resolutions 4608 x 2592, 4608 x 1920 (4.6K 2.40:1) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K DCI) 3840 x 2160 (Ultra HD) 3072 x 2560 (3K Anamorphic) 2048 x 1152 (2K 16:9) 2048 x 1080 (2K DCI) 1920 x 1080 Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. High Speed Frame Rates Blackmagic RAW 8:1 4.6K Full - Up to 120 fps UHD Windowed - Up to 150 fps HD Windowed - Up to 300 fps ProRes 422 HQ 4.6K Full - Up to 80 fps UHD Windowed - Up to 120 fps HD Windowed - Up to 240 fps Built in ND Filters Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters. Focus Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screen Dimensions 4 inch Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. Controls Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
Total Video Inputs 1 x SDI Total Video Outputs 1 x SDI, 1 x SDI Monitoring. SDI Rates 1.5G, 3G, 6G, 12G. Analog Audio Inputs 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs 1 x 3.5mm headphone jack, supports iPhone microphone for talkback. Reference Inputs Tri-Sync/Black Burst/Timecode. Remote Control 2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. Computer Interface USB Type-C 3.1 Gen 1 for external drive recording and software updates.
Audio:
Microphone Integrated stereo microphone. Built in Speaker 1 x mono speaker.
Standards:
SD Video Standards None HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling 48 kHz and 24 bit
Supported_Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q5 Apple ProRes XQ QuickTime Apple ProRes 444 QuickTime Apple ProRes 422 HQ QuickTime Apple ProRes 422 QuickTime Apple ProRes 422 HQ QuickTime Apple ProRes 422 LT QuickTime Apple ProRes 422 Proxy QuickTime
Talkback_And_Tally:
Talkback SDI Channels 15/16 and iPhone headset. Live Tally Indicator Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage_Features:
Storage Type 2 x CFast 2.0 2 x SD UHS-II cards 1 x high speed USB-C expansion port for external media. Storage Rates Storage rates based on 30 frames per second. 4608 x 2592 Blackmagic RAW 3:1 - 183 MB/s Blackmagic RAW 5:1 - 110 MB/s Blackmagic RAW 8:1 - 68 MB/s Blackmagic RAW 12:1 - 46 MB/s Blackmagic RAW Q0 - 110 to 274 MB/s * Blackmagic RAW Q5 - 27 to 78 MB/s ** Apple ProRes XQ - 360 MB/s Apple ProRes 444 - 238 MB/s Apple ProRes HQ - 158 MB/s Apple ProRes 422 - 106 MB/s Apple ProRes LT - 73.5 MB/s Apple ProRes Proxy - 32.3 MB/s 3840 x 2160 Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 76 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 76 to 191 MB/s * Blackmagic RAW Q5 - 19 to 55 MB/s ** Apple ProRes XQ - 250 MB/s Apple ProRes 444 - 165 MB/s Apple ProRes HQ - 110 MB/s Apple ProRes 422 - 73.6 MB/s Apple ProRes LT - 51 MB/s Apple ProRes Proxy - 22.4 MB/s 1920 x 1080 Blackmagic RAW 3:1 - 33 MB/s Blackmagic RAW 5:1 - 20 MB/s Blackmagic RAW 8:1 - 12 MB/s Blackmagic RAW 12:1 - 8 MB/s Blackmagic RAW Q0 - 20 to 49 MB/s * Blackmagic RAW Q5 - 5 to 14 MB/s ** Apple ProRes XQ - 62.5 MB/s Apple ProRes 444 - 41.25 MB/s Apple ProRes HQ - 27.5 MB/s Apple ProRes 422 - 18.4 MB/s Apple ProRes LT - 12.75 MB/s Apple ProRes Proxy - 5.6 MB/s Recording Formats Blackmagic RAW Q0, Q5, 3:1, 5:1, 8:1 and 12:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range. ProRes at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.
Software:
Software Included Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x External 12V power supply. 12 pin Molex connector for rear battery plate. External Power Input 1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera. Power Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Accessories:
Optional Accessories URSA Mini Pro PL, EF, B4 and F Mounts URSA Mini Pro Shim Kit URSA Mini Shoulder Kit including top handle and extender arm URSA Viewfinder URSA Studio Viewfinder URSA Mini SSD Recorder URSA VLock Battery Plate URSA Gold Battery Plate URSA Mini Mic Mount URSA Mini Top Handle URSA Handgrip Blackmagic Camera Fiber Converter
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 45°C (-4° to 113°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Mini Pro 4.6K G2 body Turret dust cap EF lens mount Power supply Welcome wallet with QR code for software download DaVinci Resolve Studio with activation key
Warranty:
1 Year Limited Manufacturer’s Warranty.
Color_Corrector:
Color Corrector DaVinci YRGB.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-46k-g2-sm.jpg?_v=1550613569
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-46k-g2-md.jpg?_v=1550613569
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-46k-g2-xl.jpg?_v=1550613569
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-46k-g2-sm.jpg?_v=1550613569
Professional Cameras - Accessory
Blackmagic Camera for Android
Add to Compare
View Details
Blackmagic Camera for Android
Price:
Free
Description:
Blackmagic Camera unlocks the power of your Android Phone or Tablet's video camera by adding Blackmagic’s digital film camera controls and image processing! Now you can create the same cinematic ‘look’ as Hollywood feature films. You get the same intuitive and user friendly interface as Blackmagic Design’s award winning cameras. It’s just like using a professional digital film camera! You can adjust settings such as frame rate, shutter angle, white balance and ISO all in a single tap. Or, record directly to Blackmagic Cloud in industry standard files up to 8K! Recording to Blackmagic Cloud Storage lets you collaborate on DaVinci Resolve projects with editors anywhere in the world, all at the same time!
Lens_Selection:
Based on device. Selection of front and back lenses.
Frame_Rates:
Based on device and codec selected. 24 fps, 25 fps, 30 fps, 48 fps, 50 fps, 60 fps, 120 fps, 240 fps.
Off_Speed_Recording:
4 fps to 60 fps Off speed recordings will play back at project frame rate.
Shutter_Speed:
Based on device and frame rate selected. Includes lock on or off. 1/24, 1/25, 1/30, 1/33, 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000.
Shutter_Angle:
Includes lock on or off. 1.1° to 360° Shutter speed or shutter angle nominated in Camera Settings.
Iso:
Based on device and lens selected ISO 25 to ISO 10666.
White_Balance:
Locked, Auto or Manual.
White_Balance_Presets:
Cloud, Shade, Fluorescent, Incandescent, Daylight.
Manual_White_Balance:
2500K to 10,000K.
Tint_Presets:
Auto and manual selections with lock based on device. Cloud, Shade, Fluorescent, Incandescent, Daylight.
Manual_Tint:
-50 to 50.
Focus:
Includes auto focus on or off plus tap screen auto focus. Manual control in diopters, range varies from based on model and lens selected.
Focus_Presets_To_Rackfocus:
Three focus settings with variable time for auto rack focus.
Exposure:
Based on device and lens selected +/- 4 stops.
Zebra_Guides:
On or off, 75% to 100%.
Focus_Assist_Guides:
On or off, 1% to 100%.
Screen_Guides:
On or off, Thirds, Centre Crosshair, Centre Dot.
Frame_Guides:
On or off, 9:16, 4:5, 1:1, 4:3, 14:9, 1.85:1, 2:1, 2.35:1, 2.39:1, 2.4:1, aspect ratio guides.
Safe_Area_Guides:
On or off, 5% to 100%.
False_Color_Guides:
On or off.
Display_Lut_Guides:
On or off.
Stabilization:
Off, Standard, Optical.
Zoom:
Based on device. Scrub desired amount of zoom.
Clip_Metadata:
Enter clip information including, Slate Name, Lens Data, Reel, Scene, Take, Good Take Last Clip, Interior/Exterior, Day/Night, Production Name, Camera Ident, Director, Camera Operator.
Histogram:
Tap histogram for larger overlay. Overlay red, green, blue histogram with channel clip indicators.
Audio_Meters:
VU or PPM audio meters with tap to set audio gain (all sources). Tap meter for larger overlay.
Remote_Control_Status:
With remote control on, shows connection status.
Remote_Control_Multicam:
With remote control on as a controller, selects single or multi camera view.
Hud_Visibility:
Swipe up or down to show and hide HUD. HUD and controls always visible when device held in vertical orientation with Enable Vertical Video disabled.
Screen_Visibility:
Swipe right to dim screen while recording.
Haptic_Feedback:
Camera control dials offer haptic feedback.
Codec:
Based on device. HEVC (H.265), H.264. Advanced Professional Video (APV) codec on supported devices.
Bitrate_Selection:
Low, Medium, High, Max. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording.
Resolution:
Based on device. 8K, 4K, 1080p, 720p.
Color_Space:
Based on device. Rec. 709, Rec. 2020 HLG10, BT2020 HDR10.
Timecode_Display:
Record Run or Time of Day (TOD) timecode with every clip. With Accessories - Bluetooth on, also supports Tentacle Sync E.
Timelapse_Recording:
On or off. Range from capture 1 frame every 1 second to 1 frame every 10 minutes.
If_Media_Drops_Frame:
Alert or Stop Recording.
Enable_Vertical_Video:
Supports recording vertical video format for social media. Records landscape video format while device is held in landscape or vertical orientation if Enable Vertical Video is disabled.
Trigger_Record_Indicator:
Beeper, Beeper and Flash, None.
Use_Volume_Button_To_Trigger_Record:
On or off.
Lock_White_Balance_On_Record:
On or off.
While_Recording_Swipe_Right_To_Dimscreen:
On or off.
Shutter_Measurement:
Shutter speed or shutter angle.
Flicker_Free_Shutter_Based_On:
50 Hz / 60 Hz / Auto.
Lens_Correction:
Based on device. Automatic or off.
Anamorphic_Desqueeze:
Based on device and third party lens. None, 1.33, 1.55.
Flip_Image_For_Slr_Lens:
On or off.
Lock_Current_Orientation:
Preserves current orientation even if device is rotated.
Mirror_Front_Facing_Camera:
On or off.
Audio_Source:
None, default phone microphone or third party microphones.
Phone_Microphone:
Support based on device. Auto, Built In Mic (1), Built In Mic (2).
Audio_Format:
AAC.
Sample_Rate:
Auto, 44.1 kHz, 48.0 kHz.
Audio_Metering:
VU (-18dBFS), VU (-20dBFS). PPM (-18dBFS), PPM (‑20dBFS).
Audio_Monitoring:
On or off.
Audio_Output:
Speaker, bluetooth.
Focus_Assist:
Peaking or Colored Lines.
Focus_Assist_Color:
White, Black, Red, Green, Blue.
Guides_Opacity:
25%, 50%, 75%, 100%.
Guides_Color:
White, Black, Red, Green, Blue.
Grids_Opacity:
25%, 50%, 75%, 100%.
Hdmi_Out:
Supported with USB-C Adapter. Mirror Display or Video Feed.
Video_Feed_Monitoring_Andoverlays:
On or off for: Clean Feed, Status Text, Status Text Surrounds Image, Display 3D LUT, Zebra, Focus Assist, Frame Guide, Grid, Safe Area Guide, False Color.
Display_Audio_Meters:
On or off.
Display_Histogram:
On or off.
Display_Storage_Status:
On or off.
Display_Upload_Status:
On or off.
Display_Battery_Indicator:
On or off.
Record_Proxy:
On or off. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording.
Upload_Clips:
If Proxies are recorded, Proxies Only or Originals and Proxies.
Live_Sync:
On or off.
Auto_Uploading_To_Selected_Project:
On or off.
Enable_Upload_Only_Over_Wifi:
On or off.
Save_Clips_To:
Based on device. Gallery, Files to internal or external storage.
Save_Location_Data_To_Clip:
On or off.
Clip_Filename_Convention:
Blackmagic Camera or Android.
Display_Lut:
On or off.
Lut_Selection:
Import LUT, Export LUT or choose from list of loaded LUTs.
Record_Lut_Toclip:
On or off.
Color_Space_Tag:
Rec. 709, Rec. 2020, P3 D65.
Preset_Selection:
Save New Preset, Import Preset, Export Preset.
Use_Bluetooth:
On or off. If on, supports Nucleus Wireless Lens Control and Tentacle Sync E. Insta360 Flow Pro stabiliser, Xiaomi 14 Ultra camera grip.
Remote_Camera_Control:
Remote Camera Control On or off. Use this iPhone as Controller, Remote Camera. Camera Name User defined. Remote Password User defined. Camera Available for Control and Monitor Monitor Only Sync Record Across Cameras On or off. Hide Remote Camera Video Feed On or off. Dim Remote Cameras on Record On or off.
Use_This_Iphoneas:
Controller, Remote Camera.
Camera_Name:
User defined.
Remote_Password:
User defined.
Camera_Availablefor:
Control and Monitor Monitor Only
Sync_Record_Across_Cameras:
On or off.
Hide_Remote_Camera_Videofeed:
On or off.
Dim_Remote_Cameras_Onrecord:
On or off.
Compatibility:
Blackmagic Camera is fully Integrated with Blackmagic Cloud and DaVinci Resolve 18.6 or later.
Sharing:
Integrated Login to Blackmagic Cloud for sharing to Blackmagic Cloud Folders. Record clips into shared folders without needing a DaVinci Resolve Project.
Automatic_Media_Sharing:
Captured media automatically uploads to a Blackmagic Cloud DaVinci Resolve project.
Manual_Media_Sharing:
Select recorded clips or files manually to share to a Blackmagic Cloud DaVinci Resolve project.
Real_Time_Messaging:
Integrated instant text chat with DaVinci Resolve project users.
Reset_Blackmagic_Camsettings:
Reset Camera Settings, Reset Camera and Cloud Settings, Reset All Settings and Erase All Content
Language_Support:
English, Chinese, French, German, Italian, Japanese, Korean, Portuguese, Spanish.
Privacy:
Blackmagic Design does not collect any user data from this app.
Na:
Download for free on Galaxy Store.
Camera_Controls:
Lens Selection Based on device. Selection of front and back lenses. Frame Rates Based on device and codec selected. 24 fps, 25 fps, 30 fps, 48 fps, 50 fps, 60 fps, 120 fps, 240 fps. Off Speed Recording 4 fps to 60 fps Off speed recordings will play back at project frame rate. Shutter Speed Based on device and frame rate selected. Includes lock on or off. 1/24, 1/25, 1/30, 1/33, 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000. Shutter Angle Includes lock on or off. 1.1° to 360° Shutter speed or shutter angle nominated in Camera Settings. ISO Based on device and lens selected ISO 25 to ISO 10666. White Balance Locked, Auto or Manual. White Balance Presets Cloud, Shade, Fluorescent, Incandescent, Daylight. Manual White Balance 2500K to 10,000K. Tint Presets Auto and manual selections with lock based on device. Cloud, Shade, Fluorescent, Incandescent, Daylight. Manual Tint -50 to 50. Focus Includes auto focus on or off plus tap screen auto focus. Manual control in diopters, range varies from based on model and lens selected. Focus Presets to Rack Focus Three focus settings with variable time for auto rack focus. Exposure Based on device and lens selected +/- 4 stops. Zebra Guides On or off, 75% to 100%. Focus Assist Guides On or off, 1% to 100%. Screen Guides On or off, Thirds, Centre Crosshair, Centre Dot. Frame Guides On or off, 9:16, 4:5, 1:1, 4:3, 14:9, 1.85:1, 2:1, 2.35:1, 2.39:1, 2.4:1, aspect ratio guides. Safe Area Guides On or off, 5% to 100%. False Color Guides On or off. Display LUT Guides On or off. Stabilization Off, Standard, Optical. Zoom Based on device. Scrub desired amount of zoom. Clip Metadata Enter clip information including, Slate Name, Lens Data, Reel, Scene, Take, Good Take Last Clip, Interior/Exterior, Day/Night, Production Name, Camera Ident, Director, Camera Operator. Histogram Tap histogram for larger overlay. Overlay red, green, blue histogram with channel clip indicators. Audio Meters VU or PPM audio meters with tap to set audio gain (all sources). Tap meter for larger overlay. Remote Control Status With remote control on, shows connection status. Remote Control Multicam With remote control on as a controller, selects single or multi camera view. HUD Visibility Swipe up or down to show and hide HUD. HUD and controls always visible when device held in vertical orientation with Enable Vertical Video disabled. Screen Visibility Swipe right to dim screen while recording. Haptic Feedback Camera control dials offer haptic feedback.
Record_Settings:
Codec Based on device. HEVC (H.265), H.264. Advanced Professional Video (APV) codec on supported devices. Bitrate Selection Low, Medium, High, Max. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording. Resolution Based on device. 8K, 4K, 1080p, 720p. Color Space Based on device. Rec. 709, Rec. 2020 HLG10, BT2020 HDR10. Timecode Display Record Run or Time of Day (TOD) timecode with every clip. With Accessories - Bluetooth on, also supports Tentacle Sync E. Timelapse Recording On or off. Range from capture 1 frame every 1 second to 1 frame every 10 minutes. If Media Drops Frame Alert or Stop Recording.
Camera_Settings:
Enable Vertical Video Supports recording vertical video format for social media. Records landscape video format while device is held in landscape or vertical orientation if Enable Vertical Video is disabled. Trigger Record Indicator Beeper, Beeper and Flash, None. Use Volume Button to Trigger Record On or off. Lock White Balance on Record On or off. While Recording Swipe Right to Dim Screen On or off. Shutter Measurement Shutter speed or shutter angle. Flicker Free Shutter Based On 50 Hz / 60 Hz / Auto. Lens Correction Based on device. Automatic or off. Anamorphic De-Squeeze Based on device and third party lens. None, 1.33, 1.55. Reduce Noise On or off. Increase Sharpening On or off. Flip Image for SLR Lens On or off. Lock Current Orientation Preserves current orientation even if device is rotated. Mirror Front Facing Camera On or off.
Audio_Settings:
Audio Source None, default phone microphone or third party microphones. Phone Microphone Support based on device. Auto, Built In Mic (1), Built In Mic (2). Audio Format AAC. Record Audio as Mono, Stereo. Sample Rate Auto, 44.1 kHz, 48.0 kHz. Audio Metering VU (-18dBFS), VU (-20dBFS). PPM (-18dBFS), PPM (‑20dBFS). Audio Monitoring On or off. Audio Output Speaker, bluetooth.
Monitor_Settings:
Focus Assist Peaking or Colored Lines. Focus Assist Color White, Black, Red, Green, Blue. Guides Opacity 25%, 50%, 75%, 100%. Guides Color White, Black, Red, Green, Blue. Grids Opacity 25%, 50%, 75%, 100%. HDMI Out Supported with USB-C Adapter. Mirror Display or Video Feed. Video Feed Monitoring and Overlays On or off for: Clean Feed, Status Text, Status Text Surrounds Image, Display 3D LUT, Zebra, Focus Assist, Frame Guide, Grid, Safe Area Guide, False Color. Display Audio Meters On or off. Display Histogram On or off. Display Storage Status On or off. Display Upload Status On or off. Display Battery Indicator. On or off.
Media:
Record Proxy On or off. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording. Upload Clips If Proxies are recorded, Proxies Only or Originals and Proxies. Live Sync On or off. Auto Uploading to Selected Project On or off. Enable Upload Only Over Wi-Fi On or off. Save Clips to Based on device. Gallery, Files to internal or external storage. Save Location Data to Clip On or off. Clip Filename Convention Blackmagic Camera or Android.
Luts:
Display LUT On or off. LUT Selection Import LUT, Export LUT or choose from list of loaded LUTs. Record LUT to Clip On or off. Color Space Tag Rec. 709, Rec. 2020, P3 D65.
Presets:
Preset Selection Save New Preset, Import Preset, Export Preset.
Accessories:
Use Bluetooth On or off. If on, supports Nucleus Wireless Lens Control and Tentacle Sync E. Insta360 Flow Pro stabiliser, Xiaomi 14 Ultra camera grip.
Blackmagic_Cloud:
Compatibility Blackmagic Camera is fully Integrated with Blackmagic Cloud and DaVinci Resolve 18.6 or later. Sharing Integrated Login to Blackmagic Cloud for sharing to Blackmagic Cloud Folders. Record clips into shared folders without needing a DaVinci Resolve Project. Automatic Media Sharing Captured media automatically uploads to a Blackmagic Cloud DaVinci Resolve project. Manual Media Sharing Select recorded clips or files manually to share to a Blackmagic Cloud DaVinci Resolve project. Real Time Messaging Integrated instant text chat with DaVinci Resolve project users.
Reset:
Reset Blackmagic Cam Settings Reset Camera Settings, Reset Camera and Cloud Settings, Reset All Settings and Erase All Content
Software:
Language Support English, Chinese, French, German, Italian, Japanese, Korean, Portuguese, Spanish. Privacy Blackmagic Design does not collect any user data from this app.
Reduce_Noise:
On or off.
Increase_Sharpening:
On or off.
Record_Audioas:
Mono, Stereo.
Availability:
Download for free on Google Play. Download for free on Galaxy Store.
Src:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraandroid-sm.jpg?_v=1718843911
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraandroid-md.jpg?_v=1718843911
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraandroid-xl.jpg?_v=1718843911
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraandroid-sm.jpg?_v=1718843911
Blackmagic Camera for iOS
Add to Compare
View Details
Blackmagic Camera for iOS
Price:
Free
Description:
Blackmagic Camera unlocks the power of your iPhone or iPad by adding Blackmagic’s digital film camera controls and image processing! Now you can create the same cinematic ‘look’ as Hollywood feature films. You get the same intuitive and user friendly interface as Blackmagic Design’s award winning cameras. It’s just like using a professional digital film camera! You can adjust settings such as frame rate, shutter angle, white balance and ISO all in a single tap. Or, record directly to Blackmagic Cloud in industry standard 10-bit Apple ProRes files up to 4K! Recording to Blackmagic Cloud Storage lets you collaborate on DaVinci Resolve projects with editors anywhere in the world, all at the same time!
Lens_Selection:
Based on device. Selection of front and back lenses.
Frame_Rates:
Based on device and codec selected. 23.98 fps, 24 fps, 25 fps, 29.97 fps, 30 fps, 48 fps, 59.94 fps, 60 fps, 100 fps, 120 fps.
Off_Speed_Recording:
4 fps to 60 fps Off speed recordings will play back at project frame rate.
Shutter_Speed:
Based on device and frame rate selected. Includes lock on or off. 1/24, 1/25, 1/30, 1/33, 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000.
Shutter_Angle:
Includes lock on or off. 1.1° to 360° Shutter speed or shutter angle nominated in Camera Settings.
Iso:
Based on device and lens selected ISO 21 to ISO 5472.
White_Balance:
Locked, Auto or Manual.
White_Balance_Presets:
Cloud, Shade, Fluorescent, Incandescent, Daylight.
Manual_White_Balance:
2500K to 10,000K.
Tint_Presets:
Auto and manual selections with lock based on device. Cloud, Shade, Fluorescent, Incandescent, Daylight.
Manual_Tint:
-50 to 50.
Focus:
Includes auto focus on or off plus tap screen auto focus. Manual control from minimum focus distance (0.00) to maximum focus distance (1.00).
Focus_Presets_To_Rackfocus:
Three focus settings with variable time for auto rack focus.
Exposure:
Based on device and lens selected +/- 3 stops.
Zebra_Guides:
On or off, 75% to 100%.
Focus_Assist_Guides:
On or off, 1% to 100%.
Screen_Guides:
On or off, Thirds, Centre Crosshair, Centre Dot.
Frame_Guides:
On or off, 9:16, 4:5, 1:1, 4:3, 14:9, 1.85:1, 2:1, 2.35:1, 2.39:1, 2.4:1, 2.76:1 aspect ratio guides.
Safe_Area_Guides:
On or off, 5% to 100%.
False_Color_Guides:
On or off.
Display_Lut_Guides:
On or off.
Stabilization:
Off, Standard, Cinematic, Extreme.
Zoom:
Based on device. Scrub desired amount of zoom.
Clip_Metadata:
Enter clip information including, Slate Name, Lens Data, Reel, Scene, Take, Good Take Last Clip, Interior/Exterior, Day/Night, Production Name, Camera Ident, Director, Camera Operator.
Histogram:
Overlay red, green, blue histogram with channel clip indicators.
Audio_Meters:
VU or PPM audio meters with tap to set audio gain for compatible external audio sources. Tap meter for larger overlay.
Remote_Control_Status:
With remote control on, shows connection status.
Remote_Control_Multicam:
With remote control on as a controller, selects single or multi camera view.
Hud_Visibility:
Swipe up or down to show and hide HUD. HUD and controls always visible when device held in vertical orientation with Enable Vertical Video disabled.
Screen_Visibility:
Swipe right to dim screen while recording.
Haptic_Feedback:
Camera control dials offer haptic feedback.
Codec:
Based on device. Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 442 LT, Apple ProRes Proxy, HEVC (H.265), H.264.
Bitrate_Selection:
Low, Medium, High, Max. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording.
Resolution:
Based on device. 4K, 1080p, 720p.
Color_Space:
Based on device. Rec. 709, Rec. 2020, P3 D65, BT2020 HLG10, BT2020 HDR10, Apple Log, ACES.
Timecode_Display:
Record Run or Time of Day (TOD) timecode with every clip. With Accessories - Bluetooth on, also supports Tentacle Sync E.
Timelapse_Recording:
On or off. Range from capture 1 frame every 2 seconds to 1 frame every 10 minutes.
If_Media_Drops_Frame:
Alert or Stop Recording.
Enable_Vertical_Video:
Supports recording vertical video format for social media. Records landscape video format while device is held in landscape or vertical orientation if Enable Vertical Video is disabled.
Trigger_Record_Indicator:
Beeper, Beeper and Flash, None.
Use_Volume_Button_To_Trigger_Record:
On or off.
Lock_White_Balance_On_Record:
On or off.
While_Recording_Swipe_Right_To_Dimscreen:
On or off.
Shutter_Measurement:
Shutter speed or shutter angle.
Flicker_Free_Shutter_Based_On:
50 Hz / 60 Hz.
Lens_Correction:
Based on device. Automatic or off.
Anamorphic_Desqueeze:
Based on device model and third party lens. None, 1.33, 1.55.
Flip_Image_For_Slr_Lens:
On or off.
Lock_Current_Orientation:
Preserves current orientation even if device is rotated.
Mirror_Front_Facing_Camera:
On or off.
Audio_Source:
None, phone microphone or third party microphones.
Phone_Microphone:
Support based on device. Auto, Back, Bottom Front.
Audio_Format:
Based on device. Linear PCM, IEEE Float, AAC.
Record_Audio_As:
Mono, Stereo, Dual Mono or 4 Channels.
Sample_Rate:
Auto, 44.1 kHz, 48.0 kHz.
Audio_Metering:
VU (-18dBFS), VU (-20dBFS). PPM (-18dBFS), PPM (‑20dBFS).
Audio_Monitoring:
On or off.
Audio_Output:
Speaker, bluetooth.
Focus_Assist:
Peaking or Colored Lines.
Focus_Assist_Color:
White, Black, Red, Green, Blue.
Guides_Opacity:
25%, 50%, 75%, 100%.
Guides_Color:
White, Black, Red, Green, Blue.
Grids_Opacity:
25%, 50%, 75%, 100%.
Hdmi_Out:
Supported with Apple Lightning or Apple USB‑C Adapter. Mirror Display or Video Feed.
Video_Feed_Monitoring_Andoverlays:
On or off for: Clean Feed, Status Text, Status Text Surrounds Image, Display 3D LUT, Zebra, Focus Assist, Frame Guide, Grid, Safe Area Guide, False Color.
Display_Audio_Meters:
On or off.
Display_Histogram:
On or off.
Display_Storage_Status:
On or off.
Display_Upload_Status:
On or off.
Display_Battery_Indicator:
On or off.
Record_Proxy:
On or off. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording.
Upload_Clips:
If Proxies are recorded, Proxies Only or Originals and Proxies.
Live_Sync:
On or off.
Auto_Uploading_To_Selected_Project:
On or off.
Enable_Upload_Only_Over_Wifi:
On or off.
Save_Clips_To:
Based on device. In-App Only, In-App and Photo Library, Files to internal or external storage.
Save_Location_Data_To_Clip:
On or off.
Clip_Filename_Convention:
Blackmagic Camera or iOS.
Display_Lut:
On or off.
Lut_Selection:
Import LUT, Export LUT or choose from list of loaded LUTs. Apple Log to Rec. 709 LUT supported on iPhone 15 Pro and iPhone 15 Pro Max.
Record_Lut_Toclip:
On or off.
Color_Space_Tag:
Rec. 709, Rec. 2020, P3 D65.
Preset_Selection:
Save New Preset, Import Preset, Export Preset.
Use_Bluetooth:
On or off. If on, supports Nucleus Wireless Lens Control and Tentacle Sync E. Insta360 Flow Pro using NFC and Apple DockKit.
Remote_Camera_Control:
Remote Camera Control On or off. Use this iPhone as Controller, Remote Camera. Camera Name User defined. Remote Password User defined. Camera Available for Control and Monitor Monitor Only Sync Record Across Cameras On or off. Hide Remote Camera Video Feed On or off. Dim Remote Cameras on Record On or off.
Use_This_Iphoneas:
Controller, Remote Camera.
Camera_Name:
User defined.
Remote_Password:
User defined.
Camera_Availablefor:
Control and Monitor Monitor Only
Sync_Record_Across_Cameras:
On or off.
Hide_Remote_Camera_Videofeed:
On or off.
Dim_Remote_Cameras_Onrecord:
On or off.
Compatibility:
Blackmagic Camera is fully Integrated with Blackmagic Cloud and DaVinci Resolve 18.6 or later.
Sharing:
Integrated Login to Blackmagic Cloud for sharing to Blackmagic Cloud Folders. Record clips into shared folders without needing a DaVinci Resolve Project.
Automatic_Media_Sharing:
Captured media automatically uploads to a Blackmagic Cloud DaVinci Resolve project.
Manual_Media_Sharing:
Select recorded clips or files manually to share to a Blackmagic Cloud DaVinci Resolve project.
Real_Time_Messaging:
Integrated instant text chat with DaVinci Resolve project users.
Reset_Blackmagic_Camsettings:
Reset Camera Settings, Reset Camera and Cloud Settings, Reset All Settings and Erase All Content
Language_Support:
English, Chinese, French, Japanese, Korean, Portuguese, Spanish.
Privacy:
Blackmagic Design does not collect any user data from this app.
Na:
Download for free on the App Store.
Camera_Controls:
Lens Selection Based on device. Selection of front and back lenses. Frame Rates Based on device and codec selected. 23.98 fps, 24 fps, 25 fps, 29.97 fps, 30 fps, 48 fps, 59.94 fps, 60 fps, 100 fps, 120 fps. Off Speed Recording 4 fps to 60 fps Off speed recordings will play back at project frame rate. Shutter Speed Based on device and frame rate selected. Includes lock on or off. 1/24, 1/25, 1/30, 1/33, 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000. Shutter Angle Includes lock on or off. 1.1° to 360° Shutter speed or shutter angle nominated in Camera Settings. ISO Based on device and lens selected ISO 21 to ISO 5472. White Balance Locked, Auto or Manual. White Balance Presets Cloud, Shade, Fluorescent, Incandescent, Daylight. Manual White Balance 2500K to 10,000K. Tint Presets Auto and manual selections with lock based on device. Cloud, Shade, Fluorescent, Incandescent, Daylight. Manual Tint -50 to 50. Focus Includes auto focus on or off plus tap screen auto focus. Manual control from minimum focus distance (0.00) to maximum focus distance (1.00). Focus Presets to Rack Focus Three focus settings with variable time for auto rack focus. Exposure Based on device and lens selected +/- 3 stops. Zebra Guides On or off, 75% to 100%. Focus Assist Guides On or off, 1% to 100%. Screen Guides On or off, Thirds, Centre Crosshair, Centre Dot. Frame Guides On or off, 9:16, 4:5, 1:1, 4:3, 14:9, 1.85:1, 2:1, 2.35:1, 2.39:1, 2.4:1, 2.76:1 aspect ratio guides. Safe Area Guides On or off, 5% to 100%. False Color Guides On or off. Display LUT Guides On or off. Stabilization Off, Standard, Cinematic, Extreme. Zoom Based on device. Scrub desired amount of zoom. Clip Metadata Enter clip information including, Slate Name, Lens Data, Reel, Scene, Take, Good Take Last Clip, Interior/Exterior, Day/Night, Production Name, Camera Ident, Director, Camera Operator. Histogram Overlay red, green, blue histogram with channel clip indicators. Audio Meters VU or PPM audio meters with tap to set audio gain for compatible external audio sources. Tap meter for larger overlay. Remote Control Status With remote control on, shows connection status. Remote Control Multicam With remote control on as a controller, selects single or multi camera view. HUD Visibility Swipe up or down to show and hide HUD. HUD and controls always visible when device held in vertical orientation with Enable Vertical Video disabled. Screen Visibility Swipe right to dim screen while recording. Haptic Feedback Camera control dials offer haptic feedback.
Record_Settings:
Codec Based on device. Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 442 LT, Apple ProRes Proxy, HEVC (H.265), H.264. Bitrate Selection Low, Medium, High, Max. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording. Resolution Based on device. 4K, 1080p, 720p. Color Space Based on device. Rec. 709, Rec. 2020, P3 D65, BT2020 HLG10, BT2020 HDR10, Apple Log, ACES. Timecode Display Record Run or Time of Day (TOD) timecode with every clip. With Accessories - Bluetooth on, also supports Tentacle Sync E. Timelapse Recording On or off. Range from capture 1 frame every 2 seconds to 1 frame every 10 minutes. If Media Drops Frame Alert or Stop Recording.
Camera_Settings:
Enable Vertical Video Supports recording vertical video format for social media. Records landscape video format while device is held in landscape or vertical orientation if Enable Vertical Video is disabled. Trigger Record Indicator Beeper, Beeper and Flash, None. Use Volume Button to Trigger Record On or off. Lock White Balance on Record On or off. While Recording Swipe Right to Dim Screen On or off. Shutter Measurement Shutter speed or shutter angle. Flicker Free Shutter Based On 50 Hz / 60 Hz. Lens Correction Based on device. Automatic or off. Anamorphic De-Squeeze Based on device model and third party lens. None, 1.33, 1.55. Flip Image for SLR Lens On or off. Lock Current Orientation Preserves current orientation even if device is rotated. Mirror Front Facing Camera On or off.
Audio_Settings:
Audio Source None, phone microphone or third party microphones. Phone Microphone Support based on device. Auto, Back, Bottom Front. Audio Format Based on device. Linear PCM, IEEE Float, AAC. Record Audio as Mono, Stereo, Dual Mono or 4 Channels. Sample Rate Auto, 44.1 kHz, 48.0 kHz. Audio Metering VU (-18dBFS), VU (-20dBFS). PPM (-18dBFS), PPM (‑20dBFS). Audio Monitoring On or off. Audio Output Speaker, bluetooth.
Monitor_Settings:
Focus Assist Peaking or Colored Lines. Focus Assist Color White, Black, Red, Green, Blue. Guides Opacity 25%, 50%, 75%, 100%. Guides Color White, Black, Red, Green, Blue. Grids Opacity 25%, 50%, 75%, 100%. HDMI Out Supported with Apple Lightning or Apple USB‑C Adapter. Mirror Display or Video Feed. Video Feed Monitoring and Overlays On or off for: Clean Feed, Status Text, Status Text Surrounds Image, Display 3D LUT, Zebra, Focus Assist, Frame Guide, Grid, Safe Area Guide, False Color. Display Audio Meters On or off. Display Histogram On or off. Display Storage Status On or off. Display Upload Status On or off. Display Battery Indicator. On or off.
Media:
Record Proxy On or off. Optional automatically generated 1920 x 1080 HD HEVC (H.265) proxy files for each recording. Upload Clips If Proxies are recorded, Proxies Only or Originals and Proxies. Live Sync On or off. Auto Uploading to Selected Project On or off. Enable Upload Only Over Wi-Fi On or off. Save Clips to Based on device. In-App Only, In-App and Photo Library, Files to internal or external storage. Save Location Data to Clip On or off. Clip Filename Convention Blackmagic Camera or iOS.
Luts:
Display LUT On or off. LUT Selection Import LUT, Export LUT or choose from list of loaded LUTs. Apple Log to Rec. 709 LUT supported on iPhone 15 Pro and iPhone 15 Pro Max. Record LUT to Clip On or off. Color Space Tag Rec. 709, Rec. 2020, P3 D65.
Presets:
Preset Selection Save New Preset, Import Preset, Export Preset.
Accessories:
Use Bluetooth On or off. If on, supports Nucleus Wireless Lens Control and Tentacle Sync E. Insta360 Flow Pro using NFC and Apple DockKit.
Blackmagic_Cloud:
Compatibility Blackmagic Camera is fully Integrated with Blackmagic Cloud and DaVinci Resolve 18.6 or later. Sharing Integrated Login to Blackmagic Cloud for sharing to Blackmagic Cloud Folders. Record clips into shared folders without needing a DaVinci Resolve Project. Automatic Media Sharing Captured media automatically uploads to a Blackmagic Cloud DaVinci Resolve project. Manual Media Sharing Select recorded clips or files manually to share to a Blackmagic Cloud DaVinci Resolve project. Real Time Messaging Integrated instant text chat with DaVinci Resolve project users.
Reset:
Reset Blackmagic Cam Settings Reset Camera Settings, Reset Camera and Cloud Settings, Reset All Settings and Erase All Content
Software:
Language Support English, Chinese, French, Japanese, Korean, Portuguese, Spanish. Privacy Blackmagic Design does not collect any user data from this app.
Operating_System:
Supported on iPhones running iOS 16.6 or later. Supported on iPads running iPadOS 18 or later.
Src:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraios-sm.jpg?_v=1694666089
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraios-md.jpg?_v=1694666088
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraios-xl.jpg?_v=1694666088
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagiccamera/techspecs/hero/blackmagiccameraios-sm.jpg?_v=1694666089
Blackmagic Camera Fiber Converter
Add to Compare
View Details
Blackmagic Camera Fiber Converter
Price:
HK$26,600
Description:
The Blackmagic Camera Fiber Converter lets you extend and power your URSA Broadcast from up to 2 km away using industry standard SMPTE fiber cables. It also includes common live camera controls with multiple channels of talkback and standard television industry talkback headset connections. The Blackmagic Camera Fiber Converter features 1 Ultra HD camera feed, plus 3 HD return feeds in a compact IP video based design.
Optical_Fiber_Input:
1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male).
Sdi_Videoinput:
1x 12G SDI for Camera feed.
Sdi_Video_Output:
1x 3G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs.
Talkback_Audio:
2x 5-pin XLR for headset with three way audio mixer per output, 1x Tracker output.
Analog_Audio:
2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available.
Computer_Interface:
1x USB-C connector.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
Audio_Sampling:
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Color_Space:
REC 709, REC 2020.
Multiple_Rate_Support:
SDI switches between HD, 3G-SDI, 6G-SDI and 12G‑SDI.
Software_Included:
Camera Utility for firmware update.
Na:
Windows 10 and 11.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Optical Fiber Input 1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male). SDI Video Input 1x 12G SDI for Camera feed. SDI Video Output 1x 3G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs. Talkback Audio 2x 5-pin XLR for headset with three way audio mixer per output, 1x Tracker output. Analog Audio 2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available. Computer Interface 1x USB-C connector.
Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60 SDI Compliance SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M. Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 709, REC 2020. Multiple Rate Support SDI switches between HD, 3G-SDI, 6G-SDI and 12G‑SDI.
Software:
Software Included Camera Utility for firmware update.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Src:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-sm.jpg?_v=1516331547
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-md.jpg?_v=1516331547
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-xl.jpg?_v=1516331546
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-sm.jpg?_v=1516331547
Blackmagic Studio Converter
Add to Compare
View Details
Blackmagic Studio Converter
Price:
HK$7,850
Description:
With 10G Ethernet on Blackmagic Studio Converter and Blackmagic Studio Camera Pro, you can connect all camera signals using one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so you don't even need a power source near the camera!
Sdi_Video_Inputs:
2.0
Sdi_Video_Outputs:
2
Sdi_Rates:
1.5G, 3G, 6G, 12G.
Sdi_Audio_Output:
2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16.
Ethernet:
1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable. 1 x 1Gb/s for external control and software updates.
Computer_Interface:
1 x USB-C.
Built_In_Speaker:
Mono
Hd_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Na:
1 Year Limited Manufacturer’s Warranty.
External_Control:
RJ-45 1Gb/s Ethernet.
Software_Included:
Camera Utility for firmware update.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz.
Power_Usage:
40 W max plus camera power usage.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 2 SDI Video Outputs 2 SDI Monitor Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G. Built in Speaker Mono Analog Audio Inputs 2 channel analog Program audio in supported via 9‑pin connector. Analog Audio Outputs 1 x 6.35 mm headphone jack. SDI Audio Input Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI. SDI Audio Output 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. Timecode Connections 1 x BNC In, 1 x BNC Out. Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. Talkback Audio SDI channels 13 and 14 for Engineering talkback. SDI channels 15 and 16 for Production talkback. RJ-45 Talkback connector for analog external talkback systems. Screen 2.2 inch LCD Ethernet 1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable. 1 x 1Gb/s for external control and software updates. Computer Interface 1 x USB-C.
Standards:
HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. Audio Sampling Television standard sample rate of 48kHz and 24‑bit. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 709, REC 2020. Multiple Rate Support SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Software:
Software Included Camera Utility for firmware update.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic Studio Converter
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Monitor_Outputs:
1.0
Analog_Audio_Inputs:
2 channel analog Program audio in supported via 9‑pin connector.
Analog_Audio_Outputs:
1 x 6.35 mm headphone jack.
Sdi_Audio_Input:
Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.
Timecode_Connections:
1 x BNC In, 1 x BNC Out.
Reference_Connections:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Talkback_Audio:
SDI channels 13 and 14 for Engineering talkback. SDI channels 15 and 16 for Production talkback. RJ-45 Talkback connector for analog external talkback systems.
Screen:
2.2 inch LCD
Audio_Sampling:
Television standard sample rate of 48kHz and 24‑bit.
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Color_Space:
REC 709, REC 2020.
Multiple_Rate_Support:
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Built_In_Control_Panel:
7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
Control:
Built in Control Panel 7 buttons with spin knob control and 2.2 inch color display for device control and menu settings. External Control RJ-45 1Gb/s Ethernet.
Power_Requirements:
Power Supply 100 - 240V AC input. Power Supply 1 x Internal 100 - 240V AC 50/60Hz. Power Usage 40 W max plus camera power usage.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicstudioconverter/techspecs/hero/blackmagic-studio-converter-sm.jpg?_v=1627541193
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicstudioconverter/techspecs/hero/blackmagic-studio-converter-md.jpg?_v=1627541193
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicstudioconverter/techspecs/hero/blackmagic-studio-converter-xl.jpg?_v=1627541193
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicstudioconverter/techspecs/hero/blackmagic-studio-converter-sm.jpg?_v=1627541193
Blackmagic Camera Fiber Converter
Add to Compare
View Details
Blackmagic Camera Fiber Converter
Price:
HK$26,600
Description:
The Blackmagic Camera Fiber Converter lets you extend and power your URSA Broadcast from up to 2 km away using industry standard SMPTE fiber cables. It also includes common live camera controls with multiple channels of talkback and standard television industry talkback headset connections. The Blackmagic Camera Fiber Converter features 1 Ultra HD camera feed, plus 3 HD return feeds in a compact IP video based design.
Computer_Interface:
1x USB-C connector.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
Na:
Windows 10 and 11.
Software_Included:
Camera Utility for firmware update.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Optical Fiber Input 1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male). SDI Video Input 1x 12G SDI for Camera feed. SDI Video Output 1x 3G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs. Talkback Audio 2x 5-pin XLR for headset with three way audio mixer per output, 1x Tracker output. Analog Audio 2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available. Computer Interface 1x USB-C connector.
Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60 SDI Compliance SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M. Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 709, REC 2020. Multiple Rate Support SDI switches between HD, 3G-SDI, 6G-SDI and 12G‑SDI.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Color_Precision:
10-bit
Video_Sampling:
4:2:2
Color_Space:
REC 709, REC 2020.
Multiple_Rate_Support:
SDI switches between HD, 3G-SDI, 6G-SDI and 12G‑SDI.
Optical_Fiber_Input:
1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male).
Sdi_Videoinput:
1x 12G SDI for Camera feed.
Sdi_Video_Output:
1x 3G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs.
Talkback_Audio:
2x 5-pin XLR for headset with three way audio mixer per output, 1x Tracker output.
Analog_Audio:
2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available.
Audio_Sampling:
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Software:
Software Included Camera Utility for firmware update.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-sm.jpg?_v=1516331547
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-md.jpg?_v=1516331547
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-xl.jpg?_v=1516331546
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-camera-fiber-converter-sm.jpg?_v=1516331547
Blackmagic Studio Fiber Converter
Add to Compare
View Details
Blackmagic Studio Fiber Converter
Price:
HK$27,250
Description:
Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.
Computer_Interface:
1x USB-C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
Na:
Windows 10 and 11.
Software_Included:
Camera Utility for firmware update.
Power_Supply:
100 - 240V AC input.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Optical Fiber Input 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector. SDI Video Input 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1. SDI Video Output 2x 12G SDI for Ultra HD up to 60p. Talkback Audio SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support. Balanced XLR Audio Outputs 4x camera analogue audio outputs. Optical Fiber Outputs 1x Optical I/O via 10 Gb-E (not currently active). Computer Interface 1x USB-C.
Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M. Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 709, REC 2020. Multiple Rate Support SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Color_Precision:
10-bit
Power_Requirements:
Power Supply 100 - 240V AC input.
Sdi_Video_Input:
3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.
Video_Sampling:
4:2:2
Color_Space:
REC 709, REC 2020.
Multiple_Rate_Support:
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Optical_Fiber_Input:
1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector.
Sdi_Video_Output:
2x 12G SDI for Ultra HD up to 60p.
Talkback_Audio:
SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
Audio_Sampling:
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Software:
Software Included Camera Utility for firmware update.
Balanced_Xlr_Audio_Outputs:
4x camera analogue audio outputs.
Optical_Fiber_Outputs:
1x Optical I/O via 10 Gb-E (not currently active).
Src:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-sm.jpg?_v=1574048849
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-md.jpg?_v=1574048848
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-xl.jpg?_v=1574048848
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-sm.jpg?_v=1574048849
Blackmagic URSA Studio Viewfinder G2
Add to Compare
View Details
Blackmagic URSA Studio Viewfinder G2
Price:
HK$12,450
Description:
When you’re working live in the studio or out at an event in a large venue such as a stadium, the URSA Studio Viewfinder G2 gives you everything you need to comfortably operate your URSA Mini in live production! The bright 7” screen has a detachable sunshade and includes large handles and an articulated pivot mount that let you position and move the viewfinder independent of the camera! The large rotary control dials and customizable function buttons let you make on the fly adjustments without having to take your eyes off the action! Set up is quick and easy using the included V-Lock plate and it connects directly to the SDI monitor and power output on your URSA Mini, so you don’t need additional cables or power supplies.
Screen_Dimensions:
7" 1920 x 1200 resolution.
Screen_Type:
7" high brightness TFT LCD
Controls:
Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.
Metadata_Support:
Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.
Computer_Interface:
1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Na:
Windows 10 and 11.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Input 1 x HD/Ultra HD 3G-SDI via BNC. Power Input 1 x 4 pin XLR 12V. Screen Dimensions 7" 1920 x 1200 resolution. Screen Type 7" high brightness TFT LCD Screen Brightness 2000 nits Computer Interface 1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Power_Input:
1 x 4 pin XLR 12V.
Color_Precision:
10-bit.
Tally:
Large LED tally light with customizable perspex camera numbers.
Mounting_Options:
Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.
Power_Requirements:
12V power input via 4 pin XLR connected via URSA Mini 12v power output.
Whats_Included:
Blackmagic URSA Studio Viewfinder G2
Sdi_Video_Input:
1 x HD/Ultra HD 3G-SDI via BNC.
Screen_Brightness:
2000 nits
Hd_Format_Support:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Video_Sampling:
4:2:2 YUV.
Color_Space:
REC 601, REC 709.
Multiple_Rate_Support:
SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.
Handles:
Built in grab handles for positioning the monitor independently from the camera.
Position_Adjustment_Options:
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.
Screen_Interface:
On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
Sdi_Video_Standards:
HD Format Support 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084. Video Sampling 4:2:2 YUV. Color Precision 10-bit. Color Space REC 601, REC 709. Multiple Rate Support SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.
Monitor_Features:
Controls Dial, knobs and customizable function buttons for settings, short cut features and navigating menus. Handles Built in grab handles for positioning the monitor independently from the camera. Position Adjustment Options Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments. Mounting Options Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle. Tally Large LED tally light with customizable perspex camera numbers. Metadata Support Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more. Screen Interface On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-sm.jpg?_v=1636932628
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-md.jpg?_v=1636932628
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-xl.jpg?_v=1636932628
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-sm.jpg?_v=1636932628
Blackmagic URSA Viewfinder
Add to Compare
View Details
Blackmagic URSA Viewfinder
Price:
HK$12,500
Description:
The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!
Focus:
4 Element diopter.
Controls:
Buttons for settings, short cut features and navigating menus.
Metadata_Support:
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
Sdi_Video_Inputs:
1 x 3G-SDI BNC.
Computer_Interface:
USB 2.0 Mini-B port for software updates.
Na:
Windows 10 and 11.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x 3G-SDI BNC. Power Input 1 x 4 pin XLR 12V. Computer Interface USB 2.0 Mini-B port for software updates.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Warranty:
1 Year Limited Manufacturer’s Warranty.
Power_Input:
1 x 4 pin XLR 12V.
Display_Resolution:
Full 1920 x 1080.
Frame_Rates:
Up to 60fps
Display_Type:
OLED
Display_Pixels:
6.22 Million Pixels
Color_Precision:
24 bit RGB, 16.7 million colors
Diopter_Range:
-4 to +3
Overlays:
Built in overlay display processor and top mounted buttons.
Eyepiece:
Can be tilted vertically and extended for left or right eye use.
Tally:
LED tally light.
Mounting_Options:
Camera mount with adjustment.
Features:
Display Resolution Full 1920 x 1080. Frame Rates Up to 60fps Display Type OLED Display Pixels 6.22 Million Pixels Color Precision 24 bit RGB, 16.7 million colors Focus 4 Element diopter. Diopter Range -4 to +3 Controls Buttons for settings, short cut features and navigating menus. Overlays Built in overlay display processor and top mounted buttons. Eyepiece Can be tilted vertically and extended for left or right eye use. Tally LED tally light. Mounting Options Camera mount with adjustment. Metadata Support Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
Power_Requirements:
12V power input via 4 pin XLR connected via 12v power output.
Whats_Included:
Blackmagic URSA Viewfinder 3/8 inch viewfinder mounting thumb screw for URSA
Recommended_Accessories:
Blackmagic URSA Mini Shoulder kit is required for mounting URSA Viewfinder on URSA Mini or URSA Mini Pro.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-sm.jpg?_v=1534810585
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-md.jpg?_v=1534810585
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-xl.jpg?_v=1534810584
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-sm.jpg?_v=1534810585
Blackmagic PYXIS Monitor
Add to Compare
View Details
Blackmagic PYXIS Monitor
Price:
HK$2,450
Description:
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.
Frame_Rates:
Up to 60fps.
Tally:
Rear facing LED tally light.
Na:
Powered over USB-C.
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
USB-C with Locking Connector Video, power, data and software updates.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB-C.
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Display_Resolution:
Full 1920 x 1080.
Display_Type:
LCD capacitive touchscreen.
Features:
Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Usbc_With_Locking_Connector:
Video, power, data and software updates.
Display_Size:
5 inch.
Display_Brightness:
1500 nits.
Accelerometer:
Automatically rotates image when monitor mounted upside down.
On_Screen_Controls:
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls:
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Presets:
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Function_Button_Toggle:
Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting_Points:
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Control:
On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-sm.jpg?_v=1726110493
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-md.jpg?_v=1726110493
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-xl.jpg?_v=1726110493
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-sm.jpg?_v=1726110493
Blackmagic PYXIS Monitor EVF Kit
Add to Compare
View Details
Blackmagic PYXIS Monitor EVF Kit
Price:
HK$5,300
Description:
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as an electronic viewfinder.
Frame_Rates:
Up to 60fps.
Tally:
Rear facing LED tally light.
Na:
Powered over USB-C.
Operating_Temperature:
0°to 40°C (32° to 104°F)
Storage_Temperature:
-20°to 60°C (‑4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
USB-C with Locking Connector Video, power, data and software updates.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB-C.
Environmental_Specifications:
Operating Temperature 0°to 40°C (32° to 104°F) Storage Temperature -20°to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Blackmagic PYXIS Monitor Swivel Mount Blackmagic PYXIS Monitor Fixed Mount and screws Blackmagic PYXIS Monitor Dovetail Shoe and screws Blackmagic URSA Cine EVF Bracket rod mount Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod 2 x short 15mm carbon fibre rods 1 x long USB‑C viewfinder Cable 1 x short USB‑C viewfinder Cable Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Display_Resolution:
Full 1920 x 1080.
Display_Type:
LCD capacitive touchscreen.
Features:
Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Usbc_With_Locking_Connector:
Video, power, data and software updates.
Display_Size:
5 inch.
Display_Brightness:
1500 nits.
Accelerometer:
Automatically rotates image when monitor mounted upside down.
On_Screen_Controls:
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls:
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Presets:
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Function_Button_Toggle:
Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting_Points:
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Mounting_Brackets:
Blackmagic PYXIS Monitor Swivel Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in EVF Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in EVF Kit. Blackmagic URSA Cine EVF Bracket ‑ included in EVF Kit.
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Control:
On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-sm.jpg?_v=1726110494
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-md.jpg?_v=1726110494
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-xl.jpg?_v=1726110494
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-evf-kit-sm.jpg?_v=1726110494
Blackmagic PYXIS Monitor Kit
Add to Compare
View Details
Blackmagic PYXIS Monitor Kit
Price:
HK$3,650
Description:
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
Frame_Rates:
Up to 60fps.
Tally:
Rear facing LED tally light.
Na:
Powered over USB-C.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (‑4° to 140°F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
USB-C with Locking Connector Video, power, data and software updates.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Powered over USB-C.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (‑4° to 140°F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic PYXIS Monitor Blackmagic PYXIS Clip On Sunshade Blackmagic PYXIS Monitor Swivel Mount Blackmagic PYXIS Monitor Fixed Mount and screws Blackmagic PYXIS Monitor Dovetail Shoe and screws 1 x USB-C Viewfinder Cable Welcome wallet with QR code for software download Blackmagic Design Sticker
Warranty:
Product Warranty 1 Year Limited Manufacturer’s Warranty.
Display_Resolution:
Full 1920 x 1080.
Display_Type:
LCD capacitive touchscreen.
Features:
Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down.
Usbc_With_Locking_Connector:
Video, power, data and software updates.
Display_Size:
5 inch.
Display_Brightness:
1500 nits.
Accelerometer:
Automatically rotates image when monitor mounted upside down.
On_Screen_Controls:
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button_Controls:
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function_Button_Presets:
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Function_Button_Toggle:
Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting_Points:
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Mounting_Brackets:
Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit.
Product_Warranty:
1 Year Limited Manufacturer’s Warranty.
Control:
On Screen Controls Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Src:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-sm.jpg?_v=1726110495
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-md.jpg?_v=1726110495
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-xl.jpg?_v=1726110494
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicpyxis/techspecs/hero/blackmagic-pyxis-monitor-kit-sm.jpg?_v=1726110495
Blackmagic URSA Mini Pro B4 Mount
Add to Compare
View Details
Blackmagic URSA Mini Pro B4 Mount
Price:
HK$3,200
Description:
Turn your URSA Mini Pro into an incredibly compact broadcast camera that you can use with your existing high definition B4 broadcast lenses! URSA Mini Pro features a standard 12-pin Hirose lens control connection that’s compatible with both B4 and PL lenses. You can remotely control record start/stop, iris and motorized zoom lenses!
Lens_Mount:
B4 Bayonet style with locking ring
Na:
1 Year Limited Manufacturer’s Warranty.
Whats_Included:
Blackmagic URSA Mini Pro B4 Mount Moulded Mount Case Turret Dust Cap Lens Rear Protective Cover Shim Set Spare Mounting Screws Printed Instructions
Warranty:
1 Year Limited Manufacturer’s Warranty.
Optics_Resolution:
2048 x 1152
Image_Circle:
10.56mm x 5.94mm
Magnification:
1.1x
B4_Spherical_Aberration_Correction:
Yes
Lens_Mount_Features:
Optics Resolution 2048 x 1152 Image Circle 10.56mm x 5.94mm Magnification 1.1x Lens Mount B4 Bayonet style with locking ring B4 Spherical Aberration Correction Yes
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-b4-mount-sm.jpg?_v=1547181367
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-b4-mount-md.jpg?_v=1547181367
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-b4-mount-xl.jpg?_v=1547181367
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-b4-mount-sm.jpg?_v=1547181367
Blackmagic URSA Mini Pro EF Mount
Add to Compare
View Details
Blackmagic URSA Mini Pro EF Mount
Price:
HK$1,450
Description:
The Blackmagic URSA Mini Pro EF Mount lets you use high quality Canon compatible photo lenses with your URSA Mini Pro camera.
Na:
1 Year Limited Manufacturer’s Warranty.
Whats_Included:
Blackmagic URSA Mini Pro EF Mount Moulded Mount Case Shim Set Baffle Tool Spare Mounting Screws Printed Instructions
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-ef-mount-sm.jpg?_v=1539136993
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-ef-mount-md.jpg?_v=1539136993
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-ef-mount-xl.jpg?_v=1539136993
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-ef-mount-sm.jpg?_v=1539136993
Blackmagic URSA Mini Pro F Mount
Add to Compare
View Details
Blackmagic URSA Mini Pro F Mount
Price:
HK$3,100
Description:
The URSA Mini Pro F Mount lets you use your favorite Nikon stills lenses with smooth high precision mechanical iris control. Now you can pair digital film quality with classic Nikon AF-S G and AF-D series lenses.
Na:
1 Year Limited Manufacturer’s Warranty.
Whats_Included:
Blackmagic URSA Mini Pro F Mount F Mount Turret Dust Cap Moulded Mount Case Shim Set Spare Mounting Screws Printed Instructions
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-f-mount-sm.jpg?_v=1539137127
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-f-mount-md.jpg?_v=1539137127
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-f-mount-xl.jpg?_v=1539137126
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-f-mount-sm.jpg?_v=1539137127
Blackmagic URSA Mini Pro PL Mount
Add to Compare
View Details
Blackmagic URSA Mini Pro PL Mount
Price:
HK$2,050
Description:
The Blackmagic URSA Mini Pro PL Mount lets you use the world’s highest quality professional cinema lenses with your URSA Min Pro camera. The PL lens mount features contact pins for compatibility with Cooke’s i/Technology protocol so information such as lens make and model, serial number, iris setting, focus distance and zoom position can be saved as metadata and used in software like DaVinci Resolve. In addition, you can also power and control broadcast style cine-servo zoom lenses using the camera’s 12-pin Hirose connector.
Na:
1 Year Limited Manufacturer’s Warranty.
Whats_Included:
Blackmagic URSA Mini Pro PL Mount Moulded Mount Case Shim Set PL Baffle Baffle Tool Spare Mounting Screws Printed Instructions
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-pl-mount-sm.jpg?_v=1539137184
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-pl-mount-md.jpg?_v=1539137184
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-pl-mount-xl.jpg?_v=1539137184
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-pro-pl-mount-sm.jpg?_v=1539137184
Blackmagic URSA Mini Recorder
Add to Compare
View Details
Blackmagic URSA Mini Recorder
Price:
HK$3,500
Description:
Blackmagic URSA Mini Recorder lets you record Blackmagic RAW files onto 2.5 inch NVMe based 7mm U.2 SSD’s or standard 2.5 inch SSD Media with your URSA Mini Pro 12K! That means you can use commonly available and inexpensive high capacity solid state media! The NVMe based SSD media can record full resolution 12K, 8K and 4K 12‑bit RAW files plus it comes in much larger sizes so you can record longer without having to change disks!
Computer_Interface:
1 x USB Type-C 3.1 Gen 2 with locking screw for bidirectional data link with URSA Mini Pro 12K and software updates.
Media:
Media 1 x 2.5 inch SSD for 4K, 8K and 12K recording.
Na:
1 Year Limited Manufacturer’s Warranty.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Computer Interface 1 x USB Type-C 3.1 Gen 2 with locking screw for bidirectional data link with URSA Mini Pro 12K and software updates.
Supported_Codecs:
Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Connection 12-pin Molex connector with passthrough to battery plate.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Mini Recorder URSA Mini SSD Recorder Mount Plate with mounting screws USB Type-C SuperSpeed+ Cable with locking screw connectors
Warranty:
1 Year Limited Manufacturer’s Warranty.
Power_Connection:
12-pin Molex connector with passthrough to battery plate.
Emc_Certifications:
FCC, CE and KCC.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-recorder-sm.jpg?_v=1594858581
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-recorder-md.jpg?_v=1594858581
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-recorder-xl.jpg?_v=1594858581
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-mini-recorder-sm.jpg?_v=1594858581
Blackmagic URSA Studio Viewfinder G2
Add to Compare
View Details
Blackmagic URSA Studio Viewfinder G2
Price:
HK$12,450
Description:
When you’re working live in the studio or out at an event in a large venue such as a stadium, the URSA Studio Viewfinder G2 gives you everything you need to comfortably operate your URSA Mini in live production! The bright 7” screen has a detachable sunshade and includes large handles and an articulated pivot mount that let you position and move the viewfinder independent of the camera! The large rotary control dials and customizable function buttons let you make on the fly adjustments without having to take your eyes off the action! Set up is quick and easy using the included V-Lock plate and it connects directly to the SDI monitor and power output on your URSA Mini, so you don’t need additional cables or power supplies.
Screen_Dimensions:
7" 1920 x 1200 resolution.
Screen_Type:
7" high brightness TFT LCD
Metadata_Support:
Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.
Controls:
Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.
Computer_Interface:
1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Na:
Windows 10 and 11.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Input 1 x HD/Ultra HD 3G-SDI via BNC. Power Input 1 x 4 pin XLR 12V. Screen Dimensions 7" 1920 x 1200 resolution. Screen Type 7" high brightness TFT LCD Screen Brightness 2000 nits Computer Interface 1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
12V power input via 4 pin XLR connected via URSA Mini 12v power output.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Studio Viewfinder G2
Warranty:
1 Year Limited Manufacturer’s Warranty.
Sdi_Video_Input:
1 x HD/Ultra HD 3G-SDI via BNC.
Power_Input:
1 x 4 pin XLR 12V.
Screen_Brightness:
2000 nits
Hd_Format_Support:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Video_Sampling:
4:2:2 YUV.
Color_Precision:
10-bit.
Color_Space:
REC 601, REC 709.
Multiple_Rate_Support:
SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.
Handles:
Built in grab handles for positioning the monitor independently from the camera.
Position_Adjustment_Options:
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.
Mounting_Options:
Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.
Tally:
Large LED tally light with customizable perspex camera numbers.
Screen_Interface:
On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
Sdi_Video_Standards:
HD Format Support 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084. Video Sampling 4:2:2 YUV. Color Precision 10-bit. Color Space REC 601, REC 709. Multiple Rate Support SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.
Monitor_Features:
Controls Dial, knobs and customizable function buttons for settings, short cut features and navigating menus. Handles Built in grab handles for positioning the monitor independently from the camera. Position Adjustment Options Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments. Mounting Options Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle. Tally Large LED tally light with customizable perspex camera numbers. Metadata Support Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more. Screen Interface On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-sm.jpg?_v=1636932628
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-md.jpg?_v=1636932628
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-xl.jpg?_v=1636932628
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-studio-viewfinder-g2-sm.jpg?_v=1636932628
Blackmagic URSA Viewfinder
Add to Compare
View Details
Blackmagic URSA Viewfinder
Price:
HK$12,500
Description:
The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!
Frame_Rates:
Up to 60fps
Focus:
4 Element diopter.
Metadata_Support:
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
Controls:
Buttons for settings, short cut features and navigating menus.
Computer_Interface:
USB 2.0 Mini-B port for software updates.
Na:
Windows 10 and 11.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x 3G-SDI BNC. Power Input 1 x 4 pin XLR 12V. Computer Interface USB 2.0 Mini-B port for software updates.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
12V power input via 4 pin XLR connected via 12v power output.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic URSA Viewfinder 3/8 inch viewfinder mounting thumb screw for URSA
Warranty:
1 Year Limited Manufacturer’s Warranty.
Power_Input:
1 x 4 pin XLR 12V.
Color_Precision:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Mounting_Options:
Camera mount with adjustment.
Tally:
LED tally light.
Sdi_Video_Inputs:
1 x 3G-SDI BNC.
Display_Resolution:
Full 1920 x 1080.
Display_Type:
OLED
Display_Pixels:
6.22 Million Pixels
Diopter_Range:
-4 to +3
Overlays:
Built in overlay display processor and top mounted buttons.
Eyepiece:
Can be tilted vertically and extended for left or right eye use.
Features:
Display Resolution Full 1920 x 1080. Frame Rates Up to 60fps Display Type OLED Display Pixels 6.22 Million Pixels Color Precision SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084. Focus 4 Element diopter. Diopter Range -4 to +3 Controls Buttons for settings, short cut features and navigating menus. Overlays Built in overlay display processor and top mounted buttons. Eyepiece Can be tilted vertically and extended for left or right eye use. Tally LED tally light. Mounting Options Camera mount with adjustment. Metadata Support Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
Recommended_Accessories:
Blackmagic URSA Mini Shoulder kit is required for mounting URSA Viewfinder on URSA Mini or URSA Mini Pro.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-sm.jpg?_v=1534810585
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-md.jpg?_v=1534810585
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-xl.jpg?_v=1534810584
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicursaminipro/techspecs/hero/blackmagic-ursa-viewfinder-sm.jpg?_v=1534810585
×
