🧩 Blackmagic Products - Final Version
ENG / ä¸ć–‡
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
Streaming and Encoding

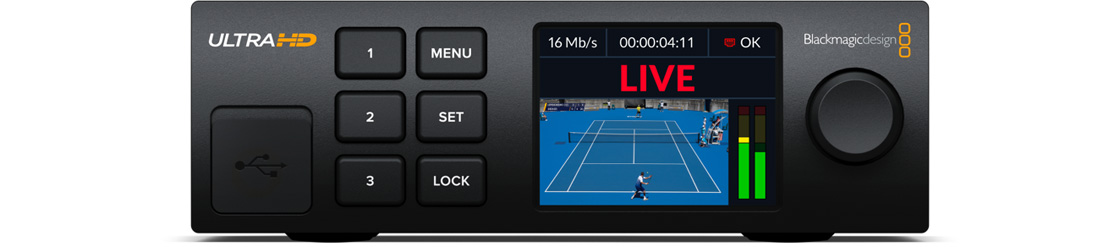

Blackmagic Streaming Decoder 4K
Add to Compare
View Details
Blackmagic Streaming Decoder 4K
Price:
HK$5,550
Description:
Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.
Sdi_Rates:
1.5G, 3G, 6G, 12G
Sdi_Audio_Inputs:
16 channels embedded audio on 12G-SDI Ref In.
Sdi_Audio_Outputs:
16 channels embedded audio on 12G-SDI Ref Out. 16 channels embedded audio on 12G-SDI Out.
Hdmi_Audio_Outputs:
8 channels embedded audio on Monitor Out.
Ethernet:
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Input_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Video_Input_Color_Space:
Rec. 709, Rec. 2020
3g_Sdi:
Auto detects SMPTE level A or B on SDI input.
Video_Streaming_Standards:
720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Hdr_Metadata_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Direct_Streaming:
Receives (RTMP) H.264 or (SRT) H.265 streams from the Blackmagic Streaming Encoder or compatible Blackmagic cameras.
Closed_Captions:
Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Timecode:
Support source timecode over RTMP and SRT streams on 12G-SDIÂ Out.
Control_Panel:
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Device_Control:
Front panel, USB‑C or Ethernet.
External_Control:
Supports remote camera control, color corrector, tally and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications.
N/A:
3 Year Limited Manufacturer’s Warranty.
Compatible_Services_And_Software:
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Power_Supply:
1 x Internal 100 - 240VÂ AC.
12v_Dc_Input:
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
Power_Usage:
TBA
Physical_Installation:
One third rack unit width, 1 rack unit height.
Operating_Temperature:
0° C to 40° C (32° - 104°F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Reference Inputs 1 SDI Video Outputs 1 SDI Reference Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G HDMI 2.0 Video Outputs 1 Frame Rate and Format Converters On 12G-SDI Out and 4K HDMI Out. Live Stream Audio Inputs / Outputs 2 channels embedded Live Stream audio on output. 2 channels embedded Program audio on input. 2 channels embedded talkback audio on input. SDI Audio Inputs 16 channels embedded audio on 12G-SDI Ref In. SDI Audio Outputs 16 channels embedded audio on 12G-SDI Ref Out. 16 channels embedded audio on 12G-SDI Out. HDMI Audio Outputs 8 channels embedded audio on Monitor Out. Webcam Outputs 1 x USB-C up to 2160p60 Ethernet Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Input Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. Video Input Color Space Rec. 709, Rec. 2020 3G SDI Auto detects SMPTE level A or B on SDI input. HDMI HD Video Standards 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 HDMI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 HDMI 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI HDMI Color Precision 4:2:2 HDMI Color Space YUV Video Streaming Standards 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 Video Output Conversion 12G-SDI Out and 4K HDMI Out can follow the streaming standard or be user configured to convert to any of the following standards: 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 HDR Metadata Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Streaming:
Direct Streaming Receives (RTMP) H.264 or (SRT) H.265 streams from the Blackmagic Streaming Encoder or compatible Blackmagic cameras. Closed Captions Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. Timecode Support source timecode over RTMP and SRT streams on 12G-SDI Out.
Control:
Control Panel Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. Device Control Front panel, USB‑C or Ethernet. External Control Supports remote camera control, color corrector, tally and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications.
Software:
Compatible Services and Software Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11. Linux Chrome OS
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC. 12V DC Input 1 x 4-pin XLR for +12V DC input for external power supply or battery use. Power Usage TBA
Environmental_Specifications:
Operating Temperature 0° C to 40° C (32° - 104°F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included:
Blackmagic Streaming Decoder 4K Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Sdi_Reference_Inputs:
1
Sdi_Video_Outputs:
1
Sdi_Reference_Outputs:
1
Hdmi_2.0_Video_Outputs:
1
Frame_Rate_And_Format_Converters:
On 12G-SDI Out and 4K HDMI Out.
Live_Stream_Audio_Inputs_/_Outputs:
2 channels embedded Live Stream audio on output. 2 channels embedded Program audio on input. 2 channels embedded talkback audio on input.
Webcam_Outputs:
1 x USB-C up to 2160p60
Hdmi_Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Hdmi_Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Hdmi_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Video_Output_Conversion:
12G-SDI Out and 4K HDMI Out can follow the streaming standard or be user configured to convert to any of the following standards: 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Src:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-decoder-4k-sm.jpg?_v=1743375041
1324w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-decoder-4k-xl.jpg?_v=1743375040
662w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-decoder-4k-sm.jpg?_v=1743375041
1120w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-decoder-4k-md.jpg?_v=1743375041

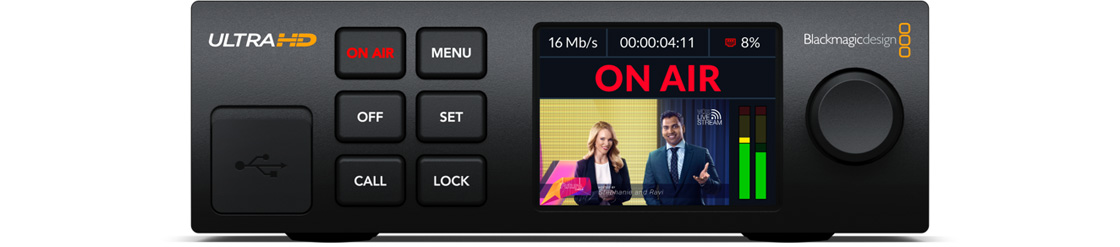

Blackmagic Streaming Encoder 4K
Add to Compare
View Details
Blackmagic Streaming Encoder 4K
Price:
HK$5,550
Description:
Blackmagic Streaming Encoder 4K is powerful self-contained streaming processor with H.264 and H.265 streaming in HD or Ultra HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoring output.
Sdi_Video_Inputs:
1
Sdi_Loop_Outputs:
1
Sdi_Monitor_Outputs:
1
Sdi_Rates:
1.5G, 3G, 6G, 12G
Hdmi_Monitor_Outputs:
1
Sdi_Audio_Inputs:
16 channels embedded audio.
Sdi_Audio_Outputs:
16 channels embedded audio on Loop Out.
Hdmi_Audio_Outputs:
2 channels embedded audio on Monitor Out.
Webcam_Output:
1 x USB-C up to 2160p60
Ethernet:
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra_Hd_Video_Input_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Video_Input_Color_Space:
Rec. 709, Rec. 2020
3g_Sdi:
Auto detects SMPTE level A or B on SDI input.
Sdi_And_Hdmi_Monitor_Out_Video_Standards:
1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Hdr_Metadata_Support:
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Direct_Streaming:
Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.
Closed_Captions:
Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Timecode:
Support source timecode over RTMP and SRTÂ streams.
Control_Panel:
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Device_Control:
Front panel, USB‑C or Ethernet.
External_Control:
Supports remote camera control, color corrector, tally and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications.
N/A:
3 Year Limited Manufacturer’s Warranty.
Compatible_Services_And_Software:
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Power_Supply:
1 x Internal 100 - 240VÂ AC.
12v_Dc_Input:
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
Power_Usage:
25 W
Physical_Installation:
One third rack unit width, 1 rack unit height.
Operating_Temperature:
0° C to 40° C (32° - 104°F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Loop Outputs 1 SDI Monitor Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G HDMI Monitor Outputs 1 SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio on Loop Out. HDMI Audio Outputs 2 channels embedded audio on Monitor Out. Webcam Output 1 x USB-C up to 2160p60 Ethernet Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Input Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. Video Input Color Space Rec. 709, Rec. 2020 3G SDI Auto detects SMPTE level A or B on SDI input. SDI and HDMI Monitor Out Video Standards 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 HDR Metadata Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Streaming:
Direct Streaming Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265. Closed Captions Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. Timecode Support source timecode over RTMP and SRT streams.
Control:
Control Panel Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. Device Control Front panel, USB‑C or Ethernet. External Control Supports remote camera control, color corrector, tally and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications.
Software:
Compatible Services and Software Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11. Linux Chrome OS
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC. 12V DC Input 1 x 4-pin XLR for +12V DC input for external power supply or battery use. Power Usage 25 W
Environmental_Specifications:
Operating Temperature 0° C to 40° C (32° - 104°F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included:
Blackmagic Streaming Encoder 4K Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-4k-sm.jpg?_v=1743375041
1324w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-4k-xl.jpg?_v=1743375041
662w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-4k-sm.jpg?_v=1743375041
1120w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-4k-md.jpg?_v=1743375041

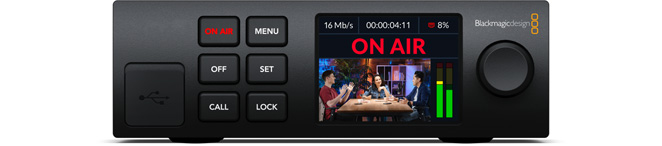

Blackmagic Streaming Encoder HD
Add to Compare
View Details
Blackmagic Streaming Encoder HD
Price:
HK$4,250
Description:
Blackmagic Streaming Encoder HD is powerful self-contained streaming processor with H.264 streaming in 720p, 1080i and 1080p HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoring output.
Sdi_Video_Inputs:
1
Sdi_Loop_Outputs:
1
Sdi_Monitor_Outputs:
1
Sdi_Rates:
1.5G, 3G, 6G, 12G
Hdmi_Monitor_Outputs:
1
Sdi_Audio_Inputs:
16 channels embedded audio.
Sdi_Audio_Outputs:
16 channels embedded audio on Loop Out.
Hdmi_Audio_Outputs:
2 channels embedded audio on Monitor Out.
Webcam_Output:
1 x USB-C up to 1080p60
Ethernet:
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Hd_Video_Input_Standards:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
Ultra_Hd_Video_Input_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Video_Input_Color_Space:
Rec. 709, Rec. 2020
3g_Sdi:
Auto detects SMPTE level A or B on SDI input.
Sdi_And_Hdmi_Monitor_Out_Video_Standards:
1080p50, 1080p59.94, 1080p60
Video_Streaming_Standards:
720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Direct_Streaming:
Blackmagic Streaming Encoder HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265.
Closed_Captions:
Blackmagic Streaming Encoder HD supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Timecode:
Support source timecode over RTMP and SRTÂ streams.
Control_Panel:
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Device_Control:
Front panel, USB‑C or Ethernet.
External_Control:
Supports remote camera control, color corrector, tally and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications.
N/A:
3 Year Limited Manufacturer’s Warranty.
Compatible_Services_And_Software:
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Power_Supply:
1 x Internal 100 - 240VÂ AC.
12v_Dc_Input:
1 x 4-pin XLR for +12V DC input for external power supply or battery use.
Power_Usage:
21 W
Physical_Installation:
One third rack unit width, 1 rack unit height.
Operating_Temperature:
0° C to 40° C (32° - 104°F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Loop Outputs 1 SDI Monitor Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G HDMI Monitor Outputs 1 SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio on Loop Out. HDMI Audio Outputs 2 channels embedded audio on Monitor Out. Webcam Output 1 x USB-C up to 1080p60 Ethernet Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Standards:
HD Video Input Standards 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, Ultra HD Video Input Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. Video Input Color Space Rec. 709, Rec. 2020 3G SDI Auto detects SMPTE level A or B on SDI input. SDI and HDMI Monitor Out Video Standards 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Streaming:
Direct Streaming Blackmagic Streaming Encoder HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265. Closed Captions Blackmagic Streaming Encoder HD supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. Timecode Support source timecode over RTMP and SRT streams.
Control:
Control Panel Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. Device Control Front panel, USB‑C or Ethernet. External Control Supports remote camera control, color corrector, tally and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications.
Software:
Compatible Services and Software Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
Operating_Systems:
Mac 14.0 Sonoma, Mac 26.0 Tahoe or later. Windows 10, 64-bit. Windows 11. Linux Chrome OS
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC. 12V DC Input 1 x 4-pin XLR for +12V DC input for external power supply or battery use. Power Usage 21 W
Environmental_Specifications:
Operating Temperature 0° C to 40° C (32° - 104°F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
What's_Included:
Blackmagic Streaming Encoder HD Welcome wallet with QR code for software download
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-hd-sm.jpg?_v=1765420920
1324w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-hd-xl.jpg?_v=1765420920
662w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-hd-sm.jpg?_v=1765420920
1120w:
https://images.blackmagicdesign.com/images/products/blackmagicstreamingprocessors/techspecs/hero/blackmagic-streaming-encoder-hd-md.jpg?_v=1765420920
×
